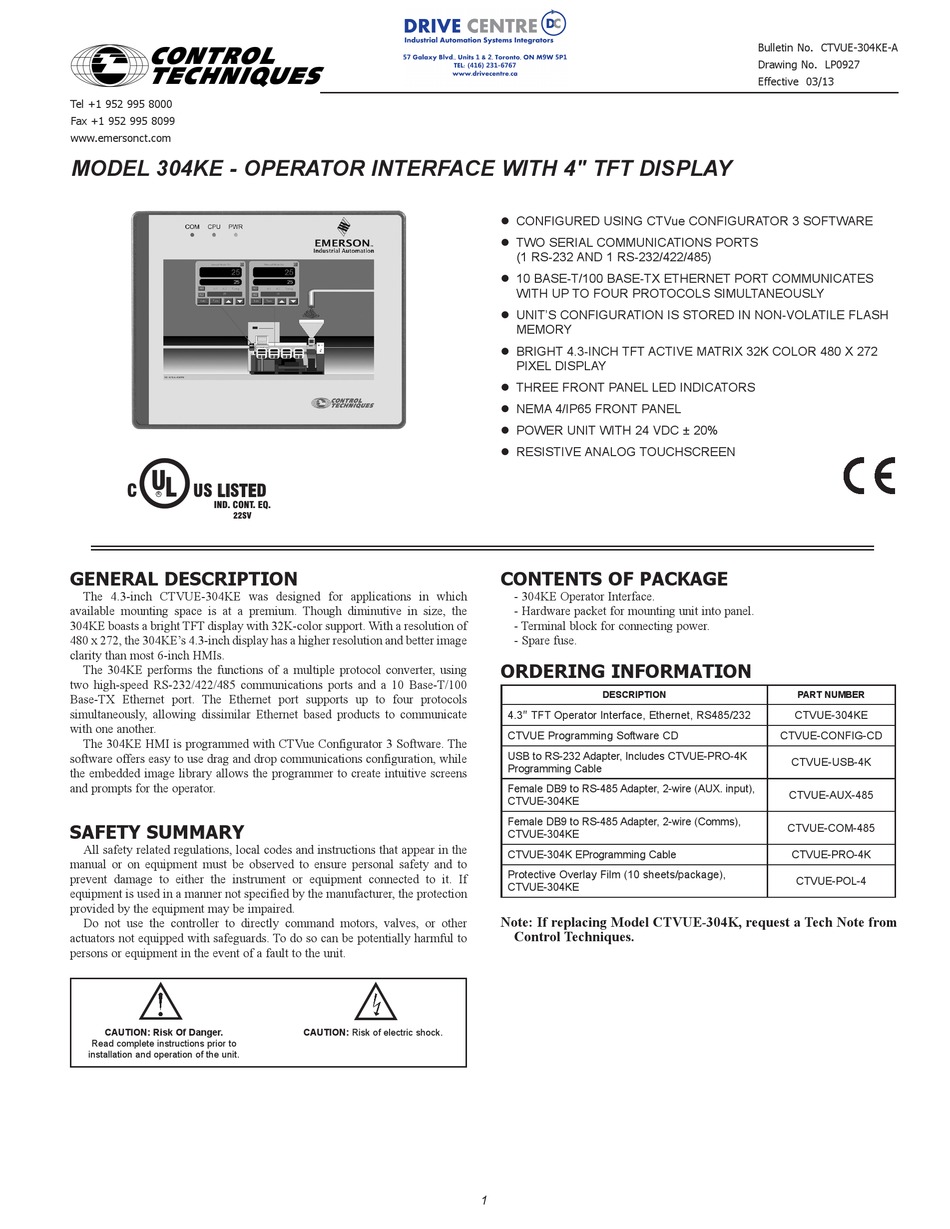

MODEL 304KE - OPERATOR INTERFACE WITH 4" TFT DISPLAY
U L
C
US LISTED
R
IND. CONT. EQ.
22SV
GENERAL DESCRIPTION

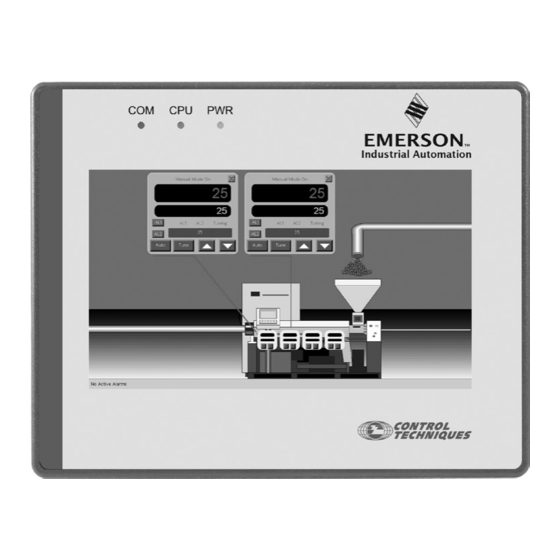

The 4.3-inch CTVUE-304KE was designed for applications in which
available mounting space is at a premium. Though diminutive in size, the
304KE boasts a bright TFT display with 32K-color support. With a resolution of
480 x 272, the 304KE's 4.3-inch display has a higher resolution and better image
clarity than most 6-inch HMIs.
The 304KE performs the functions of a multiple protocol converter, using
two high-speed RS-232/422/485 communications ports and a 10 Base-T/100
Base-TX Ethernet port. The Ethernet port supports up to four protocols
simultaneously, allowing dissimilar Ethernet based products to communicate
with one another.
The 304KE HMI is programmed with CTVue Configurator 3 Software. The
software offers easy to use drag and drop communications configuration, while
the embedded image library allows the programmer to create intuitive screens
and prompts for the operator.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the unit.
CAUTION: Risk Of Danger.
Read complete instructions prior to
installation and operation of the unit.
CAUTION: Risk of electric shock.
1
z CONFIGURED USING CTVue CONFIGURATOR 3 SOFTWARE
z TWO SERIAL COMMUNICATIONS PORTS
(1 RS-232 AND 1 RS-232/422/485)
z 10 BASE-T/100 BASE-TX ETHERNET PORT COMMUNICATES
WITH UP TO FOUR PROTOCOLS SIMULTANEOUSLY
z UNIT'S CONFIGURATION IS STORED IN NON-VOLATILE FLASH
MEMORY
z BRIGHT 4.3-INCH TFT ACTIVE MATRIX 32K COLOR 480 X 272
PIXEL DISPLAY
z THREE FRONT PANEL LED INDICATORS
z NEMA 4/IP65 FRONT PANEL
z POWER UNIT WITH 24 VDC ± 20%
z RESISTIVE ANALOG TOUCHSCREEN
CONTENTS OF PACKAGE
- 304KE Operator Interface.
- Hardware packet for mounting unit into panel.
- Terminal block for connecting power.
- Spare fuse.
ORDERING INFORMATION
DESCRIPTION
"
4.3
TFT Operator Interface, Ethernet, RS485/232
CTVUE Programming Software CD
USB to RS-232 Adapter, Includes CTVUE-PRO-4K
Programming Cable
Female DB9 to RS-485 Adapter, 2-wire (AUX. input),
CTVUE-304KE
Female DB9 to RS-485 Adapter, 2-wire (Comms),
CTVUE-304KE
CTVUE-304K EProgramming Cable
Protective Overlay Film (10 sheets/package),
CTVUE-304KE
Note: If replacing Model CTVUE-304K, request a Tech Note from
Control Techniques.
Bulletin No. CTVUE-304KE-A
Drawing No. LP0927
Effective 03/13
PART NUMBER
CTVUE-304KE
CTVUE-CONFIG-CD
CTVUE-USB-4K
CTVUE-AUX-485
CTVUE-COM-485
CTVUE-PRO-4K
CTVUE-POL-4
