GE 45413 User Manual

Glass vibration alarm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Personal Security
Glass
Vibration
Alarm
User Manual
Do not use in wet locations

Advertisement

Table of Contents
loading

Related Manuals for GE 45413

Summary of Contents for GE 45413

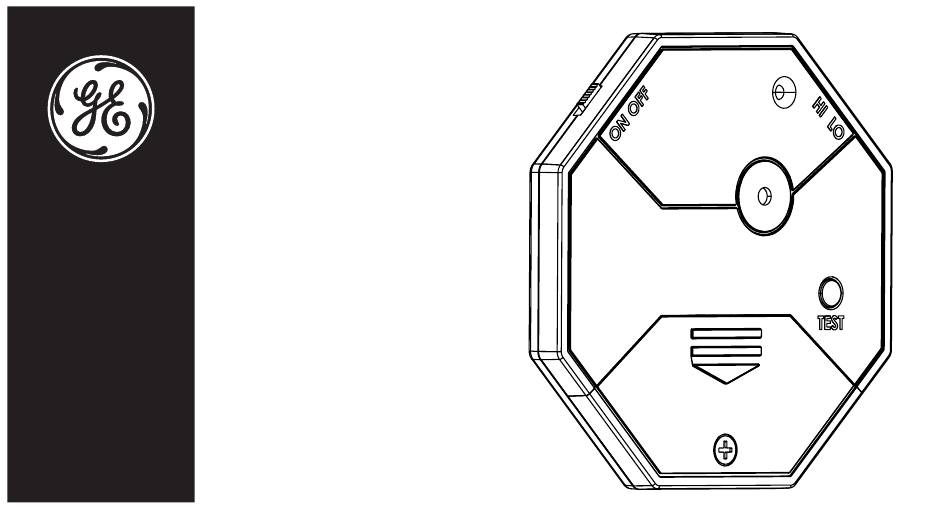

  • Page 1 Personal Security Glass Vibration Alarm User Manual Do not use in wet locations...

  • Page 2: Table Of Contents

    Table of Contents Important Safeguards Introduction Installing Batteries Low Battery Indicator Installation Operation Sensitivity Selection Care and Maintenance Specification 13-15 Warning...
  • Page 3 Before connecting or operating the Glass Vibration Alarm, please read these instructions carefully and save this manual for future reference. This user manual explains in simple steps how to install, use and care for your new Personal Security Glass Vibration Alarm. If you have any questions or would like additional information please visit our web site www.jascoproducts.com or contact our Technical Support Group at 1-800-654-8483, option 4.

  • Page 4: Important Safeguards

    Important safeguards Pre cautions 1. Do not attempt to disassemble the Glass Vibration Alarm, unless described in the user’s manual. There are no user serviceable parts. 2. Handle with Care – Avoid striking or shaking. Improper use or storage could damage the Glass Vibration Alarm.

  • Page 5: Introduction

    Introduction The Glass Vibration Alarm is designed to be mounted on glass where there is a potential for tampering or breakage. The thin profile makes it ideal for mounting between sliding windows and glass doors. When mounted properly it will sound an alarm when glass has been broken or there is excessive Indicator Light vibration.

  • Page 6: Installing Batteries

    Installing Batteries The alarm requires (4) LR44 or 357 button batteries (included). Average battery life for typical usage is up to one year. 1. Make sure alarm ON/OFF switch is set to “OFF” position. 2. Remove the screw securing the battery compartment cover. 3.

  • Page 7: Low Battery Indicator

    Installation Your GE Personal Security Glass Vibration Alarm is an octagon shaped alarm with a visible warning sticker on opposite side (facing out). Before mounting to glass ensure proper orientation so that warning sticker can be easily viewed.
  • Page 8 1. Locate a position on the window or sliding glass door to be protected that allows easy access to the alarm controls, and access to the battery door. Make sure switch is in the OFF position, and the mounting surface is clean and dry. For best results, clean the mounting surface with a mixture of 50% isopropyl alcohol and 50% water.
  • Page 9 Your GE Personal Security Glass Vibration Alarm has a thin profile and can be placed between sliding windows and sliding glass doors. Note: There must be at least a 3/8” gap between windows and doors to prevent damage to alarm.

  • Page 10: Operation

    2. To disarm the alarm, slide the switch to the OFF position. Sensitivity Selection The GE Glass Vibration Alarm has a selectable HI/LO sensitivity switch. Locate the switch on the side and select the desired sensitivity setting. Select “LO” position for...

  • Page 11: Care And Maintenance

    Care and Maintenance To clean the unit housing, use a soft cloth slightly dampened with water and wipe dry. Do not use chemical agents as this may damage and discolor the unit.

  • Page 12: Specification

    Specification: Low Battery Voltage-Level Indicator: 4~4.7V DC (Testing Button) Power Supply: 4 LR44 Batteries Battery Good: Red LED lights up Operating Voltage: 4~6V DC Battery Voltage-Level Low: Red LED does not light up Operating Current: <40mA (6V DC) Operating Temperature: 0˚F~40˚F Standby Current: <8uA (6V DC) Alarm Sound Period: Continuous Alarm Sound-Level: >95dB SPL @ 30cm...

  • Page 13: Warning

    WARNING Limitations of Alarm Products This product should be tested periodically to make sure it is working properly. The product, if used properly, may reduce the risk of burglary, robbery, or other adverse events. However, JASCO is not an insurer, this product is neither insurance nor a guarantee that such an event will be prevented, and users should protect themselves with proper insurance.
  • Page 14 WARNING Risk of personal injury • Prolonged exposure to alarm siren may cause permanent hearing loss Battery Warning • Remove batteries if the Alarm will not be used for extended periods • Batteries may leak harmful liquids or ignitable materials or explode causing injury and product damage •...
  • Page 15 800-654-8483 option 4 between 7:30 AM—5:00 PM CST or via our website (www.jascoproducts.com) if the unit should prove defective within the warranty period. GE is a trademark of the General Electric Company and is used under license to Jasco Products Company LLC, 10 E. Memorial Road, Oklahoma City, OK 73114.
