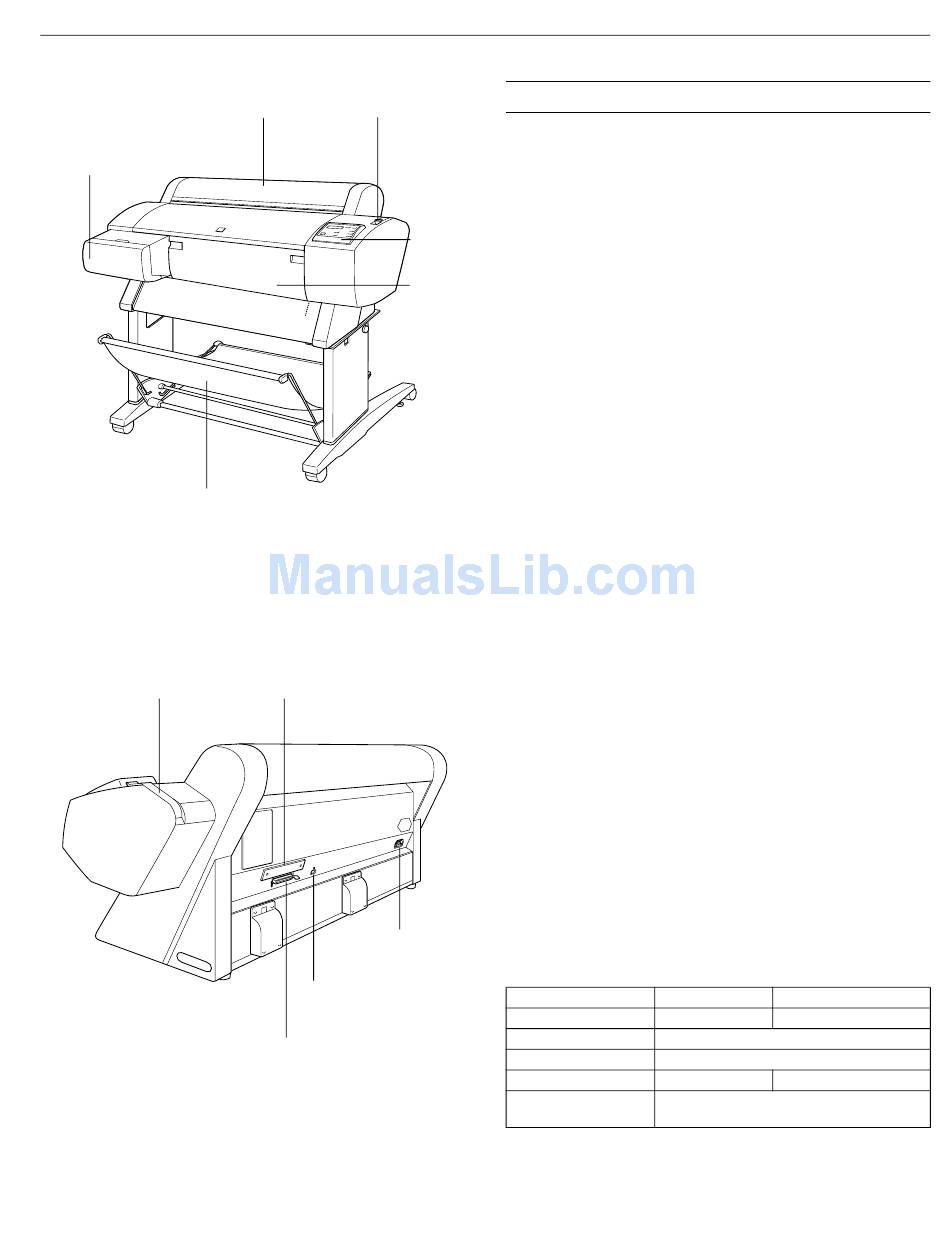

roll paper cover
ink cartridge
compartment
paper hammock
Note:
The stand is optional.
paper set lever
parallel interface connector
Note:
The parallel and USB interfaces cannot be connected at the same
time.
paper set lever
control
panel
lower
cover
optional interface
shield plate
AC inlet
USB interface
connector
EPSON Stylus Pro 7000 series
Printer Specifications
Printing
Printing method On-demand ink jet
Nozzle
Black: 64 nozzles
configuration
Color: 64 nozzles for each color: (cyan,
magenta, yellow, light cyan, light magenta)
Maximum 1440 dpi × 720 dpi
Resolution
Maximum
23.76 inches on 24-inch paper
printable width
Print direction
Bidirectional or unidirectional
(user-selectable)
Control code
ESC/P
Line spacing
1/6 inch (default), programmable in
1/360-inch increments
Paper feed speed 200 ± 10 milliseconds per 1/6-inch line
RAM
10MB
Engine Reliability
Total print
20,000 A1 images, 30% coverage
volume
(or 5 years)
Print head life
Two billion dots per nozzle
Periodic
Waste ink system requires replacement after
maintenance
approximately 12,000 sheets under normal
usage (parts and labor not covered under
warranty)
Cutter blade life Approximately 2000 A1 sheets (EPSON
media up to 4.33 mil thick)
Electrical
Specification
Input voltage range
Rated frequency range
Input frequency range
Rated current
Power consumption
8/00
®
Raster
120V Model
220−240V Model
90 to 132V
198 to 264V
50 to 60 Hz
49 to 61 Hz
1.0A
0.5A
Approx. 100W (ISO/IEC 10561 Letter Pattern)
15W or less in standby mode
EPSON Stylus Pro 7000 series - 1
