Summary of Contents for Dimplex Girona GFP050E

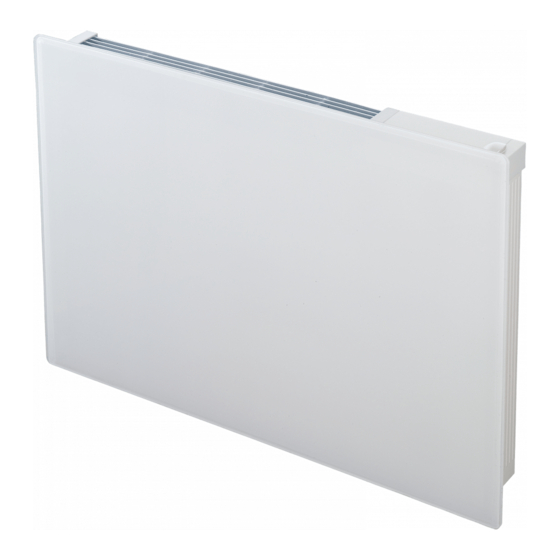

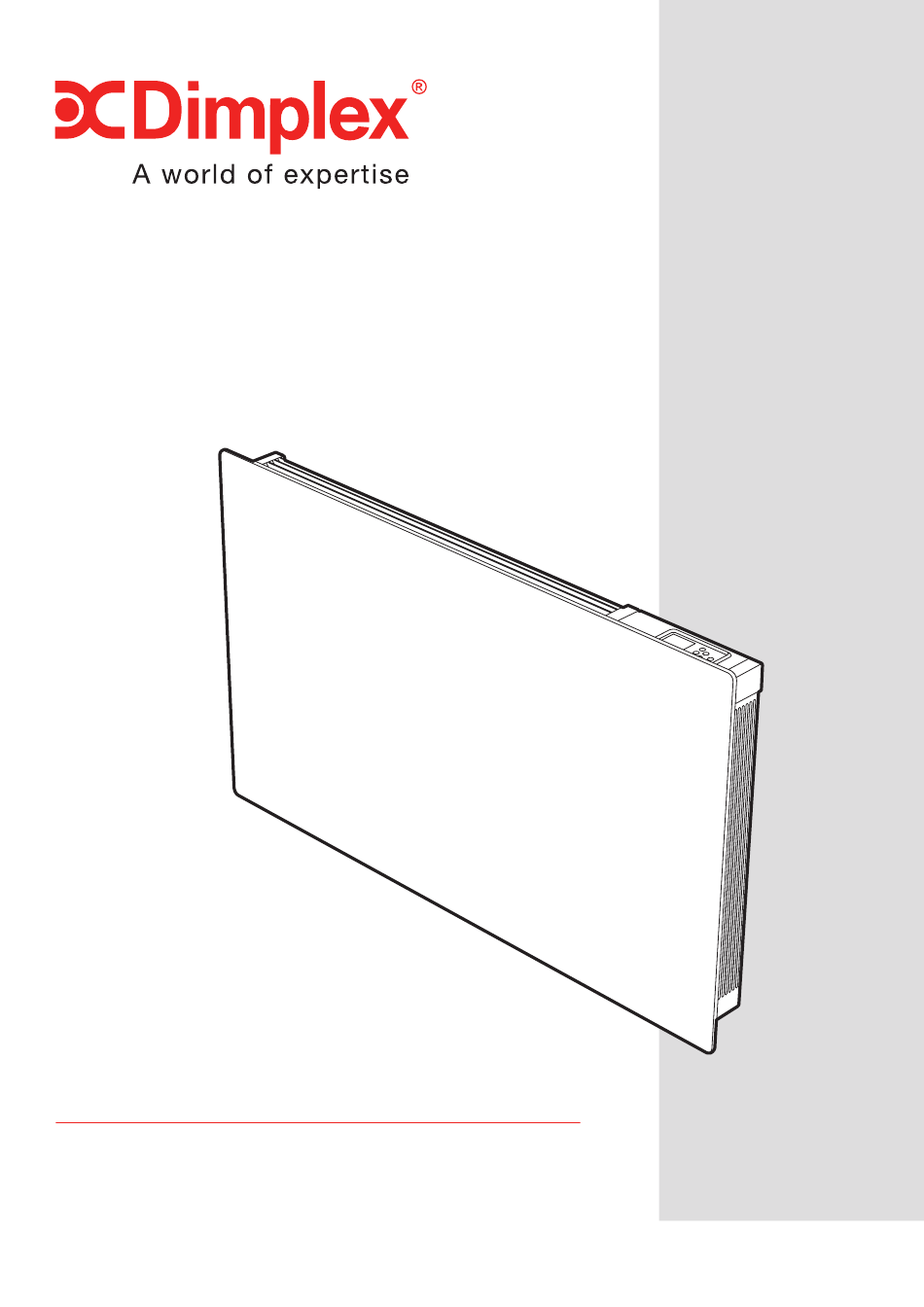

- Page 1 INSTRUCTION MANUAL Installation and Operating Dimplex Girona (GFPE) Models: GFP050E / GFP075E / GFP100E GFP150E / GFP200E These instructions should be read carefully and retained for future use. Note also the information presented on the appliance. ISSUE: 1 Series: A...
- Page 2 CAUTION: Do not use if the heater’s mains power lead is damaged. If the supply cord is damaged it must be replaced by the installer or an approved Dimplex service partner.
- Page 3 ELECTRICAL INSTALLATION WARNING - The electrical installation of this heater must be carried out by a suitably qualified or trained electrician, and be in strict accordance with the current wiring Regulations BS 7671. The supply must be connected via a switched fused spur with a fuse rated suitably for the appliances flex.
-
Page 4: Technical Details
Energy Related Product Directive This product complies with Lot20 of the Energy Efficiency Directive (2015/1188). Type of heat output/ room temperature control With electronic room temperature control Electronic room temperature control plus week timer With open window detection With adaptive start control Technical Details Model Identifier(s): 050E... - Page 5 Class I, with earth wire Colour / Finish Metal Chassis, Air Outlet Grille & Control Moulding - Traffic White (RAL 9016) Approvals CE, BEAB Warranty 2 years Country of Origin United Kingdom Manufacturer Glen Dimplex Heating & Ventilation (GDC Group Ltd.)
-
Page 6: General Information
General Information Please read the instructions closely before first using the product, there is also a quick-start guide on page 8 if you need a reminder of how to use the basic functions in the future. The heater is designed for wall mounting using the wall bracket supplied. It should only be operated when in the upright position as shown - see Fig.3 and Fig.4. - Page 7 To mount the heater to the wall: 1. Remove wall mounting bracket from the back of the heater by depressing the spring latch at the side of each bracket - see Fig.2. 2. Fix the wall bracket securely to the wall through the four screw holes. Ensure only screw fittings provided are used for the particular wall type.
- Page 8 If you require a different room temperature then press either until the display shows the temperature you require. Timer Modes Timer Mode Description Your Dimplex GFPE Panel comes pre-programmed with four timer User timer Customise times in four periods modes. These modes define Out All Day...
- Page 9 Which Timer Mode is Best for Me? The heater leaves the factory set in Out All Day mode. If you are out during the day and only require heat in the mornings and evenings then this mode will suit your lifestyle and you won’t need to alter anything.
- Page 10 Operation Manual WARNING: FAILURE TO FOLLOW THESE OPERATING INSTRUCTIONS MAY RESULT IN INJURY AND/OR DAMAGE. The controls are located on top of the heater. The heater is fitted with an adjustable electronic controller consisting of a display screen and six touch sensitive buttons. Display Screen ‘Menu’...
-
Page 11: Control Functions
Control Functions The heater controls can be easily adjusted by using the six buttons on the User Interface. The Display Screen shows the options available at each stage of adjustment. Menu - displays the main options list; - Date/Time - Set the date and time. - Mode - Set the mode of operation. -
Page 12: Main Screen
Main Screen After 30 seconds the heater will default back to the Main Screen. Here the current target temperature (setpoint) is displayed along with the mode of operation. Any use of the Advance function will be displayed here, and pressing Enter will show the functions which are enabled. When left inactive for a long period of time this display will ‘sleep’... -
Page 13: Modes Of Operation
Modes of Operation The heater comes pre-programmed with a set of heating profiles. The user can can change if he / she want to. There are four options available - three pre-programmed and one user adjustable timer; Out All Day (pre-programmed) - has the following preset times Monday to Sunday, which can be altered if desired 07.00 until 08.30 17.30 until 22.00 Home All Day (pre-programmed) - has the following preset times Monday to Sunday, which can be altered if desired;... - Page 14 Choosing and Setting a Mode Timer Modes To choose a timer mode press Menu and then to select Mode. Then press Enter. Then select Timer Mode, again using the Enter button. followed by Enter. Select the mode required, by pressing For options Out All Day, Home All Day and User Timer, three choices are available - Select, Preview and Modify.
- Page 15 If EcoStart (ES) is disabled, the heater will not operate until the beginning of the heating period. This should be taken into consideration when setting the heating periods. In Holiday mode the number of days that the room will remain unoccupied for can be adjusted together with the required room temperature.
- Page 16 Advance The Advance function allows the heating profile of the heater to be changed temporarily. When a timer has been selected, the Advance Advance function is used to begin the next Comfort On mode early. If the heater is in Comfort Off mode and heat is required, press the Advance button.
-
Page 17: Child Lock
Child Lock To lock the controls press Back and Enter for three seconds. Child Lock will appear at the bottom of the screen. To unlock the control repeat the action of pressing Back and Enter for three seconds. Child Lock NOTE The controls cannot be adjusted when child lock is active. - Page 18 Runback Lock Mode Introduction 12:00 This appliance has a built in runback lock mode, when this Comfort Off mode is activated the user will have limited functionality with no access to the settings of the runback timer. It is possible to limit the maximum operating temperature and runback duration in the runback lock mode.
- Page 19 Accessing Runback Lock Mode In order to enter the Runback Lock menu, Back, Menu 12:00 & Enter must be pressed simultaneously and held for Comfort Off 10 seconds. The user will then be prompted to enter the runback lock PIN. NOTE Runback The default password is 0000, the password...
- Page 20 Runback Duration During setup it is possible to select from a number of preset runback periods. This is achieved by selecting the maximum runback time. The maximum runback time is subdivided into four periods to deliver options to the user. The maximum time options and corresponding runback periods are shown in the table below.
-
Page 21: Battery Replacement
Battery replacement IMPORTANT: Before replacing the battery ensure the heater is isolated from the electricity supply. NOTE - Battery should be disposed of in an appropriate manner This product is fitted with a replaceable battery in the controls. To replace the battery, follow the steps below, shown in Fig. 6: 1. -
Page 22: Energy Saving Tips
Energy Saving Tips The energy we use to heat, light and power our homes contributes over a quarter of the UK’s carbon emissions, the principle contributor to climate change. Around half the energy used in the home is for heating and hot water, so using your heating system efficiently will not only help the environment, but also save you money. - Page 23 If you are a consumer and you experience a problem with your Dimplex product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Dimplex Guarantee will cover repair or - at the discretion of Dimplex – replacement with a functionally equivalent Dimplex product.
- Page 24 • You must provide to Dimplex or its authorised agents on request the original receipt as proof of purchase and - if required by Dimplex - proof of delivery. If you are unable to provide this documentation, you will be required to pay for any repair work required.
- Page 25 Monterey/Girona Wiring Diagram Feb 2018 Earth Cut Out Auto Reset Dashed line = White Wire Solid line = Black Wire Room Sensor SCALE 0.500...
- Page 26 Millbrook House, Grange Drive, Hedge End, Southampton, SO30 2DF © GDC Group Ltd. trading as Glen Dimplex Heating and Ventilation “GDHV”. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Dimplex. A division of GDC Group Ltd.
