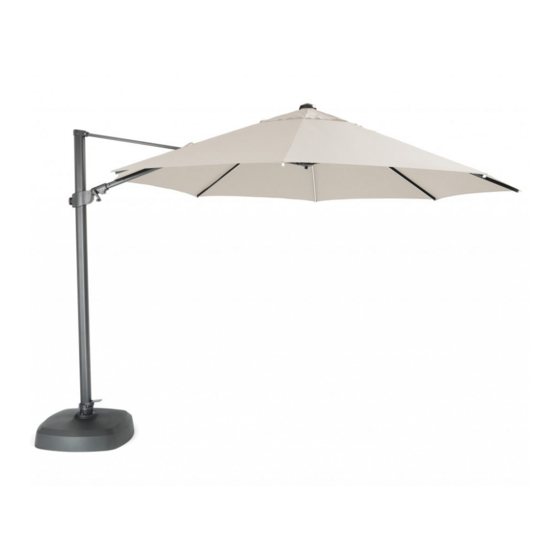

- Page 1 Assembly Instructions 3.3 m LED Free Arm Parasol PL33 IMPORTANT PLEASE KEEP THIS BOOKLET FOR FUTURE REFERENCE. THIS IS IMPORTANT INFORMATION REGARDING THE MINUTES USE AND CARE OF YOUR GARDEN FURNITURE. ASSEMBLY PERSONS TIME REQUIRED August 2021...
-
Page 2: Parts List
6. Do not use any other tools other than those recommended to build this product. 7. Please do not use substitute parts. Use only additional or replacement parts supplied by Kettler. 8. In the unlikely event that this product has missing or damaged parts, please visit our website... - Page 3 Assembly Each section of the base requires 20kg of sand and then needs Sand to be topped up with Water water. Water alone will not support the base. Tip: use kiln dried Open sand for easier filling. Close...
- Page 4 Assembly You may need to re-position the pedal at this stage to fit the base sections together. The solar panel clicks in and twists. The solar panel will require 8 hours of sunlight to become fully charged. To charge from flat the solar lights will be required to be switched off.
- Page 5 Assembly...
- Page 6 Operating Instructions CAUTION: DO NOT open the parasol counter-clockwise. It will not stay open and may close unexpectedly. Crank clockwise to open, counter-clockwise to close. Storage Tie CAUTION: When cranking the parasol open, if you feel resistance and the canopy is not opening, do not force the crank handle.
- Page 7 Operating Instructions To operate LED lights, press the rocker switch located on the Umbrella (A) pole on or off. Note: a) The Solar Panel (B) contains two lithium batteries (2 x 2200mAh). Press the switch to the off position Light Switch during daylight to allow the solar panel to charge the batteries.
- Page 8 Operating Instructions Changing an LED light strip. Assembly Disassembly...
- Page 9 Operating Instructions The parasol should be closed and the night cover fitted in windy conditions and when not in use. Failure to do this may result in damage to the parasol. The night cover fits over the canopy and frame. Protective cover assembly: Fiberglass supporting...
- Page 10 User guide: • To turn on, hold down the power button for 3 seconds. • Turn on your device’s Bluetooth function and search for “Kettler”. • The run time is approx. 6-10 hours. • To turn the light on/off press the “LED” button.
- Page 11 Information This parasol has UV50+ protection. What does that mean? For example, a fabric with a UPF rating of 50 only allows 1/50th of the sun’s UV radiation to pass through it. This means that this fabric will reduce your skin’s UV radiation exposure by 50 times (98% UV block).
-
Page 12: For Your Safety
• Damaged components may endanger your safety or shorten the life of the product. Replace all damaged parts immediately. Use only spare parts manufactured by Kettler. Should you wish to purchase spare parts, they can be ordered directly from: www.kettler.co.uk/shop •...
