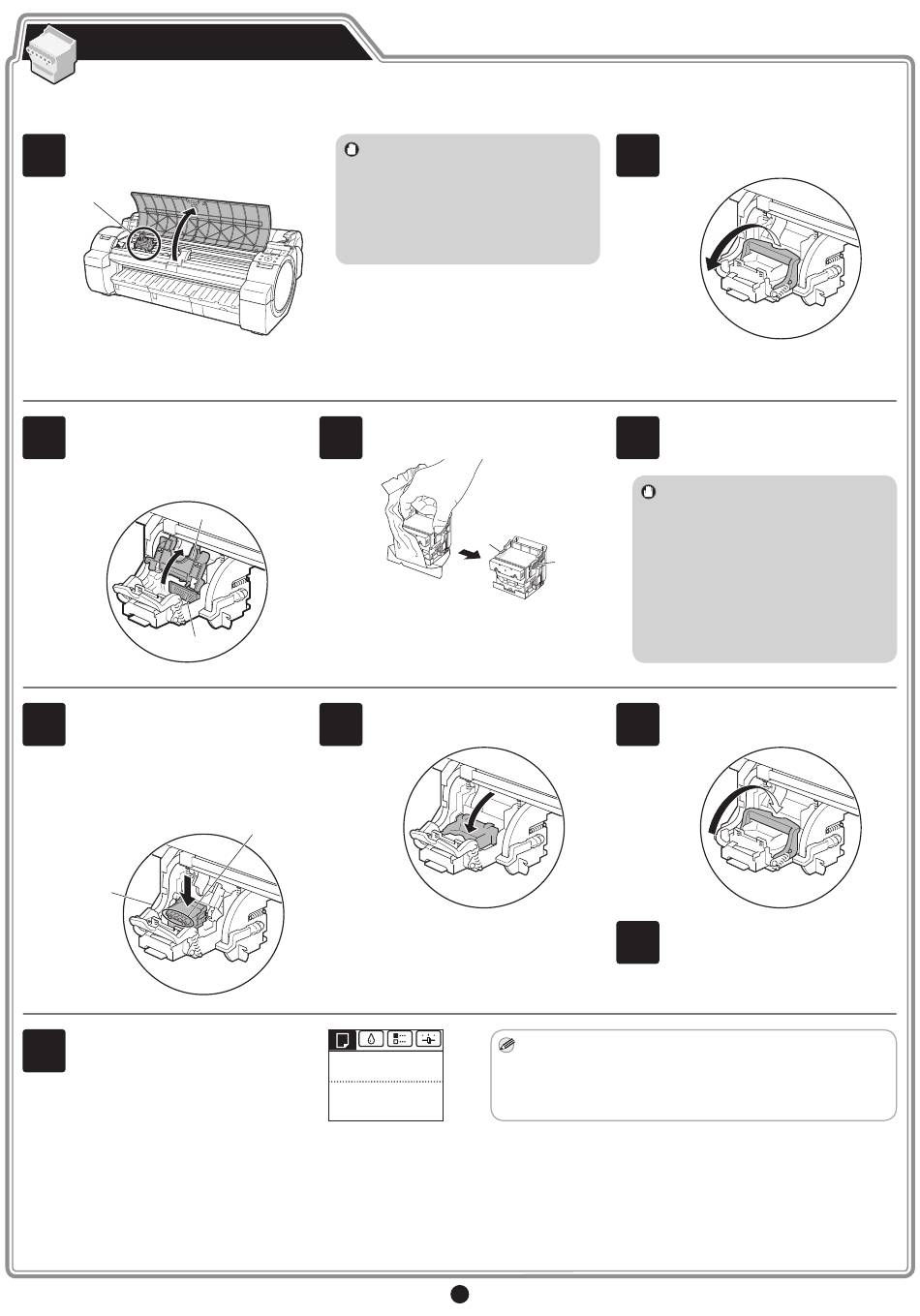

Install the Printhead
Install the printhead by following the guidance displayed on the printer display.
1
Open Upper Cover is shown on the
display screen. As instructed, open the
top cover.
a
Instructions on printhead attachment are
shown on the display screen.
3
Lift the printhead fixer cover (a) to open it
fully.
At this time, make sure that no debris
becomes adhere to the contacts (b) on
the carriage.
b
6
Insert the printhead into the carriage (b)
with the ink holes (a) facing away from the
printer as shown in the figure. Carefully
push the printhead firmly into the carriage
(b), ensuring that the part covered by
the protective part does not touch the
carriage.
b
10
Charging the system with ink begins
automatically. Charging the ink takes
around 10 minutes.
Once the screen on the right appears on
the display, the ink charging is complete.
It is recommended that you begin
installing the software while waiting for
charging the ink to complete. (See "Install
the Software" on P.4)
• When installing the printhead, do not
Important
4
Hold the printhead by the grips (a) as you
remove it from the pouch.
a
7
Pull the printhead fixer cover down toward
the front to lock the printhead in place.
a
No Paper Loaded
OK: Paper Menu
Load the paper.
move the carriage (a) from the position
shown in the figure.
If you move the carriage (a), a warning
noise sounds and the printhead cannot
be installed.
If you have moved the carriage (a), close
the top cover. The carriage (a) moves to
the position shown in the figure.
a
• Charging the system with ink fills the system from the ink tanks to
the printhead. In addition, cleaning is performed to keep the printer
Note
in optimal condition. This may cause the remaining ink indicator and
maintenance cartridge capacity indicator to drop some amount. The
starter ink tank is for first-time installation. It is recommended that
you purchase replacement ink tanks quickly.
3
2
Pull the printhead fixer lever forward all
the way to open it completely.
5
Remove the 2 orange protective parts.
• Never touch the parts covered by the
protective part. This may damage the
Important
printhead and affect printing quality.
• The printhead contains ink. When
removing the protective material, it is
a
recommended that you do it over the
bag that the printhead came in to avoid
spilling the ink and soiling your clothes
or the surrounding items.
• Do not reattach the protective part after
removing it. Dispose of these materials
according to local regulations.
8
Push the printhead fixer lever all the way
back.
9
Close the top cover.
