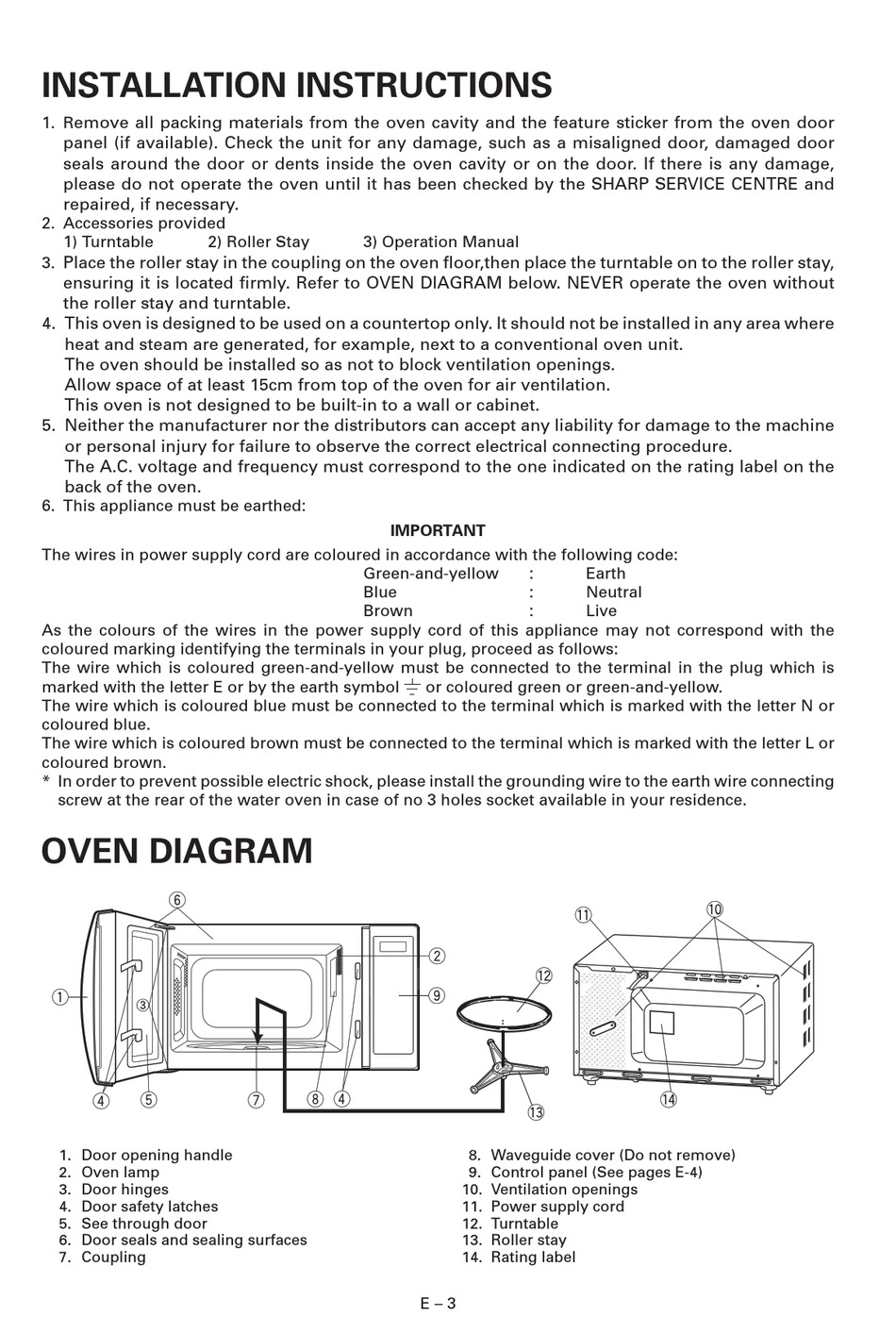

INSTALLATION INSTRUCTIONS

1. R emove all packing materials from the oven cavity and the feature sticker from the oven door
panel (if available). Check the unit for any damage, such as a misaligned door, damaged door
seals around the door or dents inside the oven cavity or on the door. If there is any damage,
please do not operate the oven until it has been checked by the SHARP SERVICE CENTRE and
repaired, if necessary.
2. Accessories provided
1) Turntable
3. Place the roller stay in the coupling on the oven fl oor,then place the turntable on to the roller stay,
ensuring it is located fi rmly. Refer to OVEN DIAGRAM below. NEVER operate the oven without
the roller stay and turntable.
4. This oven is designed to be used on a countertop only. It should not be installed in any area where
heat and steam are generated, for example, next to a conventional oven unit.
The oven should be installed so as not to block ventilation openings.
Allow space of at least 15cm from top of the oven for air ventilation.
This oven is not designed to be built-in to a wall or cabinet.
5. Neither the manufacturer nor the distributors can accept any liability for damage to the machine
or personal injury for failure to observe the correct electrical connecting procedure.
The A.C. voltage and frequency must correspond to the one indicated on the rating label on the
back of the oven.
6. This appliance must be earthed:
The wires in power supply cord are coloured in accordance with the following code:
As the colours of the wires in the power supply cord of this appliance may not correspond with the
coloured marking identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is
marked with the letter E or by the earth symbol
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or
coloured blue.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or
coloured brown.
* In order to prevent possible electric shock, please install the grounding wire to the earth wire connecting
screw at the rear of the water oven in case of no 3 holes socket available in your residence.

OVEN DIAGRAM

3
1. Door opening handle
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seals and sealing surfaces
7. Coupling
2) Roller Stay 3) Operation Manual
Green-and-yellow
Blue
Brown
IMPORTANT
:
:
:
or coloured green or green-and-yellow.
8. Waveguide cover (Do not remove)
9. Control panel (See pages E-4)
10. Ventilation openings
11. Power supply cord
12. Turntable
13. Roller stay
14. Rating label
E – 3
Earth
Neutral
Live
