IMPORTANT SAFETY INFORMATION: Always read this manual first before attempting to service this
fireplace. For your safety, always comply with all warnings and safety instructions contained in this
manual to prevent personal injury or property damage.
Dimplex North America Limited
1367 Industrial Road Cambridge ON Canada N3H 4W3
1-888-346-7539 www.dimplex.com
In keeping with our policy of continuous product development, we reserve the right to make changes without notice.
© 2016 Dimplex North America Limited

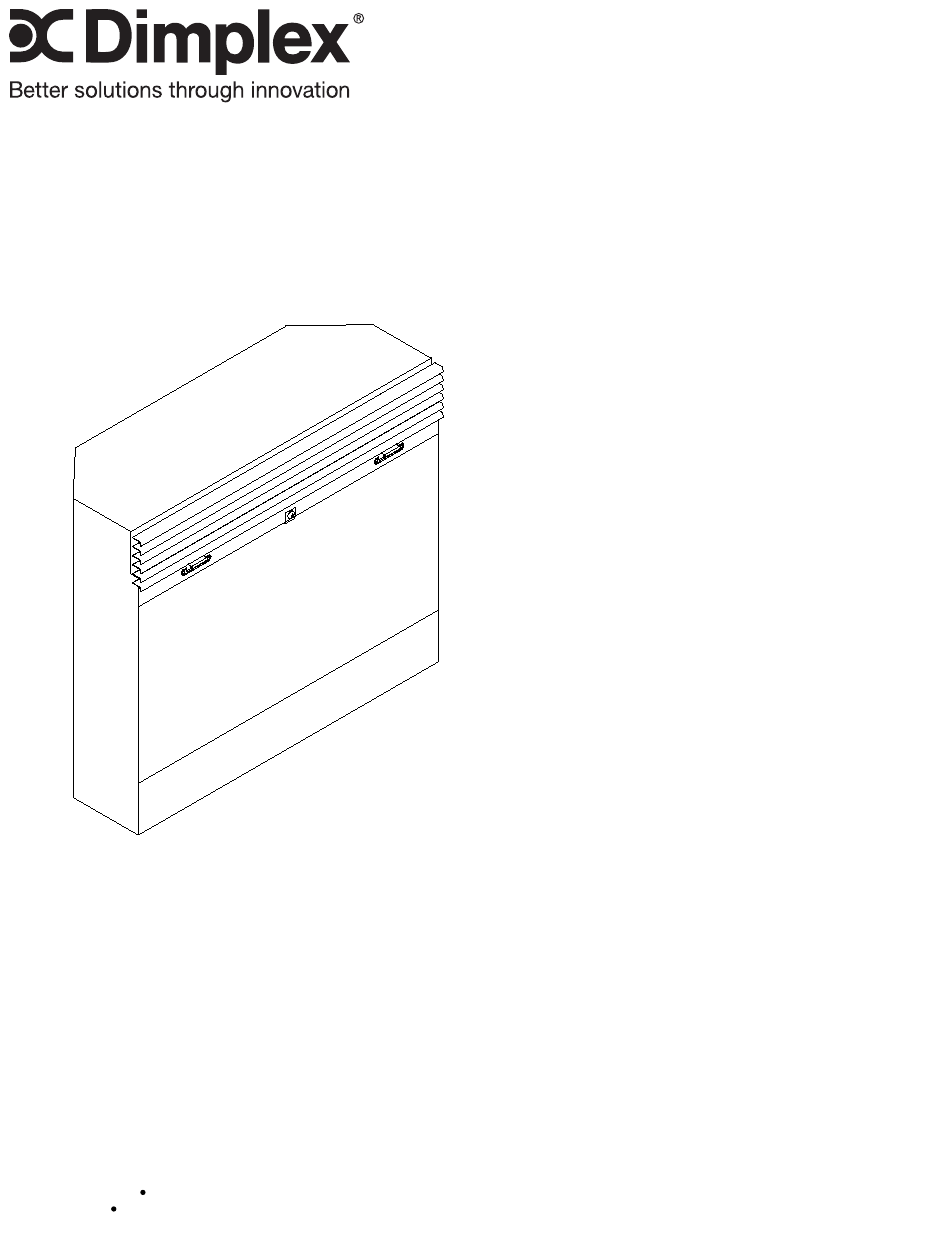

Service Manual
26" Fireplace
With 3-Stage Remote
Model Number:
DF2600CG
UL Part Number
6901170859
6901170959
6901181300
REV
PCN
DATE
00
-
21-SEP-11
01
-
18-NOV-14
02
-
11-JAN-16
7400430000R02
Advertisement
Table of Contents
Related Manuals for Dimplex DF2600CG
Summary of Contents for Dimplex DF2600CG
- Page 1 Dimplex North America Limited 18-NOV-14 1367 Industrial Road Cambridge ON Canada N3H 4W3 1-888-346-7539 www.dimplex.com 11-JAN-16 In keeping with our policy of continuous product development, we reserve the right to make changes without notice. © 2016 Dimplex North America Limited 7400430000R02...
-
Page 2: Table Of Contents
NOTE: Procedures and techniques that are considered important enough to emphasize. CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com... -
Page 3: Operation
CAUTION: If you need to continuously reset the heater, 2. To locate controls see Figure 2. disconnect power and call Dimplex customer service at A. ON/OFF SWITCH 1-888-DIMPLEX (1-888-346-7539). The ON/OFF SWITCH supplies power to all fireplace Remote Control functions (Heater/Flame). -
Page 4: Maintenance
Battery must be recycled or disposed of properly. 2. Examine the bulbs to determine which bulbs require Check with your Local Authority or Retailer for replacement. recycling advice in your area. 3. Hold the socket while unscrewing the bulb www.dimplex.com... - Page 5 Figure 4 Figure 5 4. Hold the socket while screwing in the new bulb. Figure 6 UPPER LIGHT BULB REQUIREMENTS: Quantity of 2 clear chandelier or candelabra bulbs with an E-12 (small) socket base, 15 watt rating. Please refer to the label adjacent to the upper lamps for the correct wattage for your model.
-
Page 6: Exploded Parts Diagram
19. TERMINAL BLOCK....4000070100RP 10. PARTIALLY REFLECTIVE GLASS ..6900100200RP 11. LOG SET......0437960100RP www.dimplex.com... -
Page 7: Wiring Diagram
WIRING DIAGRAM Receiver Board... -
Page 8: On/Off Switch Replacement
2. Remove the firebox from the mantel. grille section, grasping the sides of the trim and pulling 3. Lower the grille covering the controls. forward, away from the firebox, releasing the retainer clips. 4. Remove the 6 retaining screws on the edges along the www.dimplex.com... -
Page 9: Flicker Motor/Flicker Rod Replacement
top cover: 2 on the left; 2 on the right; 2 on the back. ember-bed, not the logs themselves. Remove the top, placing it upside down on the top of NOTE: Log-set fits tightly into firebox. Some force the unit being careful not to damage any of the wiring. may be necessary to remove. -
Page 10: 3-Position Switch Replacement
2. Remove the firebox from the mantel. 3. Remove the 6 retaining screws on the edges along the top cover: 2 on the left; 2 on the right; 2 on the back. www.dimplex.com... -
Page 11: Power Cord Replacement
POWER CORD REPLACEMENT Remove the top, placing it upside down on the top of the unit being careful not to damage any of the wiring. Tools Required: Phillips head screwdriver 5. Locate the Remote Control Receiver, next to the ther- Needle nosed pliers mostat control, and disconnect the wiring connections WARNING: If the fireplace was operating prior to... -
Page 12: Assembly Component Pictures
ASSEMBLY COMPONENT PICTURES EXTERIOR VIEW OF MANUAL CONTROLS Flame Speed Control 3-Position Switch Knob Interior Light Control LED Indicator Lights On/Off Switch Thermostat Control Knob Front Grille Open INTERIOR VIEW FROM THE BOTTOM Light Sockets Flicker Rod Flicker Motor www.dimplex.com... - Page 13 INTERIOR VIEW OF RIGHT SIDE, TOP & FRONT PANEL Potentiometers (Flame Speed & Dimmer Con- Heater Assembly (blower trols) motor; fan; elements) ON/OFF Switch Flame Speed Control Board Dimmer Control Board Terminal Block INTERIOR VIEW OF LEFT SIDE, TOP & FRONT PANEL 3-Position Switch Thermostat Control Remote Control Receiver...
-
Page 14: Troubleshooting Guide
Burnt light bulbs Replace light bulbs Flame Shutter Defective Flicker motor Replace Flicker motor Defective Flame Speed Control Board Replace Flame Speed Control Board Light leaking around the log set Log set not positioned properly Check log set for proper fit www.dimplex.com... - Page 15 PROBLEM CAUSE SOLUTION Heater Heater is not turning off Improper operation Refer to Operation Section Defective Thermostat Replace Thermostat Heater is not turning on, but Improper operation Refer to Operation Section flame effect is still functioning Loose wiring Trace wiring in unit. Defective Thermostat Replace Thermostat Defective Heater Assembly...
