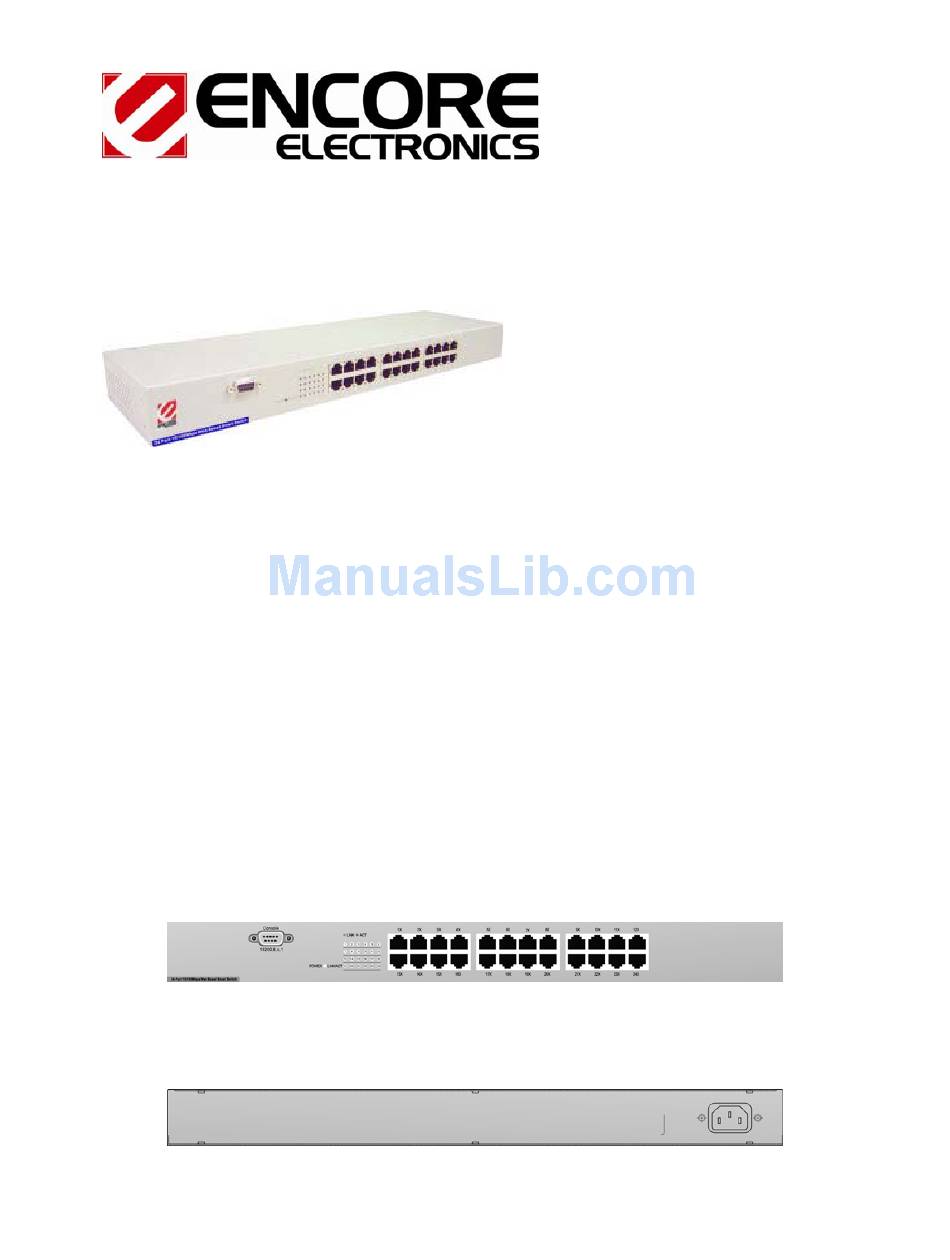

24 Port Bandwidth Management Fast Ethernet Switch EN-MS24 The EN-MS24 is a full duplex, Fast Ethernet switch featuring bandwidth management capabilities. It provides 24 RJ-45 ports capable of 10/100Mbps connections. Using the Web-management interface, network intensive files travel secure and more efficiently through the network. The EN-MS24 reduces network congestion without sacrificing network security and integrity.
• Support local console port and Web- Based UI for configuration • Internal switching power supply • 19” Rack-Mountable Encore Electronics 2005 WWW.ENCORE-USA.COM EN-MS24 Figure 3 Usage Diagram Product specifications Standard IEEE802.3, 802.3u, 802.3x, 802.1p standards Interface 24* 10BaseT/ 100BaseTX RJ-45 ports...
Page 3
Figure 4 Web Interface: Main Menu Figure 5 Web Interface: Flow Control Encore Electronics 2005 WWW.ENCORE-USA.COM EN-MS24...
