BLUE FLAME VENT-FREE PROPANE/LP GAS HEATER
OWNER'S OPERATION AND INSTALLATION MANUAL
CGP10LA
and
CGP6LA
10,000 and 6,000 Btu/Hr
Manually-Controlled
Models
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result caus-
ing property damage, personal injury, or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this
or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
This appliance may be installed in an aftermarket*, permanently located, manufactured
(mobile) home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases.
*Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
Save this manual for future reference.
WARNING: Improper installa-
tion, adjustment, alteration, ser-
vice, or maintenance can cause
injury or property damage. Re-
fer to this manual for correct
installation and operational pro-
cedures. For assistance or ad-
ditional information consult a
qualified installer, service
agency, or the gas supplier.
WARNING: This is an unvented
gas-fired heater. It uses air (oxy-
gen) from the room in which it
is installed. Provisions for ad-
equate combustion and venti-
lation air must be provided.
Refer to Air For Combustion
and Ventilation on page 4 of
this manual.
Advertisement
Table of Contents
Related Manuals for Comfort Glow CGP10LA
Summary of Contents for Comfort Glow CGP10LA
- Page 1 BLUE FLAME VENT-FREE PROPANE/LP GAS HEATER OWNER’S OPERATION AND INSTALLATION MANUAL CGP10LA CGP6LA 10,000 and 6,000 Btu/Hr Manually-Controlled Models WARNING: Improper installa- WARNING: If the information in this manual is not tion, adjustment, alteration, ser- followed exactly, a fire or explosion may result caus- vice, or maintenance can cause ing property damage, personal injury, or loss of life.
-
Page 2: Safety Information
100 lbs. capacity. LP supply tank(s) outdoors. this heater. 14. Do not install model CGP10LA in a 3. If you smell gas bathroom. • shut off gas supply WARNING: Any change to •... -
Page 3: Product Identification

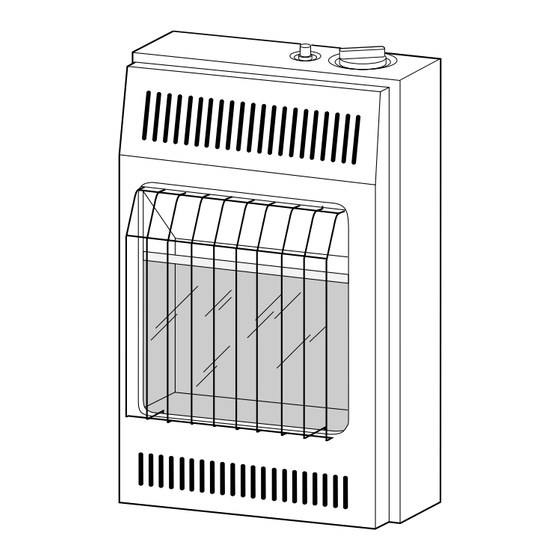

Panel Heater Front Cabinet Panel Figure 1 - Vent-Free Propane/LP Gas Heater (Model CGP10LA Shown) LOCAL CODES UNPACKING Install and use heater with care. Follow all 1. Remove heater from carton. local codes. In the absence of local codes, use 2. -
