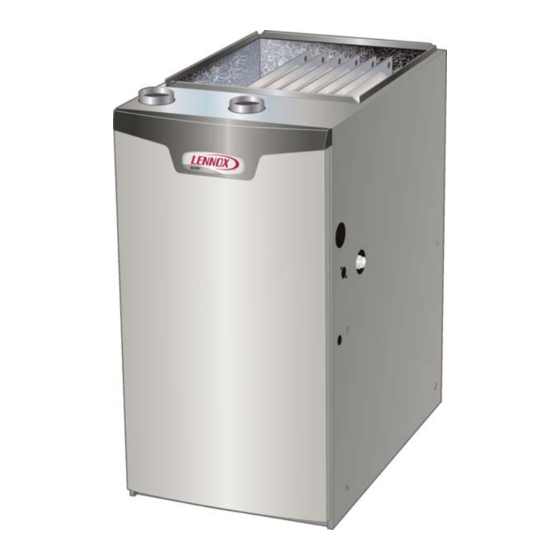

Lennox EL195UHNE Series User's Information Manual
  1. Manuals
  2. Brands
  3. Lennox Manuals
  4. Furnace
  5. EL195UHNE Series
  6. User's information manual

Lennox EL195UHNE Series User's Information Manual

Hide thumbs Also See for EL195UHNE Series:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
E 2018 Lennox Industries Inc.
Dallas, Texas, USA
507759-01
02/2018
Supersedes 11/2017
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other ap­
pliance.
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, personal
injury or loss of life. Installation and service must be
performed by a licensed professional installer (or
equivalent), a service agency, or the gas supplier.
WARNING
FIRE OR EXPLOSION HAZARD.
Failure to follow safety warnings exact­
ly could result in serious injury, death,
or property damage.
D Do not try to light any appliance.
D Do not touch any electrical switch; do not
D Leave the building immediately.
D Immediately call your gas supplier from a
D If you cannot reach your gas supplier, call
EL195UHNE
WHAT TO DO IF YOU SMELL GAS:
use any phone in your building.
neighbor's phone. Follow the gas supplier's
instructions.
the fire department.
SERIES
GAS FURNACE
Litho U.S.A.

Advertisement

loading

Related Manuals for Lennox EL195UHNE Series

Summary of Contents for Lennox EL195UHNE Series

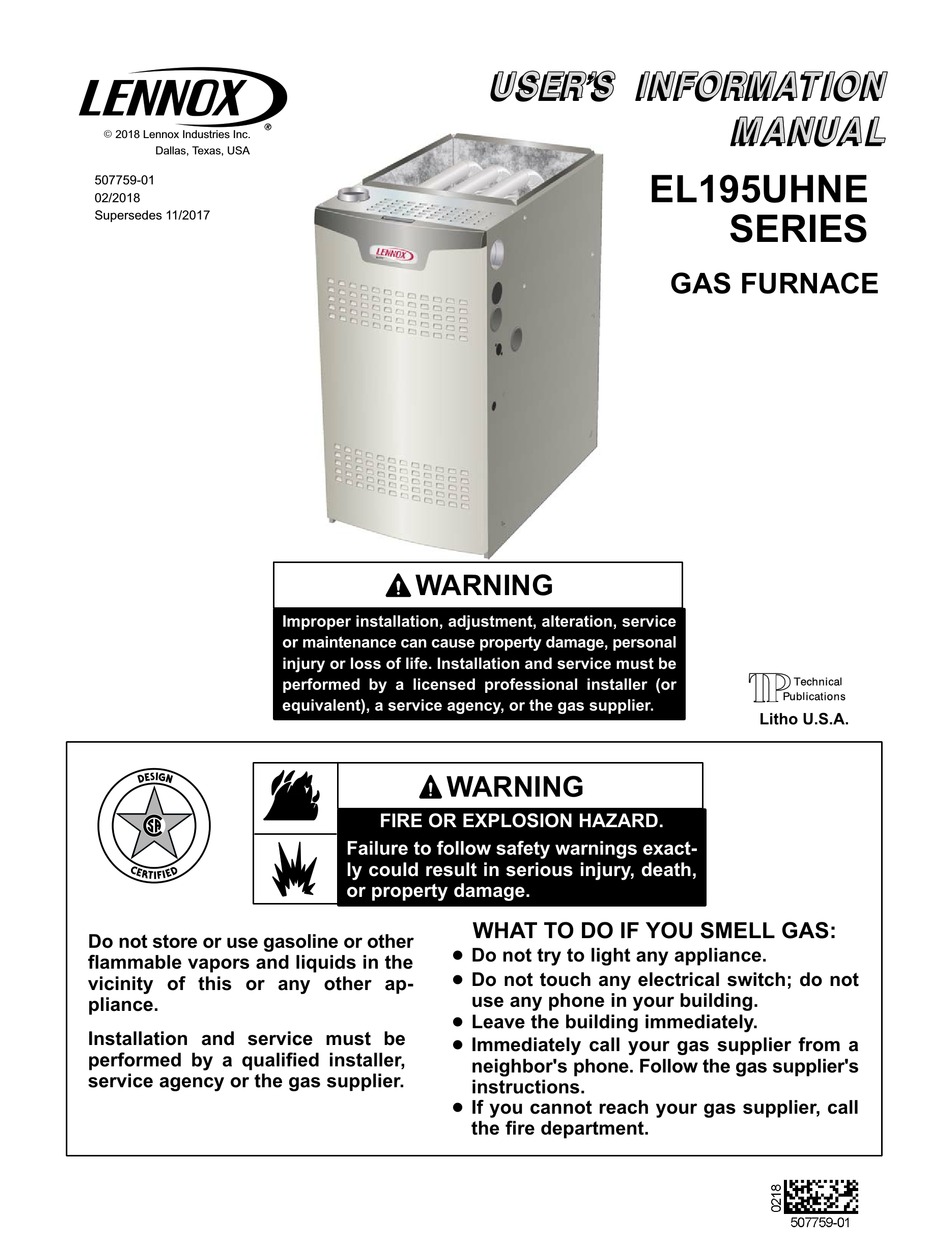

  • Page 1 E 2018 Lennox Industries Inc. Dallas, Texas, USA 507759-01 EL195UHNE 02/2018 Supersedes 11/2017 SERIES GAS FURNACE WARNING Improper installation, adjustment, alteration, service or maintenance can cause property damage, personal injury or loss of life. Installation and service must be performed by a licensed professional installer (or equivalent), a service agency, or the gas supplier.
