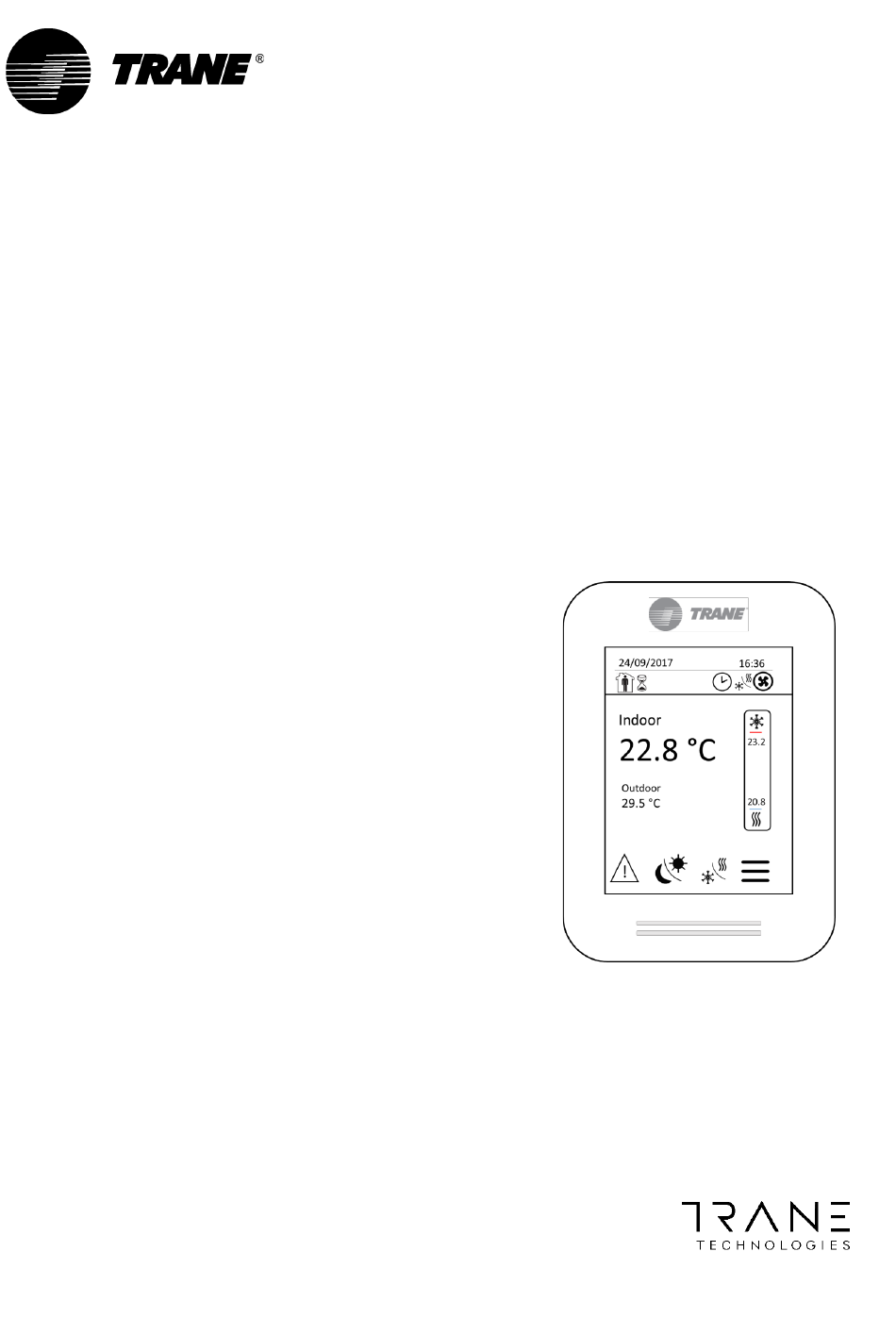

- Page 1 User Guide Trane ® Color Touch Screen Display for Airfinity™ rooftop units THP05 Reference number: X13651737001 Spare part number: THT0232E January 2021 RT-SVU010C-GB...
-
Page 2: Warnings, Cautions, And Notices
Copyright This document and the information in it are the property of Trane and may not be used or reproduced in whole or in part, without the written permission of Trane. Trane reserves the right to revise this publication at any time and... -
Page 3: Installation
Equipment/Software supported Thermostat operates with controller module CH536 of Airfinity rooftop unit. Multi-zone systems are not supported. Thermostat is not compatible with BMS (Building Management System) communication interface (ModBus, LonTalk or BACnet (MSTP)). The controller module CH536 must be using software version 2.06 or later. Installation Location guidelines •... - Page 4 Apply 120 Ω terminal resistance (not included in the packaging) between terminal + (13) & - (14), if end device of serial RS 485 Bus, when a communication cable is longer than 200 m. Maximal length of the communication and power cables is 500 m. It is needed to set a communication type in Service display.
-
Page 5: General Information
General Information All user accessible functions are easily set from home screen. - Page 6 • Date To display a date in format DD/MM/YYYY • Time To display a time in format 24 hours (HH:MM) • Occupancy status To display an occupancy status. • Schedule status To display a schedule status. • System mode status To display a current system mode status.
- Page 7 Off: System is off. Menu button • To advance to the menu. • Cooling and heating setpoint To change a setpoint in cooling or in heating mode by a touch on the value. It is available in manual or in override control. Other touch button Return to previous page Previous and next screen advancement...
- Page 8 Interface flowchart Touching a button allows to access to the menu or to change a mode. Touching a borderline value allows to change it using buttons on a displayed keyboard. Confirm a new value by Enter key on the keyboard. Menu &...
-
Page 9: User Access
User access Menu Option Setting Time format 24 hours (HH:MM) Clock Date format DD/MM/YYYY & Date Date Year, Month, Day, Weekday Schedule Enable / Disable (Manual control) Type 7 days (Mo, Tu, We, Th, Fr, Sa, Su) Schedule Day schedule Four time periods (Morning, Day, Evening, Night) Start time: Put a time System mode: Auto, Heat, Cool or OFF... - Page 10 When schedule is set then the unit will operate according to the defined settings when you leave the Schedule sub- menu by touching button Return to previous page. Setpoints In this menu the setpoints are defined for Schedule when it is Enable. To set (un)occupied cooling or heating setpoints, along with indoor fan mode (Auto/ON) and a possibility of minimal cooling setpoint and maximal heating setpoint as a global limit range value.
-
Page 11: Service Access
Menu & Service access Touch Menu button to access to the Clock & Date, Schedule, Setpoints setting, Configuration, Display or Password when enter a service code 0005. The service code shall be changed in this access or in Factory access. No change for Clock &... - Page 12 Override time Min. 15 min, Max. 240 min. Factory settings Yes / No Thermostat software version no. English, French, German Spanish, Language Italian, Dutch, Portuguese, Polish, Czech, Display Romanian Color White, Grey, Blue, Green Backlight Min. 0 %, Max. 100 % User code Possible to change.
-
Page 13: Factory Settings
Factory settings These parameters will be applied when you decide in Configuration menu to set the thermostat to factory settings. Clock & Date Time 00:00 Year 2018 Month January Schedule Schedule Disable Start time 00:00 System mode Auto Occupancy Occupied Setpoints Occupied fan mode Unoccupied fan mode... -
Page 14: Manual Control
Others Override Button override is active on the home screen when Schedule is Enable. Touch the button to override a schedule setting in order to control the unit manually. Then the button System mode is active and it is possible to select a system mode (Auto, Cool, Heat, Off) along with required setpoint. - Page 15 Indoor fan mode Auto (Cycling) means that the indoor fan stops when a setpoint is reached, in another case the fan runs. Mode On (Continuous) means that the fan run all the time even the setpoint is reached, except unoccupied mode and setpoint reaching, then the fan stops.
- Page 16 Alarm code Alarm code Note AL06 Modbus communication fault of supply fan 3 AL07 Modbus communication fault of supply fan 2 AL08 Modbus communication fault of supply fan 1 AL16 Modbus communication fault of OD fan 2, circuit 2 AL17 Modbus communication fault of OD fan 1, circuit 2 AL18 Modbus communication fault of OD fan 2, circuit 1...
-
Page 17: Specification
