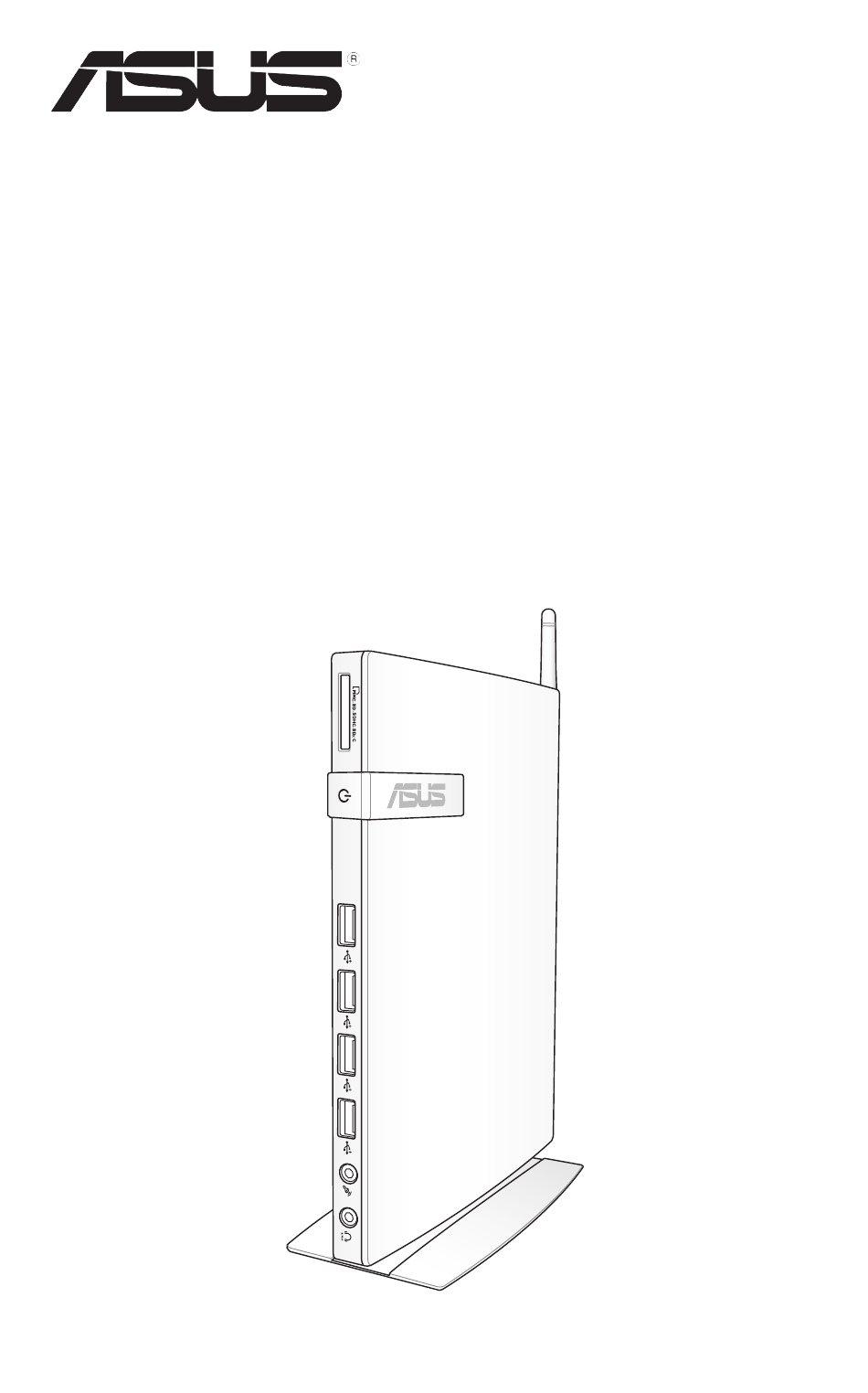

- Page 1 Thin Client TC710 User Manual...
- Page 2 ASUSTeK COMPUTER, INC. (“ASUS”). Products and corporate names mentioned in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used for identification purposes only.
-
Page 3: Table Of Contents
1.3.2 Rear view ................1-6 Chapter 2: Hardware setup Installing the stand................2-2 Installing your TC710 to a monitor ..........2-3 Connecting to a display ..............2-6 Connecting to USB devices ............2-6 Connecting to a network device ..........2-7 2.5.1 Connecting to LAN ............ -
Page 4: Notices
• Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Thin Client TC710... - Page 5 • Protection requirements for electromagnetic compatibility in [Article 3.1b] • Testing for electromagnetic compatibility according to [EN 301 489-1] & [EN 301 489-17] • Effective use of the radio spectrum as in [Article 3.2] • Radio test suites according to [EN 300 328-2] Thin Client TC710...
- Page 6 EC of the European Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and mutual recognition of conformity. Wireless Operation Channel for Different Domains N. America 2.412-2.462 GHz Ch01 through CH11 Japan 2.412-2.484 GHz Ch01 through Ch14 Europe ETSI 2.412-2.472 GHz Ch01 through Ch13 Thin Client TC710...
- Page 7 64 Pyrénées Atlantique 66 Pyrénées Orientales 67 Bas Rhin 68 Haut Rhin 70 Haute Saône 71 Saône et Loire 75 Paris 82 Tarn et Garonne 84 Vaucluse 88 Vosges 89 Yonne 90 Territoire de Belfort 94 Val de Marne Thin Client TC710...
- Page 8 REACH Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm. viii Thin Client TC710...
-
Page 9: Safety Information
• If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer. • The power cord or plug is damaged. Thin Client TC710... - Page 10 DO NOT throw the battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. Check local technical support services for battery replacement. Thin Client TC710...
- Page 11 ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.
- Page 12 Department of Energy helping us all save money and protect the environment through energy efficient products and practices. All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The monitor and computer are automatically set to sleep after 15 and 30 minutes of user inactivity.
-
Page 13: About This Guide
This chapter describes how to configure the necessary settings of your TC710 system. Chapter 4: System recovery This chapter describes how to recover your TC710 system to its factory default state. Notes for this manual To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual. - Page 14 Thin Client TC710...
-
Page 15: Chapter 1: Product Introduction
Chapter 1: Product introduction This chapter describes the general features of the server, including sections on front panel and rear panel specifications. -
Page 16: Package Contents
Quick start guide If the device or its components fail or malfunction during normal and proper use within the warranty period, bring the warranty card to the ASUS Service Center for replacement of the defective components. 1-2 Thin Client TC710... -
Page 17: System Specifications
System Weight (Kg) 0.69Kg Operation temperature: 0˚C - 35˚C Operation humidity: 20 - 85% RH (Non-condensing) Environment Non operation temperature: -40˚C - 60˚C Non operation humidity: 20% - 95% (Non-condensing) * Specifications are subject to change without notice. Thin Client TC710 1-3... -
Page 18: Knowing Your Tc710
Refer to the diagram below to identify the components on this side of the system. Memory card slot The built-in memory card reader reads MMC/SD/SDHC/ SDXC cards used in devices like digital cameras, MP3 players, mobile phones, and PDAs. 1-4 Thin Client TC710... - Page 19 Headphone/Audio Out (S/PDIF Out) jack The stereo headphone jack is used to connect the system’s audio out signal to amplified speakers or headphones. Plug an 3.5mm mini-jack audio cable into this jack for analog or digital audio transfer. Thin Client TC710 1-5...
-
Page 20: Rear View
The jack is used to connect the supplied wireless antenna to enhance wireless signal reception. The antenna is installable/ removable according to need. Fasten the antenna onto TC710 for better signal reception when Wi-Fi is in use. HDMI port The HDMI (High Definition Multimedia Interface) port supports a Full-HD device such as an LCD TV or monitor to allow viewing on a larger external display. - Page 21 The Kensington® lock port allows the PC to be secured using Kensington® compatible security products. These security products usually include a metal cable and lock that prevent the PC to be removed from a fixed object. Thin Client TC710 1-7...
- Page 22 1-8 Thin Client TC710...
-
Page 23: Chapter 2: Hardware Setup
Chapter 2: Hardware setup This chapter lists the hardware setup procedures that you have to perform when installing or removing system components. -
Page 24: Installing The Stand
Erect your Thin Client TC710 with the optional stand. To do so: Locate the screw hole on the bottom of TC710. Align the stand screw to TC710’s screw hole, and then secure the stand to TC710 with a screw driver. Stand screw... -
Page 25: Installing Your Tc710 To A Monitor
Installing your TC710 to a monitor You can also install your Thin Client TC710 to the back of a monitor. To do so: Secure the VESA mount to your monitor with the four screws provided by the VESA mount kit. - Page 26 Place your TC710 onto the VESA mount noting the correct alignment, and then secure TC710 to the VESA mount from below with the stand screw. Make sure that the ASUS trademark on the rotation wheel of the VESA mount is set to its customary position when putting in TC710 so that the machine can rotate properly.
- Page 27 The VESA mount is designed for you to rotate TC710 so to use the front and rear I/O ports at convenient angles. To turn TC710 secured in the VESA mount, press the lever switch at the bottom of the VESA mount to unlock the wheel. Then turn according to preference.
-
Page 28: Connecting To A Display
Display (Monitor) Output port on the system rear panel ( LCD monitor Connecting to USB devices Connect USB devices like wired/wireless keyboards (vary by areas), mouse devices, and printers to the USB ports on the system front panel. 2-6 Thin Client TC710... -
Page 29: Connecting To A Network Device
Connecting to Wi-Fi via wireless antenna The wireless antenna is provided for enhancing wireless signal reception. The antenna is installable/ removable according to need. Fasten the antenna onto TC710 for better signal reception when Wi-Fi is in use. Thin Client TC710 2-7... -
Page 30: Turning On The System
AC outlet to save on power consumption. • Adjust the power management settings in the Window® Control Panel. This is to ensure that your TC710 is set to a low power consumption mode and is fully operational at the same time. -
Page 31: Chapter 3: System Configuration
Chapter 3: System configuration This chapter describes how to configure the necessary settings of your TC710 system. -
Page 32: Configuring Wireless Connection
All screenshots in this section are for reference only. Actual screen images may vary with operating systems. Visit the ASUS website at www.asus.com for the latest information. 3.1 Configuring wireless connection To connect to a wireless network, follow the instructions below: For security concerns, DO NOT connect to an unsecured network. -
Page 33: Configuring Wired Connection
Click the network icon with a yellow warning triangle in the Windows® Notification area and select Open Network and Sharing Center. Click Change adapter settings in the left blue pane. Right-click Local Area Connection and select Properties. Thin Client TC710 3-3... - Page 34 Click Obtain an IP address Version 4(TCP/IPv4) and automatically and click click Properties. (Continue the following steps if using PPPoE) Return to the Network and Sharing Center and then click Set up a new connection or network. 3-4 Thin Client TC710...
- Page 35 Password, and Connection configuration. name. Click Connect. 11. Click the network icon 12. Enter your user name and in the taskbar and click password. Click Connect to the connection you just connect to the Internet. created. Thin Client TC710 3-5...
-
Page 36: Using A Static Ip
Enter the IP address, Subnet mask and Gateway from your service provider. If needed, enter the preferred DNS Server address and alternative address. After entering all the related values, click OK to build the network connection. 3-6 Thin Client TC710... -
Page 37: Chapter 4: System Recovery
Chapter 4: System recovery This chapter describes how to recover your TC710 system to its factory default state. -
Page 38: Using The Bundled Recovery Dvd
The System Recovery screen appears. Select your HDD size. Select where to install a new system, or select RETURN to go back to the prvious screen. See the next page for the explanation of the installation options. 4-2 Thin Client TC710... - Page 39 Click Next again. Restore the Whole Hard Disk Select this option if you want to restore your TC710 to the factory default state. This option deletes all data from your hard disk and creates a new system partition as drive “C” and a Recovery Partition as drive “D“.
- Page 40 +1-510-739-3777 +1-510-608-4555 Web site usa.asus.com Technical Support Telephone +1-812-282-2787 Support fax +1-812-284-0883 Online support support.asus.com ASUS COMPUTER GmbH (Germany and Austria) Address Harkort Str. 21-23, D-40880 Ratingen, Germany +49-2102-959911 Web site www.asus.de Online contact www.asus.de/sales Technical Support Component Telephone +49-1805-010923*...
