MicroSVR
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for CompuLab MicroSVR

Summary of Contents for CompuLab MicroSVR

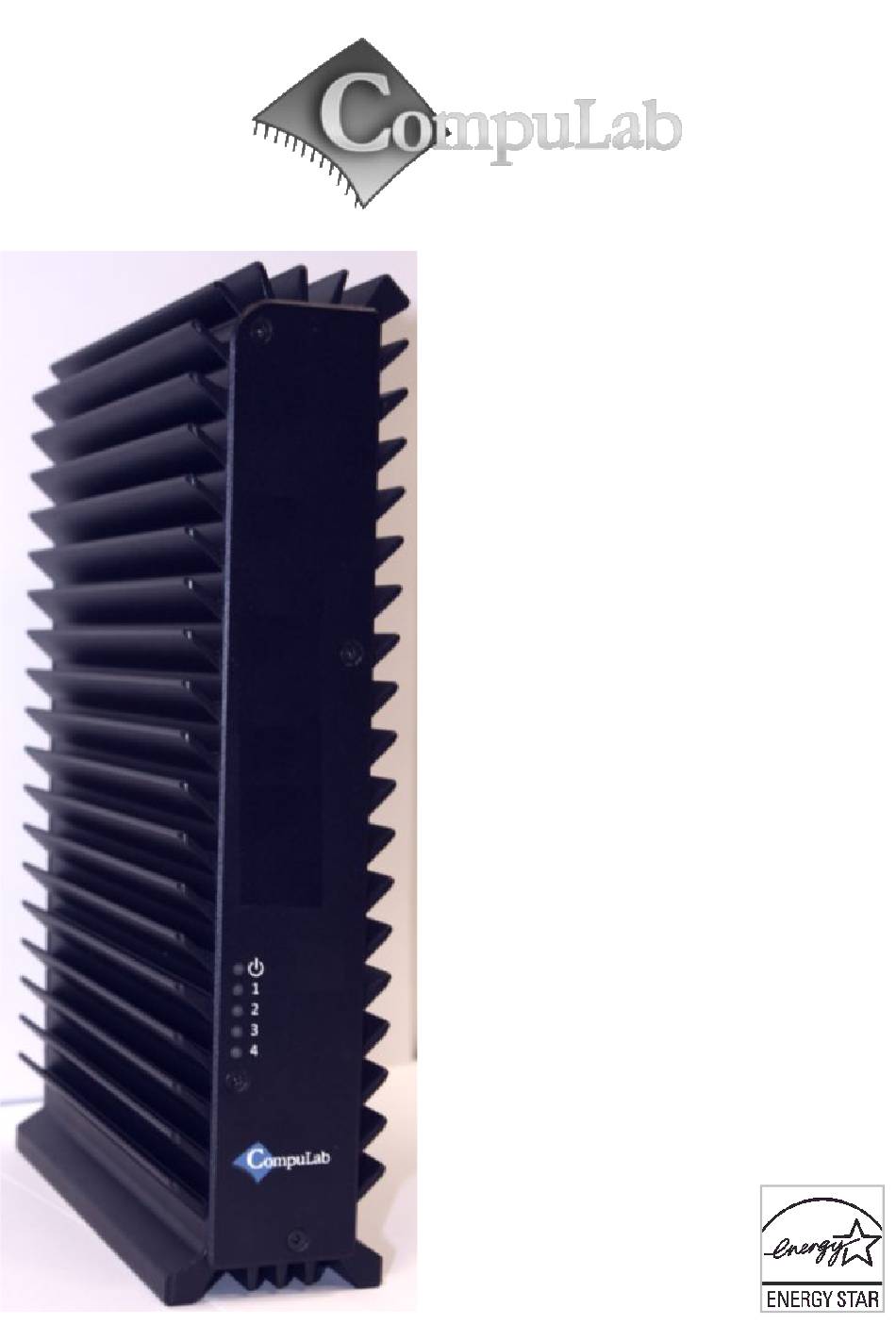

  • Page 1 MicroSVR Owner’s Manual...
  • Page 2 MicroSVR Owner’s Manual 27. Sep. 2012 Introduction Package contents Hardware specifications MicroSVR features Quick start guide Connecting MicroSVR Booting Linux Booting Windows 7 Maintenance Opening service door Service bay BIOS Setup Utility Warranty and RMA Warranty Tips for saving power...

  • Page 3: Package Contents

    RS232 full UART (mini connector, cable sold separately) Power Unregulated 8V to 16V DC Operating temperature 0 – 50 Power Consumption 8 ~ 35W (Depend on system configuration and load) Dimensions 6 x 16 x 26cm 1 Local resellers may supply MicroSVR with other AC cord types.
  • Page 4 The front panel includes 5 LED's: Power, a dual function Green/Yellow led. • Green after the MicroSVR was turned on and initial CPU/Chipset ◦ initialization was successfully passed. Yellow when any hard disk is accessed (internal or external – eSATA).
  • Page 5 Back panel WiFi Antenna connector (RP-SMA) Audio / SPDIF 7.1 Out Display Port (DP) 10. Mini Serial (RS-232) WiFi Antenna connector (RP-SMA) 11. 12VDC Power Dual port USB 2.0 (1A per port). 12. eSATA port (SATA 2 device) Dual port USB 3.0 (1A per port). 13.

  • Page 6: Booting Linux

    Linux loads automatically on power up. Upon boot you will be guided through the Linux first-boot setup procedure. Booting Windows 7 Upon first power-up, you will be guided through the Windows Welcome procedure which is self- explanatory. The Windows 7 serial number is printed on the Windows 7 label on the back of your MicroSVR.

  • Page 7: Maintenance

    Maintenance The MicroSVR requires no maintenance. You should not take the MicroSVR apart other than opening the front panel to install/remove disks. Taking the MicroSVR apart will void its warranty. The following operations can be conducted by the user: Installing the Hard drives Unscrew the 4 front panel screws and remove it.

  • Page 8: Raid Configuration Utility

    This warranty is void if the product has been altered or damaged by accident, misuse or abuse. Keep the original package for shipping in case of hardware failure. In case of HW failure of an MicroSVR under warranty, please contact the seller of that MicroSVR. Please provide the following required information: •...
  • Page 9 Tips for saving power General • Working without a connected display automatically disables the graphics controller – saving power. • Disconnect external USB devices when not in use. In Operating System Use power scheme as follows • Turn of monitor after several minutes not in use •...
