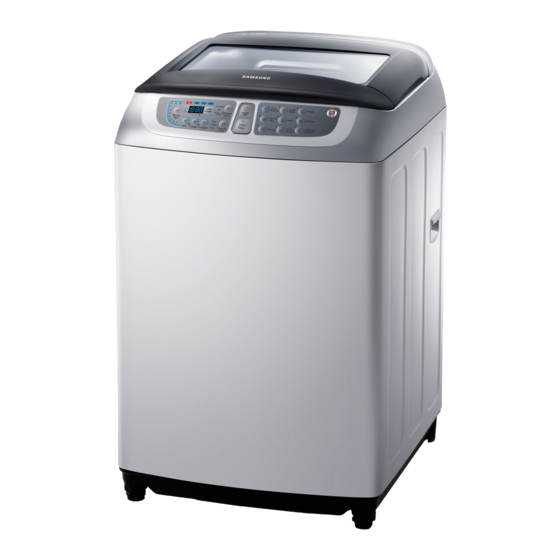

- Page 1 WA14F5L4 WA12F5L4 WA13F5S4 Washing Machine user manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing a Samsung product. W3050_F500S_WA11F5_DC68-03272L-05_EN.indd 1 W3050_F500S_WA11F5_DC68-03272L-05_EN.indd 1 2014-11-10 2014-11-10 1:07:18 1:07:18...
- Page 2 • Digital Inverter Motor (Option) Samsung digital inverter motor can offer more effi cent energy and more powerful washing performance. With balancing the laundry better, it can give longer durability on your washing machine.
- Page 3 • (Eco) Tub Clean Samsung’s Eco Clean Tub is specially designed to remove dirt and biofi lm in the tub without special chemical detergent. This innovative function keeps drum extremely clean by soaking and spinning only with the water.
- Page 4 safety instructions Please note that the following precautions for safety intend to prevent unpredictable danger and damage by helping the proper use in safety. When using hot water in washing, please make sure that the water should not exceed 50°C. •...
- Page 5 For appliances with ventilation openings in the base, that a carpet must not obstruct the openings. The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on...
- Page 6 The use for business purposes qualifi es as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.
-
Page 7: Table Of Contents
contents SETTING UP YOUR WASHER Description of part How to wash automatically depends on the laundry Control Panel Manual functions MANUAL FUNCTIONS Environment INSTALLATION & MAINTENANCE Levelling Connecting the water supply hose How to connect the drain hose Calibration mode (only digital inverter motor) Adding detergent Adding fabric softener Water supply connector fi... -
Page 8: Setting Up Your Washer
setting up your washer DESCRIPTION OF PART The User’s Manual is for common use. Make use of the User’s Manual depending upon your washing machine model. Water supply hose (Cold) Fabric softener dispenser Be sure to keep the lid closed during Water supply hose (Hot) washing and Detergent box... - Page 9 CHECKING BEFORE WASHING AND CARING FOR GARMENTS Must follow the checkpoints in order to avoid machine problems or damages on garments. • If the below problems are caused by customer’s faults, separate service fee will be charged. Checkpoints Before Starting Washing Check if the clothes are bleaching or not.
- Page 10 setting up your washer CARING FOR CLOTHES BEFORE WASHING Take out personal belongings from pockets. • Caution, Check the pockets! Hairpins and coins cause damages to clothes and washing machine. They make noise and problems to the machine. Must check the pocket. If pants zippers are open while washing, the spin basket may be damaged.
-
Page 11: How To Wash Automatically Depends On The Laundry
HOW TO WASH AUTOMATICALLY DEPENDS ON THE LAUNDRY Before starting washing, check the following; • Connect the water supply hose to the water tap. Leave a tap open. Plug the power cord in. Make sure to lay down the drain hose. Washing for the fi... -
Page 12: Control Panel
setting up your washer CONTROL PANEL For more details, see control panel of your washing machine. Displays the remaining wash time. Digital Displays the reserved delay end time. graphic Displays the error state if a problem occurs in the washing machine so that you display can take action. - Page 13 Magic Wash You can control the strength of water fl ow (High-Mid-Low) when washing by (Option) conventional motor. Press this button repeatedly to cycle through the water temperature and Air Turbo option: Temp./Option Cold > Cold, Air Turbo > Cold/Hot > Cold/Hot, Air Turbo > Hot > Hot, Air Turbo Press this button once to operate.
- Page 14 setting up your washer CHILD LOCK This function is for protecting children, the elderly and the frail. 1. Press the Power button. 2. To activate the Child Lock function, press and hold both the Rinse and Spin buttons down simultaneously for 3 seconds. (If the Child Lock function is activated, the Child Lock icon blinks.) 3.
- Page 15 Downloading the Samsung Smart Washer app Download the Samsung Smart Washer app to your mobile phone from the Android market or Apple App store and install it. You can easily fi nd it by searching for “Samsung Smart Washer”. Using the Smart Check function 1.
-
Page 16: Manual Functions
manual functions Possible to select the function for each program. (Example) For a simple washing as the little dirt program : Power Select the little dirt program Wash Start/Pause Press the Power button. WASH ONLY Press the Wash button. Press the Start/Pause button. -
Page 17: Installation & Maintenance
installation & maintenance The User’s Manual is for common use. Make use of the User’s Manual depending upon your washing machine model. ENVIRONMENT Leave some space Maintain at least 10 cm between the washer and the wall. Place the washer on a sturdy fl at surface. If the washer is placed on an uneven or weak surface, noise or vibration occurs. -
Page 18: Connecting The Water Supply Hose
installation & maintenance CONNECTING THE WATER SUPPLY HOSE • Connect the other end of the water supply hose to the inlet water valve at the back of the washer. Screw the hose clockwise all the way in. • Connect the other end of the water supply hose to the inlet water valve at the back side of the washer. -
Page 19: How To Connect The Drain Hose
HOW TO CONNECT THE DRAIN HOSE IN CASE OF PUMP-DRAINED WASHER Be sure to join tlghtly the drain hose into the drain- Verify that the retaining ring stay in his correct outlet on the side of the machine. position. Drain hose Hose guide The drain hose has to be arranged vertically at 90°... -
Page 20: Calibration Mode (Only Digital Inverter Motor)
& maintenance CALIBRATION MODE (ONLY DIGITAL INVERTER MOTOR) Your Samsung washing machine detects the laundry weight automatically. For more accurate weight detection, please run Calibration Mode after the installation. To run Calibration Mode, follow these steps: 1. Remove laundry or any contents in the machine. -
Page 21: Adding Fabric Softener
ADDING FABRIC SOFTENER 1. When the proper amount (one time dose) of fabric softener is stored in the softener inlet, it is automatically added during the last rinse cycle. 2. Do not add detergent, bleach or starch into the softener inlet. 3. -
Page 22: Cleaning The Pump Filter (Option)
installation & maintenance CLEANING THE PUMP FILTER (OPTION) 1. Place a rag or towel under the wash fi lter to avoid wetting the fl oor, and rotate the fi lter counterclockwise and pull it out. 2. Remove any dirt from the fi lter. 3. -
Page 23: Troubleshooting
troubleshooting PROBLEM CHECK Washing machine won’t work • Is the water tap opened? • Is the washer plugged in? • Is the power cut off? • Is there enough water? Water dose not drain • Is the drain hose down? (No pump) •... -
Page 24: Washing Machine Won't Work
washing machine won’t work? PROBLEM CHECK The power is cut off. Is the electric voltage normal? Is the washer plugged in? Plug in the electric cord. Water does not drain. Is the drain hose down? Put the drain hose down. Is the drain hose folded? Unfold the drain hose. - Page 25 PROBLEM CHECK The water leaks at the water supply Did you press the Start/Pause button after selecting the water hose connector. supply? If the Start/Pause button is not pressed, water is not supplied. Press the Start/Pause button. Is the faucet closed? ...
-
Page 26: Specifi Cation
WA14F5L4, WA12F5L4 WA14F5L4 14.0 kg 14 kg 92 ℓ MAX. MASS OF DRY CLOTH IN kg WA12F5L4 12.0 kg 12 / 10.5 kg 79 ℓ WASH 600 W 76 ℓ POWER CONSUMPTION SPIN 300 W 70 ℓ 65 ℓ... - Page 27 recommended load Use the Next table to determine the quantity of clothes you wish to wash: TYPE OF CLOTHING WA16F7* / WA15F7* WA17F7* / WA18F7* Jeans Cotton Pants T-Shirt Tank Top Sweatshirt Sport Pant´s Large Towel Shirt Underware Small Towel recommended load_27 W3050_F500S_WA11F5_DC68-03272L-05_EN.indd 27 W3050_F500S_WA11F5_DC68-03272L-05_EN.indd 27...
- Page 28 (Spanish) PUERTO RICO 1-800-682-3180 www.samsung.com/latin_en/support (English) TRINIDAD & www.samsung.com/latin/support (Spanish) 1-800-SAMSUNG(726-7864) TOBAGO www.samsung.com/latin_en/support (English) VENEZUELA 0-800-SAMSUNG (726-7864) www.samsung.com/ve/support SOUTH AFRICA 0860 SAMSUNG (726 7864) www.samsung.com/support NIGERIA 0800-726-7864 www.samsung.com/africa_en/support Code No. DC68-03272L-05_EN W3050_F500S_WA11F5_DC68-03272L-05_EN.indd 28 W3050_F500S_WA11F5_DC68-03272L-05_EN.indd 28 2014-11-10 2014-11-10 1:07:26 1:07:26...
