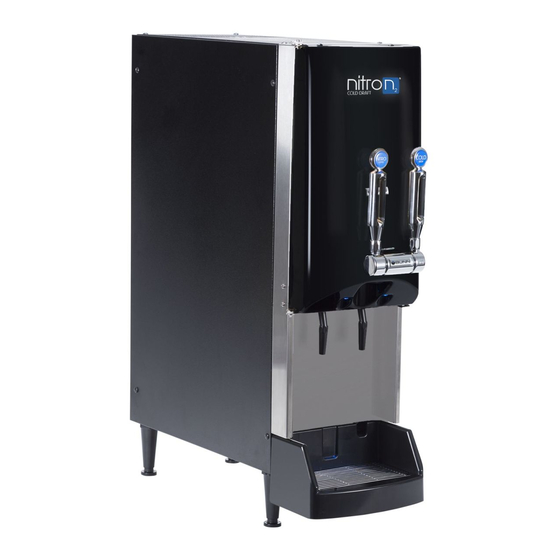

Bunn COLD DRAFT nitron 2 Care & Cleaning Instructions

LOADING
Frozen Concentrates
NOTE: Loading frozen concentrate in the product cabinet may cause damage to the machine. This damage is not
covered by warranty.
1. Thoroughly mix the thawed concentrate by vigorously shaking the product container.
2. Open the dispenser door.
3. Prior to placing the product container in the dispenser, make sure that the o-ring on the container adapter is
lubricated. This will ease removal of the container when it becomes necessary.
4. Place the product container in the desired position and press it firmly into the bottle adapter opening.
5. Open the vent hole in the product container. (If required)
Note: Concentrate in the container must be completely thawed and be within the temperature range of 35-40 degrees F
(1.6-4.4 degrees C.) Product outside of this temperature range, especially below, may produce an "out of ratio" drink.
Ambient Concentrates (Optional)
1. Install an Ambient Concentrate Conversion Kit (BUNN-O-MATIC part number 33699.0002) per the instructions
provided in the kit.
2. Attach the concentrate product hose to the appropriate concentrate line located at the rear of the dispenser.
3. Attach the other end of the product hose to the product container through an appropriate fitting.
NOTE: Although the dispenser is designed to accept ambient concentrates, the Nitro Coffee cascade performance
may be reduced due to ambient product mixing with the cold nitrogenated water.
PRIMING
1. Open the dispenser door
2. Load concentrate per instructions in section titled Loading.
3. Close the dispenser door.
4. Place a large container under the appropriate dispense nozzle.
Pull and hold the tap handle, until concentrate dispenses from the dispense nozzle.
Note: This may take several seconds, depending on the installation and set pump speed.
55076.0001A 07/18 ©2018 Bunn-O-Matic Corporation
Care & Cleaning Instructions
(Continued)
