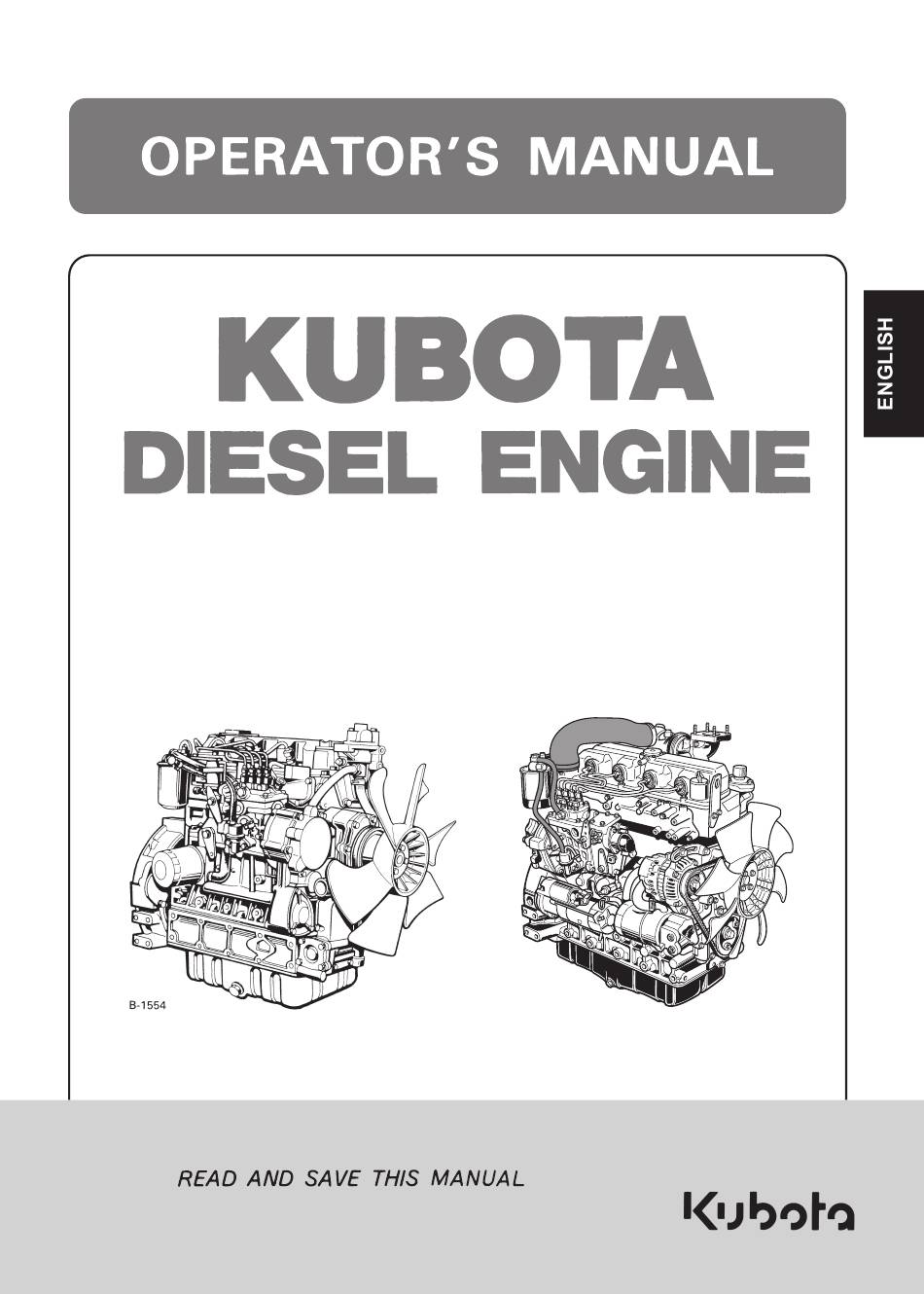

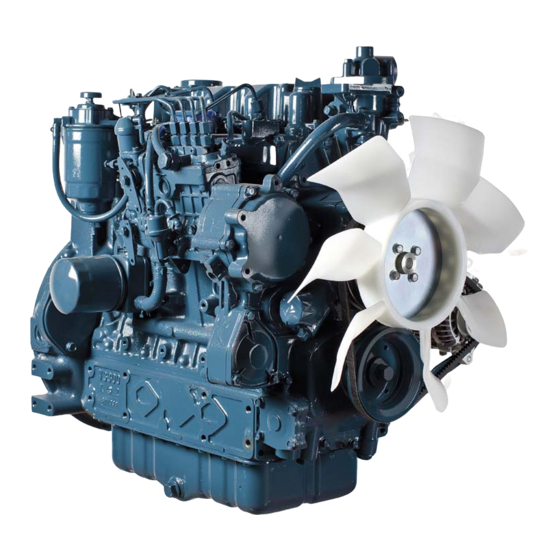

- Page 1 V3300-E · V3300-TE MODELS V3300-DI-E · V3300-DI-TE V3307-DI-TE V3800-DI-E · V3800-DI-TE V3300-EBG · V3300-T-EBG 1ABAHAAAP0180 1K929-8911-1...
- Page 2 FOREWORD FOREWORD You are now the proud owner of a KUBOTA Engine. This engine is a product of KUBOTA quality engineering and manufacturing. It is made of fi ne materials and under a rigid quality control system. It will give you long, satisfactory service.
-
Page 3: Table Of Contents
CONTENTS SAFE OPERATION .................... 1 SERVICING OF THE ENGINE .................. 1 NAMES OF PARTS ....................2 PRE-OPERATION CHECK..................4 BREAK-IN ......................4 DAILY CHECK...................... 4 OPERATING THE ENGINE..................5 STARTING THE ENGINE(NORMAL) ..............5 COLD WEATHER STARTING................7 STOPPING THE ENGINE ..................7 CHECKS DURING OPERATION ................. - Page 4 CONTENTS BATTERY ......................24 Battery charging ......................24 Direction for long term storage ..................25 ELECTRIC WIRING.................... 25 FAN BELT......................26 Adjusting fan belt tension ....................26 CARRIAGE AND STORAGE ................... 27 CARRIAGE ......................27 STORAGE ......................27 TROUBLESHOOTING..................... 28 SPECIFICATIONS ....................
- Page 5 UNAUTHORIZED MODIFICATIONS to the engine may impair the function and/or safety and affect engine life. If the engine does not perform properly, consult your local Kubota Engine Distributor first. 2. WEAR SAFE CLOTHING AND PERSONAL PROTECTIVE EQUIPMENT (PPE) A DO NOT wear loose, torn or bulky clothing around the...
- Page 6 SAFE OPERATION 3. CHECK BEFORE STARTING & OPERATING THE ENGINE A Be sure to inspect the engine before operation. Do not operate the engine if there is something wrong with it. Repair it immediately. A Ensure all guards and shields are in place before operating the engine.
- Page 7 SAFE OPERATION 6. EXHAUST GASES & FIRE PREVENTION A Engine exhaust fumes can be very harmful if allowed to accumulate. Be sure to run the engine in a well ventilated location and where there are no people or livestock near the engine. A The exhaust gas from the muffler is very hot.
- Page 8 SAFE OPERATION 8. CAUTIONS AGAINST BURNS & BATTERY EXPLOSION A To avoid burns, be cautious of hot components, e.g. muffler, muffler cover, radiator, hoses, engine body, coolants, engine oil, etc. during operation and after the engine has been shut off. A DO NOT remove the radiator cap while the engine is running or immediately after stopping.
- Page 9 A DO NOT mix different types of Anti-freeze. The mixture can produce a chemical reaction causing harmful substances. Use approved or genuine KUBOTA Anti- freeze. A Be mindful of the environment and the ecology. Before draining any fluids, determine the correct way to dispose of them.
- Page 10 2. Clean warning and caution labels with soap and water, dry with a soft cloth. 3. Replace damaged or missing warning and caution labels with new labels from your local KUBOTA dealer. 4. If a component with warning and caution label(s) affixed is replaced with a new part, make sure the new label(s) is (are) attached in the same location(s) as the replaced component.
-
Page 11: Safe Operation
However, when in need of parts or major service, be sure to see your KUBOTA dealer. For service, contact the KUBOTA Dealership from which you purchased your engine or your local KUBOTA dealer. -
Page 12: Names Of Parts
NAMES OF PARTS NAMES OF PARTS [V3307-DI-TE] (1) Intake manifold (11) Alternator (2) Speed control lever (12) Starter (3) Engine stop lever (13) Oil level gauge (4) Injection pump (14) Oil pressure switch (5) Fuel feed pump (15) Flywheel (6) Cooling fan (16) Oil drain plug (7) Fan drive pulley (17) Oil pan... - Page 13 NAMES OF PARTS [V3300-E, V3300-TE, V3300-DI-E, V3300-DI-TE, V3800-DI-E, V3800-DI-TE, V3300-EBG, V3300-T-EBG] (1) Intake manifold (11) Exhaust manifold (2) Speed control lever (12) Alternator (3) Engine stop lever (13) Starter (4) Shut off solenoid (14) Fan belt (5) Fuel feed pump...
-
Page 14: Pre-Operation Check
PRE-OPERATION CHECK PRE-OPERATION CHECK BREAK-IN During the engine break-in period, observe the following by all means: 1. Change engine oil and oil filter cartridge after the first 50 hours of operation. (See "ENGINE OIL" in "PERIODIC SERVICE" section.) 2. When ambient temperature is low, operate the machine after the engine has been completely warmed up. DAILY CHECK To prevent trouble from occurring, it is important to know the conditions of the engine well. -
Page 15: Operating The Engine
OPERATING THE ENGINE OPERATING THE ENGINE STARTING THE ENGINE(NORMAL) 1. Set the fuel filter lever to the "ON" position. CAUTION To avoid personal injury: A Do not allow children to approach the machine while the engine is running. A Be sure to install the engine on a flat place. - Page 16 8. Warm up the engine at medium speed without load. A If the glow lamp should redden too quickly or too slowly, immediately ask your KUBOTA dealer to check and repair it. A If the engine does not catch or start at 10 seconds after the starter switch is set at "ST (STARTING)"...
-
Page 17: Cold Weather Starting
2. The engine should stop with the starter not required, when the engine is warmed up. switch placed at the "OFF (SWITCHED Preheating time OFF)" position. (In case of non- V3300-E V3300-DI-E stopping, set the engine stop lever to Ambient V3300-TE... -
Page 18: Checks During Operation
OPERATING THE ENGINE CHECKS DURING OPERATION [V3300-E, V3300-TE, V3300-DI-E, V3300-DI-TE, V3800-DI-E, V3800-DI-TE, V3300-EBG, V3300-T-EBG] While running, make the following checks to see that all parts are working correctly. BRadiator cooling water (Coolant) WARNING To avoid personal injury: A Do not remove radiator cap until coolant temperature is well below its boiling point. -
Page 19: Fuel
OPERATING THE ENGINE REVERSED ENGINE REVOLUTION AND BFuel REMEDIES CAUTION To avoid personal injury: CAUTION A Fluid escaping from pinholes may To avoid personal injury: be invisible. Do not use hands to A Reversed engine operation can search for suspected leaks; Use a make the machine reverse and run it piece cardboard... -
Page 20: Maintenance
MAINTENANCE MAINTENANCE CAUTION To avoid personal injury: A Be sure to conduct daily checks, periodic maintenance, refueling or cleaning on a level surface with the engine shut off and remove the key. A Before allowing other people to use your engine, explain how to operate, and have them read this manual before operation. -
Page 21: Service Intervals
*1 Air cleaner should be cleaned more often in dusty conditions than in normal conditions. *2 After 6 times of cleaning. *3 Consult your local KUBOTA Dealer for this service. *4 Replace only if necessary. A When the battery is used for less than 100 hours in a year, check its electrolyte yearly. (for refillable battery's only) - Page 22 MAINTENANCE A Changing interval of engine oil. Models Interval V3300-E, V3300-TE 250 Hrs or 1 year V3300-EBG, V3300-T-EBG whichever comes first V3300-DI-E, V3300-DI-TE 500 Hrs or 1 year V3307-DI-TE whichever comes first V3800-DI-E, V3800-DI-TE Initial 50 Hrs A API service classification: above CF grade A Ambient temperature: below 35°C(95°F)
-
Page 23: Periodic Service
PERIODIC SERVICE PERIODIC SERVICE FUEL Distillation Viscosity Viscosity Temperatures, Kinematic Fuel is flammable and can be dangerous. You should Saybolt, °C(°F) cSt or handle fuel with care. SUS at /s at 37.8°C(100°F) Point 40°C CAUTION To avoid personal injury: 32.6 40.1 A Do not mix gasoline or alcohol with (540) -
Page 24: Air Bleeding The Fuel System
PERIODIC SERVICE BAir bleeding the fuel system [V3300-E, V3300-TE, V3300-DI-E, V3300-DI-TE, V3800-DI-E, V3800-DI-TE, V3300-EBG, V3300-T-EBG] CAUTION To avoid personal injury; A Do not bleed a hot engine as this could cause fuel to spill onto a hot exhaust manifold creating a danger of fire. -
Page 25: Checking The Fuel Pipes
2. If the fuel pipes, made of rubber, become worn out, replace them and clamp bands every 2 years. 3. If the fuel pipes and clamp bands are found worn or [V3300-E, V3300-TE, V3300-DI-E, V3300-DI-TE, damaged before 2 years' pass, replace or repair V3800-DI-E, V3800-DI-TE, V3300-EBG, V3300-T-EBG] them at once. -
Page 26: Fuel Filter Cartridge Replacement
PERIODIC SERVICE 2. Remove the top cap, and rinse the inside with diesel fuel. 3. Take out the element, and rinse it with diesel fuel. 4. After cleaning, reinstall the fuel filter, keeping out of dust and dirt. 5. Air-bleed the injection pump. A Entrance of dust and dirt can cause a malfunction of the fuel injection pump and the injection nozzle. -
Page 27: Engine Oil
PERIODIC SERVICE ENGINE OIL [V3300-E, V3300-TE, V3300-DI-E, V3300-DI-TE, V3800-DI-E, V3800-DI-TE, V3300-EBG, V3300-T-EBG] CAUTION To avoid personal injury: A Be sure to stop the engine before checking and changing the engine oil and the oil filter cartridge. A Do not touch muffler or exhaust pipes while they are hot;... -
Page 28: Changing Engine Oil
PERIODIC SERVICE BChanging engine oil BReplacing the oil filter cartridge CAUTION CAUTION To avoid personal injury: To avoid personal injury: A Be sure to stop the engine before A Be sure to stop the engine before draining engine oil. changing the oil filter cartridge. A When draining engine oil, place A Allow engine... -
Page 29: Radiator
PERIODIC SERVICE RADIATOR [V3300-E, V3300-TE, V3300-DI-E, V3300-DI-TE, V3800-DI-E, V3800-DI-TE, V3300-EBG, V3300-T-EBG] Coolant will last for one day's work if filled all the way up before operation start. Make it a rule to check the coolant level before every operation. WARNING To avoid personal injury: A Do not stop the engine suddenly. -
Page 30: Checking Coolant Level, Adding Coolant
(1) Recovery tank (A) "FULL" SERVICE" section.) and securely retighten the cap. (B) "LOW" A If coolant should leak, consult your local KUBOTA dealer. A Make sure that muddy or sea water does not enter the radiator. A Use clean, fresh water and 50% anti-freeze to fill the recovery tank. -
Page 31: Changing Coolant
Models Quantity occur. V3307-DI-TE 6.3 L (1.67 U.S. gal.) Check to see if radiator hoses are properly fixed every V3300-E, V3300-TE 250 hours of operation or 6 months, whichever comes V3300-DI-E, V3300-DI-TE 9.0 L (2.38 U.S. gal.) V3800-DI-E, V3800-DI-TE first. -
Page 32: Anti-Freeze
A When draining fluids from the build up, adversely affecting the engine parts. engine, place some container 7. Kubota's genuine long-life coolant has a service life underneath the engine body. of 2 years. Be sure to change the coolant every 2 years. A Do pour... -
Page 33: Air Cleaner
PERIODIC SERVICE AIR CLEANER A Do not overservice the air cleaner element. Overservicing may cause dirt to enter the engine Since the air cleaner employed on this engine is a dry causing premature wear. Use the dust indicator as a type, never apply oil to it. -
Page 34: Battery
PERIODIC SERVICE BATTERY CAUTION CAUTION To avoid personal injury: A When the battery is being activated, To avoid personal injury: hydrogen and oxygen gases in the A Be careful not to let the battery battery are extremely explosive. electrolyte contact your body or Keep open sparks and flames away clothing. -
Page 35: Direction For Long Term Storage
PERIODIC SERVICE ELECTRIC WIRING CAUTION To avoid personal injury: C Shorting of electric cable or wiring may cause a fire. A Check to see if electric cables and wiring are swollen, hardened or cracked. A Keep dust and water away from all power connections. -
Page 36: Fan Belt
(0.39 to 0.47 in.) when the belt is tension pressed in the middle of the span. [V3300-E, V3300-TE, V3300-DI-E, V3300-DI-TE, V3800-DI-E, V3800-DI-TE, V3300-EBG, V3300-T-EBG] 1. Stop the engine and remove the key. 2. Apply moderate thumb pressure to belt between the pulleys. -
Page 37: Carriage And Storage
CARRIAGE AND STORAGE CARRIAGE AND STORAGE CARRIAGE STORAGE CAUTION CAUTION To avoid personal injury: To avoid personal injury: A Fix the engine securely not to fall A Do not clean the machine with during operation. engine running. A Do not stand near or under the A To avoid the danger of exhaust fume engine while carrying it. -
Page 38: Troubleshooting
Install in machine at time of crank. use. A If the cause of trouble can not be found or if you can not adjust by yourself, contact your KUBOTA dealer. - Page 39 TROUBLESHOOTING BWhen engine suddenly stops BWhen engine overheats Cause Countermeasures Cause Countermeasures *Check the fuel tank and refill the fuel, if Engine oil *Check oil level. Replenish oil as necessary. insufficient required. Lack of fuel *Also check the fuel system for air or Fan belt broken or leaks.
-
Page 40: Specifications
SPECIFICATIONS SPECIFICATIONS Model V3300-E V3300-TE Type Vertical, water-cooled, 4-cycle diesel Number of cylinders Bore and stroke mm (in.) 98 × 110 (3.86 × 4.33) Total displacement L (cu.in.) 3.318 (202.49) Combustion type Spherical type (E-TVCS) SAE NET Intermittent kW / rpm 50.5/2600... - Page 41 SPECIFICATIONS Model V3300-DI-E V3300-DI-TE Type Vertical, water-cooled, 4-cycle diesel Number of cylinders Bore and stroke mm (in.) 98 × 110 (3.86 × 4.33) Total displacement L (cu.in.) 3.318 (202.49) Combustion type Direct injection type (E-CDIS) SAE NET Intermittent kW / rpm 53.0/2600 64.7/2600 H.P.
- Page 42 SPECIFICATIONS Model V3307-DI-TE V3800-DI-E V3800-DI-TE Type Vertical, water-cooled, 4-cycle diesel Number of cylinders Bore and stroke mm (in.) 94 x 120 (3.70 x 4.72) 100 × 120 (3.94 × 4.72) Total displacement L (cu.in.) 3.331 (203.27) 3.769 (230) Combustion type Direct injection type (E-CDIS) SAE NET Intermittent kW / rpm...
- Page 43 SPECIFICATIONS Model V3300-EBG V3300-T-EBG Type Vertical, water-cooled, 4-cycle diesel Number of cylinders Bore and stroke mm (in.) 98 × 110 (3.86 × 4.33) Total displacement L (cu.in.) 3.318 (202.49) Combustion type Spherical type (E-TVCS) SAE NET Intermittent kW / rpm H.P.
- Page 44 SPECIFICATIONS FOR EBG or T-EBG type A Flywheel type is SAE clutch No.11-1/2, SAE clutch No.10 or its equivalent. A Flywheel housing type is SAE No.3 or its equivalent. A Governor drop is within 5%. A Continuous will operate at the stated rating continuously and have a 10% overload capability for one hour in 12 hours. A Standby will operate at the stated full rating for one hour in 12 hours.
-
Page 45: Wiring Diagrams
WIRING DIAGRAMS WIRING DIAGRAMS... - Page 46 WIRING DIAGRAMS...
