  • Page 2: Fcc Declaration Of Conformity

    Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord...

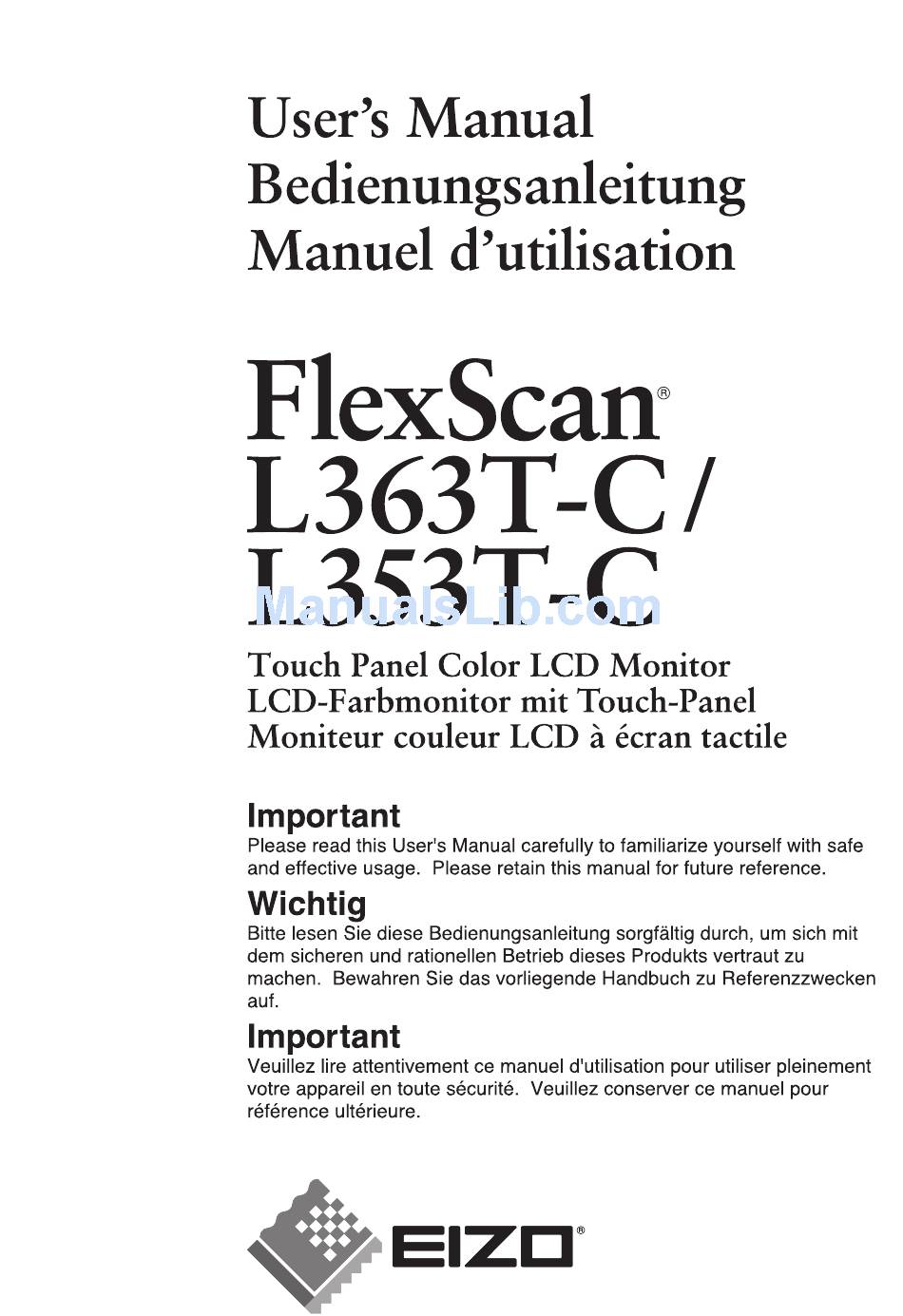

  • Page 3 User’s Manual Touch Panel Color LCD Monitor It shall be assured that the final system is in compliance to IEC60601-1-1 requirements.

  • Page 4: Safety Symbols

    EIZO NANAO CORPORATION. EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO NANAO CORPORATION's receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

  • Page 5: Table Of Contents

    1-3. Controls & Connectors ...10 2. CABLE CONNECTION ... 12 2-1. Before connecting ...12 2-2. Connecting the signal cable ...13 2-3. Connecting two PCs to the monitor...15 2-4. Sound Connections ...16 3. ScreenManager ... 17 3-1. How to use the ScreenManager ...17 3-2.

  • Page 6: Precautions

    [Symbols on the unit] Symbol Front Control panel Rear Name Plate Rear Rear PRECAUTIONS Location This symbol indicates Power button Press to turn the monitor’s power on or off. Alternating current Alerting electrical hazard Caution Refer to SAFETY SYMBOLS section in this manual.
  • Page 7 WARNING If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your dealer for advice. Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage.
  • Page 8 English WARNING To avoid danger of suffocation, keep the plastic packing bags away from babies and children. Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord. Not doing so may result in fire or electric shock.
  • Page 9 WARNING Lamps contain mercury, dispose according to local, state or federal laws. CAUTION Handle with care when carrying the unit. Disconnect the power cord and cables when moving the unit. Moving the unit with the cord attached is dangerous. It may result in injury. When handling the unit, grip the bottom of the unit firmly with both hands ensuring the panel faces outward before lifting.

  • Page 10: Notice For This Monitor

    Use the screen saver or timer to avoid displaying the same image for extended periods of time. When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur inside and outside the monitor. In that case, do not turn the monitor on and wait until dew condensation disappears, otherwise it may cause damage to the monitor.

  • Page 11: Introduction

    1. INTRODUCTION Thank you very much for choosing an EIZO Color Monitor. 1-1. Features • Dual inputs compliant • DVI (p.41) Digital input (TMDS (p.42)) compliant. • Horizontal scanning frequency: Vertical scanning frequency: Resolution: • Auto Adjustment compliant • Support to sRGB (p.42) standard •...

  • Page 12: Controls & Connectors

    English 1-3. Controls & Connectors Front Control Panel (1) ScreenManager (2) Speaker Volume Control Mute Input Signal Selection Button SIG. Auto Adjustment Button Enter Button ENT. Control Buttons (Left, Down, Up, Right) Power Switch Power Indicator Blue Yellow / Flashing yellow (2 times for each) Flashing yellow slowly Regarding the sound connection, see page 16.
  • Page 13 (15) 4 Holes for Mounting a stand (16) Stand (Detachable) Allows for connection of a security cable. This lock supports Kensington’s MicroSaver security system. The LCD monitor can be used with an other stand by removing the stand (see page 29). (15) POWER INPUT...

  • Page 14: Cable Connection

    English 2. CABLE CONNECTION 2-1. Before connecting Before connecting your monitor to the PC, change the display screen settings (resolution (p.42) and frequency) in accordance with the charts below. NOTE • The lower display modes like 640x 480, automatically enlarge to the maximum display mode (1024 x 768), and some lines of the characters may become fuzzy.

  • Page 15: Connecting The Signal Cable

    2-2. Connecting the signal cable NOTE • Be sure that the power switches of both the PC and the monitor are OFF. Plug the signal cable into the connector at the rear of the monitor and the other end of the cable into the video connector on the PC.
  • Page 16 English Plug the power cord into the power connector on the rear of the monitor. Then, plug the other end of the cord into a power outlet. WARNING Use the enclosed power cord and connect to the standard power outlet of your country.

  • Page 17: Connecting Two Pcs To The Monitor

    (optional). Regarding the installation, please refer to the User’s Manual of TP1. 2-3. Connecting two PCs to the monitor Two PCs can be connected to the monitor through the DVI and the D-Sub mini 15 pin connector on the back of the monitor.

  • Page 18: Sound Connections

    2-4. Sound Connections NOTE • Always switch the monitor and audio devices or computers off whenever connecting or disconnecting any audio devices (computer or CD player) to the monitor. • Use the enclosed stereo mini-jack cable for connecting audio devices or computers to the monitor.

  • Page 19: Screenmanager

    3. ScreenManager 3-1. How to use the ScreenManager S I G . S I G . AUTO AUTO E N T . E N T . Entering the ScreenManager Press the Enter Button once to display the main menu of the ScreenManager. Making Adjustments and Settings (1) Select the desired sub menu icon using the Control Buttons and press the Enter Button.

  • Page 20: Adjustments And Settings

    English 3-2. Adjustments and Settings The following table shows all the ScreenManager’s adjustment and setting menus. “*” indicates adjustments of analog input only and “**” indicates digital input only. Main menu Screen Color Sound PowerManager Others Information Language Due to the inspection on the factory, the usage time may not “0 hour” at shipping. 3.

  • Page 21: Useful Functions

    (2) Hold down the Auto adjustment button once again and turn the power back on. Off Timer The off timer function causes the monitor to automatically enter a power off state after a predetermined amount of time has lapsed. This function was created to reduce afterimage characteristics that are particular to LCD monitors when the monitor screen is left on for a long period without use.

  • Page 22: Automatically Selecting The Input Signal Function

    English EIZO Logo disappearing function When switching on the Power Switch on the control panel, the EIZO logo is displyed for a while. If you desire to display or undisplay this logo, use this function. (Default is logo appearing.) [To undisplay] (1) Switch off the monitor’s power by the Power switch on the control panel.

  • Page 23: Adjustment

    Adjustment Procedure NOTE • Allow the LCD monitor to stabilize for at least 20 minutes before making image adjustments. Press the Auto Adjustment Button on the control panel. The message “Your setting will be lost, if you press again now.” appears and remains on the screen for 5 seconds.
  • Page 24 NOTE • More precise adjustment is available for using the “Screen Adjustment program” utility software. It can be downloaded from the EIZO homepage (http://www.eizo.com/). Adjust by using <Screen> menu in the ScreenManager. (1) Vertical bars appear on the screen →...
  • Page 25 (3) The screen position is incorrect. → Use the <Position> adjustment. The correct displayed position of the monitor is decided because the number and the position of the pixels are fixed. The “Position” adjustment moves the image to the correct position.
  • Page 26 English To Set the Brightness of the screen. → Use the <Brightness> adjustment. The brightness of the entire screen is controlled by changing the brightness of the backlight. Select < Brightness > in the screen menu and adjust by using the Up and Down Buttons.

  • Page 27: Color Adjustment

    In the analog input, perform the “Range Adjustment” (p.23) before making the color adjustments. NOTE • Allow the LCD monitor to stabilize for at least 20 minutes before making image adjustments. (Allow the monitor to warm up for at least 20 minutes before making adjustments.) •...
  • Page 28 English Menu Color Mode Custom √ Saturation √ √ Gain (p.41) √ Reset 4. ADJUSTMENT Function Descriptions sRGB To change the saturation NOTE • The <Saturation> adjustment may cause undisplayable color tone. To change the flesh color, etc. NOTE • The <Hue>...

  • Page 29: Power-Save Setup

    The <PowerManager> menu in the ScreenManager enables to set the power-save setup. NOTE • Do your part to conserve energy, turn off the monitor when you are finished using it. Disconnecting the monitor from the power supply is recommended to save energy completely.
  • Page 30 English Power save for speaker When the monitor is in the power-saving mode, sound of speaker also erases simultaneously can be performed. [Procedure] (1) Set the PC’s power saving settings. (2) Select <Sound>. (3) Select “Disable”. (“Enable” is selected to leave sound.)

  • Page 31: Attaching A Stand

    5. ATTACHING A STAND The LCD monitor can be used with other stand by removing the tilt stand and attaching the stand to the LCD monitor. NOTE • When attaching an arm or stand, follow the instructions of their user’s manual.

  • Page 32: Troubleshooting

    English 6. TROUBLESHOOTING If a problem persists even after applying the suggested remedies, contact an EIZO dealer. • No picture problems : See No.1 ~ No.2 • Imaging problems : See No.3 ~ No.9 • Other problems : See No.10 ~ No.13 •...
  • Page 33 (p.22) Switch the <Smoothing> mode. (p.23) Adjust the <Brightness> . (The backlight of the LCD monitor has a fixed life span. When the screen becomes dark or begins to flicker, please consult your dealer.) Do you use the screen saver or timer when displaying the same image for extended periods of time? (p.19)
  • Page 34 “desktop” pattern is set to black. Some signals from a graphics board may not function properly. The computer with digital may be in the off mode (power indicator flashing yellow). Try to press the monitor’s power switch and press the Input Signal Selection Button again.
  • Page 35 When multiple monitors are placed close to each other, leave space between monitors. When cursor position is incorrect or cursor jumps, turn off and on the monitor. If the symptom is not improved, perform the calibration on the monitor. • Do not touch the screen while turning on the PC and the monitor.

  • Page 36: Cleaning

    English 7. CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. NOTE • Never use any solvents or chemicals, such as thinner, benzene, wax, alcohol, disinfectant, and abrasive cleaner, which may damage the cabinet or panel.

  • Page 37: Specifications

    8. SPECIFICATIONS L363T-C LCD Panel Dot Pitch Horizontal Scan Frequency Vertical Scan Frequency Resolution Dot Clock (Max.) Display Colors Display Area Touch Panel Communication protocol Communication speed Detective method Analog capacitive technology, finger touch Power Supply Power Consumption Input Connector Analog Input Signal (Sync) Analog Input Signal (Video) Input Signal (Digital)
  • Page 38 English Environment Temperature conditions Humidity Pressure Certifications and Standards 100-120 VAC 200-240 VAC Classification of Equipment 8. SPECIFICATIONS Operating: 0 °C ~ 35 °C (32 °F ~ 95 ° F) Storage: -20 °C ~ 60 °C (-4 °F ~ 140 ° F) 30% to 80% R.H.
  • Page 39 L353T-C LCD Panel Dot Pitch Horizontal Scan Frequency Vertical Scan Frequency Resolution Dot Clock (Max.) Display Colors Display Area Touch Panel Communication protocol Communication speed Detective method Analog capacitive technology, finger touch Power Supply Power Consumption Input Connector Analog Input Signal (Sync) Analog Input Signal (Video) Input Signal (Digital) Signal registration...
  • Page 40 English Environment Temperature conditions Humidity Pressure Certifications and Standards 100-120 VAC 200-240 VAC Classification of Equipment 8. SPECIFICATIONS Operating: 0 °C ~ 35 °C (32 °F ~ 95 ° F) Storage: -20 °C ~ 60 °C (-4 °F ~ 140 ° F) 30% to 80% R.H.
  • Page 41 Default settings Brightness Smoothing Temperature PowerManager Input Signal Off Timer Language Optional Touch Panel Pointer Dimensions 346 (13.6) 306 (12.0) 135 (5.3) Analog input Digital input 100% Off (normal white: approx. 6500 K) VESA DPMS DVI DMPM Auto Disable English Unit mm (inches) 54.5 32.7...

  • Page 42: Pin Assignment

    English Pin Assignment D-Sub mini 15 pin connector DVI-D Connector 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 USB Port Upstream Series B 8. SPECIFICATIONS Signal Red video Red ground...

  • Page 43: Glossary

    DVI-DMPM as the monitor’s power mode. Gain Adjustment Adjusts each color parameter for red, green and blue. The color of the LCD monitor is displayed through the color filter of the LCD panel. Red, green and blue are the three primary colors.
  • Page 44 The LCD panel consists of a fixed number of pixel elements which are illuminated to form the screen image. The display panel of this monitor consists of 1024 horizontal pixels and 768 vertical pixels. At a resolution of 1024 x 768, images are displayed as a full screen (1:1).

  • Page 45: Appendix/Anhang/Annexe

    Timing-Übersichten für Analog Eingang Synchronisation des Signaux pour Analog numerique Based on the signal diagram shown below 12 factory presets have been registered in the monitor's microprocessor. Der integrierte Mikroprozessor des Monitors unterstützt 12 werkseitige Standardeinstellungen (siehe hierzu die nachfolgenden Diagramme).

  • Page 46: Emc Information

    EMC Information Essential performance of FlexScan L363T-C/L353T-C are to display images and operate functions normally. CAUTION The FlexScan L363T-C/L353T-C require special precautions regarding EMC and need to be installed, put into service and used according to the following information. Do not use any cables other than the cables that provided or specified by us. Using other cables may cause the increase of emission or decrease of immunity.
  • Page 47 Guidance and manufacturer’s declaration - electromagnetic immunity The FlexScan L363T-C/L353T-C are intended for use in the electromagnetic environment specified below. The customer or the user of the FlexScan L363T-C/L353T-C should assure that it is used in such an environment. Immunity test IEC60601 test level Electrostatic ±6kV contact...
  • Page 48 Guidance and manufacturer’s declaration - electromagnetic immunity The FlexScan L363T-C/L353T-C are intended for use in the electromagnetic environment specified below. The customer or the user of the FlexScan L363T-C/L353T-C should assure that it is used in such an environment. Immunity test IEC60601 test level Conducted RF 3Vrms...
  • Page 49 Recommended separation distances between portable and mobile RF communications equipment and the FlexScan L363T-C/L353T-C The FlexScan L363T-C/L353T-C are intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the FlexScan L363T-C/L353T-C can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the FlexScan L363T-C/L353T-C as recommended below, according to the maximum output power of the communications equipment.
  • Page 50 Hinweise zur Auswahl des richtigen Schwenkarms für Ihren Monitor Dieser Monitor ist für Bildschirmarbeitsplätze vorgesehen. Wenn nicht der zum Standardzubehör gehörige Schwenkarm verwendet wird, muss statt dessen ein geeigneter anderer Schwenkarm installiert werden. Bei der Auswahl des Schwenkarms sind die nachstehenden Hinweise zu berücksichtigen:...
  • Page 51 DE BRAN CHE SWICO. http://www.swico.ch Recycling Information for customers in USA: All recycling information is placed in the EIZO Nanao Technologies, Inc’s website. http://www.eizo.com/ Återvinnings information för kunder i Sverige: All information om återvinning finns på Eizo Europe AB:s hemsida:...
