Edimax BR-6504n Quick Installation Manual

Ieee 802.11n draft2. 0 wireless lan broadband router
Hide thumbs Also See for BR-6504n:
Table of Contents

Advertisement

Quick Links

See also: User Manual
IEEE 802.11n Draft2. 0 Wireless LAN

Broadband Router

Quick Installation Guide(Q.I.G.)
Version 1.0 / April 2007

Advertisement

Table of Contents
loading

Related Manuals for Edimax BR-6504n

Summary of Contents for Edimax BR-6504n

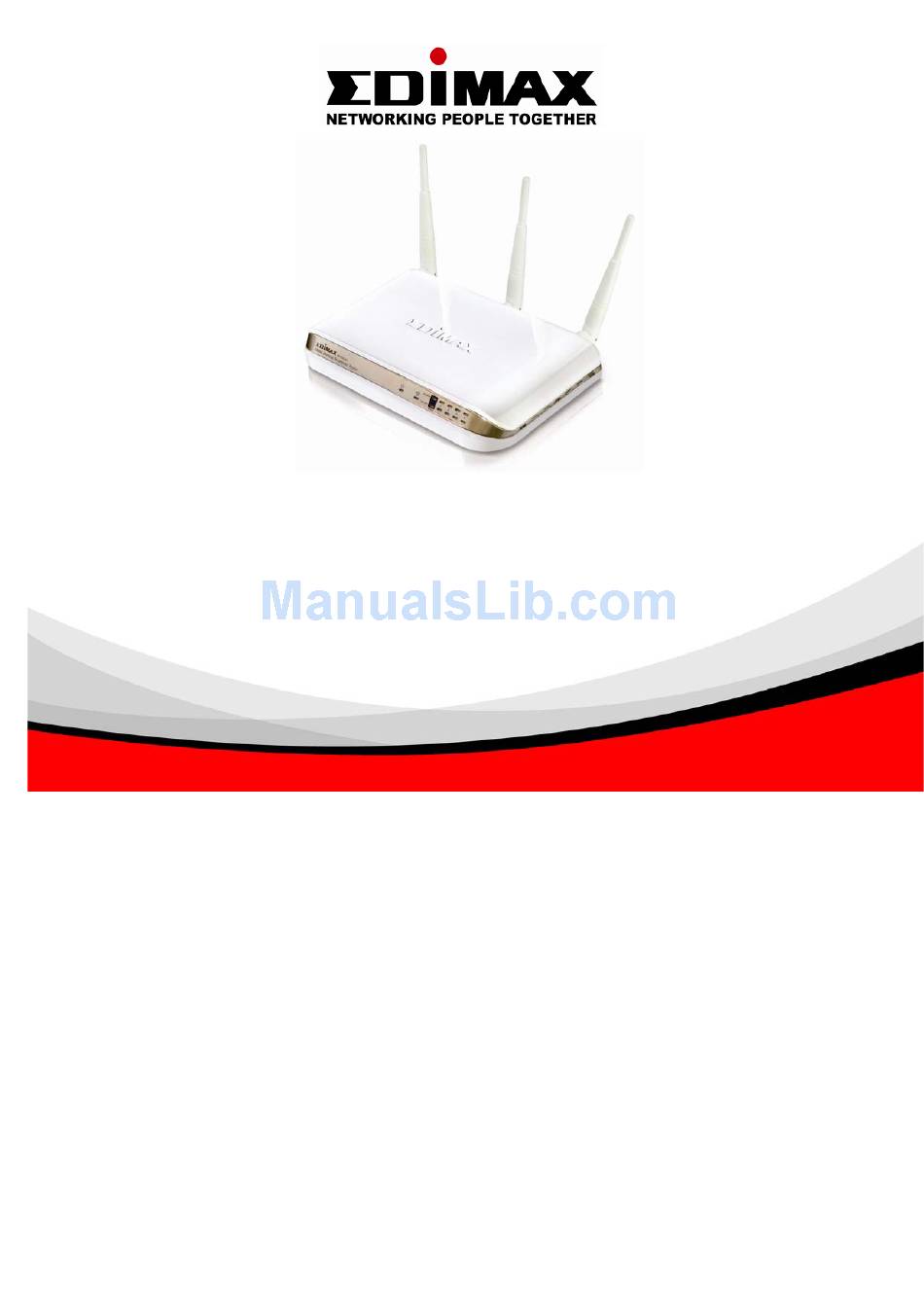

  • Page 1: Broadband Router

    IEEE 802.11n Draft2. 0 Wireless LAN Broadband Router Quick Installation Guide(Q.I.G.) Version 1.0 / April 2007...
  • Page 2 Č Č ý ý : Českého průvodce rychlou instalací naleznete na přiloženém CD s ovladači : Finden Sie bitte das deutsche S.A.L. beiliegend in der Treiber CD ñ l : Incluido en el CD el G.R.I. en Español. ñ ç ç...
  • Page 3 Copyright© by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without...

  • Page 4: Package Contents

    Before you starting to use this router, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items: □ Broadband router (BR-6504N, 1 pcs) □ Quick installation guide (1 pcs) □ User manual CDROM (1 pcs) □...
  • Page 5 10/100M Flashing WAN activity (transferring data) WAN port is connected WAN port is not connected LNK/ACT Flashing WAN activity (transferring data) LAN port is running at 100Mbps 10/100M LAN port is running at 10Mbps LAN port is connected LAN port is not connected LNK/ACT Flashing LAN activity (transferring data)
  • Page 6 Wide Area Network (WAN / Internet) port BR-6504N supports WPS function . If your wireless adapter supports the function too. After you finish the following setting of Step 1~ Step 3, You can read “Step 4: WPS function“ to simplify the setting of security with wireless adapters Instructions for using the router to share the Internet with multiple PCs.
  • Page 7 3. Check to make sure the router’s LINK LED is lit; to confirm the cable connections are made correctly.
  • Page 8 1. Configure the PC LAN setting to automatically obtain an IP address from the router by following below steps. Click “Start” in the task bar then select the “Control Panel” to open it. Click “Switch to Classic View” on the left top to see more setting icon… Find an icon “Network Connection”...
  • Page 9 You will see an icon “Local Area Connection”, click the icon then Right-Click the mouse to open the sub-menu and select the “Properties” for setting the IP.
  • Page 10 Select the “Internet Protocol (TCP/IP)” then click the “Properties” Ensure the parameter marked in blue are checked in “Obtain an IP address automatically” and “Obtain DNS server address automatically” then press “OK” to close. 2. Power on sequence for the networking devices and PC. Firstly, power off the modem followed by router and PC.
  • Page 11 – – 1. Enter the router’s default IP address: “192.168.2.1” into your PC’s web browser and press “enter”. 2. The login screen below will appear. Enter the “User Name” and “Password” and click “OK” to login. The default User name is “admin” and the Password is “1234”, Note: It’s highly recommended to change and save Router's log-in settings in another location.
  • Page 12 3. The main page will appear, click “Quick Setup” Following example is for “PPPoE” WAN setting. 4. Select ‘(GMT) Greenwich Mean Time: (your country or city) then Click “Next” button. 5. Select “PPPoE xDSL”, the system will move into next step...
  • Page 13 6. Enter the “User Name” and “Password” that ISP provided and leave the others. (The “Service Name” can be blank) and click “OK” to save the setting then reboot the router 7. After reboot, your router is now ready for Internet connection.
  • Page 14 1. The following example is for U.K. Click on “Quick Setup”. 2. Select ‘(GMT) Greenwich Mean Time : “London”. Click “Next” button.
  • Page 15 WPS mode too. You can push Reset/WPS button of this wireless router, or click ‘Start PBC’ button in the web configuration interface to do this; if you want to use PIN code, you have to know the PIN code of wireless client and switch it to WPS mode, then provide the PIN code of the wireless client you wish to connect to this wireless router.

  • Page 16: Advanced Setup

    3 Advanced Setup 3-1 Change management password Default password of BR-6504N is 1234, and it’s displayed on the login prompt when accessed from web browser. There’s a security risk if you don’t change the default password, since everyone can see it. This is very important when you have wireless function enabled.

  • Page 17: Firmware Upgrade

    Please click ‘Tool’ located at the upper-right corner of web management interface, then click ‘Configuration Tools’ on the left of web management interface, then the following message will be displayed on your web browser: Here are descriptions of every buttons: Backup Press ‘Save...’...
  • Page 18 router, even fix the bugs of this router. To upgrade firmware, please follow the following instructions: Please click ‘Tool’ located at the upper-right corner of web management interface, then click ‘Firmware Upgrade’ on the left of web management interface, then the following message will be displayed on your web browser: Please click ‘Next’, and the following message will be displayed: Click ‘Browse’...
  • Page 19 upgrade procedure automatically. The procedure may take several minutes, please be patient. NOTE: Never interrupt the upgrade procedure by closing the web browser or physically disconnect your computer from router. If the firmware you uploaded is corrupt, the firmware upgrade will fail, and you may have to return this router to the dealer of purchase to ask for help.

  • Page 20: Fcc Caution

    This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 21 Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment.
