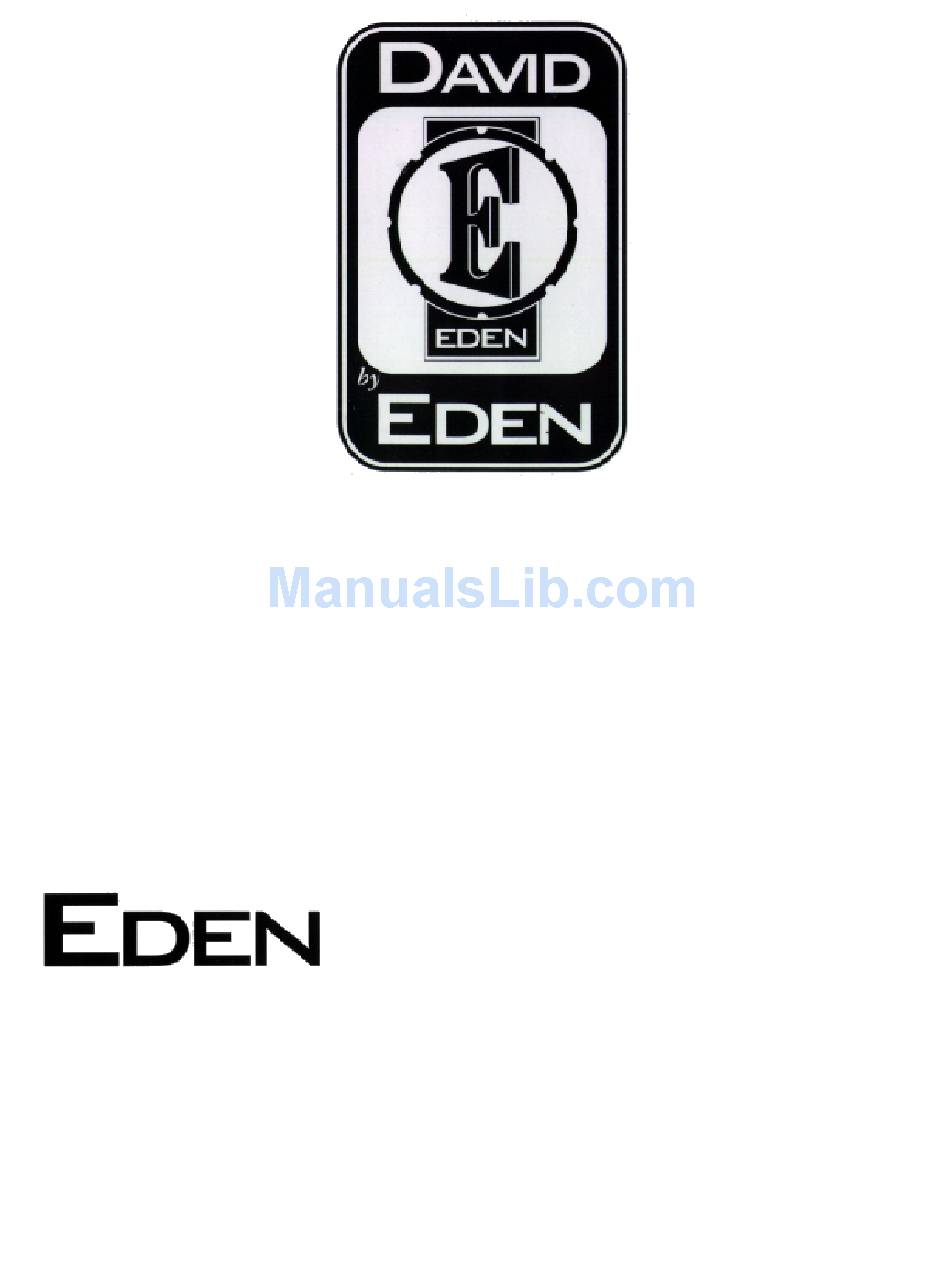

- Page 1 World Tour Bass Guitar Amplifier Covering Model WT800 (B Version) THE LEADER IN BASS AMPLIFICATION. ©07-15-2005 by U.S. Music Corp.
-
Page 2: Operation Manual
The Eden World Tour products group is the result of our quest for ultimate bass tone and maximum reliability. Your amplifier was designed, engineered and manufactured equivalent to aircraft vibration standards and housed in a one-piece aluminum case with steel top to ensure maximum reliability. - Page 3 The Eden line of World Tour amplifiers is the result of our research and development in combining high performance and compact size. Just as a skilled craftsman needs good quality tools that won't let him down on the job, so does a good musician. We hope you enjoy the tool we’ve created for you.
- Page 4 If you experience any discomfort or ringing in the ears or suspect hearing loss, you should consult an audiologist. Thank you for your purchase of an Eden bass guitar product. This unit has been designed and constructed to give you years of trouble-free service.
-
Page 5: Front Panel Features
FRONT PANEL FEATURES Input Jack – Designed to accept a standard _ inch mono phone plug. For best results use a high quality shielded cable to connect your instrument to the amplifier. The input is buffered and will handle standard passive, high level active, and piezo input signals. - Page 6 Amp Mode. In all other modes of operation, this feature is defeated. Mono Bridge Switch – Engages Bridge Mono Operation. To engage, push the switch IN. Mono Bridge Indicator – Lights to show that the amp is in Bridge Mono mode. EXTREMELY IMPORTANT NOTE: Do NOT engage Mono Bridge in combination with bi-amp operation.
-
Page 7: Rear Panel Features
RMS. When connecting this cabinet to the WT800B in Bridge Mode, it will receive approximately 1000 Watts RMS, which is a near-perfect match. Left/High Amp Output – These consist of two _ inch jacks and an NL-4 connector (sometimes called a Speakon). The jacks are wired in parallel. The total speaker load impedance should not go below 2 ohms. - Page 8 Do not use fast blow fuses. To convert your amplifier from US to European fusing, remove the Fuse Holder and insert a 5 Amp slow blow fuse. Flip the fuse holder over and reinsert. IMPORTANT NOTE: In order to operate properly in other parts of the world, your amplifier may require minor modifications.
- Page 9 D.I. Level – Controls the level being sent from the XLR balanced output jack. We suggest setting the control at approximately 12 o’clock initially. If the signal to the board is too hot, it’s better to engage the Input Pad on your channel of the board than to turn it down here, if at all possible.
-
Page 10: Operating Instructions
Right/Low Amp Output – These consist of two _ inch jacks and an NL-4 connector (sometimes called a Speakon). The jacks are wired in parallel. The total speaker load impedance should not go below 2 ohms. On NL-4 connectors, we use +1, -1 connections. -
Page 11: Initial Setup
Mono Bridge Output. The total impedance of all speakers connected to each of the amplifiers should not exceed 2 Ohms. Make sure that the Bi-amp and Bridge Mono switches are both OFF. In the OFF position, both switches should be flush with the face of the amplifier. - Page 12 &/or speakers. We’re serious about this. Pay attention. GETTING A GREAT TONE As bassists, each of us has in our head a concept of our perfect sound. Eden amplifiers are designed to help you easily achieve the sound you hear inside...
- Page 13 In order to ensure the ultimate in tone, it’s important to follow the procedure outlined below. Don’t skip steps; don’t jump around. Yes, this may take a minute or two, but the work is well worth it. Once they’ve done it a few times, most users can do it time and again in about a minute.
- Page 14 Once you have properly set your Input Gain, turn the Master Volume up to a comfortable listening level and proceed with the rest of the setup process. Setting the Compressor - If you want to use compression, engage it now by turning the Compressor Defeat switch OFF.
- Page 15 If EQ clipping occurs, you can either decrease the boost or decrease the Input Gain. Remember, too, that our EQ controls are active, and are meant to turn both ways – not just UP! This means that you can enhance a certain frequency spectrum either by boosting that frequency or by cutting the adjacent frequencies.
- Page 16 (apparent) tone, especially in the mids and high end. ANOTHER NOTE: If you are using Dual Mono or Bi-Amp operation, you can use the Balance control to adjust the balance between different cabinet models to achieve your sound.
-
Page 17: Other Considerations
There you have it: a quick and easy process to help you get the perfect tone from your Eden amplifier. As previously mentioned, it make take a few extra minutes the first few times you go through this, especially if you take the time to experiment with all the knobs and switches, which we highly recommend. -
Page 18: Maintenance
Balance control all the way to that amp. MAINTENANCE Your Eden amplifier has been designed to require minimal routine maintenance. Attention to the following areas will ensure optimum performance of your amplifier. We’re serious. Don’t blow this off, OK? Contact Point Cleaning –... - Page 19 DO NOT continue to use the amplifier in this condition. Learn More – If you’d like to learn more about your amplifier (or about our company and its activities), we invite you to visit our website – www.eden- electronics.com. There you’ll find articles to help you better understand our products and the technical stuff some people find so interesting.
- Page 20 (847) 949-8444(fax) Eden Note for those who care: This manual was written by David (Eden) Nordschow, Eden’s Chief Propellerhead & Master of All Things Technical, and Lane Baldwin, Eden’s Special Projects Coordinator (Many Other Functions). Any grammar errors are David and Lane’s fault, as are the attempts at humor.
-
Page 21: My Favorite Settings
My Favorite Settings Setting 1____________________________________________________ Setting 2____________________________________________________ Setting 3____________________________________________________ Setting 4____________________________________________________...
