Dremel EZ Lock EZ688-01 Manual

CORRECT SE TING
POSITIONNEMENT CORRECT
SENT MIENTO CORRECTO
Read tool manual before use of this accessory. Wear eye and res-
W RNING
piratory protection.
accessories. Incorrect seating of wheel on mandrel may lead to personal injury or
property damage. Run-in for one minute before application. Do not jam, twist or pinch
wheel in workpiece or apply excessive side pressure to wheel. lways grip tool firmly with
both hands. KICKB CK may occur if wheel is jammed. Do not position your body in line
with wheel. Do not use near flammable materials or gases, fire or explosion may result.
Do not expose to water, condensation or freezing. Discard wheel if dropped, cracked or
chipped. Maximum operating speed is 35,000 RPM.

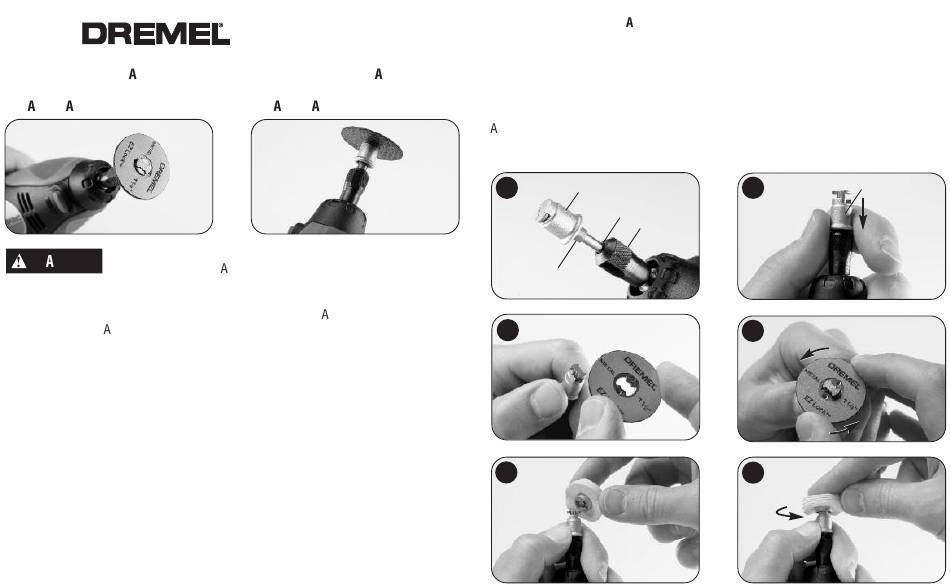

To load accessory:
PHOTO 1. Place EZ Lock mandrel (1) into collet (2) as deep as possible and tighten
collet nut (3). Note: There is a spacer (4) on the mandrel that will bottom out on the
collet nut, setting the mandrel to the correct depth.*
PHOTO 2. Pull spring-loaded sleeve (5) DOWN towards tool with one hand and hold. You
can brace the tool on the body or work-bench for extra leverage.
PHOTO 3a. With the other hand, align bowtie shape on cut-off wheel with mandrel and
make sure metal insert is facing away from the tool.
PHOTO 3b. Place wheel on the mandrel to a point just below the bowtie on the
mandrel and twist 90 degrees until the bowtie shape on the wheel aligns with the sleeve.
Release sleeve. Wheel should lock in place.
PHOTO 4a and 4b. When mounting sanding and polishing accessories, align bowtie with
EZ Lock
™
CORRECT SE TING
POSITIONNEMENT CORRECT
SENT MIENTO CORRECTO
lways unplug rotary tool before changing
metal insert on bottom of accessory. To check for proper seating, hold collet lock but-
ton and twist accessory. ccessory will not be able to rotate on mandrel.
To unload accessory:
1. Pull spring-loaded sleeve DOWN toward tool with one hand.
2. Hold sleeve down while twisting accessory 90 degrees.
3. Remove accessory.
During use
void damage to EZ lock mandrel by not letting it contact the workpiece.
* When using with Dremel chuck, back the mandrel out slightly before tightening.
1
1
2
3
4
3a
4a
5
2
3b
90˚
4b
90˚
