Mounting Instructions Wall Hung Bracket for model HC-190

Included with the Wall Hung Bracket are 4 #10

by 1/2" self-tapping screws and 4 #12 by 1 ¼"

screws with 4 white plastic Toggle™ anchors

and one red plastic key.

First find a location on the wall where all

necessary plumbing and electric connections

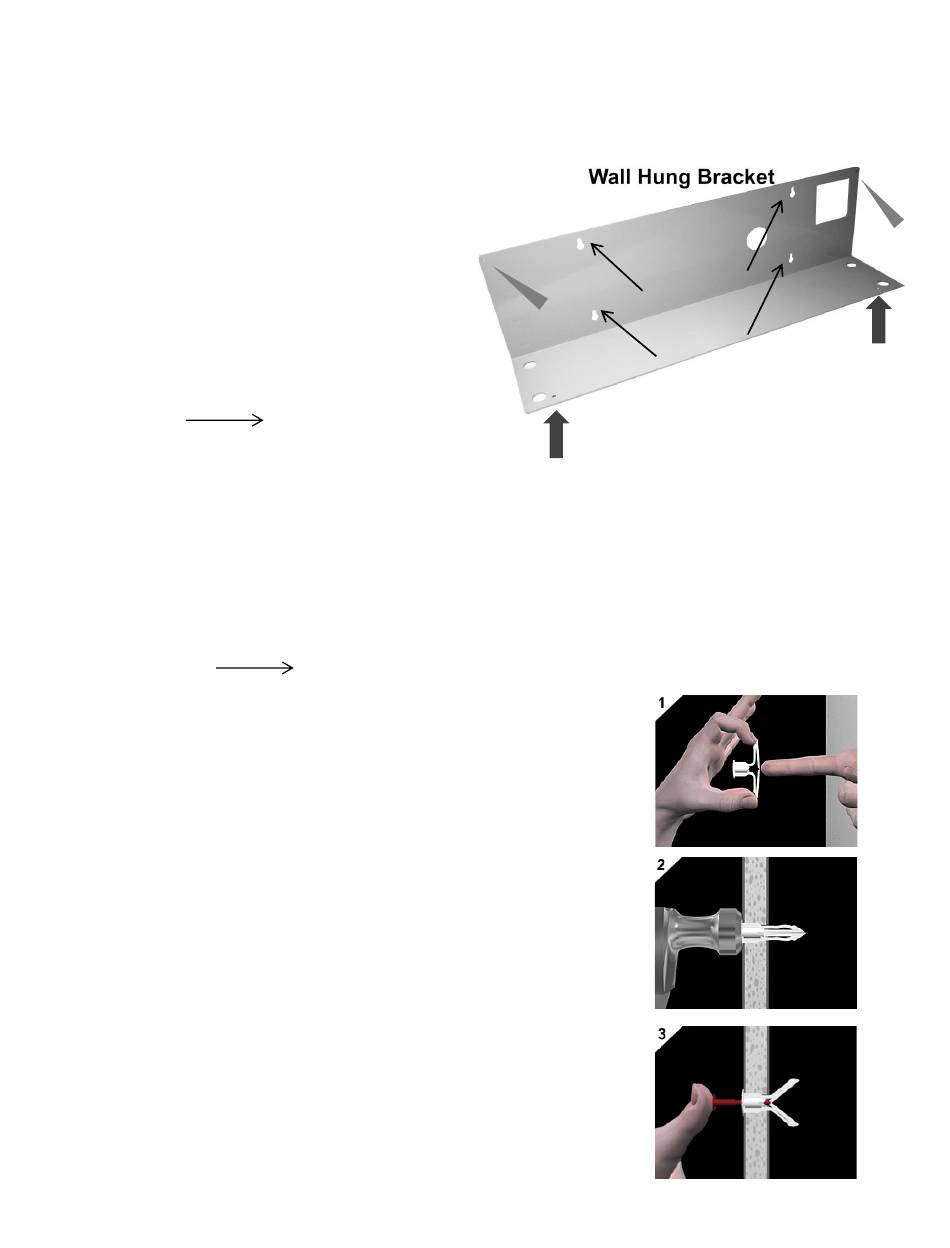

can be made. On the Wall Hung Bracket there

are 4 screw holes for mounting to the wall.

(See arrows

in Photo 1.) They are

Photo 1

located 16 inches apart. All 4 screw holes must be

used to anchor the Heat Convector to the wall.

*Wall Hung Bracket is not recommended for sheetrock or other materials less than 3/8" thick.

If the Wall Hung Bracket is to be mounted into studs then the Toggle™ anchors are not needed.

If no stud is located behind the mounting location then Toggle™ anchors (included) are needed.

Hold Wall Hung Bracket to wall. Check that Wall Hung Bracket is level and mark holes to be drilled on

wall (see arrows

above in Photo 1). Follow steps for Toggle™ anchors below.

1-Drill a 5/16" diameter hole. Fold anchor in middle.

2-Insert anchor in hole and tap flush.

3-Insert red plastic key to pop anchor open behind hollow wall (not

necessary for thick or solid walls). Do not hammer key. Remove key.

(over)

Page 1 Mounting Instructions Wall Hung Bracket for model HC-190 Included with the Wall Hung Bracket are 4 #10 by 1/2” self-tapping screws and 4 #12 by 1 ¼” screws with 4 white plastic Toggle™ anchors and one red plastic key. First find a location on the wall where all necessary plumbing and electric connections can be made.
Page 2 4-Place Wall Hung Bracket over anchor. Insert the #12 by 1 ¼” screw and tighten until flush with bracket then stop. Do not over tighten. Check to make sure Wall Hung Bracket is secured to wall. 2 Side Wall Bracket sets are included with Heat Convector (Photo 2 above shows 1 set).
