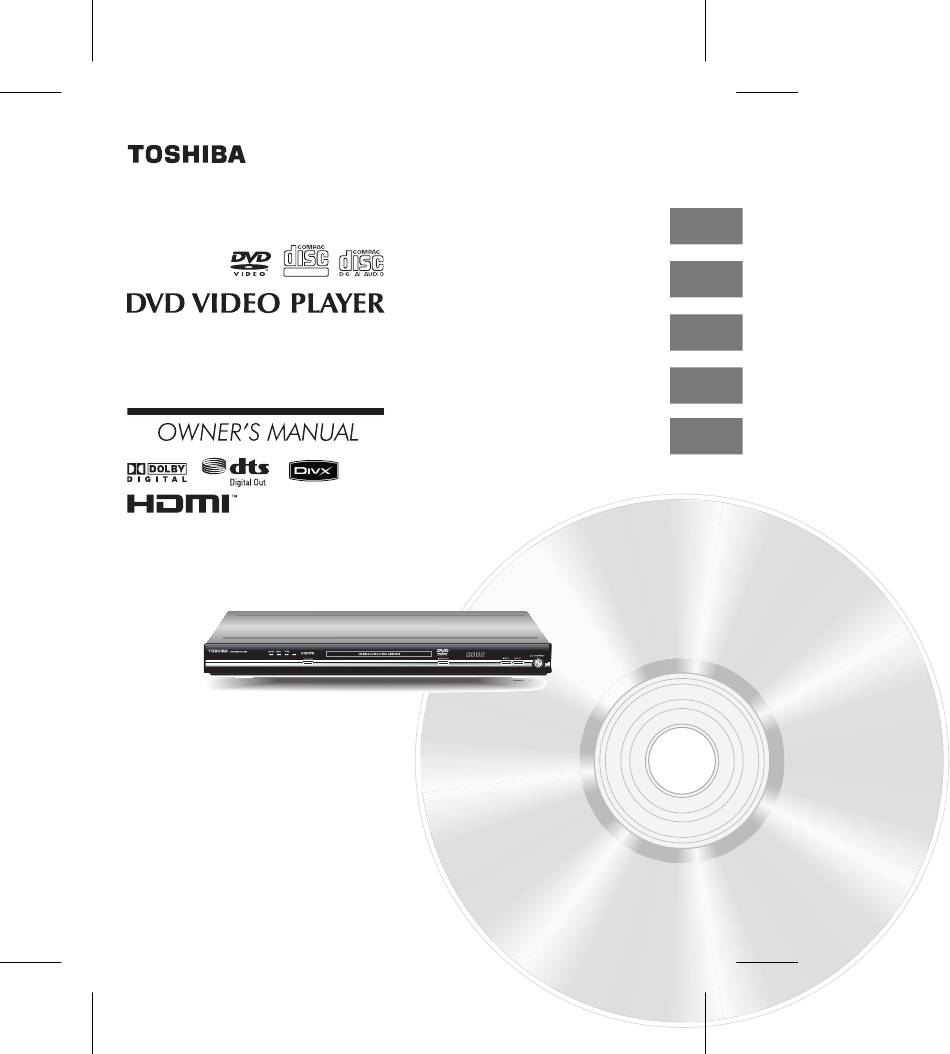

- Page 1 Introduction Disc playback DIGITAL VIDEO Connections SD-469EKE SD-470EKE Function setup Others 576p © 2007 Toshiba Corporation...
-
Page 9: Notes On Region Numbers
DVD and CD software and/or the • VIDEO CD equipped with PBC function (Ver 2.0). manufacture of DVD and CD discs, Toshiba cannot assure In addition to operation of a VIDEO CD not equipped that this DVD video player will successfully play every disc with the PBC function, you can enjoy playback of bearing the DVD and CD logos. -
Page 10: Table Of Contents
Introduction Table of Contents Introduction Function setup SAFETY PRECAUTIONS ......2 Customizing the Function Settings ..28 Setting procedure ........... 28 IMPORTANT SAFETY INSTRUCTIONS ..3 Setting details ..........28 Precautions ..........7 Others Notes on Discs ........... 8 Notes on region numbers ........9 Table of Languages ........ -
Page 11: Identification Of Controls
Identification of Controls See the NO. in for details. Front panel ON/STANDBY button Disc tray Remote sensor Disc tray indicator OPEN/CLOSE button PLAY button HDMI indicator HDMI SELECT button DVD display STOP button ON/STANDBY button Press to toggle the unit ON and OFF. 2.Remote sensor OPEN/CLOSE button Point the remote control here to operate the player. -
Page 12: Rear Panel
Introduction Identification of Controls (continued) Rear panel COAXIAL DIGITAL VIDEO OUT jack AUDIO OUT jack AV (SCART) socket VIDEO OUT (Y/P (Component video) jacks HDMI OUTPUT jack ANALOG AUDIO OUT (L/R) jacks 4.COAXIAL DIGITAL AUDIO OUT jack 1.ANALOG AUDIO OUT (L/R) jacks Use to output digital audio recorded on discs by Use Audio/Video cable supplied to connect to TV or connecting to the coaxial digital audio input on an... -
Page 13: Remote Control
The instructions in this manual describe the functions on the remote control. Remote control SEARCH(T) button HDMI HDMI button... - Page 14 Introduction Identification of Controls (continued) The instructions in this manual describe the functions on the remote control. Please see below: OPEN/CLOSE button SKIP button Press SKIP once within 5 seconds of playback Press the button to OPEN/CLOSE the disc tray. to skip to the previous chapter/track.
- Page 15 PLAY MODE button AUDIO button For DVD discs, press this button to toggle between Press PLAY MODE button to select desired features different audio modes. The selected audio mode using and then press ENTER button to toggle will be displayed on the screen. The abbreviation of desired mode.
-
Page 17: Playing A Disc
Playing a Disc This section shows you the basics on how to play a disc. CAUTION Keep your fingers well clear of the disc tray as it is closing. Neglecting to do so may cause serious personal injury. 1080p 1080i 720p 576p HDMI SELECT... -
Page 18: Resuming Playback From The Same Location
Disc playback Playing a Disc (continued) 2 PLAY 1 STOP SKIP Resuming playback from the same location To start playback from the beginning regardless Press STOP at the location where you want to of the location where you stopped playback interrupt playback. -
Page 19: Playing Mp3/Jpeg/Divx Files/Audio Cd
Intro: Only playbacks the first 10 seconds of all the copyright owners to download or use copyrighted files on the current folder or all tracks on the content. Toshiba cannot and does not grant such disc. permission. • Edit Mode: Memory operation works only when Edit Mode is selected. -
Page 21: Connecting To Atv
Connecting to a TV Connect the DVD video player to your TV. Connecting to a TV (Using the SCART socket) Normal TV • Make the following setting. To wall outlet On-screen display Select: Page To SCART input Composite Component “Video Output” P-Scan To AV HDMI... -
Page 22: Connecting To An Audio System And A Tv (Using The Component Video Jacks)
Connections Connecting to a TV (continued) Interlaced outputs Progressive outputs Some TVs or monitors are equipped with component video Some TVs or monitors are equipped with component video inputs. Connecting to these inputs allows you to enjoy higher inputs that are capable of reproducing a progressively scanned quality picture playback. - Page 24 Connections Connecting to a TV (continued) Content of the output for each output jack is shown in the following table and differ depending on user setting/operation: On-Screen Display Setting Content of output for each output jack "Video Output" HDMI Output HDMI Video Component...
-
Page 26: Connecting To Optional Equipment
Connections Connecting to Optional Equipment (continued) Connecting to an amplifier equipped with a Dolby Digital decoder ® Dolby Digital Manufactured under license from Dolby Dolby Digital is the surround sound technology used in theaters showing the latest Laboratories. “ Dolby ” and the double-D symbol are trademarks of Dolby movies, and is now available to reproduce this realistic effect in the home. -
Page 27: Connecting To An Amplifier Equipped With A Dts Decoder
Connecting to an amplifier equipped with a DTS decoder ® Digital Theater Systems (DTS) DTS is a high quality surround technology used in theaters and now available for home use, on DVD video discs or audio CDs. “DTS” and “DTS Digital Out” are registered If you have a DTS decoder or processor, you can obtain the full benefit of 5.1 trademarks of DTS, Inc. -
Page 28: Function Setup
Function setup Customizing the Function Settings Setting procedure Setting procedure Tray Lock Press SETUP button, and then press the number Press the SETUP button to display the main button 2005 to lock the tray. menu on the screen. When the setup menu is shown, the playback will be automatically paused. - Page 29 Setting details DivX Subtitle Audio UTF8 French Spanish German Italian Portuguese Dutch Danish Défault English: To play sound tracks in English. If your DivX files include a subtitle file, then you French To play sound tracks in French. may select a supported DivX subtitle language Spanish To play sound tracks in Spanish.
- Page 30 Function setup Customizing the Function Settings(continued) Setting details The user may select one of the following options: TV Shape Video View Mode Auto Fit Fill: Fill the screen with decoded image. TV System Video Output HDMI Original: Display image as its original size. HD Resolution 480p/576p HD Jpeg Mode...
- Page 31 Setting details Video Output HD Jpeg Mode TV Shape TV Shape View Mode Auto Fit View Mode Auto Fit TV System TV System NTSC Composite Video Output HDMI Video Output Component HD Resolution 480p/576p P-Scan HD Resolution 720p HD Jpeg Mode HD Jpeg Mode HDMI JPEG Interval...
- Page 32 Function setup Customizing the Function Settings(continued) Setting details Rating Audio Digital Output Parental Selects the output sound format corresponding DVD discs equipped with the password function to your system connection. are rated according to their content. The contents allowed by a parental lock level and the way a DVD disc can be controlled may vary from disc to disc.
- Page 33 Setting details Press to select the Parental from 1 to Default 8 and then press ENTER. Parental one (1) has the most restrictions while Parental eight(8) can virtually playback all DVD software. 6 ) Press OPEN/CLOSE button to activate the Parental Level setting.
-
Page 35: Before Calling Service Personnel
Before Calling Service Personnel Check the following guide for the possible cause of a problem contacting service. Symptoms and correction Symptom Cause Correction No power. • The power plug is disconnected. • Connect the power plug securely into the wall outlet. -
Page 37: Specifications
Specifications DVD Video player/outputs/supplied accessories DVD Video player Power supply 100V-240V AC ~ 50/60 Hz Power consumption 11 W Mass 1.63kg External dimensions 430 x 40 x 199 mm (W/H/D) Signal system PAL/NTSC Laser Semiconductor laser, wavelength 650/780 nm Frequency range DVD linear sound: 48 kHz sampling 4 Hz to 22 kHz 96 kHz sampling 4 Hz to 44 kHz...
