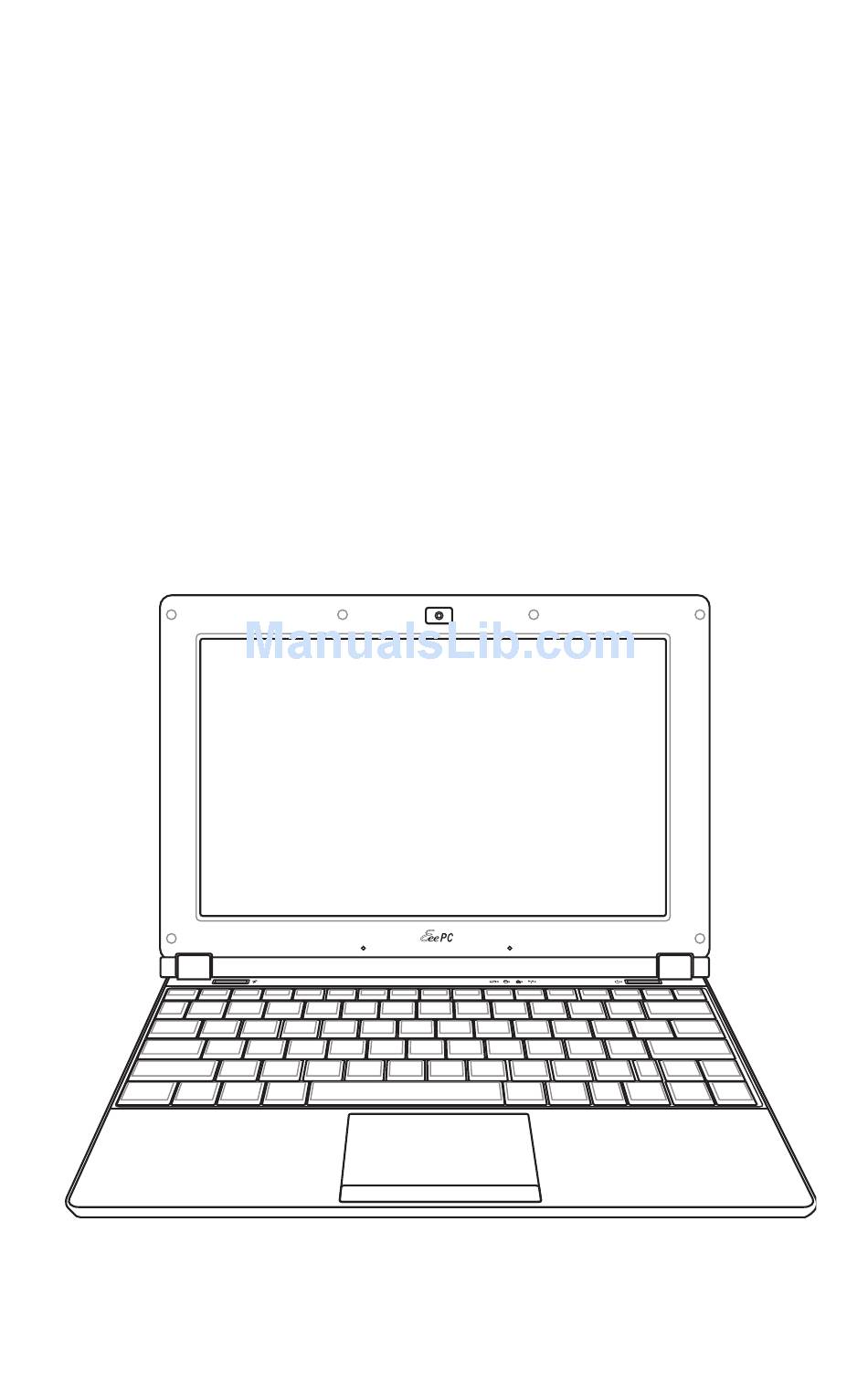

- Page 1 E4381 Eee PC User Manual ® Windows XP Edition Eee PC 1003HAG 15G06Q128000...
-
Page 2: Table Of Contents
Chapter 2: Powering on your Eee PC ... 2-2 First-time Startup ... 2-3 Desktop ... 2-4 ASUS EeePC Tray Utility ... 2-5 Enabling and Disabling Devices ... 2-5 Adjusting the display resolution ... 2-6 Network Connection ... 2-7 Configuring a wireless network connection ... 2-7 Local Area Network ... - Page 3 System Recovery ... 4-4 Using the Support DVD ... 4-4 Using Recovery Partition ... 4-5 Boot Booster ... 4-6 Appendix Declarations and Safety Statements ...A-2 Copyright Information ... A-11 Limitation of Liability ... A-12 Service and Support ... A-12 ASUS Eee PC...
-
Page 4: Table Of Contents
About This User’s Manual You are reading the Eee PC User’s Manual. This User’s Manual provides information regarding the various components in the Eee PC and how to use them. The following are major sections of this User’s Manual: 1. Knowing the Parts Provides information on the Eee PC’s components. -
Page 5: Safety Precautions
DO NOT leave the Eee PC on your lap or any part of the body to prevent discomfort or injury from heat exposure. ASUS Eee PC DO NOT place or drop objects on top and do not shove any foreign objects into the Eee PC. -
Page 6: Transportation Precautions
SAFE TEMP: This Eee PC should only be used in environments with ambient temperatures between 5°C (41°F) and 35°C (95°F) DO NOT carry or cover a Eee PC that is powered ON with any materials that will reduce air circulation such as a carrying bag. -
Page 7: Charging Your Batteries
You can send your Eee PC and diskettes through airport X-ray machines. However, it is recommended that you do not send your Eee PC or diskettes through airport magnetic detectors or expose them to magnetic wands. ASUS Eee PC... - Page 8 viii Table of Contents...
-
Page 9: Chapter 1: Knowing The Parts
Top Side Bottom Side Right Side Left Side Rear Side Keyboard Usage Touchpad Usage Knowing the Parts... -
Page 10: Top Side
Top Side Refer to the illustration below to identify the components on this side of the Eee PC. The top side may vary in appearance depending on model. The keyboard differs for each territory. Chapter 1: Knowing the Parts... -
Page 11: Display Panel
Powered ON / Standby mode High battery power (95%–100%) Medium battery power (10%–94%) Low battery power (0%–10%) ASUS Eee PC With Adapter Without Adapter Green ON Orange ON Orange Blinking Orange Blinking (Powered ON) Off (Standby Mode) - Page 12 Powered OFF High battery power (95%–100%) Medium battery power (11%–94%) Low battery power (0%–10%) The Battery Charge Indicator will not light when the battery is removed from your Eee PC. Hard Disk Drive (HDD) Indicator The hard disk drive indicator blinks when data is written to or read from the disk drive.
-
Page 13: Bottom Side
Battery Lock - Spring The spring battery lock keeps the battery pack secure. When the battery pack is inserted, it will automatically lock. When removing the battery pack, this spring lock must be retained in the unlocked position. ASUS Eee PC... - Page 14 Battery Pack The battery pack is automatically charged when connected to an AC power source and maintains power to the Eee PC when AC power is not connected. This allows use when moving temporarily between locations. Battery time varies by usage and by the specifications for this Eee PC. The battery pack cannot be disassembled and must be purchased as a single unit.
-
Page 15: Right Side
Skype, voice narrations, or simple audio recordings. Headphone Output Jack The 1/8” stereo headphone jack (3.5mm) connects the Eee PC’s audio out signal to amplified speakers or headphones. Using this jack automatically disables the built-in speakers. ASUS Eee PC... -
Page 16: Left Side
Left Side Refer to the illustration below to identify the components on this side of the Eee PC. USB Port (2.0/1.1) Rear Side Refer to the illustration below to identify the components on this side of the Eee PC. Memory Card Slot The built-in memory card reader can read MMC/SD and MS-PRO cards. -
Page 17: Battery Charge Indicator
Power Indicator The power indicator lights when the Eee PC is turned ON and blinks slowly when the Eee PC is in the Save-to-RAM (Suspend) mode. This indicator is OFF when the Eee PC is turned OFF. ASUS Eee PC... -
Page 18: Keyboard Usage
Keyboard Usage Special Function Keys The following defines the colored hot keys on the Eee PC’s keyboard. The colored commands can only be accessed by first pressing and holding the function key while pressing a key with a colored command. Some function icons appear in the Notification area after activation. - Page 19 Menu with pointer icon : Activates the properties menu and is equivalent to right-clicking the touchpad/mouse on an object. ASUS Eee PC ): Press to scroll up in documents or the ↑ ): Press to scroll down in documents or the ↓...
-
Page 20: Touchpad Usage
Touchpad Usage Multi-finger gesture input Finger gesture Two-finger zooming in/out Two-finger zooming in/out - Moving two fingertips apart or together on the touchpad to zoom in or zoom out. This is convenient when viewing photos or reading documents. Zoom in 1-12 Applications StarOffice Writer/Impress,... -
Page 21: Chapter 2: Getting Started
Powering on your Eee PC First-time Startup Desktop ASUS Eee PC Tray Utility Network Connection Getting Started... -
Page 22: Powering On Your Eee Pc
Powering on your Eee PC These are only quick instructions for using your Eee PC. 1. Install the battery pack 3. Turn ON the Eee PC • When you open the display panel, do not force it down to the table or else the hinges may break! Never lift the Eee PC by the display panel! •... -
Page 23: First-Time Startup
Click Next to continue. Select the time zone you are in and click Next to continue. ASUS Eee PC Select you system settings by specifying the region you are in, the language you use and the keyboard type you use. -
Page 24: Desktop
Click Help protect my PC by turning on Automatic Updates now to get the latest important updates and click Next to continue. Follow the onscreen instructions to register with Microsoft and finish the initialization. Desktop The are several shortcuts on the desktop. Double-click them to launch the corresponding applications and enter the specified folders. -
Page 25: Asus Eeepc Tray Utility
ASUS EeePC Tray Utility The preloaded ASUS EeePC Tray utility allows you to turn off some devices to minimize the power consumption and helps you adjust the display resolution easily. Enabling and Disabling Devices To disable or enable devices Right-click the ASUS EeePC Tray Utility icon in the Notification area and the utility shows the available options: Disable WLAN: Turns on and off the wireless LAN connection. -
Page 26: Adjusting The Display Resolution
Adjusting the display resolution Click the ASUS EeePC Tray Utility icon in the Notification area to adjust the display resolution. Select the resolution based on your needs. The CRT-related options are unavailable when there is no connected external monitors. When you select LCD 1024 x 768, move the pointer to scroll up and down the screen. -
Page 27: Network Connection
You can see the wireless network icon in the Notification area. The wireless connection icon disappears when you Press (<Fn> + <F2>) to disable the WLAN function. ASUS Eee PC in the... -
Page 28: Local Area Network
Local Area Network To establish a wired network, follow the instructions below: Using a dynamic IP: Right-click the network icon with a yellow warning triangle on the Windows® taskbar and select Open Network Connections. Right-click Local Area Connection and select Properties. - Page 29 New Connection Wizard. Select Connect to the Internet and click Next. Select your connection type and click Next. ASUS Eee PC Click Next. Select Set up my connection manually. 10. Enter your ISP Name and click Next.
- Page 30 11. Enter your User name and Password. Click Next. 13. Enter your user name and password. Click Connect to connect to the Internet. Using a static IP: Repeat the step 1–3 of Using a dynamic IP to start the static IP network configuration.
-
Page 31: Browsing Web Pages
After you finish the network setup, click Internet Explorer on the desktop and start enjoying net surfing. Visit our Eee PC homepage (http://eeepc.asus.com) to obtain the latest information and register at http://vip.asus.com for full service of your Eee PC. ASUS Eee PC... - Page 32 2-12 Chapter 2: Getting Started...
-
Page 33: Chapter 3: Using The Eee Pc
ASUS Update Blutooth Connection Super Hybrid Engine Eee Storage Using the Eee PC... -
Page 34: Asus Update
ASUS Update The ASUS Update is a utility that allows you to manage, save, and update the Eee PC BIOS in Windows® environment. The ASUS Update utility allows you to: • Save the current BIOS file • Download the latest BIOS file from the Internet •... -
Page 35: Updating The Bios Through A Bios File
Follow the screen instructions to complete the update process. The ASUS Update utility is capable of updating itself through the Internet. Always update the utility to avail all its features. Updating the BIOS through a BIOS file To update the BIOS through a BIOS file:... -
Page 36: Bluetooth Connection
Bluetooth Connection This device contains FCC ID: TLZ-BT253 and IC ID:6100A- AWBT253. Bluetooth technology eliminates the need for cables for connecting Bluetooth-enabled devices. Examples of Bluetooth-enabled devices may be Notebook PCs, Desktop PCs, mobile phones, and PDAs. To connect to a Bluetooth-enabled device Press <Fn>... - Page 37 Next. Enter the Bluetooth security code and start pairing. After the paired relationship is built, select the service you are interested in from the list and click Finish to use the selected service. ASUS Eee PC...
-
Page 38: Super Hybrid Engine
PC to maximize performance versus battery time. The selected mode is shown on the display. To change the power mode • Click start > All Programs > ASUS > EeePC > SuperHybridEngine > SuperHybridEngine. • Press Instant Key 3 repeatedly to switch power modes. -
Page 39: Eee Storage
Visit the official website for details. To use Eee Storage Double-click the Eee Storage shortcut on the desktop, and read the service agreement before clicking Yes to continue. Ensure that your Eee PC is connected to the Internet. Double-click Eee Internet Storage. ASUS Eee PC... - Page 40 You can easily drag and drop to upload files onto your free online space. Double-click Setup Your Eee Storage Account information in the Web Storage folder to apply an account and setup a password if you need to use more advanced functions. This set of account and password is also indispensable when you use Eee Storage service with other computer.
-
Page 41: Chapter 4: System Recovery
Support DVD information System Recovery System Recovery... -
Page 42: Support Dvd Information
Support DVD information The support DVD that comes with the Eee PC package contains the drivers, software applications, and utilities that you can install to avail all the features. Running the support DVD Insert the support DVD in the external optical drive. The DVD automatically displays the Drivers menu if Autorun is enabled in your computer. -
Page 43: Drivers Menu
Utilities menu The Utilities menu shows the applications that the Eee PC supports. Contact Click the Contact tab to display the ASUS contact information. Other information The icons on the top right corner of the screen provide additional information on the Eee PC and the contents of the support DVD. -
Page 44: System Recovery
System Recovery Using the Support DVD The Support DVD includes an image of the operating system, installed on your system at the factory. The Support DVD provides a comprehensive recovery solution that quickly restores your system to its original working state, provided that your system drive is in good working order. -
Page 45: Using Recovery Partition
USB flash disk, external optical drive or hidden partition. Refer to the end of this chapter for details. Click the check mark button to start the system recovery. The system starts system recovery automatically and follow the onscreen instructions to complete the recovery process. ASUS Eee PC... -
Page 46: Boot Booster
Boot Booster The Boot Booster item in BIOS setup helps shorten your Eee PC bootup time. However, you MUST disable this BIOS item before you change any Eee PC components or perform system recovery (from USB flash disk, external optical drive or hidden partition). Follow the instructions below to disable Boot Booster: Start the system and press <F2>... -
Page 47: Appendix
Declarations and Safety Statements Copyright Information Limitation of Liability Service and Support Appendix... -
Page 48: Declarations And Safety Statements
Declarations and Safety Statements Declaration of Conformity (R&TTE directive 1999/5/EC) The following items were completed and are considered relevant and sufficient: • Essential requirements as in [Article 3] • Protection requirements for health and safety as in [Article 3.1a] • Testing for electric safety according to [EN 60950] •... -
Page 49: Wireless Operation Channel For Different Domains
10mW outdoors: 01 Ain Orientales 05 Hautes Alpes 11 Aude 24 Dordogne 32 Gers 41 Loir et Cher 55 Meuse ASUS Eee PC Ch01 through CH11 Ch01 through Ch14 Ch01 through Ch13 02 Aisne 03 Allier 08 Ardennes 09 Ariège... - Page 50 60 Oise 64 Pyrénées Atlantique 68 Haut Rhin 71 Saône et Loire 82 Tarn et Garonne 89 Yonne 94 Val de Marne This requirement is likely to change over time, allowing you to use your wireless LAN card in more areas within France. Please check with ART for the latest information (www.art-telecom.fr) Your WLAN Card transmits less than 100mW, but more than 10mW.
-
Page 51: Safety Information
The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The ICNIRP SAR limits for mobile devices used by the general public are as follows: Eee PC 1003HAG GSM900 – 0.015W/Kg GSM1800 –0.034W/Kg WCDMA Band I – 0.03W/Kg The SAR limits differ depending on model. - Page 52 If you have a pacemaker: • Always keep your mobile device more than six inches from your pacemaker when turned on. • If you have any reason to suspect that interference is taking place, turn your mobile device off immediately. Other medical devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded...
-
Page 53: Ul Safety Notices
Do not use power adapters or batteries from other devices to reduce the risk of injury to persons due to fire or explosion. Use only UL certified power adapters or batteries supplied by the manufacturer or authorized retailers. ASUS Eee PC... -
Page 54: Power Safety Requirement
Power Safety Requirement Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment, and mercury- containing button cell battery) should not be placed in municipal waste. - Page 55 Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion. (Swedish) VAROITUS! Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan sousittelemaan tyyppiin. Hävitä käytetty paristo valmistagan ohjeiden mukaisesti. (Finnish) ASUS Eee PC...
- Page 56 ATTENTION! Il y a danger d’explosion s’il y a remplacement incorrect de la batterie. Remplacer uniquement avec une batterie du mêre type ou d’ un type équivalent recommandé par le constructeur. Mettre au rebut les batteries usagées conformément aux instructions du fabricant. (French) ADVARSEL! Eksplosjonsfare ved feilaktig skifte av batteri.
-
Page 57: Copyright Information
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES... -
Page 58: Limitation Of Liability
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement. This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible. -
Page 59: Declaration Of Conformity
ASUS Eee PC We, Manufacturer/Importer (full address) 40880 RATINGEN, BRD. GERMANY declare that the product is in conformity with Product name: Eee PC Model name : Eee PC 1003HAG EN 61000-3-2* EN 61000-3-3* EN 300328 EN50332-1 EN50332-2 EN 301511 EN 301 908-1... - Page 60 A-14 Appendix...
