AGB728E2NW
USER
MANUAL
EN
User Manual
Freezer

Advertisement

Table of Contents
loading

Related Manuals for AEG AGB728E2NW

Summary of Contents for AEG AGB728E2NW

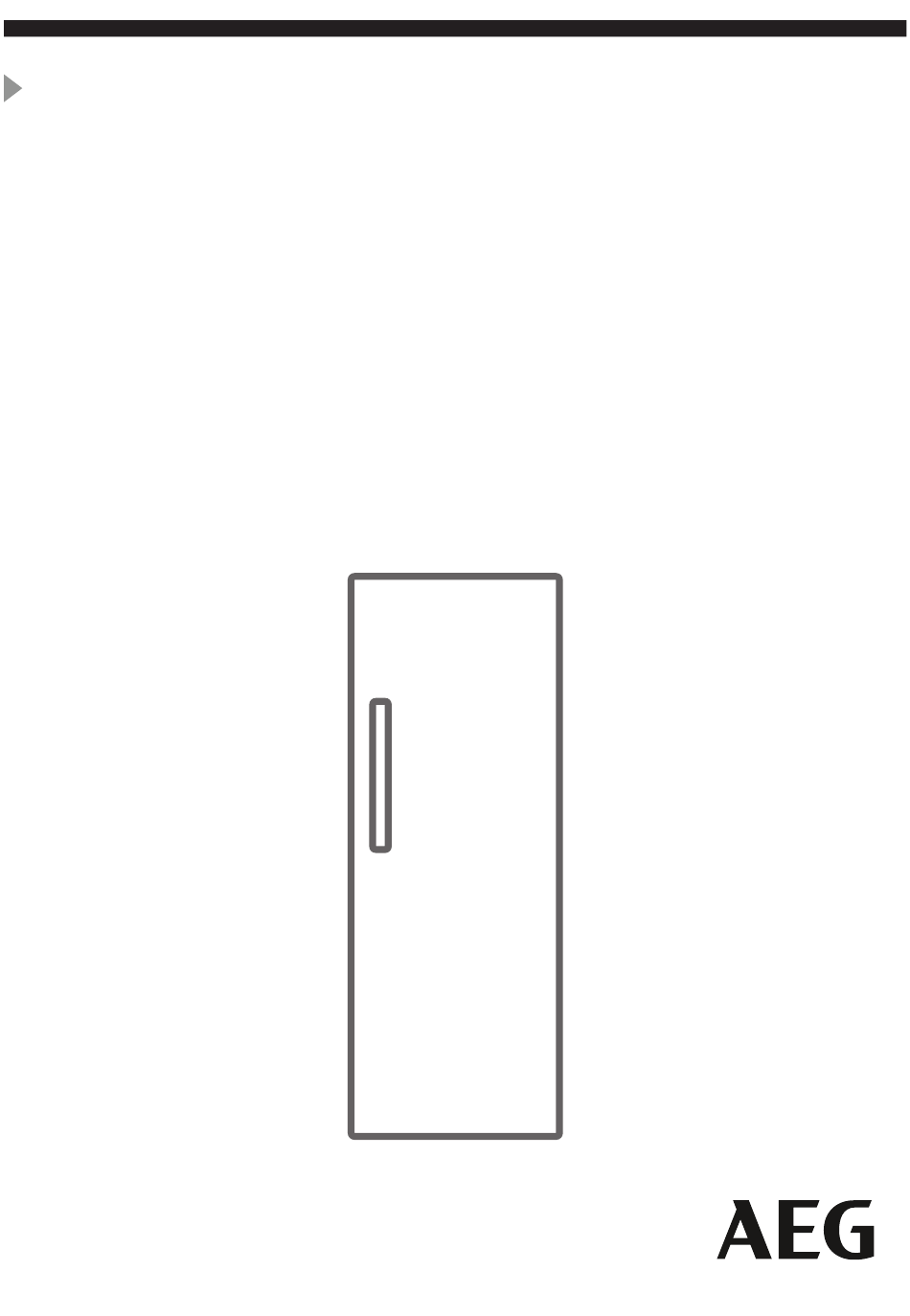

  • Page 1 AGB728E2NW User Manual Freezer USER MANUAL...
  • Page 2 FIRE Warning; Risk of fire / flammable materials...

  • Page 3: Table Of Contents

    CONTENTS BEFORE USING THE APPLIANCE ............5 General warnings ..................... 5 Old and out-of-order fridges or freezer ............. 9 Safety warnings ....................9 Installation warnings ..................10 Before using your freezer ................11 Dimensions ...................... 12 THE VARIOUS FUNCTION AND POSSIBILITIES ......... 13 Information on No-Frost technology ..............
  • Page 4 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

  • Page 5: Before Using The Appliance

    PART - 1. BEFORE USING THE APPLIANCE General warnings Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse. Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
  • Page 6 during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.
  • Page 7 use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. • Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
  • Page 8 • One-, two- and three-star compartments are not suitable for the freezing of fresh food. • If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. Service •...

  • Page 9: Old And Out-Of-Order Fridges Or Freezer

    Old and out-of-order fridges or freezer • If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident. • Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

  • Page 10: Installation Warnings

    • Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment. • Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.

  • Page 11: Before Using Your Freezer

    • Install the two plastic distance guides (the parts on the black vanes -condenser- at the rear) by turning it 90° (as shown in the figure) to prevent the condenser from touching the wall. • If you position the appliance against a wall in a freestanding installation, install the rear spacers in order to guarantee the maximum possible distance Before using your freezer...

  • Page 12: Dimensions

    Dimensions Overall dimensions Overall space required in use 1860 1224 the height, width and depth of the the height, width and depth of the appliance without the handle appliance including the handle, plus the space necessary for free * including the height of the top circulation of the cooling air, plus hinge (10 mm) the space necessary to allow...

  • Page 13: The Various Function And Possibilities

    PART - 2. THE VARIOUS FUNCTION AND POSSIBILITIES Information on No-Frost technology No-frost freezers differ from other static freezers in their operating principle. In normal freezers, the humidity entering the freezer due to opening the door and the humidity inherent in the food causes freezing in the freezer compartment.

  • Page 14: Display And Control Panel

    Display and Control Panel Using the Control Panel 1. It is freezer set value screen. 2. It is super freeze indicator. 3. It is economy mode symbol. 4. It is child-lock symbol. 5. Door open alarm symbol. 6. It is alarm symbol. 7.

  • Page 15: Economy Mode

    During This Mode: • Economy mode cannot be selected. • You can press the freezer temperature setting button again or press the super button to deactivate super freeze mode. Notes: • The maximum amount of fresh food (in kilograms) that can be frozen within 24 hours is shown on the appliance label.

  • Page 16: The Child Lock Function

    • If no button is pressed within 30 seconds after child lock is activated, the lights of the control panel will turn off. You can see latest status of settings or modes after you pres any button. While control panel ‘s light is on, you can cancel child lock as described in the instruction of this mode.

  • Page 17: Warnings About Temperature Adjustments

    Recommended Temperature Values for Freezer Inner When to adjust Temperature For minimum freezing capacity In normal usage For maximum freezing capacity C, -24 Warnings about temperature adjustments • It is not recommended that you operate your freezer in environments colder than 10°C in terms of its efficiency.

  • Page 18: Accessories

    Accessories The Icematic (In some models) • Pull the lever towards you and remove the ice maker tray • Fill with water to the marked level • Hold the left end of the lever and set the ice- tray on the icebox •...

  • Page 19: Arranging Food In The Appliance

    PART - 3. ARRANGING FOOD IN THE APPLIANCE • Freezer compartment is the one marked with • The freezer is used for storing frozen food, freezing fresh food, and making ice cubes. • For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn’t leak.
  • Page 20 • Do not re-freeze frozen food after it has thawed. This may cause health issues, such as food poisoning. • Allow hot food to completely cool down before placing it in the freezer. • When buying frozen food ensure that these have been frozen at suitable temperatures and that the packing is intact.
  • Page 21 Maximum storage time Meat and fish Preparation (months) In its packaging, or in an aluminium or plastic Caviar 2 - 3 container Snails In salty water, or in an aluminium or plastic container NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen.

  • Page 22: Cleaning And Maintenance

    PART - 4. CLEANING AND MAINTENANCE Disconnect the unit from the power supply before cleaning. Do not wash your appliance by pouring water on it. Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.

  • Page 23: Defrosting

    Defrosting • Your appliance performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container behind your appliance evaporates there. • Make sure you have disconnected the plug of your appliance before cleaning the vaporisation container.

  • Page 24: Before Calling Your After Sales Service

    PART - 6. BEFORE CALLING YOUR AFTER SALES SERVICE Errors Your freezer will warn you if the temperatures for the freezer are at improper levels or if a problem occurs with the appliance. Warning codes are displayed in the freezer indicators. ERROR TYPE MEANING WHAT TO DO...
  • Page 25 Water flowing noise occurs: Due to water flowing to the evaporation container. This noise is normal during defrosting. Air blowing noise occurs: In No-Frost freezers during normal operation of the system due to the circulation of air. The edges of the freezer in contact with the door joint are warm Especially during summer (warm seasons), the surfaces in contact with the door joint may become warmer during the operation of the compressor, this is normal.

  • Page 26: Hints For Energy Saving

    Hints for Energy Saving 1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used. 2. Allow warm food and drinks to cool before placing them inside the appliance. 3.

  • Page 27: The Parts Of The Appliance And The Compartments

    THE PARTS OF THE APPLIANCE AND THE PART - 7. COMPARTMENTS 1. Freezer flaps 2. Freezer drawers 3. Freezer bottom drawer 4. Levelling feet 5. Freezer big drawer 6. Ice tray (In some models) In some models there is a shelf with icematic in the top basket This presentation is only for information about the parts of the appliance.

  • Page 28: Technical Data

    PART - 8. TECHNICAL DATA The technical information is situated in the rating plate on the internal side of the appliance and on the energy label. The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.
  • Page 29 EN - 29 -...
  • Page 30 52366425...
