Airlink101 APO1000 Quick Installation Manual

Wireless g 2.4ghz 500mw outdoor ap
Hide thumbs Also See for APO1000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

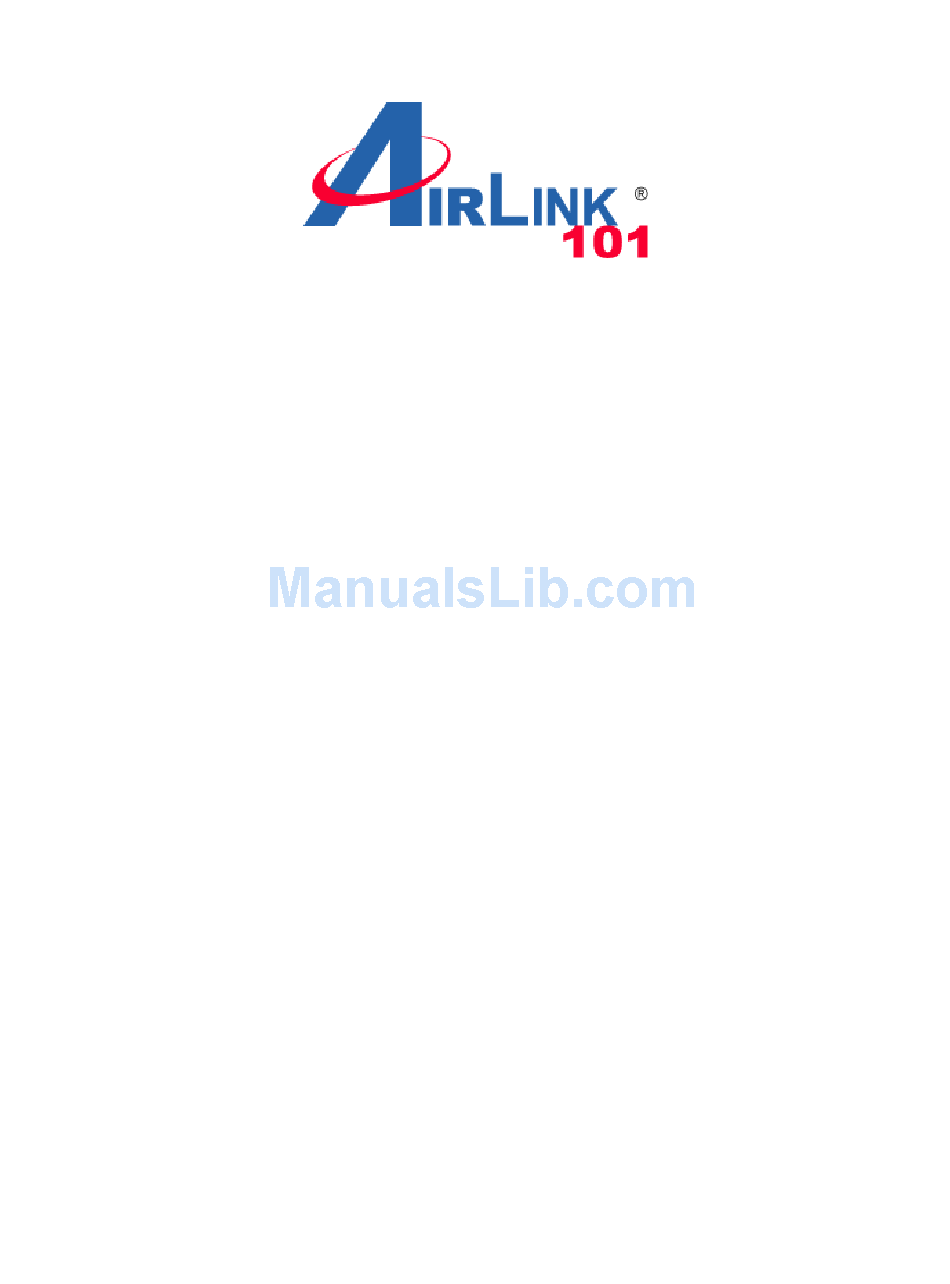

Wireless G 2.4GHz 500mW Outdoor AP
Model: APO1000/APO1010
Quick Installation Guide
V.1.0

Advertisement

Table of Contents
loading

Related Manuals for Airlink101 APO1000

Summary of Contents for Airlink101 APO1000

  • Page 1 Wireless G 2.4GHz 500mW Outdoor AP Model: APO1000/APO1010 Quick Installation Guide V.1.0...

  • Page 2: Package Contents

    Preface The 802.11 b/g compliant Airlink101® APO1000/APO1010 is an outdoor high power wireless access point that can be used for five different purposes in three different modes. In the AP mode, it can be deployed either as traditional fixed wireless Access Point (AP), or combination of AP and WDS (AP+WDS).

  • Page 3: System Overview

    5. Signal Strength : Green LED ON indicates High Signal (CPE Mode) or (AP Mode only) 6. WLAN : Green LED BLINKING indicates Wireless ON, and BLINKING quickly indicates Wireless Transmit quickly. 7. Ethernet : Green LED ON indicates connection, OFF indicates no connection 8.
  • Page 4 5. Signal Strength : Green LED ON indicates High Signal (CPE Mode) or (AP Mode only) 6. WLAN : Green LED BLINKING indicates Wireless ON, and BLINKING quickly indicates Wireless Transmit quickly. 7. Ethernet : Green LED ON indicates connection, OFF indicates no connection 8.

  • Page 5: Hardware Installation

    Hardware Installation Please follow the steps mentioned below to install the hardware of APO1000/APO1010 : APO1000 Front Panel Connect N-type antenna to the N-type connector on the rear panel. Connect Power Injector to the PoE connector on the front panel.

  • Page 6: Getting Started

    Set the IP segment of the administrator's computer to be in the same range as APO1000/APO1010 for accessing the system. Do not duplicate the IP Address used here with IP Address of APO1000/APO1010 or any other device within the network Example of Segment : The valid range is 1 ~ 254 and 192.168.2.254 shall be avoided because it is already assigned to APO1000/APO1010.
  • Page 7 System Login The network manager Login Page then appears. Enter “root” for user name and “default” for password, and then click OK to login to the system. Login Success System Overview page will appear after successful login.

  • Page 8: Quick Setup

    Quick Setup APO1000/APO1010 is a multiple mode system which can be configured either as a gateway or an access point as desired. This section provides a step-by-step configuration procedure for basic installation on AP Mode, WDS Mode and CPE (Wireless Bridge) Mode and Client Bridge + Universal Repeater.
  • Page 9 There can change root and admin manager account. Enter a new password, and verify it again in the New Password and Check New Password field respectively. Click Save button, and proceed with the following steps. Step 3 : LAN IP Settings Click System ->...
  • Page 10 Step 5 : ESSID Settings Click Wireless -> Virtual AP Setup, and then VAP Setup page appears. Click “Edit” and then VAP0 Setup page appears. Set up the broadcasting ESSID for easily identifying the system when device is trying to associate the service. Click...
  • Page 11 Enter the WEP key information required in the WEP settings field, and the same information will also be used to set up devices which will then be using APO1000/APO1010's services. Click Reboot to activate all settings configured so far. Congratulation!
  • Page 12 Click System -> Management and then Management Setup Configuration page appears. There can change root and admin manager account. Enter a new password, and verify it again in the New Password and Check New Password field respectively. Click Save button, and proceed with the following steps. APO1000...
  • Page 13 Enable “Setup Time Use NTP”, and then enter the related information. Click Save button to save the settings. Step 5 : Enable WDS Peer's MAC Address Click Wireless -> WDS Setup, and then WDS Setup page appears. Enable “WDS Peer's MAC Address”, and then enter the related information. Click Save button to save the settings.
  • Page 14 “Security Type” must be the same Step 6 : Wireless General Settings Click Wireless -> General Setup, and then General Setup page appears. Select the “Channel” and “Transmit Rate Control” information required in the General Setup field. The information must the same the other WDS device.
  • Page 15 Click System -> Management and then Management Setup page appears. There can change root and admin manager account. Enter a new password, and verify it again in the New Password and Check New Password field respectively. Click Save button, and proceed with the following steps. APO1000...
  • Page 16 Step 3 : LAN IP Settings Click System -> LAN, and then LAN Setup page appears. Enter the “IP Address” and “IP Netmask” of the LAN Setup. Step 4 : Time Zone settings Click System -> Time Server, and then Time Server Setup page appears. Enable “NTP Client”, and then enter the related information.
  • Page 17 Click Save button to save the settings. Step 6 : Site Survey Click Wireless -> Site Survey, and then Station Site Survey page appears. The system will automatically scan and display the scan results of all AP existing near by the system.
  • Page 18 Click Select button of the AP00, and related information will display in Wireless General Setup page. Enter the information required in the Wireless General Setup page. Information to be entered shall be exactly the same as configured in the AP00 AP.
  • Page 19 Click System -> Management and then Management Setup page appears. There can change root and admin manager account. Enter a new password, and verify it again in the New Password and Check New Password field respectively. Click Save button, and proceed with the following steps. APO1000...
  • Page 20 Step 3 : LAN Settings Click System -> LAN, and then LAN Setup page appears. Enter the “IP Address” and “IP Netmask” of the LAN Setup. Step 4 : Time Zone settings Click System -> Time Server, and then Time Server Setup page appears. Enable “NTP Client”, and then enter the related information.
  • Page 21 Click Select button of the AP00, and related information will display in Wireless General Setup page. Enter the information required in the Wireless General Setup page. Information to be entered shall be exactly the same as configured in the AP00.
  • Page 22 Click Wireless -> AP Setup, and then AP Setup page appears. Setup the broadcast SSID for easy identification of the system when device is trying to associate the service. The default SSID is “Repeater_AP”. Select WEP in “Security Type“ drop-down list. The WEP setting field will show up immediately. Enter the WEP key information required in the WEP settings field, the same information will also be used to set up devices using APO1000/APO1010's services.

  • Page 23: Technical Support

    *Theoretical maximum wireless signal rate derived from IEEE standard 802.11 specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, mix of wireless products used, radio frequency interference (e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate.

This manual is also suitable for:

Apo1010
