Owner's Manual
USB 3.1 Gen 1
(5 Gbps) Display
Adapters

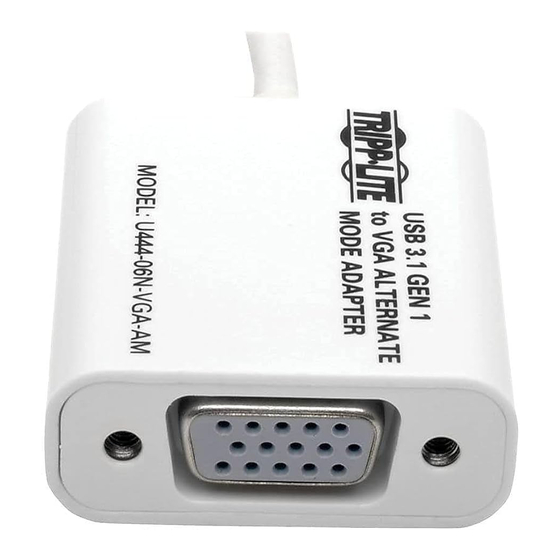

Models #: U444-06N-HD, U444-06N-VGA
PROTECT YOUR INVESTMENT!
Register your product for quicker service
and ultimate peace of mind.
You could also win an ISOBAR6ULTRA
surge protector—a $100 value!
www.tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
Copyright © 2015 Tripp Lite.
All trademarks are the property of their respective owners.
1
15-08-146-93344E.indd 1
8/13/2015 11:59:20 AM

Advertisement

Table of Contents
loading

Related Manuals for Tripp Lite U444-06N-HD

Summary of Contents for Tripp Lite U444-06N-HD

  • Page 1 Owner’s Manual USB 3.1 Gen 1 (5 Gbps) Display Adapters Models #: U444-06N-HD, U444-06N-VGA PROTECT YOUR INVESTMENT! Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a $100 value! www.tripplite.com/warranty 1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/support...

  • Page 2: Table Of Contents

    Table of Contents Introduction 1.1 Features 1.2 Package Contents 1.3 System Requirements Installation Using the Adapter 3.1 Display Properties 3.2 Extending Video to the Add-On Display 3.3 Mirroring Video on the Add-On Display 3.4 Making the Add-On Display the Primary Display Troubleshooting Specifications Warranty and Product Registration...

  • Page 3: Introduction

    USB Type-C and USB-C™ are trademarks of USB Implementers Forum 1.2 Package Contents Before installation, please check the items in the package. The package should contain the following items: • (1) U444-06N-HD or U444-06N-VGA • (1) Driver CD • (1) Owner’s Manual 15-08-146-93344E.indd 3 8/13/2015 11:59:20 AM...

  • Page 4: System Requirements

    8.1 (32- and 64-bit) • Mac OS X 10.8.3 and later ® • USB Type-C port • HDMI (U444-06N-HD) or VGA (U444-06N-VGA) monitor Minimum computer requirements when using 1 – 2 display adapters: • 1.2GHz Single Core CPU • 512MB of RAM...

  • Page 5: Installation

    2. Installation Note: Install the driver on your computer before connecting the display adapter(s). 1. Insert the driver CD into your computer’s CD-ROM drive. The setup program should run automatically. If you do not have a CD drive on your device, you can download the driver from www.tripplite.com/support.
  • Page 6 2. Installation 6. Once connected, the computer will recognize the display adapter, and complete the installation. The video should now be displayed on the add-on monitor. Note: It may take a few moments before the screen appears on the add-on monitor. Also, it is normal for the screen to flicker on and off a few times when first connected.

  • Page 7: Using The Adapter

    3. Using the Adapter 3.1 Display Properties Once installed, the computer video can be Extended from the primary display to the add-on display, Mirrored to display the same thing on both, or changed to use the add-on display as the primary display. This can be done by opening the Display Settings page on your computer (see below) and changing the settings.
  • Page 8 3. Using the Adapter Option Description DisplayLink Opens an “About” screen that shows the DisplayLink driver Manager version installed on your computer. Check for Connects to the Internet and checks for newer versions of Updates the DisplayLink software, and downloads them if available. USB 3.0 This will display as USB 3.0 to VGA adapter and provides Adapter...

  • Page 9: Extending Video To The Add-On Display

    3. Using the Adapter In addition to the display adapter right-click menu, Windows Vista and 7 users can press the [Windows Key] and the [P] key at the same time to pull up the menu below, which quickly allows you to switch the display settings. Note: Only Mirror mode is supported under Windows Vista Display Driver Model (WDDM) mode.

  • Page 10: Mirroring Video On The Add-On Display

    3. Using the Adapter 5. Click the Apply button to activate the changes. The computer video will now be extended from the primary display to the add-on display. Note: When playing a DVD, it is recommended that you play the DVD on a monitor connected to the computer via standard cabling, and not an add-on monitor connected via display adapter.

  • Page 11: Making The Add-On Display The

    3. Using the Adapter 3.4 Making the Add-On Display the Primary Display To make the add-on display the primary display for the computer, follow the steps below: 1. Open your computer’s Display Settings page. 2. Select the monitor icon that represents the add-on display you wish to change, or choose the add-on display from the drop-down menu.

  • Page 12: Troubleshooting

    4. Troubleshooting Q: Why is the display on the add-on monitor blank? A: If the monitor power LED is Green, wait a moment for the monitor to display the video, as it may take some time for the video to be displayed on the add-on monitor. If after a few minutes the video does not display, restart your computer.
  • Page 13 4. Troubleshooting • Drag the media player to the add-on screen and close the player. Restart the player and it should open on the add-on monitor. Now try playing the media file again. • Try reducing the hardware acceleration level of the primary display (NOT the add-on monitor) to level 1, 2 or 3 and restarting the media player.

  • Page 14: Specifications

    5. Specifications Feature Specification Source Connector USB Type-C Male HDMI F (U444-06N-HD), Display Connector HD15 F (U444-06N-VGA) Maximum Number of 6 (Windows) Display Adapters* 512 MB DDR2 SDRAM Power Bus-powered (340 mA operating power) Windows XP (32-bit), Vista (32- and 64-bit), ®...

  • Page 15: Warranty And Product Registration

    OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, Tripp Lite is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
  • Page 16 • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment. WEEE Compliance Information for Tripp Lite Customers and Recyclers...
