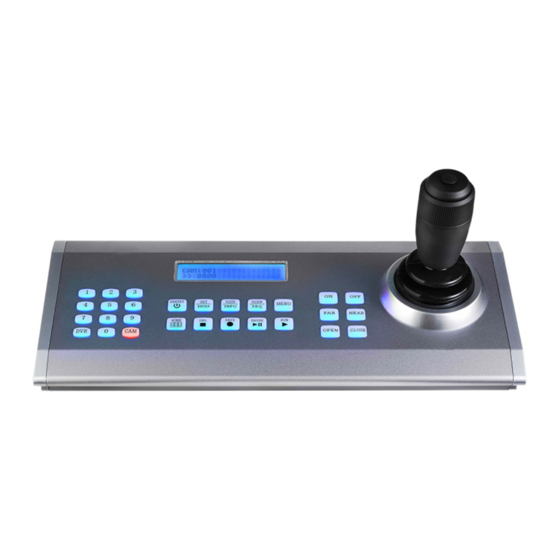

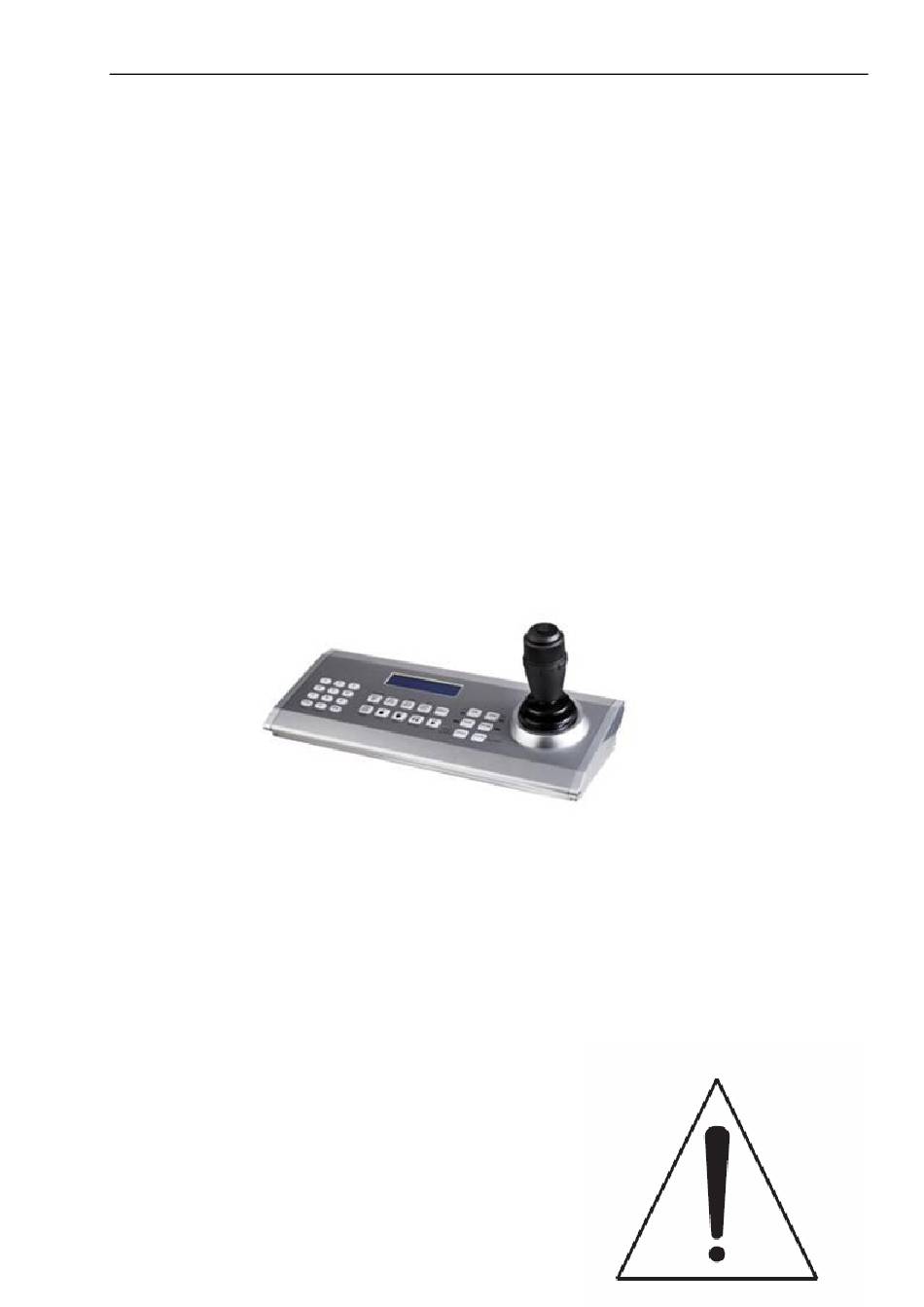

- Page 1 SONY VISCA Polycom Terminal Remote Control Unit User Manual © 2008 Sony Visca Protocol Please read carefully before using WARNING! Do not use Gasoline, Thinner, etc. wipe the surface, soft cloth dipped in clean water or alcohol is acceptable...
- Page 2 This product is manufactured to comply with requirements of following directives: 89/336/EEC, 92/31/EEC, 93/68/EEC Function Intro： Sony VISCA RS-422/RS485 communication，Hi-speed、long distance control. Two RS422/485 communicate interface，The Max. can reach 2000 meters. 6-16 cameras preset，Like PTZ Control, Lens position, white balance, Mirror, Freeze, ect. Equipment that can be connected：...
- Page 3 EVI-D30/D30P Color Video Camera SNC-RZ30N/RZ30P Network Camera SONY EVI-HD1 EVI-HD3V SONY EVI-HD7V BRC-Z330 CMOS Sony DXC-390/390P——1/3 DSP 3-CCD camera Sony DXC-990/990P——1/2 DSP 3CCD camera Polycom series camera Joystick： 6-axis, zoom function, shuttle, jog in the knob, auto returning 28, multifunction, silicon + keystoke...
- Page 4 WB Mode Press [TOUR] to change mode 6 WB Modes Press TOUR, 6WB Modes as follow Auto Indoor Outdoor One Push WB Manual Manual WB Mode There are three parameters adjustable by Press“SEQ” R Gain、B Gain、RB Stop (1)Manual WB R Gain (1)Under Manual WB, Press SEQ，LCD display“R Gain”...
-
Page 5: Brief Description
KX、KY Axis： Mainly for Cursor Control or User defined; 16 Angle each way Z Axis：ZOOM control ： ： Axis B Axis shuttle ZOOM control，±36 Degree,64 at Max. different protocols with different parameters Main Axis X Y（2） ： Axis shuttle jog: General for frame control of VCR, or User defined X、Y Main Axis... -
Page 6: Easy Operation
SET： Set Preset DEL： Delete Preset HOME： home TOUR： Cruise switch to WB SCAN： Scan MENU： menu SAVE： Store(video),Backlight Compensation PAUSE： Suspend, Frame, Freeze RUN： Run, picture mirror ON： Auxiliary open, open,99+ON,Screen information display OFF： Auxiliary close, close, 99+OFF, Screen information off FAR：... -
Page 7: Real-Time Control
Menu operation of DVR [MOVE] PRESET Function display: show the pressing button’s function, it’ll auto disappear after Direction Control: SONY VISCA Command 8 above direction control, 24 level speed ZOOM Control: SONY VISCA Command ZOOM：8 level, Multi zoom speed control... - Page 8 Main Menu (1-10) （On/Off/Active） 1. Key Backlight 2. LCD Backlight =On/Off 3. Camera Protocol =PelcoP /PelcoD /AD /Samsung /Panasonic/ DaHuaDome/Sony Visca 4. Camera Baud rate =9600 /4800 /2400 5. DVR Protocol =/Dahua/Hikvision/Dali/Hanbang/Appro 6. Alarm In = RS485 /USB 7. Alarm output =All Red /Led Blink 8.
- Page 9 No3：Camera Protocol No3：Camea Protocol Sony Visca Camera protocol as follows: Pelco-P、Pelco-D、AD、Samsung、Panasonic、DaHuA DH-PELCO-P、Sony Visca(default) Turn Z Axis Zoom (clockwise+，anticlockwise-) select camera protocol Turn shuttle clockwise to the submenu （back to former menu：Turn shuttle anticlockwise） No4：Camera Baud rate No4：Camea Baudrate [9600] Camera Baud rate：2400、4800、9600（default）...
- Page 10 Led Blink、RS485（DVR port RS485signal output） Turn Z Axis Zoom (clockwise+，anticlockwise-) select Turn shuttle clockwise to the submenu （back to former menu：Turn shuttle anticlockwise） No8：Keyboard ID No8：Keyboard ID=[01] Keyboard Address ：00 -99 Turn Z Axis Zoom (clockwise+，anticlockwise-) select Turn shuttle clockwise to the submenu （back to former menu：Turn shuttle anticlockwise）...
- Page 11 EVE-D70 RS-422 Terminal Function （Data transmit input+）TXD IN+ （Data transmit input -）TXD IN- （Data receive input +）RXD IN+ （Data receive input -）RXD IN- （Common terminal）GND （Data transmit output+）TXD OUT+ （Data transmit output -）TXD OUT- （Data receive output +）RXD OUT+ EVI-D70/D70P 后面板图 （Data receive output -）RXD OUT- Keyboard Controller with EVI-D70/D70P RS232 connect...
- Page 12 VISCA RS-232C IN Keyboard Controller with EVI-D70...
- Page 13 to the next equipment Keyboard Controller with BRC-700...
- Page 14 Keyboard Controller with EVI-HD1 Next...
- Page 15 RS485/RS232 Keyboard via RS232-485 commutator with EVI-HD1/HD3/HD7 EVI-HD1/HD3/HD7(VISCA IN ) RS232-DB9 1. DTR 1.CD 2. DSR 2.RXD 3. TXD 3.TXD 4. GND 4.DTR 5. RXD 5.GND 6. GND 6.DSR 7. IR OUT 7.CTS 8. N.C. 8.CTS 9.RI Two EVI-HD1/HD3/HD7 connction EVI-HD1/3/7(VISCA IN ) EVI-HD1/3/7(VISCA OUT ) 1.
- Page 16 Keyboard Via RS232-485 commutator connect with Polycom Camera HDX 8000 meeting terminal...
-
Page 17: Camera Operation
DB9 Cable Polycom EagleEye series camera HEX8000 (RS232) RS485-232-DB9 2. RXD 2.RXD 3. TXD 3.TXD 5. GND 5.GND Camera operation： CAM mode：press CAM or“No.”+CAM PTZ Control：... - Page 18 Control camera direction， up、 down、 left、 right 360degree rotation， speed 0-24 level （ SONY VISCA protocol） ，speed vary with protocols 0-100. Lens Contro： ZOOM： near ZOOM IN （TELE） （WIDE） Lens ZOOM OUT FOCUS： NEAR Aperture IRIS： OPEN CLOSE Auxiliary equipment control On/Off：...
