3.3 Setting TCP/IP on Client PC

After you successfully complete the network interface card (Ethernet card) installation task, you need
to make sure the TCP/IP communications protocol used by the Ethernet card is installed and correctly
configured on your system.
3 . 3 - 1 F o r W
3 . 3 - 1 F o r W

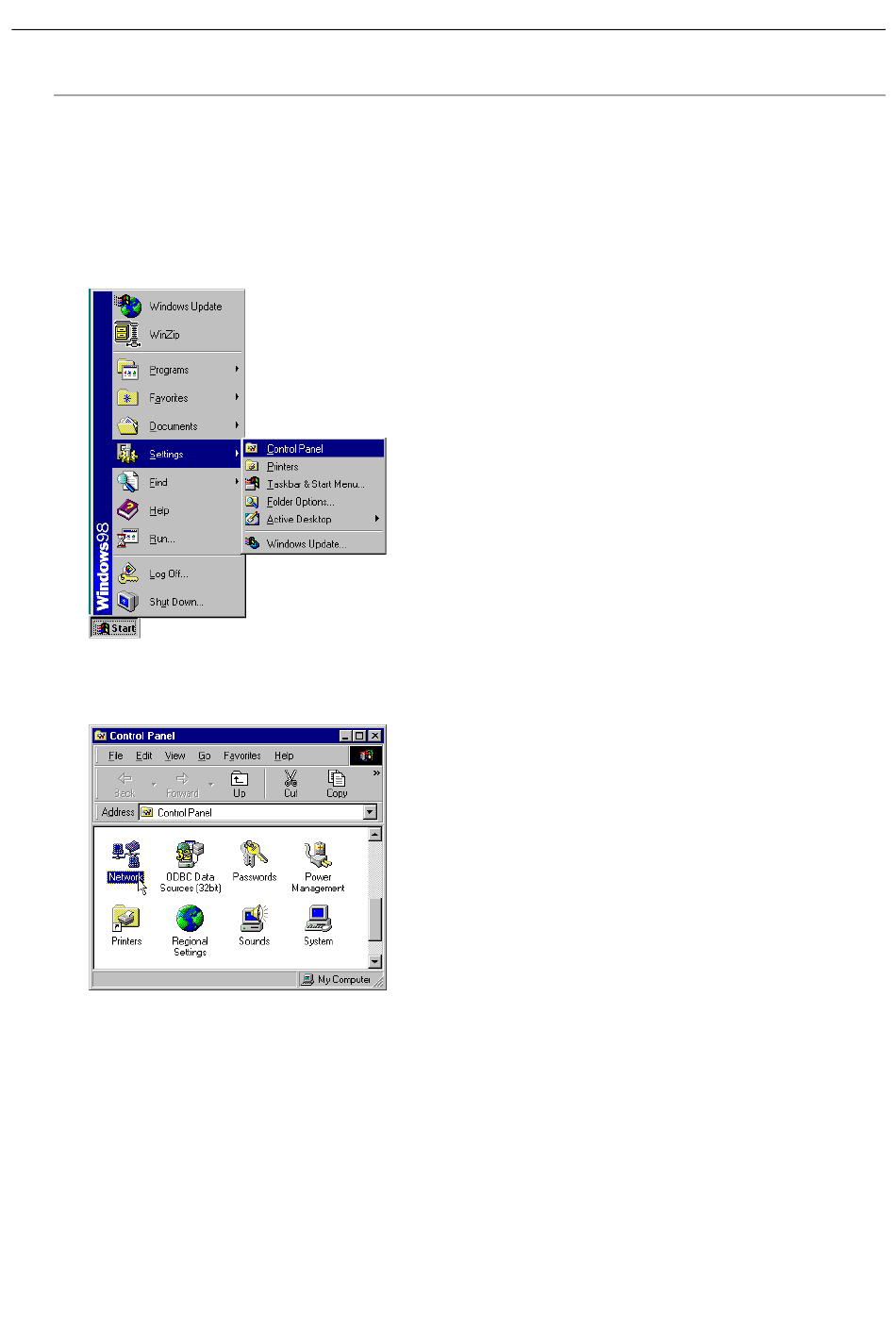

Click on the Start menu, point to Settings and click on Control Panel.
1.
2. The Control Panel window will show up. Double-click the "Network" icon in the Control
Panel window.
3. Windows will appear the Network dialog box. Click "Configuration" tab to bring it to the
front, and on this tab, a list of installed network components appears.
Option 1: If you have no TCP/IP protocol, click Add.
Option 2: If you have TCP/IP protocol, go to Step 7.
i n d o w s 9 8 / M e
i n d o w s 9 8 / M e
L
INKSYS BEFCMU10 ver. 3 User Manual
