Summary of Contents for Pioneer AVH-G225BT

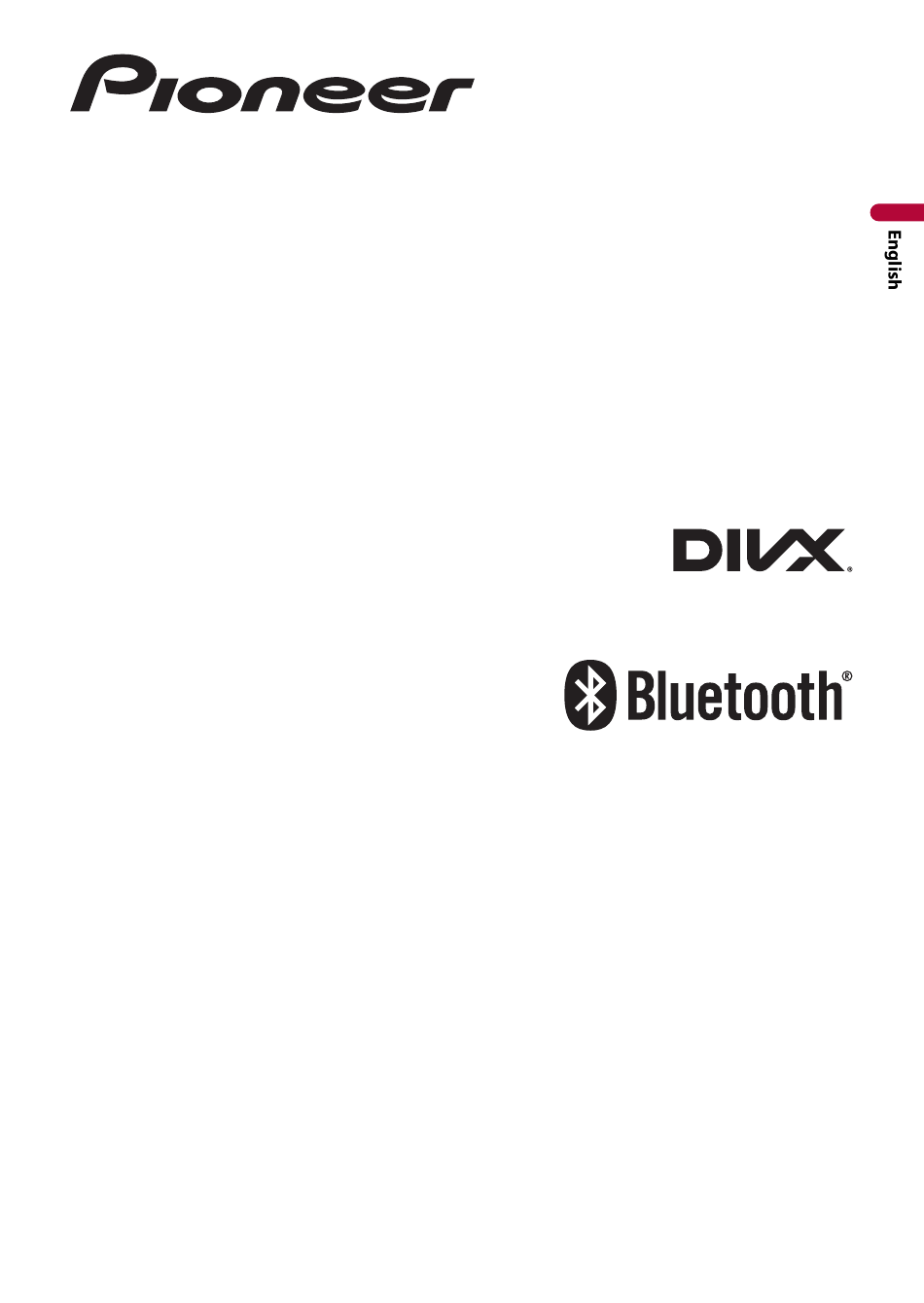

- Page 1 AVH-G225BT DVD RDS AV RECEIVER Operation Manual...
- Page 2 Contents ■ Favourite menu ....41 Thank you for buying this Pioneer ■ product. Other functions ....42 Please read through these instructions ■ Appendix ......43 so you will know how to operate your model properly. After you have finished...
- Page 3 • If liquid or foreign matter should get inside this product, park your vehicle in a safe place, turn the ignition switch off (ACC OFF) immediately and consult your dealer or the nearest authorised Pioneer Service Station. Do not use this product in this condition because doing so may result in a fire, electric shock, or other failure.
- Page 4 • If you notice smoke, a strange noise or odour from this product, or any other abnormal signs on the LCD screen, turn off the power immediately and consult your dealer or the nearest authorised Pioneer Service Station. Using this product in this condition may result in permanent damage to the system.
- Page 5 • To prevent data loss and damage to the storage device, never remove it from this product while data is being transferred. • Pioneer cannot guarantee compatibility with all USB mass storage devices and assumes no responsibility for any loss of data on media players, iPhone, smartphone, or other devices while using this product.
- Page 6 Protecting the LCD panel and screen • Do not expose the LCD screen to direct sunlight when this product is not used. This may result in LCD screen malfunction due to the resulting high temperatures. • When using a mobile phone, keep the aerial of the mobile phone away from the LCD screen to prevent disruption of the video in the form of spots, coloured stripes, etc.
- Page 7 Parts and controls Main unit VOL (+/ (HOME) Press to display the top menu screen. Press and hold to power off. To power back on, press any button. (MUTE) Press and hold to display off. USB port RESET Press to reset the microprocessor (page 8). Microphone The Bluetooth microphone is built in the grill of the product.
- Page 8 Remote Control Volume (+/-) BAND/ESC Press to select the tuner band when tuner is selected as a source. Press to switch between media file types when playing the following types of data: Disc, USB Press to select the previous or next track/file. Press and hold to perform fast reverse or fast forwards.
- Page 9 – If this product fails to operate properly. – If there appears to be problems with the operation of the system. Turn the ignition switch OFF. Press RESET with a pen tip or other pointed tools. Settings and recorded contents are reset to the factory settings. Preparing the remote control Remove the insulation sheet before use.
- Page 10 • When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in your country/area. Using the remote control Point the remote control in the direction of the front panel to operate. NOTE The remote control may not function properly in direct sunlight. Important •...
- Page 11 Common touch panel keys Switches between playback and pause. Skips files/tracks/chapters forwards or backwards. Performs fast reverse or fast forwards. Touch again to change the playback speed. Stops playback. Text When all characters are not displayed, the rests are automatically scrolled on information the display.
- Page 12 Operating the time bar You can change the playback point by dragging the key. NOTE The time bar function may vary depending on the activating source. Top menu screen 6/10 Radio Disc BluetoothAudio Camera View Source icons Setting the time and date (page 42) Settings (page 31) and Favourite menu (page 41) Hands-free phoning (page 15) AV source off...
- Page 13 Bluetooth Bluetooth connection Turn on the Bluetooth function on the device. Press Touch then The Bluetooth menu screen appears. Touch [Connection]. Touch The unit starts to search for available devices, then displays them in the device list. Touch the Bluetooth device name. After the device is successfully registered, a Bluetooth connection is established by the system.
- Page 14 Menu Item Description [Connection] Connect, disconnect, or delete registered Bluetooth device manually. Touch to delete registered device. To connect a registered Bluetooth device manually, touch the name of the device. To disconnect the device, touch the name of the connected device in the list.
- Page 15 Hands-free phoning To use this function you need to connect your mobile phone to this product via Bluetooth in advance (page 13). CAUTION For your safety, avoid talking on the phone as much as possible while driving. Making a phone call Press , then touch The phone menu screen appears.
- Page 16 Using the preset dial lists ▶Registering a phone number You can easily store up to six phone numbers per device as presets. Press , then touch Touch On the [Phone Book] screen, touch the desired name to display the contact’s phone number.
- Page 17 Menu Item Description [Invert Name] Select [Yes] to change the order of the first and last names in the phone book. Setting the private mode During a conversation, you can switch to private mode (talk directly on your mobile phone). Touch to turn private mode on or off.
- Page 18 ▶The received call and dialled number histories • You cannot make a call to the entry of an unknown user (no phone number) in the received call history. • If calls are made by operating your mobile phone, no history data will be recorded in this product.
- Page 19 Basic operation Description of Bluetooth audio playback screen Track number indicator Sets a repeat play range. Plays files in random order. Switches the devices. AV source Supported AV source You can play or use the following sources with this product. •...
- Page 20 Source on the source list Touch on the AV Source screen. Touch the source key. When you select [Source OFF], the AV source is turned off. Smartphone connection for AV source When using a smartphone with this product, the settings are automatically configured according to the device to be connected.
- Page 21 Connecting via USB The following sources are available when a smartphone is connected to the unit via USB. • USB storage device Connect a smartphone with this product via USB (Refer to the Quick Start Guide). Press Touch compatible desired source. Radio Starting procedure Press...
- Page 22 Manual tuning Seek tuning or non stop seek tuning Releasing the key in a few seconds skips to the nearest station from the current frequency. Keep holding the key for long seconds to perform, performs non stop seek tuning. Searches for a broadcast by PTY information (page 22). Searching by PTY information You can tune into a station using PTY (Programme Type Identification) information.
- Page 23 Radio settings Press Touch then The system setting screen appears. Touch [AV Source Settings]. Touch [Radio settings]. The menu items vary according to the source. Menu Item Description [Local] Local seek tuning allows you to only tune into [Off] radio stations with sufficiently strong signals. FM: [Level1] [Level2] [Level3] [Level4] NOTE AM: [Level1] [Level2]...
- Page 24 Menu Item Description [News Interrupt]* Interrupt the currently selected source with [On] [Off] news programmes. * This function is available only when you receive the FM band. Disc Inserting and ejecting a disc You can play a normal music CD, Video-CD, or DVD-Video using the built-in drive of this product.
- Page 25 Track number indicator Sets a repeat play for the current disc/the current track. Plays or does not play tracks in random order. Selects a track from the list. Touch a track on the list to play back. Video source CAUTION For safety reasons, video images cannot be viewed while your vehicle is in motion.
- Page 26 Displays the hidden function bar. Searches for the part you want to play. Touch [Title], [Chapter], [10Key], or [Track] then input the desired number from [0] to [9]. To start playback from the number you registered, touch TIPS • To cancel an input number, touch [C]. •...
- Page 27 NOTE If the disc is already set, select [Disc] as the playing source. Ejecting a disc Press Plugging a USB storage device Open the USB port cover. Plug in the USB device/smartphone (Android device) using an appropriate cable. NOTES • This product may not achieve optimum performance with some USB storage devices. •...
- Page 28 If the USB is already set, select [USB] as the playing source. Basic operation You can set the screen size for the video and image files (page 42). Audio source Description of Audio source screen (Example: USB) When you touch text information, all information is displayed by scrolling only when the handbrake is applied.
- Page 29 Video source CAUTION For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video images, stop in a safe place and apply the handbrake. Description of Video source screen (Example: Disc) Touch anywhere on the screen, the touch panel keys appear. Performs frame-by-frame playback.
- Page 30 Rotates the displayed picture 90° clockwise. Sets a repeat play range for all files/the current folder. Plays all files in the current repeat play range or does not play them in random order. Switches the following media file types. [Music]: Compressed audio files [Video]: Compressed video files [Photo]: Image files Selects a file from the list.
- Page 31 Basic operation Description of AUX screen TIPS • Touch anywhere on the screen, the touch panel keys appear. • You can set the screen size for the video image (page 42). Switches between the video input and audio input. Settings You can adjust various settings in the main menu.
- Page 32 To set the rear view camera as the camera for Camera View mode, set [Back Camera Input] to [On] (page 32). CAUTION Pioneer recommends the use of a camera which outputs mirror reversed images, otherwise the screen image may appear reversed. • Immediately verify whether the display changes to the rear view camera image when the gearstick is moved to REVERSE (R) from another position.
- Page 33 • Depending on your vehicle, this function may not work properly. In this case, contact your dealer or an authorised PIONEER Service Station. • Please use a PIONEER wiring harness for each car model when [With Adapter] mode is engaged, otherwise select [No Adapter]. - 33 -...
- Page 34 [Restore Settings] Menu Item Description [Restore Settings] Touch [Restore] to restore the settings to the default settings. CAUTION Do not turn off the engine while restoring the settings. NOTES • This setting is available only when you stop your vehicle in a safe place and apply the handbrake.
- Page 35 Menu Item Description [Touch panel calibration] Touch [Yes]. Touch four corners of the screen along the arrows. Press The adjustment results are saved. Press once again. Proceed to 16-point adjustment. Gently touch the centre of the [+] mark displayed on the screen.
- Page 36 Menu Item Description [Dimmer Duration] Adjust the time that the dimmer is turned on or off by dragging the cursors or touching You can use this function when [Dimmer Trigger] is set to [Time]. TIPS • Each touch of moves the cursor backwards or forwards in the 15 minute width.
- Page 37 * With some pictures, you cannot adjust [Hue] and [Colour]. NOTES • The adjustments of [Brightness], [Contrast], and [Dimmer] are stored separately when your vehicle's headlights are off (daytime) and on (nighttime). • [Brightness] and [Contrast] are switched automatically depending on the setting of [Dimmer Settings].
- Page 38 Menu Item Description [Fader/Balance] Touch to adjust the front/rear speaker balance. Set [Front] and [Rear] to [0] when using a dual speaker system. Touch to adjust the left/right speaker balance. You can also set the value by dragging the point on the displayed table. NOTE Only the fader can be adjusted when [Rear] is selected as the speaker mode.
- Page 39 Menu Item Description [Loudness] Compensates for deficiencies in the low-frequency and [Off] [Low] [Mid] [High] high-frequency ranges at low volume. NOTE This function is not available while you make or receive a call using the hands-free function. Adjusting the LPF cutoff frequency value You can adjust the LPF cutoff frequency value for subwoofer.
- Page 40 Menu Item Description [Parental] Set restrictions so that children cannot watch violent or adult-oriented scenes. You can set the parental lock level in steps as desired. Touch [0] to [9] to input a four-digit code number. Touch Registers the code number, and you can now set the level.
- Page 41 [Video Signal Setting] Menu Item Description [AUX] Select the suitable video signal setting when you connect [Auto] [PAL] [NTSC] [PAL- this product to an AUX equipment. M] [PAL-N] [SECAM] [Camera] Select the suitable video signal setting when you connect [Auto] [PAL] [NTSC] [PAL- this product to a rear view camera.
- Page 42 Other functions Setting the time and date Touch the current time on the screen. Touch to set the correct time and date. You can operate the following items: Year, month, date, hour, minute. TIPS • You can change the time display format to [12hour] or [24hour]. •...
- Page 43 The screen is covered by a caution authorised Pioneer service facility. message and the video cannot be shown. → The handbrake lead is not connected or Common problems the handbrake is not applied.
- Page 44 If the error persists, example, the DVD playing does not record the error message and contact your feature that angle, audio system, dealer or your nearest Pioneer service subtitle language, etc.) centre. The picture is extremely unclear/ distorted and dark during playback.
- Page 45 If the error message is still displayed after disc performing the above action, please contact your dealer or an authorised • At extremely high temperatures, a Pioneer Service Station. temperature cutout protects this product by switching it off automatically. - 45 -...
- Page 46 • Despite our careful design of the product, Playing DualDisc small scratches that do not affect actual operation may appear on the disc surface • DualDiscs are two-sided discs that have a as a result of mechanical wear, ambient recordable CD for audio on one side and conditions for use or handling of the disc.
- Page 47 characteristics, scratches or dirt on the Detailed information disc, or dirt, scratches or condensation on for playable media the lens of the built-in drive. • Playback of discs recorded on a computer may not be possible, depending on the recording device, writing software, their Compatibility settings, and other environmental factors.
- Page 48 • You cannot connect a USB storage device DivX subtitle files to this product via a USB hub. • Srt format subtitle files with the • Partitioned USB storage device is not extension “.srt” can be used. compatible with this product. •...
- Page 49 • Maximum playback time of audio file USB storage device stored on an USB storage device: 7.5 h File extension: .mp3 (450 minutes) Bit rate: 8, 16, 24, 32, 40, 48, 56, 64, 80, 96, 112, 128, 144, 160, 192, 224, 256, 320 kbps CD-R/-RW (CBR), VBR File system: ISO 9660 level 1 and level 2,...
- Page 50 Bluetooth the file. • This product is not compatible with packet write data transfer. word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER - 50 -...
- Page 51 CORPORATION is under license. Other Notice regarding video trademarks and trade names are those of their respective owners. viewing Remember that use of this system for commercial or public viewing purposes Windows Media is either a registered trademark may constitute an infringement on the or trademark of Microsoft Corporation in the author’s rights as protected by the United States and/or other countries.
- Page 52 In that case, please consult your • Small black dots or white dots (bright dealer or the nearest authorised Pioneer dots) may appear on the LCD screen. Service Station. These are due to the characteristics of the...
- Page 53 1 152 000 (2 400 × 480) Frequency response: Display method: 5 Hz to 22 000 Hz (with DVD, at sampling TFT Active matrix driving frequency 48 kHz) Colour system: Signal-to-noise ratio: PAL/NTSC/PAL-M/PAL-N/SECAM 91 dB (1 kHz) (IHF-A network) (RCA level) compatible Output level: Temperature range:...
- Page 54 JPEG decoding format: NOTE .jpeg, .jpg, .jpe, .bmp Specifications and design are subject to possible Pixel Sampling: 4:2:2, 4:2:0 modifications without notice due to improvements. Decode Size: MAX: 8 192 (H) × 7 680 (W) MIN: 32 (H) × 32 (W) BMP decoding format: .bmp Decode Size:...
