ROMED8-2T

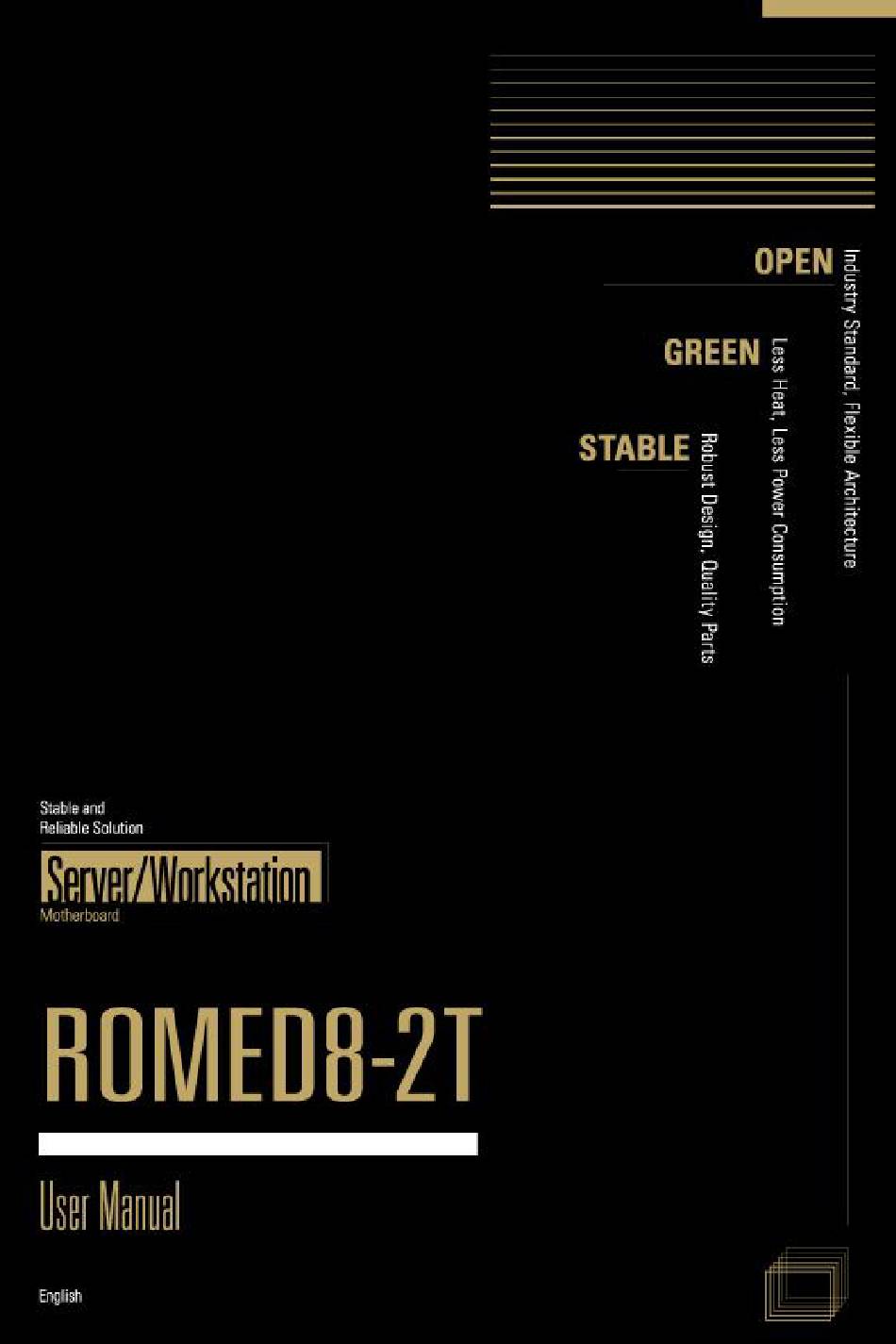

User Manual
Version 1.0
Published February 2020
Copyright©2020 ASRock Rack INC. All rights reserved.

Advertisement

Table of Contents
loading

Related Manuals for ASROCK ROMED8-2T

Summary of Contents for ASROCK ROMED8-2T

  • Page 1 ROMED8-2T User Manual Version 1.0 Published February 2020 Copyright©2020 ASRock Rack INC. All rights reserved.
  • Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock Rack has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 Contact Information If you need to contact ASRock Rack or want to know more about ASRock Rack, you’re welcome to visit ASRock Rack’s website at www.ASRockRack.com; or you may contact your dealer for further information. ASRock Rack Incorporation 6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,...

  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Unique Features Motherboard Layout Onboard LED Indicators I/O Panel Block Diagram Chapter 2 Installation Screw Holes Pre-installation Precautions Installing the CPU Installation of Memory Modules (DIMM) Expansion Slots (PCI Express Slots) Jumper Setup Onboard Headers and Connectors Dr.
  • Page 5 3.1.2 Navigation Keys Main Screen Advanced Screen 3.3.1 CPU Configuration 3.3.2 Chipset Configuration 3.3.3 Storage Configuration 3.3.4 ACPI Configuration 3.3.5 USB Configuration 3.3.6 Super IO Configuration 3.3.7 Serial Port Console Redirection 3.3.8 H/W Monitor 3.3.9 AMD CBS 3.3.10 AMD PBS 3.3.11 PSP Firmware Versions 3.3.12 Instant Flash Server Mgmt...
  • Page 6 3.8 Exit Screen Chapter 4 Software Support 4.1 Install Operating System 4.2 Support CD Information 4.2.1 Running The Support CD 4.2.2 Drivers Menu 4.2.3 Utilities Menu 4.2.4 Contact Information Chapter 5 Troubleshooting 5.1 Troubleshooting Procedures 5.2 Technical Support Procedures 5.3 Returning Merchandise for Service...

  • Page 8: Chapter 1 Introduction

    In case any modifications of this manual occur, the updated version will be available on ASRock Rack website without further notice. You may find the latest memory and CPU support lists on ASRock Rack website as well. ASRock Rack’s Website: www.ASRockRack.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using.

  • Page 9: Specifications

    1.2 Specifications ROMED8-2T MB Physical Status Form Factor Dimension 12'' x 9.6'' (30.5 cm x 24.4 cm) Processor System AMD EPYC™ 7002/7001 Series Processor Family Socket Single Socket SP3 (LGA4094) Chipset System Memory Type - Eight Channel DDR4 memory technology...
  • Page 10 ROMED8-2T LAN Controller - 2 x RJ45 10G base-T by Intel® X550 - 1 x RJ45 Dedicated IPMI LAN port by RTL8211E - Supports Wake-On-LAN - Supports Energy Effcient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE...
  • Page 11 32MB AMI UEFI Legal BIOS BIOS Features - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8 Support - ASRock Rack Instant Flash Hardware Monitor Temperature - CPU Temperature Sensing - MB/TR1/Card side Temperature Sensing...
  • Page 12 Environment Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C NOTE: Please refer to our website for the latest specifications. This motherboard supports Wake from on Board LAN. To use this function, please make sure that the “Wake on Magic Packet from power off state” is enabled in Device Manager >...

  • Page 13: Unique Features

    POST or the <F2> key to enter into the BIOS setup menu to access ASRock Rack Instant Flash. Just launch this tool and save the new BIOS file to your USB flash drive, floppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional floppy diskette or other complicated flash utility.

  • Page 14: Motherboard Layout

    ROMED8-2T 1.4 Motherboard Layout 24.4cm (9.6 in) NV12V_2 NV12V_4 DDR4_H1 (64 bit, 288-pin module) PSU_SMB1 UID1 ATX12V1 ATX12V2 DDR4_G1 (64 bit, 288-pin module) ATXPWR1 DDR4_F1 (64 bit, 288-pin module) USB3_3_4 DDR4_E1 (64 bit, 288-pin module) LGA4094 Socket SP3 ROMED8-2T NV12V_1...
  • Page 15 Description PSU SMBus Header (PSU_SMB1) ATX 12V Power Connector (ATX12V1) ATX 12V Power Connector (ATX12V2) ATX Power Connector (ATXPWR1) USB 3.1 Gen1 Header (USB3_3_4) NVDIMM Power Support Jumper (NV12V_1) System Fan Connector (FAN1) NVDIMM Power Support Jumper (NV12V_3) System Fan Connector (FAN2) OCuLink x4 Connector (OCU1) System Fan Connector (FAN3) OCuLink x4 Connector (OCU2)
  • Page 16 ROMED8-2T Description Chassis ID Jumper (CHASSIS_ID0) Front Panel Type C USB 3.1 Gen2 Header (USB31_TC_2) 2 x 288-pin DDR4 DIMM Slots (DDR4_B1, DDR4_D1)** 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_C1)** TPM-SPI Header (TPM_BIOS_PH1) 2 x 288-pin DDR4 DIMM Slots (DDR4_E1, DDR4_G1)**...

  • Page 17: Onboard Led Indicators

    DDR4_G1 (64 bit, 288-pin module) DDR4_F1 (64 bit, 288-pin module) DDR4_E1 (64 bit, 288-pin module) LGA4094 Socket SP3 ROMED8-2T DDR4_A1 (64 bit, 288-pin module) DDR4_B1 (64 bit, 288-pin module) DDR4_C1 (64 bit, 288-pin module) DDR4_D1 (64 bit, 288-pin module) NUT5...
  • Page 18 ROMED8-2T Item Status Description FAN_LED1 Amber FAN1 failed FAN_LED2 Amber FAN2 failed FAN_LED3 Amber FAN3 failed FAN_LED4 Amber FAN4 failed FAN_LED5 Amber FAN5 failed FAN_LED6 Amber FAN6 failed FAN_LED7 Amber FAN7 failed SB_PWR1 Green STB PWR ready BMC_LED1 Green BMC heartbeat LED...

  • Page 19: I/O Panel

    1.6 I/O Panel No. Description No. Description UID Switch (UID1) LAN RJ-45 Port (IPMI_LAN1)* VGA Port (VGA1) 10G LAN RJ-45 Port (LAN1)** Serial Port (COM1) 10G LAN RJ-45 Port (LAN2)** USB 3.1 Gen1 Ports (USB3_1_2) USB 3.1 Gen2 Port (USB31_TC_1) *There are two LED next to the LAN port.
  • Page 20 ROMED8-2T **There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. LAN Port SPEED LED ACT/LINK LED LAN Port (LAN1, LAN2) LED Indications Activity / Link LED Speed LED Status...

  • Page 21: Block Diagram

    1.7 Block Diagram...

  • Page 22: Chapter 2 Installation

    ROMED8-2T Chapter 2 Installation This is an ATX form factor (12” x 9.6”, 30.5 cm x 24.4 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so may cause physical injuries to you and damages to motherboard components.

  • Page 23: Pre-Installation Precautions

    Do not over-tighten the screws! Doing so may damage the motherboard. 2.2 Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings. 1. Unplug the power cord from the wall socket before touching any components. 2.

  • Page 24: Installing The Cpu

    ROMED8-2T 2.3 Installing the CPU 1. Before you insert the CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 26 ROMED8-2T Carr ier Frame with CPU Rail Frame Please make sure that the carrier frame with CPU is closely attached to the rail frame while inserting it. Install the carrier frame with CPU. Don’t separate them.

  • Page 28: Installation Of Memory Modules (Dimm)

    ROMED8-2T 2.4 Installation of Memory Modules (DIMM) This motherboard provides eight 288-pin DDR4 (Double Data Rate 4) DIMM slots in two groups, and supports Eight Channel Memory Technology. CPU1 1 DIMM 2 DIMMS 4 DIMMS 8 DIMMS 1. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot;...
  • Page 29 The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

  • Page 30: Expansion Slots (Pci Express Slots)

    ROMED8-2T 2.5 Expansion Slots (PCI Express Slots) There are 7 PCI Express slots on this motherboard. PCIE slot: PCIE1 (PCIE 4.0 x16 slot, from CPU) is used for PCI Express x16 lane width cards. PCIE2 (PCIE 4.0 x16 slot, from CPU) is used for PCI Express x16 lane width cards.* PCIE3 (PCIE 4.0 x16 slot, from CPU) is used for PCI Express x16 lane width cards.

  • Page 31: Jumper Setup

    2.6 Jumper Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when a jumper cap is placed on these 2 pins.
  • Page 32 ROMED8-2T NVDIMM Power Support Jumpers (3-pin NV12V_1) No support for NVDIMM Support NVDIMM power (see p.6, No. 6) power (Default) (3-pin NV12V_2) (see p.6, No. 42) (3-pin NV12V_3) (see p.6, No. 8) (3-pin NV12V_4) (see p.6, No. 41)

  • Page 33: Onboard Headers And Connectors

    2.7 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header C onnec t t he power sw itch, PLED+ PLED-...
  • Page 34 ROMED8-2T Auxiliary Panel Header This header supports multiple (18-pin AUX PANEL1) functions on the front panel, (see p.6, No. 24) including the front panel SMB, internet status indicator and chassis intrusion pin. A. Front panel SMBus connecting pin (6-1 pin FPSMB) This header allows you to connect SMBus (System Management Bus) equipment.
  • Page 35 USB 3.1 Gen1 Header Besides two default USB 3.1 IntA_PA_D+ (19-pin USB3_3_4) IntA_PA_D- Gen1 ports on the I/O panel, IntA_PA_SSTX+ (see p.6, No. 5) there is one USB 3.1 Gen1 IntA_PA_SSTX- header on this motherboard. IntA_PA_SSRX+ IntA_PA_SSRX- This USB 3.1 Gen1 header Vbus can support two USB 3.1 Gen1 ports.
  • Page 36 ROMED8-2T ATX Power Connector This motherboard provides a (24-pin ATXPWR1) 24-pin ATX power connector. (see p.6, No. 4) To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13. ATX 12V Power This motherboard provides...
  • Page 37 TPM-SPI Header This connector supports SPI PIRQ SPI_RST TPM_CS# (13-pin TPM_BIOS_PH1) Trusted Platform Module MOSI (see p.6, No. 38) (TPM) system for SPI RSMRST# SPI_CLK interface, which can securely MISO +3.3V SPI_CS store keys, digital certificates, SPI_HOLD SPI_WP passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures...
  • Page 38 ROMED8-2T Non Maskable Interrupt Please connect a NMI device Button Header to this header. (NMI_BTN1) CONTROL (see p.6, No. 33) OCuLink Connectors Please connect PCIE SSDs to O CU1 (OCU1) these connectors. (see p.6, No. 10) O CU2 (OCU2) (see p.6, No. 12)

  • Page 39: Dr. Debug

    2.8 Dr. Debug Dr. Debug is used to provide code information, which makes troubleshooting even easier. Please see the diagrams below for reading the Dr. Debug codes. Code Description 0x10 PEI_CORE_STARTED 0x11 PEI_CAR_CPU_INIT 0x15 PEI_CAR_NB_INIT 0x19 PEI_CAR_SB_INIT 0x31 PEI_MEMORY_INSTALLED 0x32 PEI_CPU_INIT 0x33 PEI_CPU_CACHE_INIT...
  • Page 40 ROMED8-2T 0x63 DXE_CPU_INIT 0x68 DXE_NB_HB_INIT 0x69 DXE_NB_INIT 0x6A DXE_NB_SMM_INIT 0x70 DXE_SB_INIT 0x71 DXE_SB_SMM_INIT 0x72 DXE_SB_DEVICES_INIT 0x78 DXE_ACPI_INIT 0x79 DXE_CSM_INIT 0x90 DXE_BDS_STARTED 0x91 DXE_BDS_CONNECT_DRIVERS 0x92 DXE_PCI_BUS_BEGIN 0x93 DXE_PCI_BUS_HPC_INIT 0x94 DXE_PCI_BUS_ENUM 0x95 DXE_PCI_BUS_REQUEST_RESOURCES 0x96 DXE_PCI_BUS_ASSIGN_RESOURCES 0x97 DXE_CON_OUT_CONNECT 0x98 DXE_CON_IN_CONNECT...
  • Page 41 0x99 DXE_SIO_INIT 0x9A DXE_USB_BEGIN 0x9B DXE_USB_RESET 0x9C DXE_USB_DETECT 0x9D DXE_USB_ENABLE 0xA0 DXE_IDE_BEGIN 0xA1 DXE_IDE_RESET 0xA2 DXE_IDE_DETECT 0xA3 DXE_IDE_ENABLE 0xA4 DXE_SCSI_BEGIN 0xA5 DXE_SCSI_RESET 0xA6 DXE_SCSI_DETECT 0xA7 DXE_SCSI_ENABLE 0xA8 DXE_SETUP_VERIFYING_PASSWORD 0xA9 DXE_SETUP_START 0xAB DXE_SETUP_INPUT_WAIT 0xAD DXE_READY_TO_BOOT 0xAE DXE_LEGACY_BOOT...
  • Page 42 ROMED8-2T 0xAF DXE_EXIT_BOOT_SERVICES 0xB0 RT_SET_VIRTUAL_ADDRESS_MAP_BEGIN 0xB1 RT_SET_VIRTUAL_ADDRESS_MAP_END 0xB2 DXE_LEGACY_OPROM_INIT 0xB3 DXE_RESET_SYSTEM 0xB4 DXE_USB_HOTPLUG 0xB5 DXE_PCI_BUS_HOTPLUG 0xB6 DXE_NVRAM_CLEANUP 0xB7 DXE_CONFIGURATION_RESET 0xF0 PEI_RECOVERY_AUTO 0xF1 PEI_RECOVERY_USER 0xF2 PEI_RECOVERY_STARTED 0xF3 PEI_RECOVERY_CAPSULE_FOUND 0xF4 PEI_RECOVERY_CAPSULE_LOADED 0xE0 PEI_S3_STARTED 0xE1 PEI_S3_BOOT_SCRIPT 0xE2 PEI_S3_VIDEO_REPOST...
  • Page 43 0xE3 PEI_S3_OS_WAKE 0x50 PEI_MEMORY_INVALID_TYPE 0x53 PEI_MEMORY_NOT_DETECTED 0x55 PEI_MEMORY_NOT_INSTALLED 0x57 PEI_CPU_MISMATCH 0x58 PEI_CPU_SELF_TEST_FAILED 0x59 PEI_CPU_NO_MICROCODE 0x5A PEI_CPU_ERROR 0x5B PEI_RESET_NOT_AVAILABLE 0xD0 DXE_CPU_ERROR 0xD1 DXE_NB_ERROR 0xD2 DXE_SB_ERROR 0xD3 DXE_ARCH_PROTOCOL_NOT_AVAILABLE 0xD4 DXE_PCI_BUS_OUT_OF_RESOURCES 0xD5 DXE_LEGACY_OPROM_NO_SPACE 0xD6 DXE_NO_CON_OUT 0xD7 DXE_NO_CON_IN...
  • Page 44 ROMED8-2T 0xD8 DXE_INVALID_PASSWORD 0xD9 DXE_BOOT_OPTION_LOAD_ERROR 0xDA DXE_BOOT_OPTION_FAILED 0xDB DXE_FLASH_UPDATE_FAILED 0xDC DXE_RESET_NOT_AVAILABLE 0xE8 PEI_MEMORY_S3_RESUME_FAILED 0xE9 PEI_S3_RESUME_PPI_NOT_FOUND 0xEA PEI_S3_BOOT_SCRIPT_ERROR 0xEB PEI_S3_OS_WAKE_ERROR...

  • Page 45: Unit Identification Purpose Led/Switch

    2.9 Unit Identification purpose LED/Switch With the UID button, You are able to locate the server you’re working on from behind a rack of servers. Unit Identification When the UID button on the purpose LED/Switch front or rear panel is pressed, (UID1) the front/rear UID blue LED indicator will be truned on.

  • Page 46: M.2_Ssd (Ngff) Module Installation Guide

    ROMED8-2T 2.11 M.2_SSD (NGFF) Module Installation Guide The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2_SSD (NGFF) Socket 3 can accommodate either a M.2 SATA3 6.0 Gb/s module or a M.2 PCI Express module up to Gen3 x4 (32 Gb/s).
  • Page 47 Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.

  • Page 48: Chapter 3 Uefi Setup Utility

    ROMED8-2T Chapter 3 UEFI Setup Utility 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2> or <Del> during the Power-On-Self-Test (POST) to enter the UEFI SETUP UTILITY;...

  • Page 49: Navigation Keys

    3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Tab>...

  • Page 50: Main Screen

    ROMED8-2T 3.2 Main Screen Once you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. The Main screen provides system overview information and allows you to set the system time and date.

  • Page 51: Advanced Screen

    3.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, Chipset Configuration, Storage Configuration, ACPI Configuration, USB Configuration, Super IO Configuration, Serial Port Console Redirection, H/W Monitor, AMD CBS, AMD PBS, PSP Firmware Versions and Instant Flash. Setting wrong values in this section may cause the system to malfunction.

  • Page 52: Cpu Configuration

    ROMED8-2T 3.3.1 CPU Configuration SVM Mode Enable or disable CPU Virtualization. Node 0 Information View Memory Information related to Node 0.

  • Page 53: Chipset Configuration

    3.3.2 Chipset Configuration SPI/LPC TPM Switch Use this item to switch SPI/LPC TPM. OnBrd/Ext VGA Select Select between onboard or external VGA support. Onboard LAN1 This allows you to enable or disable the Onboard LAN1 feature. Onboard LAN2 This allows you to enable or disable the Onboard LAN2 feature. PCIE Slot 1 Link Width This allows you to select PCIE1 Link Width.
  • Page 54 ROMED8-2T PCIE Slot 4 Link Width This allows you to select PCIE4 Link Width. The default value is [x16]. PCIE Slot 5 Link Width This allows you to select PCIE5 Link Width. The default value is [x16]. PCIE Slot 6 Link Width This allows you to select PCIE6 Link Width.
  • Page 55 SR-IOV Support If system has SR-IOV capable PCIe Devices, this option Enables or Disables Single Root IO Virtualization Support. Restore AC Power Loss This allows you to set the power state after a power failure. If [Power Off] is selected, the power will remain off when the power recovers.

  • Page 56: Storage Configuration

    ROMED8-2T 3.3.3 Storage Configuration SATA Hot Plug Enable/disable the SATA Hot Plug Function.

  • Page 57: Acpi Configuration

    3.3.4 ACPI Configuration PCIE Devices Power On Allow the system to be waked up by a PCIE device and enable wake on LAN. RTC Alarm Power On Use this item to enable or disable RTC (Real Time Clock) to power on the system.

  • Page 58: Usb Configuration

    ROMED8-2T 3.3.5 USB Configuration Legacy USB Support Use this option to enable or disable legacy support for USB devices. The default value is [Enabled].

  • Page 59: Super Io Configuration

    3.3.6 Super IO Configuration Serial Port 1 Configuration Use this item to set parameters of Serial Port 1 (COM1). Serial Port Use this item to enable or disable the serial port. Change Settings Use this item to select an optimal setting for Super IO device. SOL Configuration Use this item to set parameters of SOL.

  • Page 60: Serial Port Console Redirection

    ROMED8-2T 3.3.7 Serial Port Console Redirection COM1 / SOL Console Redirection Use this option to enable or disable Console Redirection. If this item is set to Enabled, you can select a COM Port to be used for Console Redirection. Console Redirection Settings Use this option to configure Console Redirection Settings, and specify how your computer and the host computer to which you are connected exchange information.
  • Page 61 Bits Per Second Use this item to select the serial port transmission speed. The speed used in the host computer and the client computer must be the same. Long or noisy lines may require lower transmission speed. The options include [9600], [19200], [38400], [57600] and [115200]. Data Bits Use this item to set the data transmission size.
  • Page 62 ROMED8-2T Redirect After POST When Bootloader is selected, then Legacy Console Redirection is disabled before booting to legacy OS. When Always Enable is selected, then Legacy Console Redirection is enabled for legacy OS. Default setting for this option is set to Always Enable.

  • Page 63: H/W Monitor

    3.3.8 H/W Monitor In this section, it allows you to monitor the status of the hardware on your system, includ- ing the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. Fan Control If [Auto] is selected, the fan speed will controlled by BMC.
  • Page 64 ROMED8-2T FAN 5 This allows you to set the fan 5’s speed. The default value is [Smart Fan]. FAN 6 This allows you to set the fan 6’s speed. The default value is [Smart Fan]. FAN 7 This allows you to set the fan 7’s speed. The default value is [Smart Fan].

  • Page 65: Amd Cbs

    3.3.9 AMD CBS CPU Common Options Use this item to configure CPU Common options. DF Common Options Use this item to configure DF Common options. UMC Common Options Use this item to configure UMC Common options. NBIO Common Options Use this item to configure NBIO Common options. FCH Common Options Use this item to configure FCH Common options.

  • Page 66: Amd Pbs

    ROMED8-2T 3.3.10 AMD PBS Use this item to configure AMD CPM RAS related settings.

  • Page 67: Psp Firmware Versions

    3.3.11 PSP Firmware Versions The PSP Firmware Verions displays the version information of PSP Recovery BL, PSP BootLoader, SMU FW, ABL, APCB, APDB, and APPB.

  • Page 68: Instant Flash

    ROMED8-2T 3.3.12 Instant Flash Instant Flash is a UEFI flash utility embedded in Flash ROM. This convenient UEFI update tool allows you to update system UEFI without entering operating systems ® first like MS-DOS or Windows . Just save the new UEFI file to your USB flash drive,...

  • Page 69: Server Mgmt

    3.4 Server Mgmt Wait For BMC Wait For BMC response for specified time out. BMC starts at the same time when BIOS starts during AC power ON. It takes around 90 seconds to initialize Host to BMC interfaces.

  • Page 70: System Event Log

    ROMED8-2T 3.4.1 System Event Log SEL Components Change this to enable ro disable event logging for error/progress codes during boot. Erase SEL Use this to choose options for earsing SEL. When SEL is Full Use this to choose options for reactions to a full SEL.

  • Page 71: Bmc Network Configuration

    3.4.2 BMC Network Configuration Lan Channel (Failover) Manual Setting IPMI LAN If [No] is selected, the IP address is assigned by DHCP. If you prefer using a static IP address, toggle to [Yes], and the changes take effect after the system reboots. The default value is [No].
  • Page 72 ROMED8-2T The default login information for the IPMI web interface is: Username: admin Password: admin For more instructions on how to set up remote control environment and use the IPMI man- agement platform, please refer to the IPMI Configuration User Guide or go to the Support...

  • Page 73: Bmc Tools

    3.4.2 BMC Tools Load BMC Default Settings Use this item to Load BMC Default Settings.

  • Page 74: Security

    ROMED8-2T 3.5 Security In this section, you may set or change the supervisor/user password for the system. For the user password, you may also clear it. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility.

  • Page 75: Key Management

    3.5.1 Key Management In this section, expert users can modify Secure Boot Policy variables without full authenti- cation. Factory Key Provision Install factory default Secure Boot keys after the platform reset and while the System is in Setup mode. Install Default Secure Boot Keys Please install default secure boot keys if it’s the first time you use secure boot.
  • Page 76 ROMED8-2T b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256, 384, 512 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Default, External, Mixed, Test Key Exchange Keys Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in:...
  • Page 77 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256, 384, 512 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Default, External, Mixed, Test Authorized TimeStamps Enroll Factory Defaults or load certificates from a file: 1.

  • Page 78: Boot Screen

    ROMED8-2T 3.6 Boot Screen In this section, it will display the available devices on your system for you to configure the boot settings and the boot priority. Boot Option #1 Use this item to set the system boot order. Boot Option #2 Use this item to set the system boot order.
  • Page 79 Setup Prompt Timeout Configure the number of seconds to wait for the UEFI setup utility. Bootup Num-Lock If this item is set to [On], it will automatically activate the Numeric Lock function after boot-up. Boot Beep Select whether the Boot Beep should be turned on or off when the system boots up. Please note that a buzzer is needed.

  • Page 80: Csm Parameters

    ROMED8-2T 3.6.1 CSM Parameters Enable to launch the Compatibility Support Module. Please do not disable unless you’re running a WHCK test. If you are using Windows Server 2012 R2 or later ver- sions 64-bit UEFI and all of your devices support UEFI, you may also disable CSM for faster boot speed.
  • Page 81 PCIE3 Slot OpROM Use this item to select slot storage and Network Option ROM policy. In Auto option, the default is Disabled with NVMe device, but it is Legacy with other devices. (This item can't select Video Option ROM policy.) PCIE4 Slot OpROM Use this item to select slot storage and Network Option ROM policy.

  • Page 82: Event Logs

    ROMED8-2T 3.7 Event Logs Change Smbios Event Log Settings This allows you to configure the Smbios Event Log Settings. When entering the item, you will see the followings: Smbios Event Log Use this item to enable or disable all features of the SMBIOS Event Logging during system boot.
  • Page 83 entries which utilize a multiple-event counter. The value ranges from 0 to 99 minutes. Log EFI Status Code Enable or disable the logging of EFI Status Codes as OEM reserved type E0 (if not already converted to legacy). Convert EFI Status Codes to Standard Smbios Type Enable or disable the converting of EFI Status Codes to Standard Smbios Types (Not all may be translated).

  • Page 84: Exit Screen

    ROMED8-2T 3.8 Exit Screen Save Changes and Exit When you select this option, the following message “Save configuration changes and exit setup?” will pop-out. Press <F10> key or select [Yes] to save the changes and exit the UEFI SETUP UTILITY.

  • Page 85: Chapter 4 Software Support

    4.2.4 Contact Information If you need to contact ASRock Rack or want to know more about ASRock Rack, welcome to visit ASRock Rack’s website at http://www.ASRockRack.com; or you may contact your...

  • Page 86: Chapter 5 Troubleshooting

    ROMED8-2T Chapter 5 Troubleshooting 5.1 Troubleshooting Procedures Follow the procedures below to troubleshoot your system. Always unplug the power cord before adding, removing or changing any hardware com- ponents. Failure to do so may cause physical injuries to you and damages to motherboard components.
  • Page 87 1. Verify if the battery on the motherboard provides ~3VDC. Install a new battery if it does not. 2. Confirm whether your power supply provides adaquate and stable power. Other problems... 1. Try searching keywords related to your problem on ASRock Rack’s FAQ page: http://www.asrockrack.com/support...

  • Page 88: Technical Support Procedures

    ROMED8-2T 5.2 Technical Support Procedures If you have tried the troubleshooting procedures mentioned above and the problems are still unsolved, please contact ASRock Rack’s technical support with the following information: 1. Your contact information 2. Model name, BIOS version and problem type.
