Lenovo M41-80 Hardware Maintenance Manual

Hide thumbs Also See for M41-80:
Table of Contents

Advertisement

Quick Links

Download this manual
Lenovo
M41-80
Hardware
Maintenance
Manual

Advertisement

Table of Contents
loading

Related Manuals for Lenovo M41-80

Summary of Contents for Lenovo M41-80

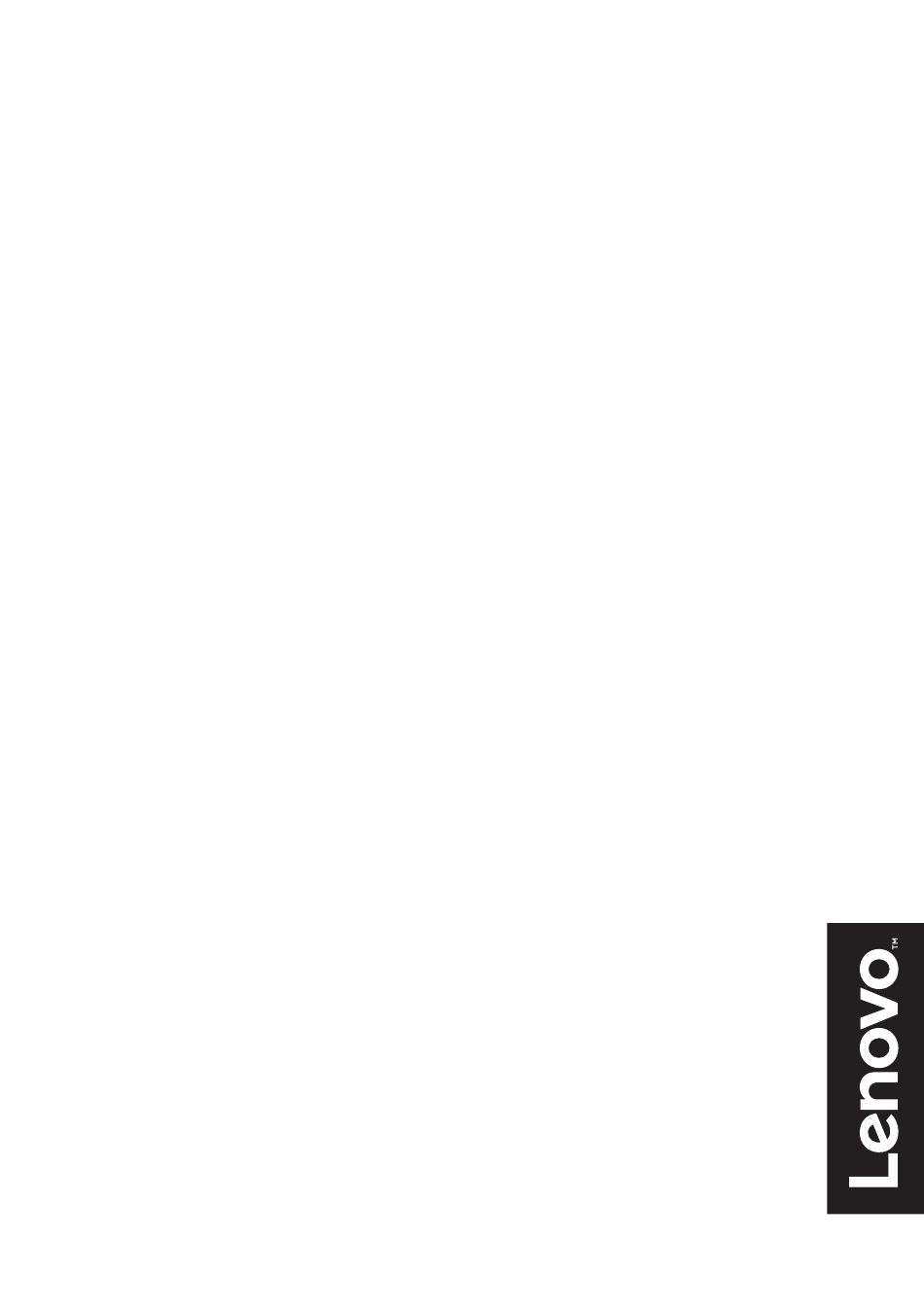

  • Page 1 Lenovo M41-80 Hardware Maintenance Manual...
  • Page 2 Note: • Before using this information and the product it supports, be sure to read the general information under “Notices” on page 75. First Edition (September 2015) © Copyright Lenovo 2015. All rights reserved. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925. © 2015 Lenovo...

  • Page 3: Table Of Contents

    Putting the computer to sleep or shutting it down ..............25 Putting your computer to sleep ......25 Shutting down the computer ......26 Lenovo M41-80..........27 Specifications ..........27 Status indicators ........... 29 Keyboard function keys ........ 30 FRU replacement notices ......31 Screw notices ..........31...

  • Page 4: About This Manual

    • The product-specific section includes service, reference, and product-specific parts information. Important: This manual is intended only for trained servicers who are familiar with Lenovo products. Use this manual to troubleshoot problems effectively. Before servicing a Lenovo product, make sure to read all the information under “Safety information” on page 1 and “Important service information” on page 16.

  • Page 5: Safety Information

    Safety information Safety information This chapter presents the following safety information that you need to get familiar with before you service a Lenovo M41-80 computer: • “General safety” on page 2 • “Electrical safety” on page 3 • “Safety inspection guide” on page 5 • “Handling devices that are sensitive to electrostatic discharge” on page 6 • “Grounding requirements” on page 6 • “Safety notices: multilingual translations” on page 7 • “Laser compliance statement” on page 14...

  • Page 6: General Safety

    M41-80 Hardware Maintenance Manual General safety Follow these rules below to ensure general safety: • Observe a good housekeeping in the area where the machines are put during and after the maintenance. • When lifting any heavy object: 1. Make sure that you can stand safely without slipping. 2. Distribute the weight of the object equally between your feet. 3. Use a slow lifting force. Never move suddenly or twist when you attempt to lift it. 4. Lift it by standing or pushing up with your leg muscles; this action could avoid the strain from the muscles in your back. Do not attempt to lift any object that weighs more than 16 kg (35 lb) or that you think is too heavy for you. • Do not perform any action that causes hazards to the customer, or that makes the machine unsafe.

  • Page 7: Electrical Safety

    Safety information Electrical safety Observe the following rules when working on electrical equipments. Important: Use only approved tools and test equipments. Some hand tools have handles covered with a soft material that does not insulate you when working with live electrical currents. Many customers have rubber floor mats near their machines that contain small conductive fibers to decrease electrostatic discharges.
  • Page 8 M41-80 Hardware Maintenance Manual • Always look carefully for possible hazards in your work area. Examples of these hazards are moist floors, nongrounded power extension cables, power surges, and missing safety grounds. • Do not touch live electrical circuits with the reflective surface of a plastic dental mirror. The surface is conductive; such touching can cause personal injury and machine damage. • Do not service the following parts with the power on when they are removed from their normal operating places in a machine: – Power supply units – Pumps – Blowers and fans – Motor generators and similar units. (This practice ensures correct grounding of the units.) • If an electrical accident occurs: – Caution: do not become a victim yourself.

  • Page 9: Safety Inspection Guide

    The power cord should be the type specified in the parts list. c. Insulation must not be frayed or worn. 4. Check for cracked or bulging batteries. 5. Remove the cover. 6. Check for any obvious non-Lenovo alterations. Use good judgment as to the safety of any non-Lenovo alterations. 7. Check inside the unit for any obvious unsafe conditions, such as metal filings, contamination, water or other liquids, or signs of fire or smoke damage. 8. Check for worn, frayed, or pinched cables.

  • Page 10: Handling Devices That Are Sensitive To Electrostatic Discharge

    M41-80 Hardware Maintenance Manual Handling devices that are sensitive to electrostatic discharge Any computer part containing transistors or integrated circuits (ICs) should be considered sensitive to electrostatic discharge (ESD). ESD damage can occur when there is a difference in charge between objects. Protect against ESD damage by equalizing the charge so that the machine, the part, the work mat, and the person handling the part are all at the same charge. Notes: 1. Use product-specific ESD procedures when they exceed the requirements noted here.

  • Page 11: Safety Notices: Multilingual Translations

    Safety information Safety notices: multilingual translations The safety notices in this section are provided in English, French, German, Hebrew, Italian, Japanese, and Spanish. Safety notice 1 Before the computer is powered on after FRU replacement, make sure all screws, springs, and other small parts are in place and are not left loose inside the computer.
  • Page 12 M41-80 Hardware Maintenance Manual Safety notice 2 DANGER Some standby batteries contain a small amount of nickel and cadmium. Do not disassemble a standby battery, recharge it, throw it into fire or water, or short- circuit it. Dispose of the battery as required by local ordinances or regulations.
  • Page 13 Safety information Safety notice 3 DANGER The battery pack contains small amounts of nickel. Do not disassemble it, throw it into fire or water, or short-circuit it. Dispose of the battery pack as required by local ordinances or regulations. Use only the battery in the appropriate parts listing when replacing the battery pack.
  • Page 14 M41-80 Hardware Maintenance Manual Safety notice 4 DANGER The lithium battery can cause a fire, an explosion, or a severe burn. Do not recharge it, remove its polarized connector, disassemble it, heat it above 100°C (212°F), incinerate it, or expose its cell contents to water. Dispose of the battery as required by local ordinances or regulations.
  • Page 15 Safety information Safety notice 5 If the LCD breaks and the fluid from inside the LCD gets into your eyes or on your hands, immediately wash the affected areas with water at least for 15 minutes. Seek medical care if any symptoms caused by the fluid are present after washing. Si le panneau d’affichage à...
  • Page 16 M41-80 Hardware Maintenance Manual Safety notice 6 DANGER To avoid shock, do not remove the plastic cover that protects the lower part of the inverter card. Afin d’éviter tout risque de choc électrique, ne retirez pas le cache en plastique protégeant la partie inférieure de la carte d’alimentation.
  • Page 17 Safety information Safety notice 8 DANGER Before removing any FRU, turn off the computer, unplug all power cords from electrical outlets, remove the battery pack, and then disconnect any interconnecting cables. Avant de retirer une unité remplaçable en clientèle, mettez le système hors tension, débranchez tous les cordons d’alimentation des socles de prise de courant, retirez la batterie et déconnectez tous les cordons d’interface.

  • Page 18: Laser Compliance Statement

    M41-80 Hardware Maintenance Manual Laser compliance statement Some models of Lenovo computer are equipped from the factory with an optical storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are also sold separately as options. If one of these drives is installed, it is certified in the U.S. to conform to the requirements of the Department of Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class 1 laser products. Elsewhere, the drive is certified to conform to the requirements of the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60 825 for Class 1 laser products.
  • Page 19 Safety information A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may contain an embedded Class 3A or Class 3B laser diode. Note the following: DANGER Emits visible and invisible laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam. Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe diretamente por meio de instrumentos óticos e evite exposição direta com o feixe de luz.

  • Page 20: Important Service Information

    Strategy for replacing FRUs Before replacing parts: Make sure that all software fixes, drivers, and BIOS downloads are installed before replacing any FRUs listed in this manual. After a system board is replaced, ensure that the latest BIOS is loaded to the system board before completing the service action. To download software fixes, drivers, and BIOS, follow the steps below: 1. Go to http://support.lenovo.com. 2. Enter the serial number or select a product or use Lenovo smart downloading. 3. Select the BIOS/Driver/Applications and download. 4. Follow the directions on the screen and install the necessary software.

  • Page 21: Strategy For Replacing A Hard Disk Drive

    Important service information Use the following strategy to prevent unnecessary expense for replacing and servicing FRUs: • If you are instructed to replace an FRU, but the replacement does not solve the problem, reinstall the original FRU before you continue. • Some computers have both a processor board and a system board. If you are instructed to replace either of them, and replacing one of them does not solve the problem, reinstall that board, and then replace the other one. • If an adapter or a device consists of more than one FRU, any of the FRUs may be the cause of the error. Before replacing the adapter or device, remove the FRUs one by one to see if the symptoms change. Replace only the FRU that changed the symptoms. Attention: The setup configuration on the computer you are servicing may have been customized. Running Automatic Configuration may alter the settings. Note the current configuration settings (using the View Configuration option); then, when service has been completed, verify that those settings remain in effect.

  • Page 22: Important Information About Replacing Rohs Compliant Frus

    Electronic Equipment Directive (2002/95/EC) is a European Union legal requirement affecting the global electronics industry. RoHS requirements must be implemented on Lenovo products placed on the market after June 2006. Products on the market before June 2006 are not required to have RoHS compliant parts.

  • Page 23: General Checkout

    General checkout General checkout This chapter presents the following information: • “What to do first” on page 20 • “Power system checkout” on page 21 Before you go to the checkout, make sure to read the following important notes: Important notes: • Only certified trained personnel can service the computer. • Before replacing any FRU, read the entire page on removing and replacing FRUs. • Carefully remove screws for reuse when replacing FRUs. • Be extremely careful during such write operations as copying, saving, or formatting. Drives in the computer that you are servicing sequence might have been altered.

  • Page 24: What To Do First

    M41-80 Hardware Maintenance Manual What to do first When you do return an FRU, you must include the following information in the parts exchange form or parts return form that you attach to it: 1. Name and phone number of servicer 2. Date of service 3. Date on which the machine failed 4. Date of purchase 5. Procedure index and page number in which the failing FRU was detected 6. Failing FRU name and part number 7. Machine type, model number, and serial number 8. Customer’s name and address Note for warranty: During the warranty period, the customer may be responsible for repair costs if the computer damage was caused by misuse, accident, modification, unsuitable physical or operating environment, or improper maintenance by the customer.

  • Page 25: Power System Checkout

    • If the computer does not charge during operation, go to “Checking operational charging”. To check the AC adapter, follow the steps below: 1. Unplug the AC adapter cable from the computer. 2. Measure the output voltage at the plug of the AC adapter cable. See the following figure: Voltage (V DC) Note: Output voltage for the AC adapter pin No. 2 may differ from the one you are servicing. 3. If the voltage is not correct, replace the AC adapter. 4. If the voltage is acceptable, do the following: • Replace the system board. • If the problem persists, go to “Lenovo M41-80” on page 27. Note: Noise from the AC adapter does not always indicate a defect. Checking operational charging To check whether the battery charges properly during operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.

  • Page 26: Checking The Battery Pack

    M41-80 Hardware Maintenance Manual Perform operational charging. If the battery status indicator or icon does not light on, remove the battery pack and let it return to room temperature. Reinstall the battery pack. If the charge indicator or icon is still off, replace the battery pack. If the charge indicator still does not light on, replace the system board. Then reinstall the battery pack. If it is still not charged, go to the next section. Checking the battery pack Battery charging does not start until the Power Meter shows that less than 95% of the total power remains; under this condition the battery pack can charge to 100% of its capacity. This protects the battery pack from being overcharged or from having a shortened life. To check your battery, move your cursor to the Power Meter icon in the icon ® tray of the Windows taskbar and wait for a moment (but do not click it), and the percentage of battery power remaining is displayed. To get detailed information about the battery, double-click the Power Meter icon. Note: If the battery pack becomes hot, it may not be able to be charged. Remove it from the computer and leave it at room temperature for a while. After it cools down, reinstall and recharge it.

  • Page 27: Related Service Information

    • “Restoring the factory contents by using OneKey Recovery” on page 23 • “Passwords” on page 24 • “Power management” on page 25 Restoring the factory contents by using OneKey Recovery Restore of factory default The Lenovo M41-80 computers come with pre-installed OneKey Recovery System. In order to save application files and the initial backed up files of the system, the hard disk in a Lenovo computer includes a hidden partition when it is shipped. If you need to restore the system to the point of your first boot up, just enter Lenovo OneKey Recovery System and run System Recovery. For details of OneKey Recovery System, see the User Guide for Lenovo OneKey Recovery System .

  • Page 28: Passwords

    M41-80 Hardware Maintenance Manual Passwords As many as three passwords may be needed for any Lenovo computer: the power-on password (POP), the hard disk password (HDP), and the administrator password. If any of these passwords has been set, a prompt for it appears on the screen whenever the computer is turned on. The computer does not start until the password is entered.

  • Page 29: Power Management

    Related service information Power management Note: Power management modes are not supported for APM operating system. To reduce power consumption, the computer has three power management modes: screen blank, sleep (standby), and shut down. Screen blank state If the time set on the “Turn off monitor” timer in the operating system expires, the LCD backlight turns off. You can also turn off the LCD backlight by pressing To end screen blank state and resume normal operation, press any key. Putting the computer to sleep or shutting it down When you have finished working with your computer, you can put it to sleep or shut it down.

  • Page 30: Shutting Down The Computer

    M41-80 Hardware Maintenance Manual Shutting down the computer If you are not going to use your computer for a long time, shut it down. To shut down your computer: • Windows 7: Click Start → Shut down. • Windows 10: - Open the start menu, and then select Power → Shut down. - Right-click the Start button in the lower-left corner and select Shut down or sign out → Shut down.

  • Page 31: Lenovo M41-80

    • “FRU replacement notices” on page 31 • “Removing and replacing an FRU” on page 32 • “Locations” on page 63 • “Parts list” on page 65 Specifications The following table lists the specifications of the Lenovo M41-80: Table 1. Specifications Feature Description Processor See the system properties of your computer.
  • Page 32 M41-80 Hardware Maintenance Manual Table 1. Specifications (continued) Feature Description Bluetooth • Combined with WiFi wireless Keyboard • 6 row Lenovo Keyboard Touchpad • Multi-touch type Integrated • HD/0.3 M camera Battery • 3 cells, 45 Wh / 4 cells, 60 Wh AC adapter • 20 V, 65 W...

  • Page 33: Status Indicators

    Lenovo M41-80 Status indicators The system status indicators below show the computer status: Table 2. Status indicators Indicator Charge Indicator Meaning status status Green The computer is powered on. Power Blinking The computer is in sleep mode. The computer is powered off. Charging The battery has more than 80% charge. Green Discharging The battery has more than 20% charge. Amber Discharging The battery has between 5% and 20% charge. The battery has between 20% and 80% Blinking charge. When the battery reaches 80% charge, slowly Charging the light will stop blinking. However, charging (green) Battery will continue until the battery is fully charged. Blinking The battery has less than 20% charge. When...

  • Page 34: Keyboard Function Keys

    M41-80 Hardware Maintenance Manual Keyboard function keys You can access certain system settings quickly by pressing the appropriate function keys. Table 3. Fn key combinations Fn + Esc: Rotates the orientation of the display view (180 degrees rotation). Fn + Home: Activates the pause function. Fn + End: Activates the break function. Fn + PgUp: Enables/disables the scroll lock.

  • Page 35: Fru Replacement Notices

    Lenovo M41-80 FRU replacement notices This section presents notices related to removing and replacing parts. Read this section carefully before replacing any FRU. Screw notices Loose screws can cause a reliability problem. In the Lenovo computer, this problem is addressed with special nylon-coated screws that have the following characteristics: • They maintain tight connections. • They do not easily come loose, even with shock or vibration. • They are harder to tighten. Do the following when you service this machine: • Keep the screw kit in your tool bag.

  • Page 36: Removing And Replacing An Fru

    M41-80 Hardware Maintenance Manual Removing and replacing an FRU This section presents exploded figures with the instructions to indicate how to remove and replace the FRU. Make sure to observe the following general rules: 1. Do not attempt to service any computer unless you have been trained and certified. An untrained person runs the risk of damaging parts. 2. Before replacing any FRU, review “FRU replacement notices” on page 31. 3. Begin by removing any FRUs that have to be removed before the failing FRU. Any of such FRUs are listed at the top of the page. Remove them in the order in which they are listed. 4. Follow the correct sequence in the steps to remove the FRU, as given in the figures by the numbers in square callouts. 5. When turning a screw to replace an FRU, turn it in the direction as given by the arrow in the figure. 6. When removing the FRU, move it in the direction as given by the arrow in the figure.

  • Page 37: 1010 Keyboard

    Lenovo M41-80 1010 Keyboard Figure 1. Removal steps of keyboard Remove the screws 1. Step Screw (quantity) Color Torque M2.0 x 6.0 mm, Phillips-head, nylok-coated (2) Black 1.85 (1.7-2.0) kgf*cm Low to up on the edge Push the keyboard with the tip of an unfolded paper clip (or similar object without a sharp tip) through the screw hole on the back cover. Loosen the...
  • Page 38 M41-80 Hardware Maintenance Manual Figure 1. Removal steps of keyboard (continued) Detach the connector in the directions shown by arrows 4 and 5. Then remove the keyboard. When installing: Make sure that the connector is attached firmly.

  • Page 39: 1020 Base Cover

    Lenovo M41-80 1020 Base cover For access, remove this FRU: • “1010 Keyboard” on page 33 Figure 2. Removal steps of base cover Remove the screw 1. Step Screw (quantity) Color Torque M2.0 x 4.0 mm, Phillips-head, nylok-coated (1) Black 1.85 (1.7-2.0) kgf*cm K/B Up to Low...
  • Page 40 M41-80 Hardware Maintenance Manual Figure 2. Removal steps of base cover (continued) Remove the screws 2. Then remove the base cover in the direction shown by arrow 3. Step Screw (quantity) Color Torque M2.0 x 6.0 mm, Phillips-head, nylok-coated (8) Black 1.85 (1.7-2.0) kgf*cm Low to up on the edge...
  • Page 41 Lenovo M41-80 Note: Applying labels to the base cover The new base cover FRU is shipped with a kit containing labels of several kinds. When you replace the base cover, you need to apply the following label: The following labels need to be peeled off from the old base cover and put on the new base cover. Rating label-1 Rating label-2 GML label COA label BT/WL label for US/CA/TW KCC label for Korea Postel label/D Side label for Indonesia BIS label for India WL/BT label for Israel WL/BT label for Brazil WL label for South Africa For some models, you also need to apply one or two FCC labels. Check the old base cover; if it has one or two FCC labels, find duplicates of them in the label kit and apply them to the new base cover.

  • Page 42: 1030 Battery Pack

    M41-80 Hardware Maintenance Manual 1030 Battery pack For access, remove these FRUs in order: • “1010 Keyboard” on page 33 • “1020 Base cover” on page 35 DANGER Only use the battery specified in the parts list for your computer. Any other battery could ignite or explode. Figure 3. Removal steps of battery pack Unplug the battery connector in the direction shown by arrow 1, remove the screws 2. Then remove the battery pack 3.

  • Page 43: 1040 Hard Disk Drive

    Lenovo M41-80 1040 Hard disk drive For access, remove these FRUs in order: • “1010 Keyboard” on page 33 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 Attention: • Do not drop the hard disk drive or apply any physical shock to it. The hard disk drive is sensitive to physical shock. Improper handling can cause damage and permanent loss of data. • Before removing the drive, suggest the customer to backup all the information on it if possible.
  • Page 44 M41-80 Hardware Maintenance Manual Figure 4. Removal steps of hard disk drive (continued) Remove the screws 3 and detach the metal frame from the hard disk drive. Step Screw (quantity) Color Torque M3.0 x 4.0 mm, Phillips-head, nylok-coated (4) Silver 3.0 (2.7-3.3) kgf*cm hdd emi box to hdd module...

  • Page 45: 1050 Pci Express Mini Card For Wireless Lan

    Important: The preinstalled WLAN module may only be replaced with a Lenovo approved module in order to comply with FCC and IC regulations. Refer to “Table 5. Parts list—Overall” on page 67 for Lenovo part numbers for the approved modules.
  • Page 46 M41-80 Hardware Maintenance Manual Figure 5. Removal steps of PCI Express Mini Card for wireless LAN (continued) Disconnect the two wireless LAN cables (black, grey) 2, and then remove the screw 3. In step 2, unplug the jacks by using the removal tool antenna RF connector (P/N: 08K7159), or pick up the connectors with your fingers and gently unplug them in the direction shown by the arrows. Notes: The wireless LAN card has 2 cables in step 2. The wireless LAN card in some models might have 3 cables in step 2. Step Screw (quantity) Color Torque M2.0 x 4.0 mm, Phillips-head, nylok-coated (1) Black 1.85 (1.7-2.0) kgf*cm W/L card to low...
  • Page 47 Lenovo M41-80 Figure 5. Removal steps of PCI Express Mini Card for wireless LAN (continued) Remove the card in the direction shown by arrow 4. When installing: • In models with a wireless LAN card that has two antenna connectors, plug the black cable (1st) (MAIN) into the jack labeled MAIN, and the grey cable (2nd) (AUX) into the jack labeled AUX on the card. • In models with a wireless LAN card that has three antenna connectors, plug the black cable (1st) (MAIN) into the jack labeled 1, the grey cable (3rd) into the jack labeled 3, and the white cable (2nd) (AUX) into the jack labeled 2 on the card.

  • Page 48: 1060 Dimm

    M41-80 Hardware Maintenance Manual 1060 DIMM For access, remove these FRUs in order: • “1010 Keyboard” on page 33 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 Figure 6. Removal steps of DIMM Release the two latches on both edges of the socket at the same time in the directions shown by arrows 1, and then unplug the DIMM in the direction shown by arrow 2.

  • Page 49: 1070 System Board

    Lenovo M41-80 1070 System board Important notices for handling the system board: When handling the system board, bear the following in mind. • Be careful not to drop the system board on a bench top that has a hard surface, such as metal, wood, or composite.
  • Page 50 M41-80 Hardware Maintenance Manual Figure 7. Removal steps of system board (continued) Disconnect the LCD connector in the directions shown by arrows 4 and 5. Unplug the DC-in cable in the direction shown by arrow 6 and release the cable from the cable guide. Then remove the screws 7 and loosen the screws 8. Step Screw (quantity) Color Torque M2.0 x 4.0 mm, Phillips-head, nylok-coated (3) Black 1.85 (1.7-2.0) kgf*cm M/B to Up When installing: Make sure that the connectors are attached firmly. Remove the system board in the direction shown by arrow 9.

  • Page 51: 1080 Thermal Module

    Lenovo M41-80 1080 Thermal module For access, remove these FRUs in order: • “1010 Keyboard” on page 33 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 39 • “1050 PCI Express Mini Card for wireless LAN” on page 41 • “1070 System board” on page 45 Figure 8. Removal steps of thermal module Unplug the fan connector in the direction shown by arrow 1. Loosen the screws 2. Then remove the thermal module 3. When installing: Make sure that the fan connector is attached firmly.

  • Page 52: 1090 Touchpad Module

    M41-80 Hardware Maintenance Manual 1090 Touchpad module For access, remove these FRUs in order: • “1010 Keyboard” on page 33 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 39 • “1050 PCI Express Mini Card for wireless LAN”...

  • Page 53: 1100 Speakers

    Lenovo M41-80 1100 Speakers For access, remove these FRUs in order: • “1010 Keyboard” on page 33 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 39 • “1050 PCI Express Mini Card for wireless LAN” on page 41 • “1070 System board” on page 45 • “1090 Touchpad module” on page 48 Figure 10. Removal steps of speakers Peel off the adhesive tape that secures the speaker cables 1, release the cables from the cable guide, and then remove the speakers in the direction...

  • Page 54: 1110 Io Board

    M41-80 Hardware Maintenance Manual 1110 IO board For access, remove these FRUs in order: • “1010 Keyboard” on page 33 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 39 • “1050 PCI Express Mini Card for wireless LAN” on page 41 • “1070 System board” on page 45 • “1090 Touchpad module” on page 48 • “1100 Speakers” on page 49 Figure 11. Removal steps of IO board Remove the screws 1 and 2. Then remove the IO board in the direction shown by arrow 3.

  • Page 55: 1120 Fingerprint Board

    Lenovo M41-80 1120 Fingerprint board For access, remove these FRUs in order: • “1010 Keyboard” on page 33 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 39 • “1050 PCI Express Mini Card for wireless LAN” on page 41 • “1070 System board” on page 45 • “1090 Touchpad module” on page 48 • “1100 Speakers” on page 49 • “1110 IO board” on page 50 Figure 12. Removal steps of fingerprint board Remove the screw 1. Step Screw (quantity) Color Torque M2.0 x 2.5 mm, Phillips-head, nylok-coated (1) Black 1.85 (1.7-2.0) kgf*cm...
  • Page 56 M41-80 Hardware Maintenance Manual Figure 12. Removal steps of fingerprint board (continued) Remove the fingerprint bracket and fingerprint board in the direction shown by arrows 2 and 3.

  • Page 57: 1130 Led Board

    Lenovo M41-80 1130 LED board For access, remove these FRUs in order: • “1010 Keyboard” on page 33 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 39 • “1050 PCI Express Mini Card for wireless LAN” on page 41 • “1070 System board” on page 45 • “1090 Touchpad module” on page 48 • “1100 Speakers” on page 49 • “1110 IO board” on page 50 • “1120 Fingerprint board” on page 51 Figure 13. Removal steps of LED board Remove the screws 1. Then remove LED board in the direction shown by arrow 2.

  • Page 58: 1140 Upper Case And Dc-In Cable

    M41-80 Hardware Maintenance Manual 1140 Upper case and DC-IN cable For access, remove these FRUs in order: • “1010 Keyboard” on page 33 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 39 • “1050 PCI Express Mini Card for wireless LAN” on page 41 • “1070 System board” on page 45 • “1090 Touchpad module” on page 48 • “1100 Speakers” on page 49 • “1110 IO board” on page 50 • “1120 Fingerprint board” on page 51 • “1130 LED board” on page 53 Figure 14. Removal steps of upper case and DC-IN cable Remove the screws 1.
  • Page 59 Lenovo M41-80 Figure 14. Removal steps of upper case and DC-IN cable (continued) Release the wireless LAN cables from the cable guide, and then open the hinges in the direction shown by arrows 2. Remove the DC-IN cable in the direction shown by arrow 3.
  • Page 60 M41-80 Hardware Maintenance Manual Figure 14. Removal steps of upper case and DC-IN cable (continued) Rotate the upper case in the direction shown by arrow 4. Then remove the upper case from LCD unit.

  • Page 61: 1150 Lcd Unit

    Lenovo M41-80 1150 LCD unit For access, remove these FRUs in order: • “1010 Keyboard” on page 33 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 39 • “1050 PCI Express Mini Card for wireless LAN” on page 41 • “1070 System board” on page 45 • “1090 Touchpad module” on page 48 • “1100 Speakers” on page 49 • “1110 IO board” on page 50 • “1120 Fingerprint board” on page 51 • “1130 LED board” on page 53 • “1140 Upper case and DC-IN cable” on page 54 Figure 15. Removal steps of LCD unit Remove LCD bezel screw pads 1 and the screws 2. Step Screw (quantity)
  • Page 62 M41-80 Hardware Maintenance Manual Figure 15. Removal steps of LCD unit (continued) Remove the LCD front bezel in the direction shown by arrows 3. Remove the screws 4. Lift the LCD panel slightly 5. Peel off the adhesive tape and detach the connector in the direction shown by arrow 6. Then remove the LCD panel.
  • Page 63 Lenovo M41-80 Figure 15. Removal steps of LCD unit (continued) Remove the screws 7. Step Screw (quantity) Color Torque M2.0 x 2.0 mm, Phillips-head, nylok-coated (4) Silver 1.85 (1.7-2.0) kgf*cm Hinge to LCD Panel Then release the hinges in the direction shown by arrows 8.

  • Page 64: 1160 Lcd Cable And Integrated Camera

    M41-80 Hardware Maintenance Manual 1160 LCD cable and integrated camera For access, remove these FRUs in order: • “1010 Keyboard” on page 33 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 39 • “1050 PCI Express Mini Card for wireless LAN” on page 41 • “1070 System board” on page 45 • “1090 Touchpad module” on page 48 • “1100 Speakers” on page 49 • “1110 IO board” on page 50 • “1120 Fingerprint board” on page 51 • “1130 LED board” on page 53 • “1140 Upper case and DC-IN cable” on page 54 • “1150 LCD unit” on page 57 Figure 16. Removal steps of LCD cable and integrated camera Note: The integrated camera is stuck to the top center of the LCD cover.
  • Page 65 Lenovo M41-80 Figure 16. Removal steps of LCD cable and integrated camera (continued) Remove the cable in the direction shown by arrow 3.

  • Page 66: 1170 Antenna Assembly

    M41-80 Hardware Maintenance Manual 1170 Antenna assembly For access, remove these FRUs in order: • “1010 Keyboard” on page 33 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 39 • “1050 PCI Express Mini Card for wireless LAN” on page 41 • “1070 System board” on page 45 • “1090 Touchpad module” on page 48 • “1100 Speakers” on page 49 • “1110 IO board” on page 50 • “1120 Fingerprint board” on page 51 • “1130 LED board” on page 53 • “1140 Upper case and DC-IN cable” on page 54 • “1150 LCD unit” on page 57 • “1160 LCD cable and integrated camera” on page 60 Figure 17. Removal steps of antenna assembly...

  • Page 67: Locations

    Lenovo M41-80 Locations Front and right-side view 1 Integrated camera 2 Built-in microphone 3 Keyboard light 4 Wireless module antennas 5 Computer display 6 Power button 7 Touchpad 8 System status indicators Note: For the description of each indicator, see “Status indicators” on page 29.

  • Page 68: Bottom And Left-Side View

    M41-80 Hardware Maintenance Manual Bottom and left-side view 1 Speakers 2 Always on USB 3.0 port 3 USB 3.0 port 4 HDMI port 5 RJ-45 port 6 Micro-kensington lock slot 7 Fan louvers...

  • Page 69: Parts List

    Lenovo M41-80 Parts list This section presents the following service parts: • “Overall” on page 66 • “LCD FRUs” on page 69 • “Keyboard” on page 71 • “Miscellaneous parts” on page 71 • “AC adapters” on page 71 • “Screws” on page 71 • “Power cords” on page 72 Note: Each FRU is available for all types or models, unless specific types or models are specified. Attention: Do not attempt to replace an FRU on your own. If an FRU is damaged, contact a Lenovo authorized servicer or a marketing representative for replacement or repair. Only qualified technicians can inspect or repair this product.

  • Page 70: Overall

    M41-80 Hardware Maintenance Manual Overall...
  • Page 71 Lenovo M41-80 Table 5. Parts list—Overall No. FRU FRU no. CRU ID. a-c See “Miscellaneous parts” on page 71. LCD unit (see “LCD FRUs” on page 69.) Keyboard (see “Keyboard” on page 71.) TPModule Silver W M41-70W/Cable 5T60J24204 TP Module Red W M41-70 W/Cable 5T60J24206 UpperCover SVR W M41-70 W/FP WO/TP 5CB0J24199 UpperCover RED W M41-70 W/FP WO/TP 5CB0J24208 Speaker W M41-70 5SB0J24238 MB W M41-80NOK I3-6100U 2G NTCM 5B20K57468 MB W M41-80WIN I3-6100U 2G NTCM 5B20K57476 MB W M41-80NOK I3-6100U 2G TCM 5B20K57472 MB W M41-80WIN I3-6100U 2G TCM 5B20K57480 MB W M41-80NOK I5-6200U 2G NTCM 5B20K57482 MB W M41-80WIN I5-6200U 2G NTCM 5B20K57467 MB W M41-80NOK I5-6200U 2G TCM 5B20K57477...
  • Page 72 M41-80 Hardware Maintenance Manual Table 5. Parts list—Overall (continued) No. FRU FRU no. CRU ID. Battery, 45W, Macan SP/C L14M3P22 5B10H09628 11.1V45Wh3cell bty(Coslight cell) Battery, 45W, Macan SY L14S3P21 5B10H11760 11.1V45Wh3cell bty Battery, 60W, Macan SP/A L14M4P21 5B10H09631 7.4V60Wh4cell bty Battery, 60W, Macan SP/C L14M4P21 5B10H09633 7.4V60Wh4cell bty Battery, 60W, Macan SY L14S4P21 7.4V60Wh4cell bty 5B10H11759 HDD(7mm), ST500LT012 6G 7mm 5.4K 500G HDD 16200383 HDD(7mm), MQ01ABF050 6G 7mm 5.4K 500G HDD 16200433 HDD(7mm), WD WD5000LPCX-24VHAT0 7mm 5H20J35762 5400rpm 500G HDD HDD(7mm), HTS541010A7E630 7mm 5400rpm 1T 16200658 HDD(7mm), WD10SPCX-24HWST1 6G 7mm 1T 16200554...

  • Page 73: Lcd Frus

    Lenovo M41-80 LCD FRUs In Lenovo M41-80, there are following types of LCDs. • “14.0-in. HD LED”...
  • Page 74 M41-80 Hardware Maintenance Manual Table 6. Parts list—14.0-in. HD LED No. FRU FRU no. CRU ID. LCD Bezel W M41-70 W/SCW Pad 5B30J24227 Panel, LGD LP140WHU-TPBJ HD AG S NB 5D10G81620 Panel, AUO B140XTN02.E HW0A HD AG S NB 5D10G95364 Panel, INX N140BGE-EA3 HD AG S NB 5D10G94548 Panel, LGD LP140WF6-SPB1 FHD AG S NB 5D10H34771 Panel, INX N140HCE-EAA FHD AG S NB 5D10H35705 Panel, BOE NV140FHM-N41 FHD AG S NB 5D10H32288 Hinge Pack L+R W M41-70 5H50J24207 LCD Cable W M41-70 W/CAM CB 5C10J24188 Antenna W M41-70 Main/AUX 5A30J24215 Camera W S41-70 0.3M/1MIC 5C20J32316 Camera 1.0M W M41-70 5C20J24205...

  • Page 75: Keyboard

    Lenovo M41-80 Keyboard Table 7. Parts list—Keyboard Language CRU ID. English 5N20H03255 Chicony Thai 5N20H03214 English 5N20H03216 Liteon Thai 5N20H03245 English 5N20H03263 Sunrex Thai 5N20H03283 Miscellaneous parts Table 8. Parts list—Miscellaneous parts CRU ID. System miscellaneous parts: • ( a ) FP Bracket W M50-70 5B40G86363 • ( b ) HDD Bracket W M41-70...

  • Page 76: Power Cords

    M41-80 Hardware Maintenance Manual Power cords A Lenovo power cord for a specific country or region is usually available only in that country or region: Table 11. Parts list—3-pin power cords Region CRU ID. UK 3pin 145000593 • LINETEK LP-61L+ H03VV-F+ LS15 1m UK 3pin 145000561 • Longwell LP-61L+H03VV-F+LS-18 1m UK 3pin 145000605 • VOLEX MP5004+H03VV-F+VAC5S 1m UK 3pin 145500000 • lux 0031+H03VV-F 0.75/3C+0011 1m Europe 3pin 145000585 • LINETEK LP-34+H03VV-F + LS15 1m Europe 3pin 145000553 • Longwell LP-34A+H03VV-F+LS-18 1m Europe 3pin 145000525 • VOLEX M2511+HO3VV-F+VAC5S 1m Europe 3pin 145500001 • lux 0033+H03VV-F 0.75/3C+0011 1m...
  • Page 77 Lenovo M41-80 Table 11. Parts list—3-pin power cords (continued) Region CRU ID. Japan 3pin 145000530 • VOLEX VAC5S+VCTF+M755 1m Japan 3pin 145500005 • lux 0018(E)+VCTF 0.75/3C+0021 1m Australia 3pin 145000589 • LINETEK LS15+H03VV-F+LP-23A 1m Australia 3pin 145000557 • Longwell LP-23A+LFC-3R+LS-18 1m Australia 3pin 145000532 • VOLEX AU10S3+H03VV-F+VAC5S 1m Australia 3pin 145500006 • lux 0038+H03VV-F 0.75/3C+0011 1m Taiwan 3pin 145000588 • LINETEK LS15+VCTF+LP-53 1m Taiwan 3pin 145000556 • Longwell LP-71+VCTF+LS-33 1m Taiwan 3pin 145000531 • VOLEX TW15CS3+VCTF+VAC5S 1m Taiwan 3pin 145500007 • lux 0019+VCTF 0.75/3C+0021 1m...
  • Page 78 M41-80 Hardware Maintenance Manual Table 11. Parts list—3-pin power cords (continued) Region CRU ID. Brazil 3pin 145000527 • VOLEX CH10S3+H03VV-F+VAC5S 1m Brazil 3pin 145500011 • lux 0034+H03VV-F 0.75/3C+0011 1m Israel 3pin 145000595 • LINETEK LS15+H03VV-F+LP-41 1m Israel 3pin 145000563 • Longwell LP-41+H03VV-F+LS-18 1m Israel 3pin 145000526 • VOLEX SI16S3+H03VV-F+VAC5S 1m Israel 3pin 145500012 • lux 0041+H03VV-F 0.75/3C+0011 1m Switzerland 3pin 145000597 • LINETEK LS15+H03VV-F+LP-37 1m Switzerland 3pin 145000565 • Longwell LP-37+H03VV-F+LS-18 1m Switzerland 3pin 145000524 • VOLEX MP232+H03VV-F+VAC5S 1m...

  • Page 79: Notices
