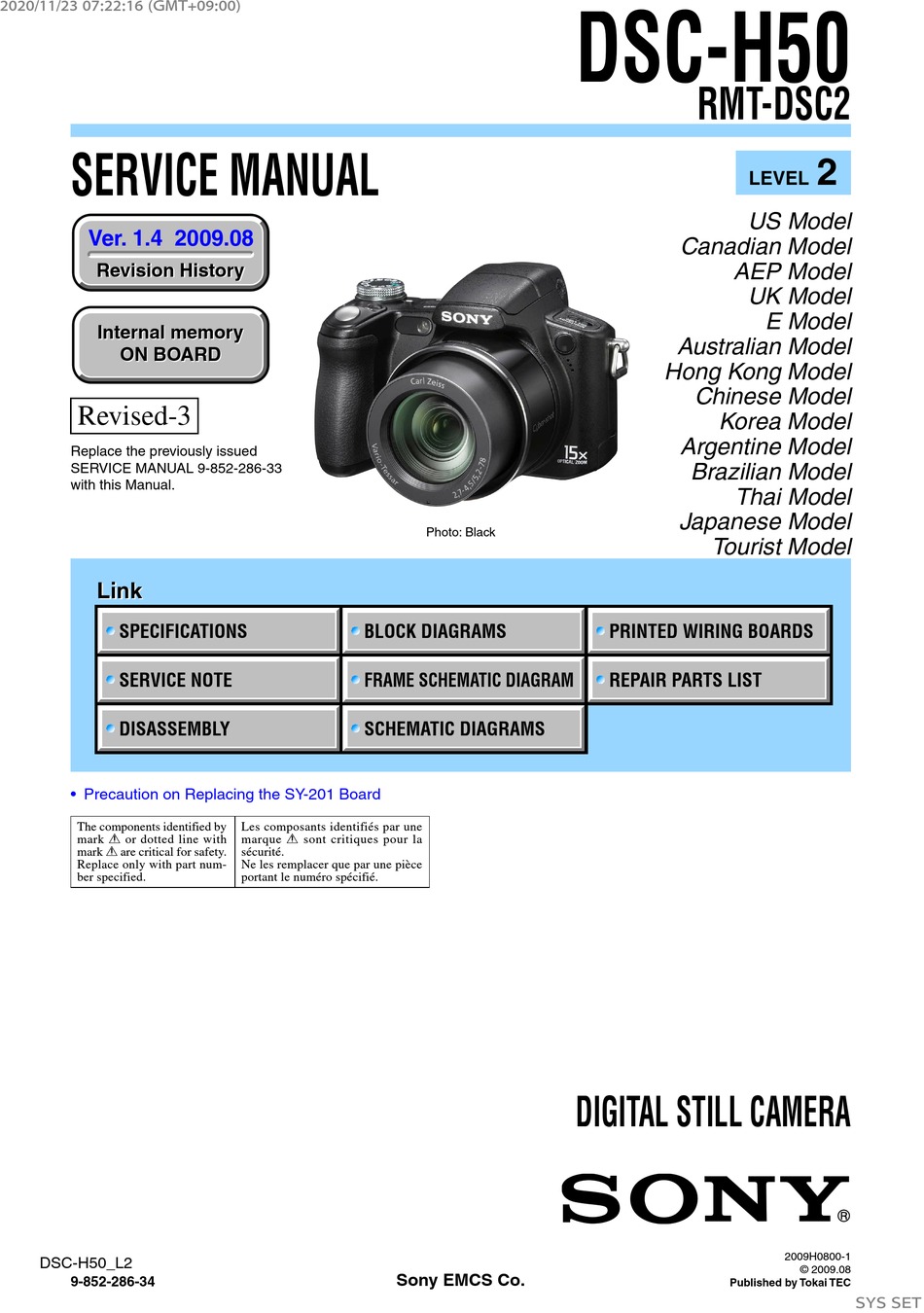

SERVICE MANUAL
Ver. 1.4 2009.08
Revision History
Revision History
Internal memory
Internal memory
ON BOARD
ON BOARD
Revised-3
Replace the previously issued
SERVICE MANUAL 9-852-286-33
with this Manual.
Link
Link
SPECIFICATIONS
SERVICE NOTE
DISASSEMBLY
• Precaution on Replacing the SY-201 Board
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
DSC-H50_L2
9-852-286-34
BLOCK DIAGRAMS
FRAME SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAMS
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Sony EMCS Co.
DSC-H50
Photo: Black
DIGITAL STILL CAMERA
RMT-DSC2
LEVEL
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Argentine Model
Brazilian Model
Thai Model
Japanese Model
Tourist Model
PRINTED WIRING BOARDS
REPAIR PARTS LIST
Published by Tokai TEC
2
2009H0800-1
© 2009.08
SYS SET
