Setup
Note:
The battery pack is not fully charged when you
purchase it. Before using the tool for the first time,
refer to Charging the Battery Pack (page

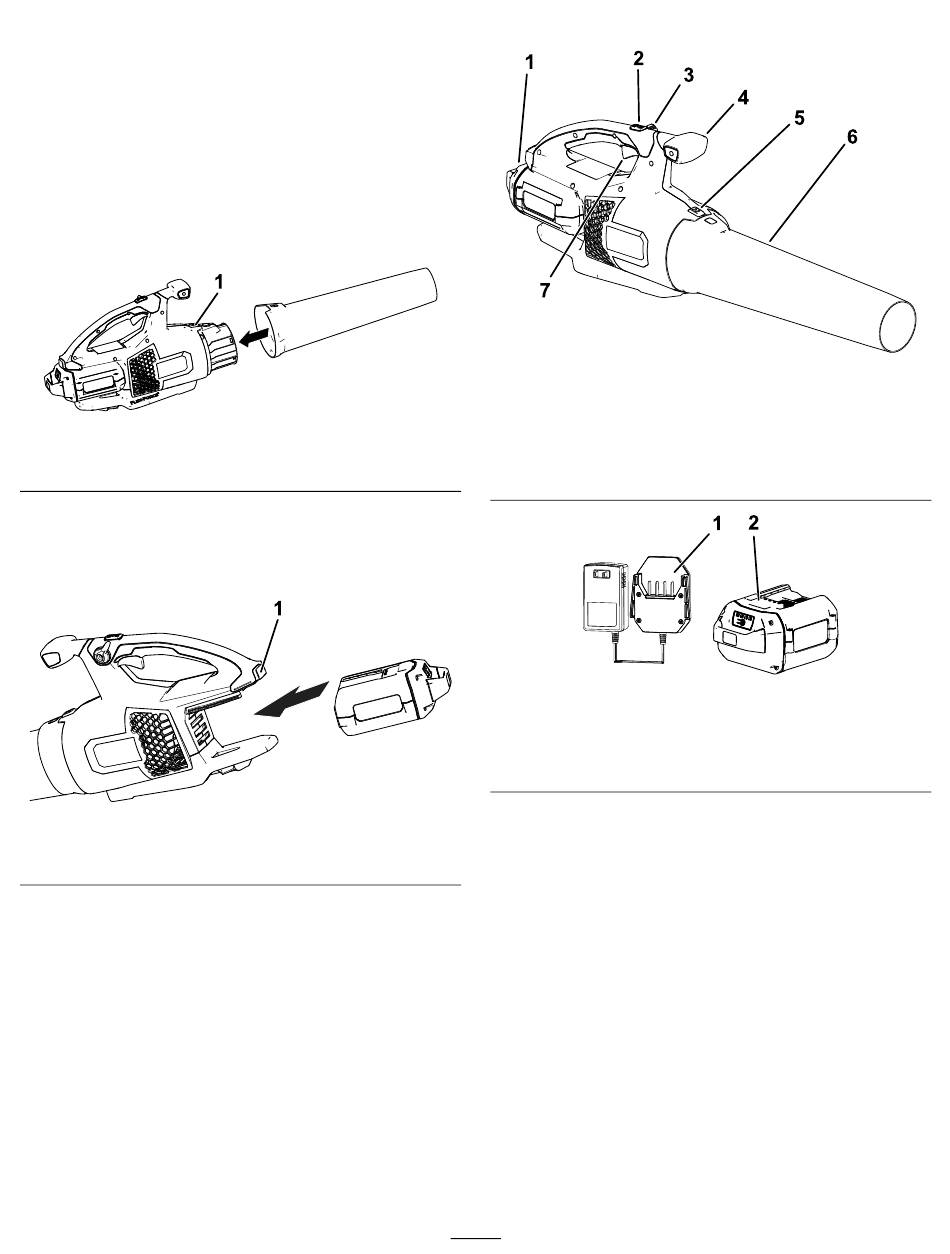

Assembling the Blower

1. Slide the blower tube onto the blower housing.
You may need to press down on the tube latch
for the blower tube to lock into place
1. Tube latch
2. Align the cavity on the battery pack with the
tongue in the handle housing, grasp the handle,
and push the battery pack into the handle until
the latch locks into place
1. Battery latch
8).
(Figure
Figure 1
(Figure 2).
Figure 2

Product Overview

1).
1. Battery and battery cavity
g273147
2. Turbo boost button
3. Speed lock
4. Handle knob
1. Battery charger Model
88610 (included with
Model 51821)
g273146
6
Figure 3
5. Blower tube latch
6. Blower tube
7. Variable-speed trigger
Figure 4
2. Battery pack Model 88620
(included with Model
51821)
g335835
g330065
