Page 3: How To Use This Manual
How to Use this Manual Many people read their owner’s manual from beginning to end when they first receive their new vehicle. If you do this, it will help you learn about the features and controls for your vehicle. In this manual, you’ll find that pictures and words work together to explain things quickly.
Page 4 Vehicle Damage Warnings Also, in this book you will find these notices: NOTICE: These mean there is something that could damage your vehicle. In the notice area, we tell you about something that can damage your vehicle. Many times, this damage would not be covered by your warranty, and it could be costly.
Page 5 Vehicle Symbols These are some of the symbols you may find on your vehicle. For example, These symbols these symbols are important are used on an for you and original battery: your passengers whenever your vehicle is CAUTION driven: POSSIBLE INJURY DOOR LOCK PROTECT...
Page 6 yellowblue NOTES...
Page 7: Table Of Contents
Section 1 Seats and Restraint System Here you’ll find information about the seats in your vehicle and how to use your safety belts properly. You can also learn about some things you should not do with air bags and safety belts. Seats and Seat Controls Safety Belts: They’re For Everyone Here are Questions Many People Ask About...
Page 8: Seats And Seat Controls
Seats and Seat Controls This section tells you about the power seats adjust them, and also about reclining front seatbacks, lumbar adjustments, heated seats and head restraints. Power Seats The power seat controls are located on the outboard side of the front seat cushions. Move the front of the seat control up or down to adjust the front portion of the cushion.
Page 9 Massaging Lumbar (If Equipped) Push the lumbar control, located on the outboard side of each front seat, up for half a second to activate the massage feature. The massage cycle will run for 10 minutes and can be interrupted by pushing the lumbar control down briefly. The lumbar support can be adjusted during the massage cycle by moving the switch forward to increase support and rearward to decrease support.
Page 10 A second mirror, seating and steering wheel position may be programmed by repeating the above steps and pressing button “2”. Each time a memory button is pressed, a single beep will sound through the radio. Each time button 1 or 2 is pressed, the memory positions will be recalled.
Page 11 But don’t have a seatback reclined if your vehicle is moving. CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job.
Page 12: Safety Belts: They're For Everyone
Head Restraints The controls to move your head restraints are located on the outboard side of each front seat. Use this switch to move a front head restraint up or down. Lift up on the switch to move the head restraint up.
Page 13 CAUTION: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts.
Page 14: Why Safety Belts Work
yellowblue Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it’s just a seat on wheels.
Page 15 Get it up to speed. Then stop the vehicle. The rider doesn’t stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield ... yellowblue...
Page 16 yellowblue or the instrument panel ... or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense.
Page 17: Here Are Questions Many People Ask About
Here Are Questions Many People Ask About Safety Belts and the Answers Won’t I be trapped in the vehicle after an accident if I’m wearing a safety belt? You could be whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down.
Page 18: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly Adults This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see the part of this manual called “Children.”...
Page 19 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt isn’t long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 20 What’s wrong with this? The shoulder belt is too loose. It won’t give nearly as much protection this way. 1-14 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 21 What’s wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 22 What’s wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-16 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 23 What’s wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.
Page 24: Safety Belt Use During Pregnancy
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 25: Right Front Passenger Position
The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it’s more likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.
Page 26 CAUTION: (Continued) Next Generation frontal air bags for the driver and right front passenger are designed to work only in moderate to severe crashes where the front of your vehicle hits something. They aren’t designed to inflate at all in rollover, rear, side or speed frontal crashes.
Page 27 CAUTION: Children who are up against, or very close to, any air bag when it inflates can be seriously injured or killed. This is true even though your vehicle has Next Generation frontal air bags. Air bags plus lap shoulder belts offer the best protection for adults, but not for young children and infants.
Page 28 How the Air Bag Systems Work Where are the air bags? The driver’s frontal air bag is in the middle of the steering wheel. 1-22 The right front passenger’s frontal air bag is in the instrument panel on the passenger’s side. yellowblue...
Page 29 The driver’s side impact air bag is in the side of the driver’s seatback closest to the door. The right front passenger’s side impact air bag is in the side of the passenger’s seatback closest to the door. CAUTION: If something is between an occupant and an air bag, the bag might not inflate properly or it might force the object into that person.
Page 30 When should an air bag inflate? The driver’s and right front passenger’s frontal air bags are designed to inflate in moderate to severe frontal or near frontal crashes. The frontal air bags are designed to inflate only if the impact speed is above the system’s designed “threshold level.”...
Page 31 How does an air bag restrain? In moderate to severe frontal or near frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. In moderate to severe side collisions, even belted occupants can contact the inside of the vehicle.
Page 32 Your vehicle has a feature that will automatically unlock the doors and turn the interior lamps on when the frontal air bags inflate (if battery power is available). You can lock the doors again and turn the interior lamps off by using the door lock and interior lamp controls.
Page 33: Rear Seat Passengers
CAUTION: For up to 10 seconds after the ignition key is turned off and the battery is disconnected, an air bag can still inflate during improper service. You can be injured if you are close to an air bag when it inflates.
Page 34 1. Pick up the latch plate and pull the belt across you. Don’t let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
Page 35 yellowblue 3. To make the lap part tight, pull down on the buckle The lap part of the belt should be worn low and snug on end of the belt as you pull up on the shoulder part. the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones.
Page 36: Children
CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body. To unlatch the belt, just push the button on the buckle. 1-30 Children Everyone in a vehicle needs protection! That includes...
Page 37 CAUTION: Smaller children and babies should always be restrained in a child or infant restraint. The instructions for the restraint will say whether it is the right type and size for your child. A very young child’s hip bones are so small that a regular belt might not stay low on the hips, as it should.
Page 38 CAUTION: Never hold a baby in your arms while riding in a vehicle. A baby doesn’t weigh much crash. During a crash a baby will become so heavy you can’t hold it. For example, in a crash CAUTION: (Continued) 1-32 CAUTION: (Continued) at only 25 mph (40 km/h), a 12 will suddenly become a 240...
Page 39: Child Restraints
Child Restraints Every time infants and young children ride in vehicles, they should have protection provided by appropriate restraints. What are the different types of add child restraints? on child restraints are available in four basic types. When selecting a child restraint, take into consideration not only the child’s weight and size, but also whether or not the restraint will be compatible with the motor vehicle in which it will...
Page 40 yellowblue A rear facing infant restraint (B) positions an infant to face the rear of the vehicle. Rear facing infant restraints are designed for infants of up to about 20 lbs. (9 kg) and about one year of age. This type of restraint faces the rear so that the infant’s head, neck and body can have the support they need in a frontal crash.
Page 41 yellowblue A forward facing child restraint (C E) positions a child upright to face forward in the vehicle. These forward facing restraints are designed to help protect children who are from 20 to 40 lbs. (9 to 18 kg) and about 26 to 40 inches (66 to 102 cm) in height, or up to around four years of age.
Page 42 yellowblue A booster seat (F, G) is designed for children who are about 40 to 60 lbs., or even up to 80 lbs. (18 to 27 kg, or even up to 36 kg), and about four to eight years of age. A booster seat is designed to improve the fit of the vehicle’s safety belt system.
Page 43: Where To Put The Restraint
When choosing a child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets federal motor vehicle safety standards. Then follow the instructions for the restraint. You may find these instructions on the restraint itself or in a booklet, or both.
Page 44: Top Strap
Top Strap Canadian law requires that forward restraints have a top strap, and that the strap be anchored. If your child restraint has a top strap, it should be anchored. If you need to have an anchor installed, your dealer can obtain a kit with anchor hardware and installation instructions specifically designed for this vehicle.
Page 45 Tilt the latch plate to adjust the belt if needed. If the shoulder belt goes in front of the child’s face or neck, put it behind the child restraint. 3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 46 4. To tighten the belt, pull up on the shoulder belt while you push down on the child restraint. If you’re using a forward facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 47 Although a rear seat is a safer place, you can secure a forward facing child restraint in the right front seat. You’ll be using the lap shoulder belt. See the earlier part about the top strap if the child restraint has one. Be sure to follow the instructions that came with the child restraint.
Page 48 5. Pull the rest of the lap belt all the way out of the retractor to set the lock. 1-42 6. To tighten the belt, feed the lap belt back into the retractor while you push down on the child restraint. You may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 49: Larger Children
Larger Children Children who have outgrown child restraints should wear the vehicle’s safety belts. Accident statistics show that children are safer if they are restrained in the rear seat. But they need to use the safety belts properly. Children who aren’t buckled up can be thrown out in a crash.
Page 50 1-44 CAUTION: Never do this. Here two children are wearing the same belt. The belt can’t properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.
Page 51 CAUTION: Never do this. Here a child is sitting in a seat that has a shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt. The belt’s force would then be applied right on the child’s abdomen.
Page 52: Safety Belt Extender
Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt isn’t long enough to fasten, your dealer will order you an extender. It’s free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you.
Page 53 Section 2 Features and Controls Here you can learn about the many standard and optional features on your vehicle, and information on starting, shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is working properly and what to do if you have a problem.
Page 54 yellowblue Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. A child or others could be badly injured or even killed. They could operate power windows or other controls or even make the vehicle move. If they turned the ignition to ACC or ON and moved the shift lever out of PARK (P), that would release the parking brake.
Page 55 Master Key There is a master key that works in all of the lock cylinders (driver’s door, trunk, ignition and glove box). There is also a valet key which only operates the driver’s door and the ignition. Both the master and valet keys have a transponder embedded into the key for security and theft deterrence.
Page 56: Door Locks
Door Locks CAUTION: Unlocked doors can be dangerous. Passengers especially children open the doors and fall out. When a door is locked, the inside handle won’t open it. Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. This may not be so obvious: You increase the chance of being thrown out of the vehicle in a crash if the doors aren’t locked.
Page 57: Power Door Locks
Power Door Locks Press the top of the power door lock switch to unlock all of the doors at once. Press the down arrow to lock the doors. The rear power door lock switches only provide a lock function as a safety feature. They will not unlock the doors.
Page 58: Leaving Your Vehicle
Rear Door Security Lock Your vehicle is equipped with rear door security locks that help prevent passengers from opening the rear doors of your vehicle from the inside. To Use One of These Locks 1. Move the lever on the door all the way up to the ENGAGED position.
Page 59 Remote Keyless Entry (RKE) System With this feature, you can lock and unlock the doors, unlock the trunk, open the fuel door and turn on your vehicle’s interior lamps from about 10 feet (3 m) up to 30 feet (9 m) away using the RKE transmitter supplied with your vehicle.
Page 60 Operation When you press this button to unlock the driver’s door, the parking lamps on your vehicle will flash twice. (You can program your vehicle so the parking lamps will not flash. For more information, see “Remote Confirmation” in the Index.) Pressing this button again within one to five seconds will unlock the other doors.
Page 61: Battery Replacement
Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about four years. You can tell the battery is weak if the transmitter won’t work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it’s probably time to change the battery.
Page 62 2. Once the transmitter is separated, use a pencil (or a similar object) to remove the old battery. Do not use a metal object. 3. Insert the new battery as the instructions under the cover indicate. 4. Snap the transmitter back together tightly to be sure no moisture can enter.
Page 63: Trunk Lock Release
Trunk CAUTION: It can be dangerous to drive with the trunk lid open because carbon monoxide (CO) gas can come into your vehicle. You can’t see or smell CO. It can cause unconsciousness and even death. If you must drive with the trunk lid open or if electrical wiring or other cable connections must pass through the seal between the body and the trunk lid:...
Page 64 Trunk Storage System (Option) The trunk storage system can be used to organize many different items inside the trunk. The storage compartment (A) is located on top of the spare tire cover (B). 2-12 To install the storage system: 1. Remove the mat from the floor of the trunk. Remove the handle from the spare tire panel and store it with the spare tire.
Page 65 The following steps explain how to remove the trunk storage system for cleaning or in case you need to access the spare tire. Follow all of these steps if the storage system is in the open position. Begin with Step 2 if the system is already closed.
Page 66: Trunk Lid Tie Down
Trunk Lid Tie Down CAUTION: Driving with the trunk lid open can allow dangerous CO (carbon monoxide) gas to come into your vehicle. You can’t see or smell CO. It can cause unconsciousness and even death. If you ever need to drive with your trunk lid open, then: Make sure all windows, the rear seat pass through and sunroof are closed.
Page 67 Theft Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft features, we know that nothing we put on it can make it impossible to steal. However, there are ways you can help. Key in the Ignition If you leave your vehicle with the keys inside, it’s an easy target for joy riders or professional thieves...
Page 68: Testing The Alarm
To arm the system, do the following: 1. Open the door. 2. Lock the door using the power door lock switch with the door open or the Remote Keyless Entry (RKE) system. The SECURITY light should come on and stay on. 3.
Page 69 If the alarm does not sound when it should, check to see if the horn works. The horn fuse may be blown. To replace the fuse, see “Fuses and Circuit Breakers” in the Index. If the fuse does not need to be replaced, you may need to have your vehicle serviced.
Page 70 This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.
Page 71: Ignition Positions
New Vehicle “Break In” NOTICE: Your vehicle doesn’t need an elaborate “break in.” But it will perform better in the long run if you follow these guidelines: Don’t drive at any one speed slow for the first 500 miles (805 km). Don’t make full throttle starts.
Page 72 NOTICE: If your key seems stuck in OFF and you can’t turn it, be sure you are using the correct key; if so, is it all the way in? Turn the key only with your hand. Using a tool to force it could break the key or the ignition switch.
Page 73: Starting Your Engine
Starting Your Engine Move your shift lever to PARK (P) or NEUTRAL (N). Your engine won’t start in any other position safety feature. To restart when you’re already moving, use NEUTRAL (N) only. NOTICE: Don’t try to shift to PARK (P) if your vehicle is moving.
Page 74 3. If your engine still won’t start (or starts but then stops), it could be flooded with too much gasoline. Try pushing your accelerator pedal all the way to the floor and holding it there as you hold the key in START for about three seconds.
Page 75: To Use The Engine Coolant Heater
To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. The electrical cord is located on the driver’s side of the engine, behind the transaxle dipstick/fluid fill location (C) and next to the engine. 3.
Page 76: Automatic Transaxle Operation
Automatic Transaxle Operation There are several different positions for the shift lever. PARK (P): This locks the front wheels. It’s the best position to use when you start the engine because your vehicle can’t move easily. CAUTION: It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set.
Page 77 REVERSE (R): Use this gear to back up. NOTICE: Shifting to REVERSE (R) while your vehicle is moving forward could damage your transaxle. Shift to REVERSE (R) only after your vehicle has stopped. Also use this gear to rock your vehicle back and forth to get out of snow, ice or sand without damaging your transaxle.
Page 78 NOTICE: If your vehicle seems to start up rather slowly, or if it doesn’t seem to shift gears as you accelerate, something may be wrong with a transaxle system sensor. If you drive very far that way, your vehicle can be damaged. So if this happens, have your vehicle serviced right away.
Page 79 NOTICE: If your front wheels can’t rotate, don’t try to drive. This might happen if you were stuck in very deep sand or mud or were up against a solid object. You could damage your transaxle. Also, if you stop when going uphill, don’t hold your vehicle there with only the accelerator pedal.
Page 80 When you shift out of PARK (P) or NEUTRAL (N) and the engine is on, the parking brake should release. If it doesn’t, you can manually release the parking brake. CAUTION: Always shift to PARK (P) before pulling the manual release lever. If your hand or arm is in the way of the pedal you could be hurt.
Page 81: Console Shift Lever
NOTICE: Driving with the parking brake on can cause your rear brakes to overheat. You may have to replace them and you could also damage other parts of your vehicle. If you are towing a trailer and are parking on a hill, see “Towing a Trailer”...
Page 82: Torque Lock
Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake firmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch fire.
Page 83 Shifting Out of PARK (P) CAUTION: Before shifting out of PARK (P) you must fully apply your regular brakes. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly. You or others could be injured.
Page 84: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Don’t park over papers, leaves, dry grass or other things that can burn. 2-32 Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can’t see or smell.
Page 85 Running Your Engine While You’re Parked It’s better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle (see the earlier Caution under “Engine Exhaust”).
Page 86: Power Windows
Windows Power Windows The power window controls are located on the armrest near each window. Press the up or down arrows on the controls to raise or lower the windows. Your vehicle has Retained Accessory Power (RAP). See “Retained Accessory Power” in the Index. 2-34 Express Down Window...
Page 87: Tilt Wheel
Horn The horn can be sounded by pressing on the center of the steering wheel pad. Tilt Wheel Tilt steering allows you to adjust the steering wheel before you drive. Raising the steering wheel to the highest level gives your legs more room when you enter and exit the vehicle.
Page 88: Turn And Lane Change Signals
Turn Signal/Multifunction Lever Turn and Lane Change Signals To signal a turn, move the lever on the left side of the steering wheel all the way up or down. The lever returns automatically when the turn is complete. An arrow on the instrument panel will flash in the direction of the turn or lane change.
Page 89: Windshield Wipers
Flash-To-Pass This feature lets you use the high beam headlamps to signal the driver in front of you that you want to pass. Pull the turn signal lever toward you briefly to flash pass. When you do: If the headlamps are either off or in the Daytime Running Lamps (DRL) mode, the high headlamps will turn on.
Page 90 INT (DELAY): Move the lever up to the INT position, then turn the INT ADJ band, which is located on the lever, to adjust the delay time. The higher you turn the INT ADJ band, the more frequent the wipers will operate.
Page 91: Windshield Washer
NOTICE: The wipers must be turned off when going through a car wash to avoid damage. It is important to note that the Rainsense wiping feature (INT ADJ) can be overridden at any time by manually changing the wiper control to LO or HI speed. NOTICE: Do not place stickers or other items on the exterior glass surface directly in front of the...
Page 92: Cruise Control
Cruise Control The cruise control lever is located on the lower right side of the steering column. With cruise control, you can maintain a speed of about 25 mph (40 km/h) or more without keeping your foot on the accelerator. This can help on long trips. Cruise control does not work at speeds below about 25 mph (40 km/h).
Page 93 Setting Cruise Control CAUTION: If you leave your cruise control switch on when you’re not using cruise, you might hit a button and go into cruise when you don’t want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use it.
Page 94 Reducing Speed While Using Cruise Control There are two ways to reduce your speed while using cruise control: Move the cruise lever down to SET/CST and hold it there until you reach a desired lower speed, then release it. To slow down in very small amounts, move the cruise lever to SET/CST briefly.
Page 95: Exterior Lamps
Exterior Lamps The control on the left side of the instrument panel controls these lamp systems: Parking Lamps Headlamps Taillamps Sidemarker Lamps License Plate Lamp Underhood Lamp Fog Lamps (STS Only) Instrument Panel Lights Interior Courtesy Lamps Instrument panel backlighting will dim only when it is dark outside.
Page 96: Lamps On Reminder
The wiper activated headlamps will turn off if you turn off the Twilight Sentinel or the windshield wipers. If turned off by deactivating the Twilight Sentinel, a HEADLAMPS SUGGESTED message will be displayed on the Driver’s Information Center (DIC). Lamps On Reminder You will hear a warning chime if you open the driver’s door while leaving the lamps on and the exterior lamps control is activated.
Page 97: Cornering Lamps
To idle your vehicle with the DRL off, turn off the Twilight Sentinel and shift the transaxle into PARK (P). Placing your vehicle in PARK (P) disables the DRL. The DRL will stay off until you shift out of PARK (P). To drive your vehicle with the DRL off, turn off the Twilight Sentinel and manually turn on the parking lamps.
Page 98 If you move the lever all the way to the right, the lamps will remain on for approximately three minutes after the ignition has been turned to OFF or ACC. If you move the lever so it is just on, the lamps will go off quickly when you turn the ignition out of ON.
Page 99: Exterior Lighting Battery Saver
Exterior Lighting Battery Saver If the manual parking lamps or headlamps have been left on, the exterior lamps will turn off approximately ten minutes after the ignition is turned to OFF. This protects against draining the battery in case you have accidentally left the headlamps or parking lamps on.
Page 100: Parade Dimming
With the control at AUTO and the front door opened, the overhead console light, front hush panel lamps and rear footwell lamps in the door will automatically come on. When the rear door is opened, all the front door lighting and rear overhead lamps will come on. When the control is at ON, the courtesy lamps are turned on.
Page 101: Battery Load Management
Battery Load Management The battery load management feature is designed to monitor the vehicle’s electrical load and determine when the battery is in a heavy discharge condition. During times of high electrical loading, the engine may idle at a higher revolutions per minute (rpm) setting than normal to make sure the battery charges.
Page 102 The mirror also includes an eight point compass display in the upper right corner of the mirror face. When on, the compass automatically calibrates as the vehicle is driven. When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirror housing.
Page 103 Compass Variance The mirror is set in zone eight upon leaving the factory. It will be necessary to adjust the compass to compensate for compass variance if you live outside zone eight. Under certain circumstances, as during a long distance cross country trip, it will be necessary to adjust for compass variance.
Page 104: Rearview Mirror
Power Remote Control Mirror (Heated) This feature is located on the driver’s door armrest. Move the L/R select switch located under the power mirror control to choose the left or right mirror. To adjust the mirror, move the arrow control in the direction you want the mirror to go.
Page 105: Glove Box
CAUTION: A convex mirror can make things (like other vehicles) look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on your right. Check your inside mirror or glance over your shoulder before changing lanes.
Page 106: Center Console Storage
Center Console Storage The center console comes with a storage tray, a storage compartment for CDs or tapes, a dual cupholder that unfolds, a coinholder, an optional phone and an armrest. The cupholder can be opened by pressing on the surface panel located in front of the armrest and unfolding it.
Page 107: Cigarette Lighter
Ashtrays and Cigarette Lighter (Option) The ashtrays and cigarette lighters may be ordered through your dealer. NOTICE: Don’t put papers or other flammable items into your ashtrays. Hot cigarettes or other smoking materials could ignite them, causing a damaging fire. Front Ashtray Press on the lower edge of the cover of the console located below the climate control system to reveal the...
Page 108: Sun Visors
Sun Visors Swing down the visor to block out glare. It can be detached from the center mount and moved to the side. When moved to the side, the sun visor will also move forward and rearward. The sun visors are equipped with a storage flap that can be used for small items such as toll tickets.
Page 109: Garment Hooks
Garment Hooks For your convenience, a garment hook is attached to each rear assist handle. Umbrella Holder (If Equipped) The driver’s front seat cushion may come equipped with an umbrella holder. Gently slide the umbrella into the slot located under the front portion of the driver’s seat cushion.
Page 110 To vent the sunroof, press and hold the upper part of the VENT switch. The sunshade must be opened by hand. To close, press and hold the lower part of the VENT switch. 2-58 Universal Transmitter (Option) K1–62–1116–W This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,...
Page 111 This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Changes and modifications to this system by other than an authorized service facility could void authorization to use this equipment.
Page 112 Be sure to keep the original hand held transmitter in case you need to erase and reprogram the Universal Transmitter. Note to Canadian Owners: During programming, the hand held transmitter may automatically stop transmitting after one or two seconds. In this case, you should press and re press the button on the hand transmitter every two seconds without ever releasing the...
Page 113 2. Press the training button on the garage door opener motor head unit. Note: Following this step, you have 30 seconds to start Step 3. 3. Return to the Universal Transmitter in your vehicle and firmly press and release the Universal Transmitter button you have already programmed for two to three seconds.
Page 114 yellowblue The Instrument Panel Your Information System 2-62...
Page 115 The main components of the instrument panel are: 1. Air Outlets 2. Driver Information Center Control Buttons 3. Turn Signal/Multifunction Lever 4. Instrument Panel Cluster 5. Windshield Wiper/Washer Lever 6. Cruise Control Lever 7. Ignition Switch 8. Air Vent Control Dial 9.
Page 116: Instrument Panel Cluster
yellowblue Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re going, how much fuel you’re using and many other things you’ll need to drive safely and economically. United States version shown, Canada similar 2-64...
Page 117: Speedometer And Odometer
Speedometer and Odometer The speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). The odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada).
Page 118 Display Mode This button is located between the RESET TRIP A/B button and the ENG/MET button. Press DSPL MODE to turn the backlighting and the digital speed image on and off. 2-66 English/Metric Display You can go back and forth from English (miles) to metric (kilometers) by pressing this button.
Page 119 Tachometer This gage indicates the engine speed in revolutions per minute (rpm). NOTICE: Do not operate the engine with the tachometer in the red area or engine damage may occur. Engine Speed Limiter This feature prevents the engine from operating at too many revolutions per minute (rpm).
Page 120: Air Bag Readiness Light
When one of the warning lights comes on and stays on when you are driving, or when one of the gages shows there may be a problem, check the section that tells you what to do about it. Please follow this manual’s advice. Waiting to do repairs can be costly dangerous.
Page 121: Brake System Warning Light
The air bag readiness light should flash for a few seconds when you turn the ignition key to ON. If the light doesn’t come on then, have it fixed so it will be ready to warn you if there is a problem. Charging System Light This light goes on when you turn your key to ON or...
Page 122 CAUTION: Your brake system may not be working properly if the brake system warning light is on. Driving with the brake system warning light on can lead to an accident. If the light is still on after you’ve pulled off the road and stopped carefully, have the vehicle towed for service.
Page 123: Engine Coolant Temperature Warning Light
Traction Control System Warning Light United States This warning light should come on briefly as you start the engine. If the warning light doesn’t come on then, have it fixed so it will be ready to warn you if there’s a problem.
Page 124: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage United States This gage shows the engine coolant temperature. If the gage pointer moves into the red area, the engine is too hot. That reading means the same thing as the warning light the engine coolant has overheated. See “Engine Overheating”...
Page 125 NOTICE: If you keep driving your vehicle with this light on, after a while, your emission controls may not work as well, your fuel economy may not be as good and your engine may not run as smoothly. This could lead to costly repairs that may not be covered by your warranty.
Page 126 If the light stops flashing and remains on steady, see “If the Light Is On Steady” following. If the light continues to flash, when it is safe to do so, stop the vehicle. Find a safe place to park your vehicle. Turn the key off, wait at least 10 seconds and restart the engine.
Page 127: Oil Pressure Light
If none of the above steps have made the light turn off, have your dealer or qualified service center check the vehicle. Your dealer has the proper test equipment and diagnostic tools to fix any mechanical or electrical problems that may have developed. Oil Pressure Light This light tells you if there could be a problem with...
Page 128: Security Light
Security Light For information regarding this light, see “Theft Deterrent System” in the Index. Cruise Control Light This light comes on whenever you set your vehicle’s cruise control. 2-76 Fog Lamp Light (STS Only) This light will come on when the fog lamp button is pressed.
Page 129: Fuel Gage
Fuel Gage United States The fuel gage shows approximately how much fuel is in the tank. It works only when the ignition is in ON. Here are a few concerns some owners have had about the fuel gage. All of these situations are normal and do not indicate that anything is wrong.
Page 130: Dic Controls And Displays
Driver Information Center (DIC) This display gives you the status of many of your vehicle’s systems. The DIC is also used to display driver personalization features and warning/status messages. DIC Controls and Displays INFO: Pressing this button up or down will display the OUTSIDE TEMP, MILES RANGE, MPG AVG, MPG INST, GAL FUEL USED, AVG MPH, TIMER, BATTERY VOLTS OK, ENGINE OIL LIFE and...
Page 131 TIMER: This feature is like a stopwatch, in that you can clock the time it takes to get from one point to another. To operate, press the INFO button to display TIMER. Each of the fields for the hours, minutes and seconds are two numeric digits.
Page 132 BATTERY VOLTAGE HIGH 8: This message shows that the electrical charging system is overcharging (more than 16 volts). To avoid being stranded, have the electrical system checked by your dealership. You can reduce the charging overload by using the accessories. Turn on the lamps and radio, set the climate control on AUTO and the fan speed on HI, and turn the rear window defogger on.
Page 133 CHECK FUEL GAGE 50: This message will appear when the fuel supply is less than 5 gallons (18.9 L) and the display is turned off. A single chime will also sound when this message is displayed. CHECK GAS CAP 61: This message will appear if the gas cap has not been fully tightened.
Page 134 ENGINE MISFIRE EASE OFF GAS PEDAL 114: An engine misfire has occurred. You’ll need to ease off the gas pedal. ENGINE OVERHEATED, STOP ENGINE message will appear when the engine has overheated. Stop and turn the engine off immediately to avoid severe engine damage.
Page 135 PASSENGER DOOR AJAR 141: The passenger’s door is open or ajar when this message appears. The ignition must be in ON for this message to display. A chime will also sound when the vehicle’s speed is greater than 3 mph (4.8 km/h). RIGHT REAR DOOR AJAR 143: The right rear door is open or ajar when this message appears.
Page 136 STABILITY SYS ENGAGED 55 : You may see the STABILITY SYS ENGAGED message on the Driver Information Center. It means that an advanced, computer controlled system has come on to help your vehicle continue to go in the direction in which you’re steering.
Page 137 STARTING DISABLED REMOVE KEY message will appear when the Personalized Automotive Security System (PASS III) senses that an improper ignition key is being used to try to start the vehicle. Check the ignition key for damage. If it is damaged, it may need to be replaced. If you see no damage, remove the key and try to start the vehicle again.
Page 138 TRUNK OPEN 24: This message indicates that the trunk is open when the ignition is on. TURN SIGNAL ON 20: This message is a reminder, after driving about a mile, that you have the turn signal on. A multiple chime will also sound when this message is displayed.
Page 139 Key in Recall (If Equipped) Press the down arrow on the INFO button one or more times until the KEY IN RECALL prompt appears on the DIC display. To turn the feature on, press the ON/OFF button until ON appears. The seat and mirror memory settings that have been previously programmed will be recalled when the key is inserted in the ignition.
Page 140: Horn Sounds At Lock
Lights Flash at Lock Press the down arrow on the INFO button one or more times until the LIGHTS FLASH AT LOCK prompt appears on the DIC display. To turn the feature on, press the ON/OFF button until ON appears. If all the doors are closed, the parking lamps will flash once when the lock button on the RKE transmitter is pressed.
Page 141: Driver Unlock Key Off
Doors Lock in Gear Press the down arrow on the INFO button one or more times until the DOORS LOCK IN GEAR prompt appears. This feature will automatically lock all doors when the vehicle is shifted out of PARK (P) and the driver’s door is closed.
Page 142 Curb View Assist Mirror Programming (If Equipped) Press the down arrow on the INFO button one or more times until the MIRROR TO CURB IN REV prompts appears on the DIC display. This feature will move the passenger’s outside rearview mirror to a curb view position when the console shifter is placed in REVERSE (R) and it will return the mirror to the last known driving position when the console shifter is...
Page 143 Comfort Controls and Radio System Personalization These features allow both drivers to personalize their own climate control settings as well as their radio settings. For more information, see “Climate Control Personalization” and “Radio Personalization” in the Index. The outside temperature is always available for display if it has been selected for a DIC display when your vehicle is running unless an overriding DIC message appears.
Page 144 Oil Life Indicator This feature lets you know when to change the engine oil. It’s based on the engine oil temperatures and your driving patterns. To see the display, press the INFO button several times until ENGINE OIL LIFE appears. If you see 99% ENGINE OIL LIFE, 99 percent of your current oil life remains.
Page 145 Section 3 Comfort Controls and Audio Systems In this section, you’ll find out how to operate the comfort control and audio systems offered with your vehicle. Be sure to read about the particular systems supplied with your vehicle. Comfort Controls Climate Control Panel Air Conditioning Heating...
Page 146 Comfort Controls This section tells you how to make your air system work for you. Your climate control system uses ozone friendly R 134a refrigerant. Climate Control Panel Your vehicle is equipped with a dual climate control system. This system can automatically adjust and control temperature, fan speed, air delivery mode, air conditioning operation and air intake.
Page 147 Passenger’s Side Temperature Knob The right front passenger can control the temperature of air for both the front passenger and rear seat area. (The passenger’s and driver’s knob adjust from 60 _ F (16 _ C) to 90 _ F (32 _ C) independent of each other. It is suggested, however, that the passenger’s setting stay no more than four degrees warmer or cooler in temperature from the driver’s setting.) To turn the system on, press...
Page 148 If your vehicle is sitting out on a hot day and you have it set on AUTO, the air will first flow out the floor outlets for a few seconds. This is normal. This is to remove hot air from the air outlets. As the air is cooled, the airflow will move through the air conditioning outlets.
Page 149 A/C: Press this button to turn the air conditioning compressor on and off. When you press the button, an A/C OFF message appears on the climate control panel’s display. Press the button again and the air conditioner will return to automatic control. The system will cool and dehumidify the air inside the vehicle.
Page 150 Electronic Solar Sensor The sensor monitors the sun’s solar radiation and is located near the end of the instrument panel near the windshield. The climate control panel uses this information to automatically make the necessary temperature and airflow adjustments to maintain your comfort. The climate control system may supply cooler air to one side of your vehicle, if that side is facing the sun.
Page 151: Rear Window Defogger
Defrosting and Defogging Use defrost (front) on cool and humid days to keep the windshield and side windows clear. This setting will remove fog or ice from the windshield quickly in extremely humid or cold conditions. If you desire to have more air on your feet, turn the control to the defog mode.
Page 152 Ventilation System Your vehicle’s flow through ventilation system supplies outside air into the vehicle when it is moving. Outside air will also enter the vehicle when the heater or the air conditioning fan is running. The front outlets are located in the center and at each side of the instrument panel.
Page 153 Ventilation Tips Keep the hood and front air inlet free of ice, snow or any other obstruction (such as leaves). The heater and defroster will work far better, reducing the chance of fogging the inside of the windows. Keep the air path under the front seats clear of objects.
Page 154 HVAC Steering Wheel Controls Some heating and cooling controls can be adjusted at the steering wheel. Other touch controls operate some audio controls. See “Audio Steering Wheel Controls” in the Index. TEMP: Press the up arrow on the control to increase the temperature and the down arrow to decrease temperature.
Page 155: Audio Systems
Audio Systems Your Cadillac audio system has been designed to operate easily and give years of listening pleasure. You will get the most enjoyment out of it if you acquaint yourself with it first. Find out what your audio system can do and how to operate all its controls to be sure you’re getting...
Page 156 SOURCE: Press this button to select a source. Sources include cassette and compact disc. The audio source must be loaded to play. Available loaded sources are shown on the display. If a source is being used, it will be underlined on the display. If none of the audio sources are loaded, NO SOURCE LOADED will appear on the display.
Page 157 PRESET SCAN: Press and hold SCAN for more than two seconds until you hear a beep to listen to each of your preset stations for five seconds. The radio will go to the first preset station stored on your pushbuttons, stop for five seconds, then go on to the next preset station.
Page 158 If an error occurs while trying to play a cassette tape, it could be that: The cassette tape is tight and the cassette player cannot turn the hubs of the tape. Hold the cassette tape with the open end down and try turning the right hub counterclockwise with a pencil.
Page 159 CLEAN TAPE: If this message appears on the display, the cassette tape player needs to be cleaned. It will still play tapes, but you should clean it as soon as possible to prevent damage to the tapes and player. See “Care of Your Cassette Tape Player”...
Page 160 RW: Press and hold the left arrow to reverse the compact disc. Release it to return to playing speed. FF: Press and hold the right arrow to fast forward to another part of the compact disc. Release it to return to playing speed.
Page 161 AVC: Your system has a feature called Automatic Volume Control (AVC). With AVC, your audio system monitors the noise in the vehicle. Then, AVC automatically adjusts the volume level so that it always sounds the same to you. To use AVC, press and hold the TONE button until AUTO VOLUME CONTROL OFF appears on the display.
Page 162 PUSHBUTTONS: The six numbered pushbuttons let you return to your favorite stations. The RDS PTY mode must be off to use this mode. You can set up to 24 stations (six AM, six FM1, six FM2 and six weather). Just: 1.
Page 163 RDS (1): With RDS off, press the RDS SELECT button, followed by this button to turn RDS on. The RDS display will turn on. You must have RDS on to use the new RDS functions. The RDS display will also turn on if one of the other RDS function buttons has been pressed on.
Page 164 While a traffic announcement plays, the radio uses a special type of volume called TA volume. To increase TA volume, turn the PWR/VOL knob clockwise. Turn it counterclockwise to decrease volume. TA VOLUME will appear on the display while the volume is being adjusted.
Page 165 (5) (6): With RDS on, press the RDS SELECT button, followed by PTY display will turn on, if it is not already on. RDS SELECT: PTY NEWS will appear on the display for three seconds. (The PTY shown will be the last PTY selected.) While this message is displayed, use to move up and down the PTY list.
Page 166 HR or MN: Press the RDS SELECT button, followed by one of these buttons to display the time for the current station. STATION TIME IS will be displayed. If a time has not been sent to the radio, NO STATION TIME will be displayed.
Page 167 Using DSP Mode DSP: The Digital Signal Processing (DSP) feature is used to provide a choice of four different listening experiences: TALK, FRONT SEAT, AMBIENCE and SPACIOUS. DSP can be used while listening to the radio, the cassette tape player or the CD player. Press this button to turn DSP on.
Page 168 If an error occurs while trying to play a cassette tape, it could be that: The cassette tape is tight and the cassette player cannot turn the hubs of the tape. Hold the cassette tape with the open end down and try turning the right hub counterclockwise with a pencil.
Page 169 Your cassette tape player automatically reduces background noise from tapes encoded with Dolby NR. Dolby Noise Reduction is manufactured under a license from Dolby Laboratories Licensing Corporation. Dolby and the double D symbol are trademarks of Dolby Laboratories Licensing Corporation. Auto CrO allows the cassette tape player to adjust to the type of cassette tape for clearer sound for CrO...
Page 170 TUNE SEEK: When this button is pressed, it has two positions. This button works the same, whether it is pressed to the first or second position. Press this button to seek to the next or previous selection on the compact disc. SCAN: Press this button to listen to selections for a few seconds.
Page 171: Cd Adapter Kits
PTY List Rock M ......Soft ........Soft Rock .
Page 172 Console-Mounted CD Changer (Option) With the compact disc changer, you can play up to six discs continuously. Normal size discs may be played using the slots supplied in the magazine. You must first load the magazine with discs before you can play a compact disc.
Page 173 PUSHBUTTONS: Press buttons one through six to select compact discs one through six. These pushbuttons represent the order of the discs loaded in the changer. RW: Press and hold this button to reverse quickly through a track selection. FF: Press and hold this button to advance quickly through a track selection.
Page 174 Compact Disc Changer Errors CD CHANGER ERROR could be displayed for the following: The road is too rough. The disc should play when the road is smoother. The disc is dirty, scratched, wet or loaded label side down. The air is very humid. If so, wait about an hour and try again.
Page 175: Audio Steering Wheel Controls
When battery power is removed and later applied, you will not have to reset your home radio presets because the radio remembers them. However, you will have to reset your away radio presets. Theft-Deterrent Feature THEFTLOCK is designed to discourage theft of your radio.
Page 176: Understanding Radio Reception
SEL: When listening to the radio, press the up or down arrow button to tune to the next or previous preset radio station. When listening to a cassette tape, the up or down arrow button can be used to SEEK forward and rearward through the tape.
Page 177: Care Of Your Cassette Tape Player
NOTICE: Before you add any sound equipment to your vehicle like a tape player, CB radio, mobile telephone or two way radio be sure you can add what you want. If you can, it’s very important to do it properly. Added sound equipment may interfere with the operation of your vehicle’s engine, radio or other systems, and even damage them.
Page 178 When using a scrubbing action, non cassette, it is normal for the cassette to eject because your unit is equipped with a cut tape detection feature and a cleaning cassette may appear as a broken tape. To prevent the cleaning cassette from being ejected, use the following steps.
Page 179: Diversity Antenna System
Care of Your Compact Disc Player The use of CD lens cleaner discs is not advised, due to the risk of contaminating the lens of the CD optics with lubricants internal to the CD mechanism. Diversity Antenna System Your AM FM antennas are located in the front windshield and rear window.
Page 180 yellowblue NOTES 3-36...
Page 181 CD Adapter Kits It is possible to use a CD adapter kit with your cassette tape player after activating the bypass feature on your tape player. To activate the bypass feature, use the following steps: 1. Turn the ignition to ON or ACC. 2.
Page 182 Once you have loaded the discs in the magazine, slide open the door of the compact disc (CD) changer. Push the magazine into the changer in the direction of the arrow marked on top of the magazine. Close the door by sliding it all the way forward. When the CD magazine is loaded, the changer will begin checking for discs in the magazine.
Page 183 RDM: Press this button to hear the tracks in random, rather than sequential, order. RANDOM will appear on the display. Press TUNE SEEK while RDM is on the display to randomly seek through discs. Press RDM again to turn off random play. SIDE: Press this button to select the next disc in the changer.
Page 184 With this feature, your vehicle will recall the latest radio settings as adjusted the last time your vehicle was operated. This feature allows two different drivers to store and recall their own radio settings. The settings recalled by the radio are determined by which Remote Keyless Entry (RKE) transmitter (“1”...
Page 185 Audio Steering Wheel Controls Some audio controls can be adjusted at the steering wheel. They include the following: VOL: Press the up arrow button to increase volume and the down arrow button to decrease volume. SEL: When listening to the radio, press the up or down arrow button to tune to the next or previous preset radio station.
Page 186 FM Stereo FM stereo will give you the best sound, but FM signals will reach only about 10 to 40 miles (16 to 65 km). Tall buildings or hills can interfere with FM signals, causing the sound to come and go. Weather Band (If Equipped) Weather band is restricted to speech and the audio quality is not as good as with the AM or FM bands.
Page 187 Care of Your Cassette Tape Player A tape player that is not cleaned regularly can cause reduced sound quality, ruined cassettes or a damaged mechanism. Cassette tapes should be stored in their cases away from contaminants, direct sunlight and extreme heat. If they aren’t, they may not operate properly or may cause failure of the tape player.
Page 188 The use of a non scrubbing action, dry cassette is not recommended. After you clean the player, press and hold the eject button for three seconds to reset the CLEAN TAPE indicator. The radio will display CLEAN TAPE MSG CLEARED to show the indicator was reset. Cassettes are subject to wear and the sound quality may degrade over time.
Page 189 yellowblue NOTES 3-45...
Page 190 yellowblue NOTES 3-46...
Page 191 Section 4 Your Driving and the Road Here you’ll find information about driving on different kinds of roads and in varying weather conditions. We’ve also included many other useful tips on driving. Defensive Driving Drunken Driving Control of a Vehicle Braking Steering Road Recovery...
Page 192: Defensive Driving
Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. (See “Safety Belts” in the Index.) Defensive driving really means “be ready for anything.” On city streets, rural roads or freeways, it means “always expect the unexpected.”...
Page 193: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It’s the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: Judgment Muscular Coordination Vision...
Page 194 It’s the amount of alcohol that counts. For example, if the same person drank three double martinis (3 ounces or 90 ml of liquor each) within an hour, the person’s BAC would be close to 0.12 percent. A person who consumes food just before or during drinking will have a somewhat lower BAC level.
Page 195 The body takes about an hour to rid itself of the alcohol in one drink. No amount of coffee or number of cold showers will speed that up. “I’ll be careful” isn’t the right answer. What if there’s an emergency, a need to take sudden action, as when a child darts into the street? A person with even a moderate BAC might not be able to react quickly enough to avoid the collision.
Page 196: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering and the accelerator. All three systems have to do their work at the places where the tires meet the road. Sometimes, as when you’re driving on snow or ice, it’s easy to ask more of those control systems than the tires and road can provide.
Page 197 Avoid needless heavy braking. Some people drive in spurts heavy acceleration followed by heavy braking rather than keeping pace with traffic. This is a mistake. Your brakes may not have time to cool between hard stops. Your brakes will wear out much faster if you do a lot of heavy braking.
Page 198: Traction Control System
You slam on the brakes. Here’s what happens with ABS. A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each front wheel and at both rear wheels.
Page 199 The TRACTION ENGAGED message will display on the Driver Information Center when the traction control system is limiting wheel spin. See “Driver Information Center Messages” in the Index. You may feel or hear the system working, but this is normal. If your vehicle is in cruise control when the traction control system begins to limit wheel spin, the cruise control will automatically disengage.
Page 200: Steering
You can turn the system back on at any time by pressing the button again. The TRACTION READY message should display briefly on the Driver Information Center. Braking in Emergencies With anti lock, you can steer and brake at the same time.
Page 201: Steering In Emergencies
Suppose you’re steering through a sharp curve. Then you suddenly accelerate. Both control systems steering and acceleration their work where the tires meet the road. Adding the sudden acceleration can demand too much of those places. You can lose control. Refer to “Traction Control System”...
Page 202: Off - Road Recovery
An emergency like this requires close attention and a quick decision. If you are holding the steering wheel at the recommended 9 and 3 o’clock positions, you can turn it a full 180 degrees very quickly without removing either hand. But you have to act fast, steer quickly, and just as quickly straighten the wheel once you have avoided the object.
Page 203: Passing
Passing The driver of a vehicle about to pass another on a lane highway waits for just the right moment, accelerates, moves around the vehicle ahead, then goes back into the right lane again. A simple maneuver? Not necessarily! Passing another vehicle on a two highway is a potentially dangerous move, since the passing vehicle occupies the same lane as oncoming traffic for several seconds.
Page 204: Loss Of Control
Check your mirrors, glance over your shoulder, and start your left lane change signal before moving out of the right lane to pass. When you are far enough ahead of the passed vehicle to see its front in your inside mirror, activate your right lane change signal and move back into the right lane.
Page 205: Driving At Night
If your traction control system is off, then an acceleration skid is also best handled by easing your foot off the accelerator pedal. If your vehicle starts to slide, ease your foot off the accelerator pedal and quickly steer the way you want the vehicle to go.
Page 206: Night Vision
Here are some tips on night driving. Drive defensively. Don’t drink and drive. Since you can’t see as well, you may need to slow down and keep more space between you and other vehicles. Slow down, especially on higher speed roads. Your headlamps can light up only so much road ahead.
Page 207: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you can’t stop, accelerate or turn as well because your tire road traction isn’t as good as on dry roads. And, if your tires don’t have much tread left, you’ll get even less traction.
Page 208 Driving too fast through large water puddles or even going through some car washes can cause problems, too. The water may affect your brakes. Try to avoid puddles. But if you can’t, try to slow down before you hit them. 4-18 CAUTION: Wet brakes can cause accidents.
Page 209: Driving Through Deep Standing Water
Hydroplaning Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough and you’re going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road.
Page 210: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You’ll want to watch out for what the other drivers are doing and pay attention to traffic signals. 4-20 Here are ways to increase your safety in city driving: Know the best way to get to where you are going.
Page 211: Freeway Driving
Freeway Driving Mile for mile, freeways (also called thruways, parkways, expressways, turnpikes or superhighways) are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 212: Before Leaving On A Long Trip
Of course, you’ll find experienced and able service experts in Cadillac dealerships all across North America. They’ll be ready and willing to help if you need it. Here are some things you can check before a trip:...
Page 213: Hill And Mountain Roads
Then here are some tips: Make sure your vehicle is well ventilated, with a comfortably cool interior. Keep your eyes moving. Scan the road ahead and to the sides. Check your rearview mirrors and your instruments frequently. If you get sleepy, pull off the road into a rest, service or parking area and take a nap, get some exercise, or both.
Page 214 If you drive regularly in steep country, or if you’re planning to visit there, here are some tips that can make your trips safer and more enjoyable. Keep your vehicle in good shape. Check all fluid levels and also the brakes, tires, cooling system and transaxle.
Page 215: Winter Driving
Winter Driving Here are some tips for winter driving: Have your vehicle in good shape for winter. You may want to put winter emergency supplies in your trunk. Include an ice scraper, a small brush or broom, a supply of windshield washer fluid, a rag, some winter outer clothing, a small shovel, a flashlight, a red cloth and a couple of reflective warning triangles.
Page 216: Driving On Snow Or Ice
Driving on Snow or Ice Most of the time, those places where your tires meet the road probably have good traction. However, if there is snow or ice between your tires and the road, you can have a very slippery situation. You’ll have a lot less traction or “grip”...
Page 217 Your anti lock brakes improve your vehicle’s stability when you make a hard stop on a slippery road. Even though you have the anti lock braking system, you’ll want to begin stopping sooner than you would on dry pavement. See “Anti Lock”...
Page 218 Tie a red cloth to your vehicle to alert police that you’ve been stopped by the snow. Put on extra clothing or wrap a blanket around you. If you have no blankets or extra clothing, make body insulators from newspapers, burlap bags, rags, floor mats anything you can wrap around yourself or tuck under your clothing to keep warm.
Page 219: Recreational Vehicle Towing
Run your engine only as long as you must. This saves fuel. When you run the engine, make it go a little faster than just idle. That is, push the accelerator slightly. This uses less fuel for the heat that you get and it keeps the battery charged.
Page 220: Loading Your Vehicle
Loading Your Vehicle Two labels on your vehicle show how much weight it may properly carry. The Tire Loading Information label found on the rear edge of the driver’s door tells you the proper size, speed rating and recommended inflation pressures for the tires on your vehicle.
Page 221 CAUTION: Do not load your vehicle any heavier than the GVWR, or either the maximum front or rear GAWR. If you do, parts on your vehicle can break, and it can change the way your vehicle handles. These could cause you to lose control and crash.
Page 222: Towing A Trailer
Towing a Trailer CAUTION: If you don’t use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well You and your passengers could be seriously injured.
Page 223: If You Do Decide To Pull A Trailer
If You Do Decide To Pull A Trailer If you do, here are some important points: There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you’ll be driving.
Page 224: Weight Of The Trailer Tongue
You can ask your dealer for our trailering information or advice, or you can write us at: Cadillac Customer Assistance Center Cadillac Motor Car Division P.O. Box 436004 Pontiac, MI 48343 6004 In Canada, write to: General Motors of Canada Limited...
Page 225: Safety Chains
Total Weight on Your Vehicle’s Tires Be sure your vehicle’s tires are inflated to the upper limit for cold tires. You’ll find these numbers on the Tire Loading Information label at the rear edge of the driver’s door or see “Loading Your Vehicle” in the Index.
Page 226: Trailer Brakes
Trailer Brakes Because you have anti lock brakes, don’t try to tap into your vehicle’s hydraulic brake system. If you do, both brake systems won’t work well, or at all. If you tow more than 1,000 lbs. (450 kg), use trailer brakes. Be sure to follow the instructions that come with the trailer or from the brake manufacturer.
Page 227: Turn Signals When Towing A Trailer
Passing You’ll need more passing distance up ahead when you’re towing a trailer. And, because you’re a good deal longer, you’ll need to go much farther beyond the passed vehicle before you can return to your lane. Backing Up Hold the bottom of the steering wheel with one hand. Then, to move the trailer to the left, just move that hand to the left.
Page 228: Driving On Grades
Driving On Grades Reduce speed and shift to a lower gear before you start down a long or steep downgrade. If you don’t shift down, you might have to use your brakes so much that they would get hot and no longer work well. On long uphill grades, reduce speed to 45 to 50 mph (70 to 90 km/h) and avoid prolonged use of SECOND (2) gear and engine speeds above 3800 rpm.
Page 229: Maintenance When Trailer Towing
When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: Start your engine; Shift into a gear; and Be sure the parking brake has released. 2. Let up on the brake pedal. 3.
Page 230 yellowblue NOTES 4-40...
Page 231 yellowblue NOTES 4-41...
Page 232 yellowblue NOTES 4-42...
Page 233 Section 5 Problems on the Road Here you’ll find what to do about some problems that can occur on the road. Hazard Warning Flashers Other Warning Devices Jump Starting Towing Your Vehicle Engine Overheating Cooling System If a Tire Goes Flat Changing a Flat Tire Compact Spare Tire If You’re Stuck: In Sand, Mud, Ice or Snow...
Page 234: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning flashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will flash on and off. The hazard button is located in the center of the instrument panel.
Page 235: Other Warning Devices
Other Warning Devices If you carry reflective triangles, you can set one up at the side of the road about 300 feet (100 m) behind your vehicle. Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle.
Page 236 2. Get the vehicles close enough so the jumper cables can reach, but be sure the vehicles aren’t touching each other. If they are, it could cause a ground connection you don’t want. You wouldn’t be able to start your vehicle and the bad grounding could damage the electrical systems.
Page 237 CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded. Use a flashlight if you need more light. Be sure the battery has enough water. You don’t need to add water to the ACDelco Freedom battery installed in every new GM vehicle.
Page 238 7. Connect the red positive (+) cable to the remote positive (+) terminal of the vehicle with the dead battery. yellowblue 8. Don’t let the other end of the positive (+) cable touch metal. Connect it to the positive (+) terminal of the good battery.
Page 239 Don’t let the other end of the negative ( anything until the next step. The other end of the negative ( ) cable doesn’t go to the dead battery. It goes to the windshield washer bottle attaching stud on the passenger’s upper strut tower.
Page 240: Towing Your Vehicle
Towing Your Vehicle CAUTION: To help avoid serious personal injury to you or others: Never let passengers ride in a vehicle that is being towed. Never tow faster than safe or posted speeds. Never tow with damaged parts not fully secured. Never get under your vehicle after it has been lifted by the tow truck.
Page 241: Overheated Engine Protection Operating Mode
Overheated Engine Protection Operating Mode Should an overheated engine condition exist and the message ENGINE OVERHEATED, STOP ENGINE is displayed, an overheat protection mode which alternates firing groups of cylinders helps prevent engine damage. In this mode, you will notice a loss in power and engine performance.
Page 242 CAUTION: (Continued) from it. Just turn it off and get everyone away from the vehicle until it cools down. Wait until there is no sign of steam or coolant before you open the hood. If you keep driving when your engine is overheated, the liquids in it can catch fire.
Page 243: Cooling System
If you no longer have the overheat warning, you can drive. Just to be safe, drive slower for about 10 minutes. If the warning doesn’t come back on, you can drive normally. If the warning continues, pull over, stop, and park your vehicle right away.
Page 244 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan. If the coolant inside the coolant surge tank is boiling, don’t do anything else until it cools down.
Page 245 CAUTION: Heater and radiator hoses, and other engine parts, can be very hot. Don’t touch them. If you do, you can be burned. Don’t run the engine if there is a leak. If you run the engine, it could lose all coolant. That could cause an engine fire, and you could be burned.
Page 246: How To Add Coolant To The Coolant
How to Add Coolant to the Coolant Surge Tank If you haven’t found a problem yet, but the coolant level isn’t at or above the fill mark at the forward edge of the surge tank, add a 50/50 mixture of clean, drinkable water and DEX COOL coolant at the coolant surge tank, but...
Page 247 CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid like alcohol, can boil before the proper coolant mixture will. Your vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, your engine could get too hot but you wouldn’t get the overheat warning.
Page 248 1. You can remove the coolant surge tank pressure cap when the cooling system, including the coolant surge tank pressure cap and upper radiator hose, is no longer hot. Turn the pressure cap slowly counterclockwise (left) about one then stop. If you hear a hiss, wait for that to stop.
Page 249: If A Tire Goes Flat
4. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fans. By this time, the coolant level inside the coolant surge tank may be lower.
Page 250: Changing A Flat Tire
Changing a Flat Tire If a tire goes flat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning flashers. CAUTION: Changing a tire can cause an injury. The vehicle can slip off the jack and roll over you or other people.
Page 251: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools The equipment you’ll need is in the trunk. Instructions for changing your tires are on the inside of the tire cover. To lift the tire cover to gain access to the spare tire and jacking equipment, do the following: 1.
Page 252 Unscrew the wing nuts to remove the container that holds the wrench and jack. Remove the wheel wrench, jack and the spare tire from the trunk. 5-20 The tools you’ll be using include the jack (A) and the wheel wrench (B). yellowblue...
Page 253: Spare Tire
Removing the Wheel Cover SLS Wheel Shown On the SLS, there is a center wheel cover on the aluminum wheel. Using the flat end of the wheel wrench, gently pry the wheel cover off. Be careful not to scratch the aluminum wheel edge and don’t try to remove it with your hands.
Page 254 yellowblue 2. Find the jacking location from the diagrams above and corresponding cutouts in the plastic molding. CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack, you could be badly injured or killed. Never get under a vehicle when it is supported only by a jack.
Page 255 CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall. To help avoid personal injury and vehicle damage, be sure to fit the jack lift head into the proper location before raising the vehicle.
Page 256 8. Remove any rust or dirt from the wheel bolts, mounting surfaces and spare wheel. CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time. The wheel could come off and cause an accident.
Page 257 11. Lower the vehicle by turning the jack handle counterclockwise. Lower the jack completely. 12. Tighten the wheel nuts firmly in a crisscross sequence as shown. On the STS, screw on the wheel nut covers with your fingers, then tighten one quarter turn with the wheel wrench.
Page 258 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to become loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new GM original equipment wheel nuts.
Page 259 Store the flat tire as far forward in the trunk as possible. Store the jack and wheel wrench in their compartment in the trunk. For storage, the jack must be raised until the screw end is flush with the edge of the jack. Storing the Spare Tire and Tools CAUTION: Storing a jack, a tire or other equipment in the...
Page 260: Compact Spare Tire
Compact Spare Tire Although the compact spare tire was fully inflated when your vehicle was new, it can lose air after a time. Check the inflation pressure regularly. It should be 60 psi (420 kPa). After installing the compact spare on your vehicle, you should stop as soon as possible and make sure your spare tire is correctly inflated.
Page 261: If You're Stuck: In Sand, Mud, Ice Or Snow
If You’re Stuck: In Sand, Mud, Ice or Snow In order to free your vehicle when it is stuck, you will need to spin the wheels, but you don’t want to spin your wheels too fast. The method known as “rocking” can help you get out when you’re stuck, but you must use caution.
Page 262 yellowblue NOTES 5-30...
Page 263 yellowblue NOTES 5-31...
Page 264 yellowblue NOTES 5-32...
Page 265 Section 6 Service and Appearance Care Here you will find information about the care of your vehicle. This section begins with service and fuel information, and then it shows how to check important fluid and lubricant levels. There is also technical information about your vehicle, and a part devoted to its appearance care.
Page 266: Doing Your Own Service Work
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you’ll go to your dealer for all your service needs. You’ll get genuine GM parts and trained and supported service people. We hope you’ll want to keep your GM vehicle all GM. Genuine GM parts have one of these marks: Doing Your Own Service Work If you want to do some of your own service work, you’ll...
Page 267 CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. Be sure you have sufficient knowledge, experience, the proper replacement parts and tools before you attempt any vehicle maintenance task.
Page 268 (See “Malfunction Indicator Lamp” in the Index.) If this occurs, return to your authorized Cadillac dealer for diagnosis to determine the cause of failure. In the event it is determined that the cause of the condition is the type of fuels used, repairs may not be covered by your warranty.
Page 269: Filling Your Tank
NOTICE: Your vehicle was not designed for fuel that contains methanol. Don’t use it. It can corrode metal parts in your fuel system and also damage plastic and rubber parts. That damage wouldn’t be covered under your warranty. Fuels in Foreign Countries If you plan on driving in another country outside the United States or Canada, the proper fuel may be hard to find.
Page 270 The fuel door release button is located on the left side of the instrument panel below the lamp controls. To open the fuel door, press the fuel door release button upward. The vehicle must be in PARK (P) or NEUTRAL (N) and the VALET lockout button must be in the OFF position.
Page 271 CAUTION: If you get gasoline on yourself and then something ignites it, you could be badly burned. Gasoline can spray out on you if you open the fuel filler cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather.
Page 272: Checking Things Under The Hood
Filling a Portable Fuel Container CAUTION: Never fill a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs.
Page 273: Hood Release
Hood Release Pull the lever inside the vehicle to open the hood. It is located on the lower left side of the instrument panel. Then go to the front of the vehicle and find the secondary hood release which is located below the front grille.
Page 274 When you open the hood, you’ll see: A. Windshield Washer Fluid B. Power Steering Fluid C. Engine Oil Fill Location Before closing the hood, be sure all filler caps are on properly. Then pull the hood down and close it firmly. 6-10 D.
Page 275: Engine Oil
Underhood Lamp Turn the parking lamps on to operate the underhood lamp. The underhood lamp will come on when the hood is opened. Engine Oil A CHECK OIL LEVEL message will appear when the engine oil is approximately 1 quart (1L) low. If the message is displayed, check the dipstick level and add oil as needed.
Page 276: Checking Engine Oil
Checking Engine Oil Pull out the dipstick and clean it with a paper towel or cloth, then push it back in all the way. Remove it again, keeping the tip down, and check the level. When to Add Engine Oil If the oil is at or below the ADD line, then you’ll need to add at least one quart of oil.
Page 277: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Oils recommended for your vehicle can be identified by looking for the “Starburst” symbol. This symbol indicates that the oil has been certified by the American Petroleum Institute (API). Do not use any oil which does not carry this Starburst symbol.
Page 278: When To Change Engine Oil
As shown in the chart, SAE 10W 30 is best for your vehicle. However, you can use SAE 5W to be colder than 60 F (16 C) before your next oil change. When it’s very cold, you should use SAE 30.
Page 279: What To Do With Used Oil
The system won’t detect dust in the oil. So, if you drive in a dusty area, be sure to change your oil every 3,000 miles (5 000 km) or sooner. Remember to reset the Oil Life Indicator whenever the oil is changed. How to Reset the Oil Life Indicator After the oil has been changed, display the ENGINE OIL LIFE message by pressing the INFO button.
Page 280 Engine Air Cleaner/Filter The air cleaner is located next to the coolant surge tank on the driver’s side of the engine. Be sure the engine has cooled before following these steps to replace the air cleaner filter: 6-16 1. Disconnect the Intake Air Temperature (IAT) sensor from the clean air duct.
Page 281 4. Unhook both air cleaner cover latches. 5. Move the air cleaner lid out of the way. 6. Take out the air cleaner filter and remove any loose debris that may be found lying in the air cleaner base. 7. Install a new air filter element. See “Normal Maintenance Replacement Parts”...
Page 282 Follow these steps to reinstall the air cleaner assembly: 1. Slide the air cleaner lid into the slots in the bottom of the air cleaner base. 2. Close the cover and make sure that both latches are secure and fully engaged. 3.
Page 283: Automatic Transaxle Fluid
Automatic Transaxle Fluid When to Check and Change A good time to check your automatic transaxle fluid level is when the engine oil is changed. Change both the fluid and filter every 50,000 miles (83 000 km) if the vehicle is mainly driven under one or more of these conditions: In heavy city traffic where the outside temperature regularly reaches 90...
Page 284 To get the right reading, the fluid should be at normal operating temperature, which is 180 C to 93 Get the vehicle warmed up by driving about 15 miles (24 km) when outside temperatures are above 50 C). If it’s colder than 50 F (10 to drive longer.
Page 285: How To Add Fluid
3. Check both sides of the dipstick, and read the lower level. The fluid level must be in the cross hatched area. 4. If the fluid level is in the acceptable range, push the dipstick back in all the way. Replace the air cleaner/filter assembly.
Page 286 NOTICE: We recommend you use only fluid labeled DEXRON III, because fluid with that label is made especially for your automatic transaxle. Damage caused by fluid other than DEXRON is not covered by your new vehicle warranty. 3. After adding fluid, recheck the fluid level as described under “How to Check.”...
Page 287: Engine Coolant
Engine Coolant The cooling system in your vehicle is filled with COOL engine coolant. This coolant is designed to remain in your vehicle for 5 years or 150,000 miles (240 000 km), whichever occurs first, if you add only COOL extended life coolant.
Page 288 CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid like alcohol, can boil before the proper coolant mixture will. Your vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, your engine could get too hot but you wouldn’t get the overheat warning.
Page 289: Checking Coolant
Checking Coolant The engine coolant surge tank is located on the driver’s side of the engine. The cooling system is under a lot of pressure when it is hot. If the CHECK COOLANT LEVEL message appears on the Driver Information Center, you will need to add coolant.
Page 290: Power Steering Fluid
Adding Coolant If you need more coolant, add the proper DEX coolant mixture at the surge tank, but only when the engine is cool. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough.
Page 291: How To Check Power Steering Fluid
How to Check Power Steering Fluid When the engine compartment is cool, wipe the cap and the top of the reservoir clean, then unscrew the cap and wipe the dipstick with a clean rag. Replace the cap and completely tighten it. Then remove the cap again and look at the fluid level on the dipstick.
Page 292: Brake Fluid
NOTICE: When using concentrated washer fluid, follow the manufacturer’s instructions for adding water. Don’t mix water with ready fluid. Water can cause the solution to freeze and damage your washer fluid tank and other parts of the washer system. Also, water doesn’t clean as well as washer fluid.
Page 293 There are only two reasons why the brake fluid level in the reservoir might go down. The first is that the brake fluid goes down to an acceptable level during normal brake lining wear. When new linings are put in, the fluid level goes back up.
Page 294: Brake Wear
NOTICE: Using the wrong fluid can badly damage brake system parts. For example, just a few drops of mineral based oil, such as engine oil, in your brake system can damage brake system parts so badly that they’ll have to be replaced.
Page 295: Brake Pedal Travel
CAUTION: The CHANGE BRAKE PADS message or the high pitched warning sound means that soon your brakes won’t work well. That could lead to an accident. When the CHANGE BRAKE PADS message comes on and stays on, have your vehicle serviced.
Page 296: Replacing Brake System Parts
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top quality GM brake parts.
Page 297: Vehicle Storage
To be sure the vent hose (A) is properly attached, the vent hose connectors (B) must be securely reattached to the vent outlets (C) on each side of the battery, and the vent assembly grommet (D) must be secured to the floor pan (E).
Page 298: Bulb Replacement
Bulb Replacement For any bulb changing procedure not listed in this section, contact your dealer service department. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb. You or others could be injured. Be sure to read and follow the instructions on the bulb package.
Page 299 yellowblue 4. To replace the low beam bulb, first remove the 5. Then, turn the bulb socket counterclockwise to rubber housing cover on the rear of the lamp. unlock the socket from the lamp housing. 6-35...
Page 300 6. Remove the headlamp bulb socket. 6-36 7. After removing the wiring harness connector from the headlamp bulb socket, replace the bulb assembly. Reconnect it to the wiring harness and reinstall the headlamp bulb assembly back into the headlamp housing. 8.
Page 301 Headlamp Aiming Your vehicle has a headlamp system equipped with horizontal and vertical aim indicators. The aim has been set at the factory and should need no further adjustment. This is true even though your vertical and horizontal aim indicators may not fall exactly on the “0”...
Page 302 A. Horizontal Aiming Screw B. Vertical Aiming Screw Start with the horizontal aim. The adjustment screws can be turned with an E8 Torx socket or T15 Torx screwdriver. Once the horizontal aim is adjusted, then adjust the vertical aim. 6-38 A.
Page 303: Front Turn Signal Lamps
B. Vertical Aiming Screw D. Level Bubble 2. Turn the vertical aiming screw until the level bubble is lined up with zero. Front Turn Signal Lamps 1. The turn signal lamps are located on the outboard side of the headlamps. To access, remove the headlamp, (see Steps 1, 2 and 3 under “Headlamps”).
Page 304 Center High-Mounted Stoplamp (CHMSL) The individual bulbs in the CHMSL are not serviceable. See your dealer for assistance. Rear Turn Signal Lamps and Taillamps 1. Open the trunk to gain access to the lamp housing. 2. Remove the rear compartment sill plate by removing the upper convenience net retainers, located at...
Page 305: Windshield Wiper Blade Replacement
7. Press the bulb socket tab and turn the socket counterclockwise to remove it. To remove the bulb, grasp the socket firmly and pull the bulb out. Once you have replaced the burned steps to reassemble the lamp assembly. Windshield Wiper Blade Replacement Windshield wiper blades should be inspected at least twice a year for wear or cracking.
Page 306 Your new vehicle comes with high a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your Cadillac Warranty booklet for details. CAUTION: Poorly maintained and improperly used tires are dangerous.
Page 307 CAUTION: (Continued) Underinflated tires pose the same danger as overloaded tires. The resulting accident could cause serious injury. Check all tires frequently to maintain the recommended pressure. Tire pressure should be checked when your tires are cold. Overinflated tires are more likely to be cut, punctured or broken by a sudden impact such as when you hit a pothole.
Page 308: Tire Inspection And Rotation
NOTICE: Don’t let anyone tell you that underinflation or overinflation is all right. It’s not. If your tires don’t have enough air (underinflation), you can get the following: Too much flexing Too much heat Tire overloading Bad wear Bad handling Bad fuel economy.
Page 309 When rotating your tires, always use the correct rotation pattern shown here. Don’t include the compact spare tire in your tire rotation. After the tires have been rotated, adjust the front and rear inflation pressures as shown on the Tire Information label.
Page 310: Buying New Tires
When It’s Time for New Tires One way to tell when it’s time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining. You need a new tire if any of the following statements are true: You can see the indicators at three or more places around the tire.
Page 311: Uniform Tire Quality Grading
CAUTION: Mixing tires could cause you to lose control while driving. If you mix tires of different sizes or types (radial and bias belted tires), the vehicle may not handle properly, and you could have a crash. Using tires of different sizes may also cause damage to your vehicle.
Page 312 Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and a half (1 1/2) times as well on the government course as a tire graded 100.
Page 313: Wheel Alignment And Tire Balance
Wheel Alignment and Tire Balance The wheels on your vehicle were aligned and balanced carefully at the factory to give you the longest tire life and best overall performance. Scheduled wheel alignment and wheel balancing are not needed. However, if you notice unusual tire wear or your vehicle pulling one way or the other, the alignment may need to be reset.
Page 314: Tire Chains
NOTICE: The wrong wheel can also cause problems with bearing life, brake cooling, speedometer or odometer calibration, headlamp aim, bumper height, vehicle ground clearance and tire or tire chain clearance to the body and chassis. See “Changing a Flat Tire” in the Index for more information.
Page 315: Appearance Care
Appearance Care Remember, cleaning products can be hazardous. Some are toxic. Others can burst into flame if you strike a match or get them on a hot part of the vehicle. Some are dangerous if you breathe their fumes in a closed space. When you use anything from a container to clean your vehicle, be sure to follow the manufacturer’s warnings and instructions.
Page 316: Cleaning Leather
Here are some cleaning tips: Always read the instructions on the cleaner label. Clean up stains as soon as you can Carefully scrape off any excess stain. Use a clean cloth or sponge, and change to a clean area often. A soft brush may be used if stains are stubborn.
Page 317: Cleaning Glass Surfaces
Cleaning Wood Panels Use a clean cloth moistened in warm, soapy water (use mild dish washing soap). Dry the wood immediately with a clean cloth. Cleaning Speaker Covers Vacuum around a speaker cover gently, so that the speaker won’t be damaged. Clean spots with just water and mild soap.
Page 318: Cleaning The Outside Of Your Vehicle
Grime from the windshield will stick to the wiper blades and affect their performance. Clean the blade by wiping vigorously with a cloth soaked in full windshield washer solvent. Then rinse the blade with water. Check the wiper blades and clean them as necessary; replace blades that look worn.
Page 319: Cleaning Tires
Your vehicle has a “basecoat/clearcoat” paint finish. The clearcoat gives more depth and gloss to the colored basecoat. Always use waxes and polishes that are non made for a basecoat/clearcoat paint finish. NOTICE: Machine compounding or aggressive polishing on a basecoat/clearcoat paint finish may dull the finish or leave swirl marks.
Page 320: Sheet Metal Damage
Although no defect in the paint job causes this, Cadillac will repair, at no charge to the owner, the surfaces of new vehicles damaged by this fallout condition within 12 months or 12,000 miles (20 000 km) of purchase, whichever occurs first.
Page 321 GM Vehicle Care/Appearance Materials PART NUMBER SIZE 994954 23 in. x 25 in. 1050172 16 oz. (0.473 L) 1050173 16 oz. (0.473 L) 1050174 16 oz. (0.473 L) 1050214 32 oz. (0.946 L) 1050427 23 oz. (0.680 L) 1052918** 8 oz. (0.237 L) 1052925 16 oz.
Page 322 Vehicle Identification Number (VIN) This is the legal identifier for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle. The VIN also appears on the Vehicle Certification and Service Parts labels and the certificates of title and registration.
Page 323: Electrical System
Electrical System Add-On Electrical Equipment NOTICE: Don’t add anything electrical to your vehicle unless you check with your dealer first. Some electrical equipment can damage your vehicle and the damage wouldn’t be covered by your warranty. Some add on electrical equipment can keep other components from working as they should.
Page 324: Fuses And Circuit Breakers
Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by a combination of fuses and circuit breakers. This greatly reduces the chance of fires caused by electrical problems. Look at the silver colored band inside the fuse. If the band is broken or melted, replace the fuse.
Page 325 Minifuses Fuse Usage Not Used Accessory Windshield Wipers Not Used Headlamp Low Beam Left Headlamp Low Beam Right Fuse Usage Instrument Panel Powertrain Control Module Battery Headlamp High Beam Right Headlamp High Beam Left Ignition 1 Not Used Not Used Cruise Control Oxygen Sensor A Injector Bank #2...
Page 326 Micro Relays Relay Usage Headlamp High Beam Headlamp Low Beam Fog Lamps Daytime Running Lamps Horn Air Conditioner Clutch Mini Relays Relay Usage Not Used Accessory Starter 2 Starter 1 Cooling Fan Secondary Ignition 1 Cooling Fan Series/Parallel Cooling Fan Primary 6-62 Maxibreaker Circuit...
Page 327 Rear Underseat Bussed Electrical Center (BEC) The rear BEC is located under the rear seat on the driver’s side. The rear seat cushion must be removed to access the BEC. See “Removing the Rear Seat Cushion” later in this section. Minifuses Fuse Usage...
Page 328 Fuse Usage Heated Seat Left Rear Power Tilt and Telescoping Steering Supplemental Inflation Restraint Not Used Lamps Park Right Fuel Tank Ventilation Solenoid Ignition 1 Lamps, Parking Left Interior Lamp Dimmer Module Navigation Heated Seat Left Front Export Lighting Rear Door Modules Stoplamps Neutral Safety Back Audio...
Page 329 Micro Relays Relay Usage Fuel Pump Parking Lamps Ignition 1 Park Brake A Park Brake B Park Shift Interlock Reverse Lamps Retained Accessory Power for Sunroof Rear HVAC Blower CVRSS Dampers Ignition 3 Fuel Tank Door Release Interior Lamps Trunk Release Front Courtesy Lamps Rear Courtesy Lamps Electronic Level Control Compressor...
Page 330 Removing the Rear Seat Cushion NOTICE: The battery and main fuse boxes are located under the rear seat cushion. The battery’s ground terminal and some relay wires are exposed. To help avoid damage to the battery and wires, be careful when removing or reinstalling the seat cushion.
Page 331 CAUTION: A safety belt that isn’t properly routed through the seat cushion or is twisted won’t provide the protection needed in a crash. If the safety belt hasn’t been routed through the seat cushion at all, it won’t be there to work for the next passenger.
Page 332: Replacement Bulbs
Replacement Bulbs Application Headlamps Composite Inner High Beam ....Outer Low Beam ....Front Turn Signal .
Page 333: Normal Maintenance Replacement Parts
Wheel Nut Torque 100 lb ft (140 N·m) Capacities Transaxle (4T80 ..Crankcase (Engine Oil with Filter Change) ..Engine Cooling System .
Page 334 yellowblue NOTES 6-70...
Page 335 Section 7 Customer Assistance Information Here you will find out how to contact Cadillac if you need assistance. This section also tells you how to obtain service publications and how to report any safety defects. Customer Satisfaction Procedure Customer Assistance for Text Telephone...
Page 336: Customer Satisfaction Procedure
Cadillac Customer Assistance Center, 24 hours a day, by calling 1-800-458-8006. In Canada, contact GM of Canada Customer Communication Centre in Oshawa by calling 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 337: Customer Assistance For Text Telephone
To assist customers who are deaf, hard of hearing, or speech impaired and who use Text Telephones (TTYs), Cadillac has TTY equipment available at its Customer Assistance Center. Any TTY user can communicate with Cadillac by dialing: 1 CMCC. (TTY users in Canada can dial 1 3830.)
Page 338: Customer Assistance Offices
Customer Assistance Offices Cadillac encourages customers to call the toll-free number for assistance. If a U.S. customer wishes to write to Cadillac, the letter should be addressed to Cadillac’s Customer Assistance Center. United States Cadillac Customer Assistance Center Cadillac Motor Car Division P.O.
Page 339: Gm Mobility Program For Persons
States, please dial 1 3063. Roadside Service Cadillac’s exceptional Roadside Service is more than an auto club or towing service. It provides every Cadillac owner with the advantage of contacting a Cadillac 9935. advisor and, when appropriate, a Cadillac trained dealer 9935.
Page 340 1112, 24 hours a day, 365 days a year. This service is provided at no charge for any warranty covered situation and for a nominal charge if the Cadillac is no longer under warranty. Roadside Service is available only in the United States and Canada. Cadillac Owner Privileges...
Page 341: Roadside Service For The Hearing Or
Text Telephone (TTY) in the Roadside Service Center. Any customer who has access to a (TTY) or a conventional teletypewriter can communicate with Cadillac by dialing from the United States or Canada CMCC daily, 24 hours. yellowblue...
Page 342: Courtesy Transportation
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait Cadillac helps minimize your inconvenience by providing several transportation options. Depending on the circumstances,...
Page 343: Additional Program Information
Courtesy Rental Vehicle When your vehicle is unavailable due to warranty repairs, your dealer may arrange to provide you with a courtesy rental vehicle or reimburse you for a rental vehicle you obtained, at actual cost, up to a maximum of $35.00 per day supported by receipts.
Page 344: Warranty Information
General Motors reserves the right to unilaterally modify, change or discontinue Courtesy Transportation at any time and to resolve all questions of claim eligibility pursuant to the terms and conditions described herein at its sole discretion. General Motors and participating dealerships reserve the right to deny a rental vehicle to anyone not possessing a valid motor vehicle operators license in their name, anyone who is under the influence of alcohol...
Page 345: Ordering Service And Owner Publications In Canada
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at 1 8006, or write: Cadillac Customer Assistance Center Cadillac Motor Car Division P.O. Box 436004 Pontiac, MI 48343...
Page 346 1999 CADILLAC SERVICE PUBLICATIONS ORDERING INFORMATION The following publications covering the operation and servicing of your vehicle can be purchased by filling out the Service Publication Order Form in this book and mailing it in with your check, money order, or credit card information to Helm, Incorporated (address below.)
Page 347 ORDER TOLL FREE (NOTE: For Credit Card Holders Only) 1-800-551-4123 (Monday-Friday 8:00 AM – 6:00 PM EST) FAX Orders Only 1-313-865-5927 PUBLICATION FORM PUBLICATION FORM NUMBER NUMBER Service Manual Car & Light Truck Transmission Unit Repair Owner’s Manual In Portfolio Owner’s Manual Without Portfolio NOTE: Dealers and Companies please provide dealer or company name, and also the name of the person to whose attention the shipment should be sent.
Page 348 yellowblue NOTES 7-14...
Page 349 Section 8 Index ......... Adapter Kits, CDs .
Page 350 attery ........Charging System Light .
Page 351 Check Brake Fluid Message ......Coolant Level Message ......Fuel Gage Message .
Page 352 Cooling System ....... . Cornering Lamps ....... Courtesy Transportation .
Page 353 Through Water ....... Winter ........With a Trailer .
Page 354 Fog Lamp Light ..............Fog Lamps Foreign Countries, Fuel .
Page 355 ce Possible Message ......Ignition Positions ....... Illuminated Entry .
Page 356 Limiter, Engine Speed ............Limiter, Vehicle Speed Loading Your Vehicle .
Page 357 Overheated Engine Protection Operating Mode Overheating Engine ......Owner Publications, Ordering .
Page 358 Rearview Mirror ......Driver’s Outside Auto Dimming ....Electrochromic Day/Night with Compass Recirculation .
Page 359 Seats ........Adaptive Auto Exit .
Page 360 Steering Wheel ........Auto Exit Controls .
Page 361 Trailer ........Brakes Driving on Grades .
Page 362 Wheel Alignment ........Nut Torque ......Replacement .

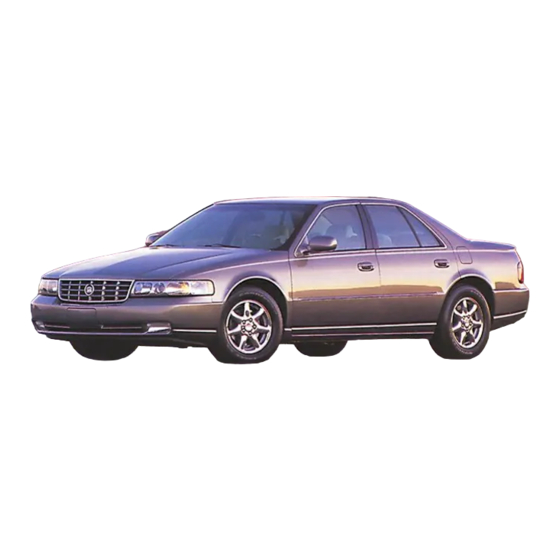

Cadillac 1999 Seville Owner's Manual

Section 1 Seats and Restraint System

Section 4 Your Driving and the Road

Section 5 Problems on the Road

Section 7 Customer Assistance Information

Quick Links

Chapters

Related Manuals for Cadillac 1999 Seville

Summary of Contents for Cadillac 1999 Seville
