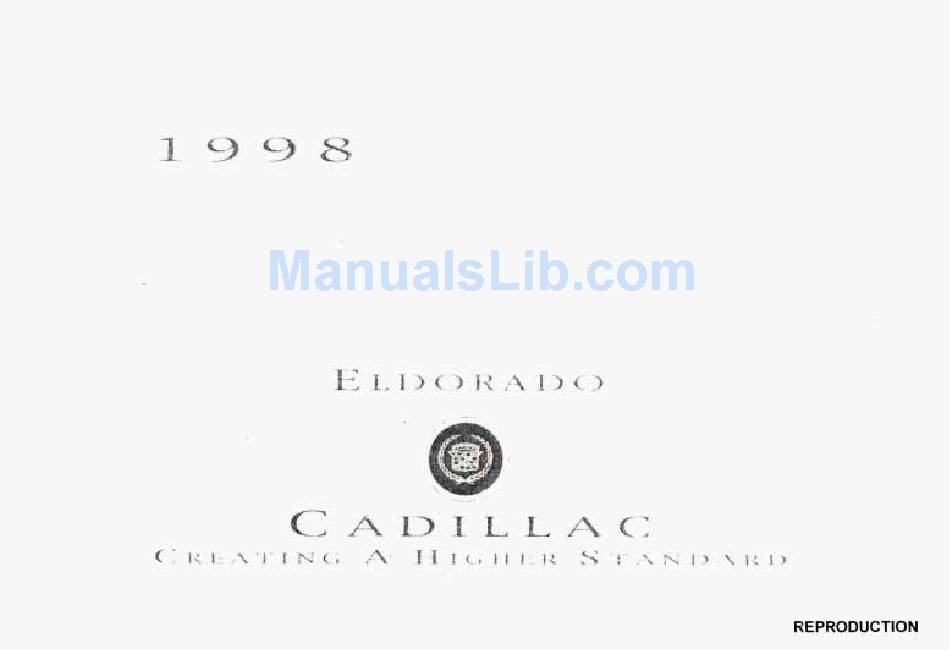

Page 1 REPRODUCTION...
Page 4 ..
Page 7 Service and Appearance Care Here the nlanual tells you how to keep your vehicle running properly and looking good. Customer Assistance Information This section tells to contact Cadillac for assistance and you how It also gives you information on "Reporting Safety Defects" Index 8- 1 Here's an alphabetical listing of almost every subject in this manual.
Page 8 For vehicles first Canada, substitute the name sold in “General Motors of Canada Limited” for Cadillac Motor Car Division whenever it appears in this manual. Please keep this manual in your vehicle, so there if you ever need when you‘re o n the...
Page 9 PENALTY OF LEADERSHIP adillac Motor Car Co. Detroit, Mich I H I S TEXT APPEARED AS AN ADVERTISEMENT YATURD.4Y EVENING POST? J h N l i . \ R Y 2ND. THE YE,\R 1‘915 COPYRIGHT, CADILI..4C XlGTOR DIVISION...
Page 10 Henry M. Leland, founder of Cadilluc, stands beside the 1905 “Osceola” which was built to evaluate the feasibility of a closed bodied car.
Page 11 As Few automobiles are fortunate enough that is Cadillac. The name Cadillac is appropriately that of Antoine de La Mothe Cadillac, the French military commander who founded the city of Detroit in 1701. What better name for the oldest automobile manufacturer in Detroit.
Page 12 From this achievement evolved the Compression reference to Cadillac as “Standard of the World.” V8 Engine In 1909 Cadillac was purchased by the then new General Motors Corporation. Convenience, cleanliness and all-weather comfort were greatly enhanced in 1910 when Cadillac became the first manufacturer to offer closed bodies as standard equipment.
Page 13 Cadillacs beginning with the 1915 model. Many Cadillac “firsts” have followed over the years, inciuding the synchro-mech clashless transmission, a nationwide comprehensive service policy. security plate glass. chrome plating and the first car to be designed by a stylist 1927 LaSalle/Harley Earl).
Page 14 "Beauty," "majesty," "brilliance" all apply, in their fullest meaning, to this new Cadillac. And yet, from this wonderful vocabulary, we have selected "elegance" as the word that most fully characterizes the Cadillac of 1960. The car's beautiful, clean-lined styling is certainly elegant beyond compare.
Page 15 For the 1948 model. Cadillac introduced the legendary tail fin which once more set the trend in automotive styling for nearly two decades. This was closely followed with the two door hardtop Coupe DeVille and the industry’s first modem overhead valve, high compression V8 engine on the 1949 model.
Page 16 The electronics and computerization which were pioneered by Cadillac in the ’70s came of age in the ’80s with Digital Fuel Injection and On-Board Diagnostics in 1980. four wheel Anti-lock Brakes on 1986 models and Traction Control in the fdl of 1989.
Page 17 Many people read their owner's manual from beginning to end when they first receive their new vehicle. do this, it will help you learn about the features and controls for your vehicle. In this manual. you'll find that pictures and words work together to explain things quickly.
Page 18 In the notice area, we tell you about something that can your vehicle. Many times, this damage would damage Also, in this book you will find these notices: not be covered by your warranty, and it could be costly. But the notice will tell you what to do to help avoid the damage.
Page 19 These symbols For example, these symbols are important for you and are used on an original battery: your passengers whenever your vehicle is CAUTION driven: POSSIBLE INJURY DOOR LOCK PROTECT UNLOCK EYES BY SHIELDING CAUSTIC BAlTERY FASTEN ACID COULD SEAT BELTS CAUSE BURNS...
Page 21: Section 1 Seats And Restraint Systems
Section 1 Seats and Restraint Systems Here you’ll find information about the seats in your Cadillac and how t o use your safety belts properly. You can also learn about some things you should not do with air bags and safety belts.
Page 22: Seats And Seat Controls
Seats and Seat Controls This section tells you about the power seats adjust them, and also about the reclining front seatbacks. memory seats, lumbar adjustments, head restraints, heated seats and seatback latches. Power Seats power seat controls are located of the front seat cushion. how to Move the front of the control in the direction of the arrows to adjust the front portion of the cushion up...
Page 23: Power Lumbar Control
(If Equipped) Power Lumbar Control The lumbar control is located on the outboard side of each front seat. provides additional support to your lower back and it works independently of the other seat controls. Use the power seat control first to get the proper position.
Page 24: Reclining Front Seatbacks
Heated Front Seat (Option) The control is located in the center console. Move the switch to LO or on the heating elements in the seat. The LO setting warms the seatback and cushion until the seat approximates body temperature. The HI setting heats the seat to a slightly higher temperature.
Page 25: Head Restraints
But don’t have a seatback reclined if your vehicle is moving. CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job.
Page 26: Seatback Latches
Seatback Latches CAUTION: If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked. The front seatback folds forward to let people get into the rear seat.
Page 27 CAUTION: It is extremely dangerous to ride in inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts.
Page 28: Why Safety Belts Work
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on Take the simplest vehicle. Suppose it's just seat wheels.
Page 29 Get it up to speed. Then stop the vehicle. The rider doesn't stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield ..;::;-*...
Page 30 or the instrument panel ... or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That's why safety belts make such good sense. 1-10...
Page 31: About Safety Belts And The Answers
Here Are Questions Many People Ask About Safety Belts and the Answers Won’t I be trapped in the vehicle after an accident if I’m wearing a safety belt? You could be whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down.
Page 32: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly Adults This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see the part of this manual called “Children.”...
Page 33 The lap part of the belt should be worn low and snug the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 34 Shoulder Belt Tightness Adjustment Your car has a shoulder belt tightness adjustment feature. If the shoulder belt seems too tight, adjust it before you begin to drive. 1. Sit well back in the seat. 2. Start pulling the shoulder belt out. 3.
Page 35 What’s wrong with this? The shoulder belt too loose. as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.
Page 36 What’s wrong with this? The belt is buckled in the wrong place. 1-16 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 37 What's wrong with this? The shoulder belt is worn under the be worn over the shoulder at all times. CAUTION: be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 38 What’s wrong with this? The belt is twisted across the body. 1-18 CAUTION: You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.
Page 39: Safety Belt Use During Pregnancy
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 40: Right Front Passenger Position
best way to protect the fetus is to protect the mother. safety belt is worn properly, it’s more When likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly. Right Front Passenger Position To learn how to wear the right front passenger’s safety belt properly, see “Driver Position”...
Page 41 CAUTION: Air bags inflate with great force, faster than the blink of an eye. If you’re too close to an inflating air bag, it could seriously injure you. Safety belts help keep you in position before and during a crash. Always wear your safety belt, even with air bags.
Page 42: How The Air Bag System Works
the Air Bag System Works Where are the air bags? The driver's a i r bag is in the middle of the steering wheel. 1-22 The right front passenger's air bag is in the instrument panel on the passenger's side.
Page 43 CAUTION: If something is between an occupant and an air bag, the bag might not inflate properly or it might force the object into that person. The path of an inflating air bag must be kept clear. Don’t put anything between an occupant and an air bag, and don’t attach or put anything on the steering wheel hub or on or near any other air bag covering.
Page 44 How does an air bag restrain? In moderate to severe frontal or near-frontal cobsions, even belted occupants can contact the steering wheel or the instrument panel. Air bags supplement the protection provided by safety belts. Air bags distribute the force of the impact more evenly over the occupant’s upper body, stopping the occupant more gradually.
Page 45: Servicing Your Air Bag-Equipped Vehicle
You don’t want the system inflate while someone is worlung on your vehicle. Your dealer and the Cadillac Service Manual have information about servicing your vehicle and the air bag system. To purchase a service manual, see “Service and Owner Publications”...
Page 46: Rear Seat Outside Passenger Positions
Rear Seat Passengers It’s very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who aren’t safety belted can be thrown out of the vehicle in a crash.
Page 47 If the belt stops before it reaches the buckle. tilt the latch plate and keep pulling until you can buckle it. Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see “Safety Belt Extender”...
Page 48 /--\ The lap part of the belt should be worn the hips, just touching the thighs. Ln a crash, this applies force to the strong pelvic bones. And you’d be less likely slide under lap belt. you slid under it, the belt would apply force at your abdomen.
Page 49: Center Passenger Position
Lap Belt Center Passenger Position When you sit in the center seating position, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull it along the belt. 1-29...
Page 50: Smaller Children And Babies
To make the belt shorter, pull its free end as shown until the belt is snug. Buckle, position and release it the same way as the lap part of a lap-shoulder belt. If the belt isn’t long enough, see “Safety Belt Extender’’ at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly...
Page 51 CAUTION: Smaller children and babies should always be restrained in a child or infant restraint. The instructions for the restraint will say whether it is the right type and size for your child. A very young child’s hip bones are so small that a regular belt might not stay low on the hips, should.
Page 52 CAUTION: Never hold a baby in your arms while riding in a vehicle. A baby doesn’t weigh much crash. During a crash a baby will become so heavy you can’t hold it. For example, in a crash CAUTION: (Continued) 1-32 CAUTION: at only 25 mph will suddenly become a 240-lb.
Page 53: Child Restraints
Child Restraints Every time infants and young children ride in vehicles, they should have protection provided by appropriate restraints. What are the different types of add-on child restraints? Add-on child restraints are available in four basic types. When selecting a child restraint, take into consideration not only the child’s weight and size.
Page 54 A rear-facing infant restraint (B) positions an infant face the rear of the vehcle. Rear-facing restraints are designed for infants of up to about 20 lbs. (9 kg) and about one year of age. restraint faces the rear so that the infant's head. neck and body can have the support they need in a crash.
Page 55 A forward-facing child restraint (C-E) positions child upright to face forward in the vehicle. These forward-facing restraints are designed to help protect children who are from 20 to 40 Ibs. (9 to about 26 to 40 inches (66 to 102 cm) in height, or up to around four years of age.
Page 56 A booster seat ( F , G ) is designed for children who are abut to 60 lbs. (18 to 27 kg) and about four to eight years of age. It's designed to improve the the vehicle's safety system. Booster seats with belt shields use lap-only belts;...
Page 57: Where To Put The Restraint
When choosing a child restraint, be sure the child restraint is designed to be used in a vehicle. If it is. it will have a label saying that meets Federal Motor Vehicle Safety Standards. Then follow the instructions for the restraint. You may find these instructions on the restraint itself or in a booklet, or both.
Page 58: Top Strap
If your child restraint has a top strap, anchored. If you need to have an anchor installed, it in for you. If you can ask your Cadillac dealer to put want to install an anchor yourself. your dealer can tell you how to do it.
Page 59: Securing A Child Restraint In A Rear Outside Seat Position
Securing a Child Restraint in a Rear Outside Seat Position You’ll be using the lap-shoulder belt. See the earlier part about the top strap if the child restraint has one. Be sure to follow the instructions that came with the child restraint.
Page 60 Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 1-40 4. To tighten the belt, pull up on the shoulder belt while you push down on the child restraint. If you're using a forward-facing child restraint, you may find helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 61: Securing A Child Restraint In The Center Rear Seat Position
Securing a Child Restraint in the Center Rear Seat Position You’ll be using the lap belt. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. See the earlier part about the top strap if the child restraint has one.
Page 62 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 1-42 5. To tighten the belt, pull its free end while you pugh down on the child restraint.
Page 63: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position Your vehicle has a right front passenger air put a rea‘r-facing child restraint in this seat.. Here’s why: CAUTION: A child in a rearfacing child restraint can be seriously injured if the right front passenger’s air bag inflates.
Page 64 4. Buckle the belt. Make sure the release button is 5. Pull the rest of the lap belt all the way out of the positioned so you would be able to unbuckle the retractor to set the lock. safety belt quickly if you ever had to. 1-44...
Page 65: Larger Children
6. To tighten the belt, feed the lap belt back into the retractor while you push down on the child restraint. You may find helpful to use your knee to push down on the child restraint as you tighten the belt. 7 .
Page 66 Accident statistics show that children are safer if they are restrained in the rear seat. But they need to use the safety belts properly. Children who aren’t buckled up can be thrown out in a crash. Children who aren’t buckled up can strike other people who are.
Page 67 Never do this. Here lap-shoulder belt, but the shoulder part the child. If the child wears the belt in this way, in a crash the child might slide under the belt. The belt’s force would then be applied right on the child’s abdomen.
Page 68: Safety Belt Extender
Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt isn’t long enough to fasten, your dealer will order you an extender. It’s free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you.
Page 69 NOTES 1-49...
Page 70 NOTES $ & I 1-50...
Page 71: Section 2 Features And Controls
Section 2 Features and Controls Here you learn about the many standard and optional features on shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is working properly and what to do if you have a problem. Keys Door Locks Remote Keyless Entry (RKEj System...
Page 72 Keys CAUTION: Leaving young children in a vehicle with the ignition key is dangerous for many reasons. ‘ I ‘ A child or others could be badly injured or even killed. They could operate power windows or other controls or even make the vehicle move. If they turned the ignition to ON and moved the shift ( P ) , lever out of PARK...
Page 73 When a new vehicle is delivered, the dealer removes the The square key is for the plug from the door key. The plug has a code on it that ignition only. It has a tells the dealer or a qualified locksmith how to make resistor pellet which is part of the vehicle's extra keys.
Page 74: Door Locks
Door Locks CAUTION: Unlocked doors can be dangerous. Passengers especially children open the doors and fall out. When a door is locked, the inside handle won't open it. Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. This may not be so obvious: You increase the chance of being thrown out of the vehicle in a crash if the doors aren't locked.
Page 75: Power Door Locks
Power Door Locks Press the power door lock switch to lock or unlock both doors at once. Automatic Door Locks Close your doors and turn on the ignition. Every time you move the shift lever out of PARK (P), both of doors will lock.
Page 76: Leaving Your Vehicle
Leaving Your Vehicle If you are leaving the vehicle, open the door, set the locks from the inside, get out and close the door. Remote Keyless Entry (RKE) System With this feature, you can lock and unlock the doors, unlock the fuel door and turn on your vehicle’s interior lamps from about 10 feet (3 m)
Page 77: Operation
Operation & When you press this symbol to unlock the driver’s door, the parking lamps your vehicle will blink twice. (You can program your vehicle so the parking lamps will not flash. For more information, see “LocWnlock Confirmation” later in this section.) Pressing it again within five seconds will unlock the other doors.
Page 78: Battery Replacement
Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about four years. You can tell the battery is weak if the transmitter won’t at the work normal range in any location. If you have to get close to your vehicle before the transmitter works, it‘s probably time to change the battery.
Page 79 2 . Once the transmitter is separated, use a pencil to remove the old battery. Do not use a metal object. 3. Remove and replace the battery. Insert the new battery as the instructions under the cover indicate. Snap the transmitter back together tightly to be sure no moisture can enter.
Page 80: Trunk Lock Release
Trunk Lock Release To use this feature, your vehicle must be in PARK (P) and the valet TRUNK button must be on. Press the TRUNK release button, located above the radio on the Driver Information Center (DIC), to open the trunk. You can also press the trunk button on the remote keyless entry transmitter to access the trunk compartment.
Page 81 Place the trunk storage system on the center of the trunk floor (the cut out portion of the storage system should be facing the rear of the vehicle). Open the storage system by pulling up on the handle area. located in the carpeted This allows the unit to fold up into place.
Page 82 Trunk Lid Automatic Pull-Down Feature CAUTION: Your may have automatic pull-down feature that helps close the trunk electronically. Your fingers can be trapped under the trunk lid as it goes down. Your fingers could be injured, and you would need someone to help you free them.
Page 83: Key In The Ignition
Theft Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal. However, there are ways you can help. Key in the Ignition If you leave your vehicle with the keys inside, it’s an easy target for joy riders or professional thieves --...
Page 84 Theft-Deterrent System (If Equipped) If the ignition is off and either door is open, the SECURITY light will flash, SECURITY reminding you to activate the system. The light will also flash if the battery has been disconnected and reconnected. To activate the theft-deterrent system: Open the door.
Page 85: Testing The Alarm
Testing the Alarm 1. From inside the vehicle. roll down the window, then get out of the vehicle, keeping the door open. 2. From outside of the vehicle, with the door open, lock the vehicle using the power door lock or the remote keyless entry transmitter and close the door.
Page 86 PASS-Key@ I1 Your vehicle is equippea with the PASS-Key I1 theft-deterrent system. PASS-Key I1 is a passive system. The system is armed when the key is removed from the ignition. PASS-Key I1 uses a resistor pellet in the ignition key that is read by system in your vehicle.
Page 87: Ignition Positions
New Vehicle “Break-In” NOTICE: Your vehicle doesn’t need an elaborate “break-in.” But it will perform better in the long run if you follow these guidelines: Don’t drive at any one speed slow for the first 500 miles (805 km). Don’t make full-throttle starts. Avoid making hard stops for the first 200 miles (322 km) or so.
Page 88: Retained Accessory Power (Rap)
LOCK (B): Before put the key in, the ignition will be in LOCK. This is the only position in which you can remove the key. This position locks the ignition, steering wheel and transaxle. It’s a theft-deterrent feature. NOTICE: LOCK your key seems stuck in turn it, be sure you using the correct key;...
Page 89: Starting Your Engine
To restart when you’re already moving, use NEUTRAL (N) only. NOTICE: Don’t try to shift to PARK (P) if your Cadillac is moving. If you do, you could damage the transaxle. Shift to PARK (P) only when your vehicle is stopped.
Page 90: Engine Coolant Heater (If Equipped)
3. If your engine still won’t start (or starts but then stops), it could be flooded with too much gasoline. Try pushing your accelerator pedal all the way the floor and holding it there as you hold the key in START for about three seconds.
Page 91: To Use The Engine Coolant Heater
To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. 3. Plug into a normal, grounded 11 0-volt AC outlet. CAUTION: Plugging the cord into an ungrounded outlet could cause an electrical shock. Also, the wrong kind extension cord could overheat and cause a fire.
Page 92 ’ CAUTION: It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll. Don’t leave your vehicle when the engine is running unless you have to. If you have left the engine running, the vehicle can move suddenly.
Page 93 (N): NEUTRAL In this position, the engine doesn’t connect with the wheels. restart when you’re already moving, use NEUTRAL (N) only. Also, use NEUTRAL (N) when your vehicle is being towed. CAUTION: Shifting out of PARK (P) or NEUTRAL (N) while your engine is “racing”...
Page 94 THIRD (3): This position is also used for normal driving, however, it offers more power and lower fuel economy than OVERDRIVE (@). Here are examples for using THIRD (3) instead of OVERDRIVE (0): When driving on hilly, winding roads. When towing a trailer, so there is less sh between gears.
Page 95: Parking Brake
Parking Brake Hold the regular brake pedal down with your right foot and push down the parking brake pedal with your left foot to set the parking brake. If the ignition is on, the PARK BRAKE indicator light should come on. If it doesn’t, you need to have your vehicle serviced.
Page 96: Shifting Into Park (P)
CAUTION: Always shift to PARK before pulling the manual release lever. your hand or arm is in the way of the pedal you could be hurt. The pedal springs back quickly. Keep your hand and arm away when you use the manual release lever. NOTICE: Driving with the parking brake on can cause your rear brakes to overheat.
Page 97: Leaving Your Vehicle With The Engine Running
2 . Move the shift lever into PARK (P) like this: 3. Hold in the button on the lever and push the lever all the way toward the front of your vehicle. 4. With your right foot still holding the brake pedal down, set the parking brake.
Page 98: Torque Lock
Torque Lock If you are parking on a hill and you don’t shift your transaxle into PARK (P) properly, the weight of .the vehicle may put too much force on the parking pawl in the transaxle. You may find it difficult to pull the shift lever out of PARK (P).
Page 99: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Don’t park over papers, leaves, dry grass or other things that can burn. Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can’t see or smell.
Page 100: Running Your Engine While You're Parked
Running Your Engine While You’re Parked It’s better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle (see the earlier Caution under “Engine Exhaust”).
Page 101: Power Windows
Windows Power Windows The controls near each window. Press the control forward to raise the window and press rearward to lower. Note that the second rearward position on the driver's control operates the express-down window feature. Your vehicle has Retained Accessory Power (RAP). When you stop your vehicle and turn the ignition key to OFF, you can still use your power windows.
Page 102: Tilt Wheel
Tilt Wheel . . . Tilt steering allows you to adjust the steering wheel before you drive. Raising the steering wheel to the highest level gives your legs more room when you enter and exit the vehicle. Hold the steering wheel and pull the lever toward you to tilt the wheel.
Page 103: Headlamp High/Low-Beam Changer
Arrows that flash rapidly when signaling for a turn or lane change may be caused by a burned-out signal bulb. Other drivers won’t see the turn signal. Replace burned-out bulbs to help avoid possible accidents. Check the fuse (see “Fuses and Circuit Breakers”...
Page 104: Windshield Wipers
Windshield Wipers WIPER: Turn the band on the turn signal lever to control the wipers. MISE T u r n the band toward you and then release it for a single wipe cycle, For more cycles, hold the band on MIST longer.
Page 105: Windshield Washer
The Rainsense system can be activated by turning the wiper stalk to one the five sensitivity levels within the AUTO DELAY area. The AUTO DELAY position closest to OFF is the lowest sensitivity setting. This allows more water to collect on the windshield between wipes.
Page 106: Cruise Control
NOTICE: Driving without washer fluid can be dangerous. A bad mud splash can block your vision and you could hit another vehicle or go off the road. Check the washer fluid level often. Cruise Control With cruise control, you can maintain a speed of about 25 mph (40 or more without keeping your foot km/h)
Page 107 Setting Cruise Control CAUTION: If you leave your cruise control switch on when you’re not using cruise, you might hit a button into cruise when you don’t want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use it. 1.
Page 108 Reducing Speed While Using Cruise Control ways to There are two reduce your speed while using cruise control: Push in the button at the end of the lever until you reach a desired lower speed, then release it. A CRUISE ENGAGED message will then display in the Driver Information Center (DIC).
Page 109: Exterior Lamps
Exterior Lamps The control on the left side of the instrument panel controls these lamp systems: Headlamps Taillamps Parking Lamps Sidemarker Lamps License Plate Lamp Underhood Lamp Fog Lamps Instrument Panel Lights Interior Courtesy Lamps Pull the lamp control knob out to the first stop on the parking and taillamps, sidemarker lamps and instrument panel lights.
Page 110: Lamps On Reminder
Lamps On Reminder You will hear a warning chime if you open either door while leaving the lamps on, if the manual headlamp control is activated. An exception to this is when you’re using twilight sentinel. Daytime Running Lamps Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day.
Page 111: Fog Lamps
Fog Lamps the fog lamps for better vision in foggy or misty conditions. When you press the fog lamp button, a small indicator light will tell you that the fog lamps and the parking lamps are on. Press the button again to turn them off.
Page 112: Exterior Lighting Battery Saver
If it’s dark enough outside and the twilight sentinel control is off, a HEADLAMPS SUGGESTED message will display on the Driver Information Center (DIC). This message informs the driver that turning on the exterior lamps is recommended (it’s become dark enough outside to require the headlamps and/or other exterior lamps).
Page 113 Illuminated Entry The illuminated entry system turns on the courtesy lamps and the backlighting to the door switches and to the lamp control knob when a door is opened or if you press a remote keyless entry transmitter button. Since the illuminated entry system has a photocell, this means that it must be dark outside in order for the courtesy lamps or backlighting to turn on.
Page 114 Mirrors Electrochrornic Daymight Rearview Mirror When this feature is turned on, the mirror automatically changes to reduce glare from headlamps behind you. A photocell on the mirror senses when it is becoming dark outside. Another photocell, built into the mirror face, senses when headlamps are behind you.
Page 115 Cleaning the Photocells Use a cotton swab and glass cleaner to clean the photocells when necessary. Electrochromic Daymight Rearview Mirror with Compass (If Equipped) Your vehicle may have an electrochromic inside rearview mirror with a compass. When set in the MIRROR position, this mirror automatically changes to reduce glare from headlamps behind you.
Page 116 Compass Operation Press the COMPASS switch once to turn the compass on or off. When the ignition and the compass feature are on, the compass will show two character boxes for approximately two seconds. After two seconds, the mirror will display the compass heading. If, after two seconds, the display does not show a compass heading (“N’...
Page 117 4. Press the COMPASS button on the bottom of the mirror until the new zone number appears in the display. After you stop pressing the button, the display will show a “C” in the direction display within a few seconds. (This is the automatic calibration mode -- you’ll need to drive in a circle to calibrate the mirror.
Page 118: Driver's Outside Auto-Dimming Rearview Mirror
Driver’s Outside Auto-Dimming Rearview Mirror Only the driver’s side outside mirror will adjust for the glare of headlamps behind you. This feature is controlled by the on and off settings on the electrochromic mirror. See “Electrochromic Daymight Rearview Mirror” earlier in this section. Curb View Assist Mirror (If Equipped) If your mirror is equipped with memory mirrors, it will also be equipped with the curb view assist...
Page 119: Storage Compartments
Storage Compartments Glove Box The glove box is located in front of the passenger’s seat. To lock the glove box door, insert the oval key into the lock cylinder and turn it to the right. Turn the key to the left to unlock the door.
Page 120: Convenience Net
Rear Storage Armrest (If Equipped) Your vehicle may be equipped with a rear seat armrest which includes an open storage compartment and cupholder that unfolds for use. To open, lift the front edge. (This feature is available on vehicles with leather interiors only.) Convenience Net...
Page 121: Sun Visors
Cellular Telephone (Option) Your vehicle has been prewired for dealer installation of a Cadillac dual-mode (analog/digital) cellular telephone. fixed mobile or a portable hand-held system are available. Either system has steering wheel telephone controls and information output through the Driver Information Center (DIC).
Page 122: Floor Mats
Floor Mats Your vehicle is equipped with rubber-backed front and rear floor mats. Keep them clean by vacuuming and using a spot cleaner, if necessary. Do not machine wash. Astroroof (Option) The control switch only works when the ignition is on or when the Retained Accessory Power (RAP) is active.
Page 123: Programming The Transmitter
This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: j this device may not cause interference, and device must accept any interference, including interference that may cause undesired operation of the device. Changes and modifications to this system by other than an authorized service facility could void authorization to use this equipment.
Page 124: Operating The Transmitter
If you have trouble programming the universal transmitter, make sure that you have followed the directions exactly as described and that the battery in the hand-held transmitter is not dead. If you still cannot program it, rotate the hand-held transmitter end over end and try again.
Page 125: Erasing Channels
Training a Garage Door Opener with “Rolling Codes” (If Equipped) If you have not previously programmed the hand-held transmitter to the universal transmitter. see “Programming the Transmitter” earlier in this section. If you have completed this programming already. you now need to train the garage door opener receiver recognize the universal transmitter.
Page 126: Instrument Panel
Instrument Panel 2-56...
Page 127 designed to let you know at a glance how your vehicle is running. You’ll know how fast The instrument panel you’re going, how much fuel you’re using and many of the other things you’ll need to know to drive safely and economically.
Page 128 Cluster United States version shown, Canadian similar...
Page 129: Speedometer And Odometer
Speedometer and Odometer The speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). You may wonder what happens if a vehicle has to have new odometer installed.
Page 130 Vehicle Speed Limiter This feature prevents your vehicle from exceeding speeds that the tires are not rated for. When this happens, the engine’s fuel supply is shut off. When the vehicle speed slows, the fuel supply will come on again. Tachometer This gage indicates the engine speed in revolutions...
Page 131: Warning Lights, Gages And Indicators
Warning Lights, Gages and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 132: Airbag Readiness Light
Air Bag Readiness Light There is an air bag readiness light on the instrument panel, which shows AIR BAG. The system checks the air bag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the air bag sensors, the air bag modules, the wiring and the crash sensing and diagnostic module, For more information...
Page 133: Park Brake
This light should come BRAKE briefly when you turn the ignition key to If it doesn’t come on then, have it fixed ready to warn you if there’s a problem. If the light comes on while you are driving, pull off the road and stop carefully.
Page 134: Anti-Lock Brake System Warning Light
Anti-Lock Brake System Warning Light ( e ) With the anti-lock brake system, the light(s) will come on when you start ANT’- your engine and may stay LOCK on for several seconds, That’s normal. If the light stays on, turn the ignition to OFF. light comes on when you’re driving, stop as soon as possible and turn the ignition off.
Page 135: Engine Coolant Temperature Warning Light
Engine Coolant Temperature Warning Light This light tells you that the engine has overheated. You should stop your vehicle and turn the engine off as soon as possible. A warning chime should also sound if this light comes on. As a check, the light should come on for a few seconds when you start your engine.
Page 136 Malfunction Indicator Lamp (Service Engine Soon Light) Your vehicle is equipped with a computer which SERVICE monitors operation of the ENGINE fuel, ignition and emission control systems. SOON This system is called OBD I1 (On-Board Diagnostics-Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 137 If the Light Is Flashing The following may prevent more serious damage to your vehicle: Reducing vehicle speed. Avoiding hard accelerations. Avoiding steep uphill grades. If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible. If the light stops flashing and remains on steady, see “If the Light Is On Steady”...
Page 138: Oil Pressure Light
experience one or more of these conditions, you use. change the fuel brand It will require at least one full tank of the proper fuel to turn the light off. If none of the above steps have made the light turn off, have your dealer or qualified service center check the vehicle.
Page 139 Fuel Gage The fuel gage shows approximately how much fuel in the tank. It works only when the ignition is in RUN. Here are a few concerns some owners have had about the fuel gage. All of these situations are normal and do is wrong with the fuel gage.
Page 140: Driver Information Center (Dic)
Driver Information Center (DIC) This display gives you the status of many of your vehicle’s systems. The DIC is also used to display driver personalization features and warningktatus messages. DIC Control Buttons TRIP RESET By using this button, you can tell how far you’ve gone since you last set the TRIP RESET back to zero.
Page 141 To operate, press the INFO button to display TIMER. Each of the fields for the hours, minutes and seconds are two numeric digits. Once TIMER OFF 0O:OO:OO is displayed, press the INFO RESET button to start the timing feature. Press the INFO RESET button again to stop it.
Page 142 BATTERY NOT CHARGING appear if the battery is not being charged. Have the electrical system checked by your dealership at your earliest convenience. BATTERY VOLTAGE HIGH shows that the electrical charging system is overcharging (more than 16 volts). To avoid being stranded, have the electrical system checked by your dealership.
Page 143 BRAKE CHECK FLUID LEVEL will display if the ignition is in RUN to inform the driver that the brake fluid level is low. Check the brake reservoir level and add fluid as needed. Have the brake system serviced by a technician as soon as possible. If the brake warning light is on, follow the directions in that part.
Page 144 ENGINE COOLANT HOT-IDLE ENGINE This message will appear when the engine coolant “F temperature is over 248 126” C). To avoid added strain on a hot engine, turn off the climate control system. Stop and allow your vehicle to idle until it cools down or the message is removed.
Page 145 ICE POSSIBLE This message appears when the outside air temperature is cold enough to create icy road conditions. LOW REFRIG A/C OFF 12: This message means that the air conditioning system detects a refrigerant level that is low enough to cause damage to the air conditioning compressor.
Page 146 SERVICE SYSTEM 14: This message appears when the electronic sensors that control the air conditioning and heating systems are no longer working. Have the climate control system serviced if you notice a drop in heating and air conditioning efficiency. SERVICE AIR BAG 83: There is a problem with the Supplemental Inflatable Restraint (air bag) system when this message appears.
Page 147 STABILITY ENGAGED 55: You may see the STABILITY ENGAGED message on the Driver Information Center. It means that an advanced, computer-controlled system has come on to help your vehicle continue to in the direction in which you’re steering. This stability enhancement system activates when the computer senses that your vehicle is just starting to spin, as it might if you hit a patch of ice or other slippery spot on the road.
Page 148 TOP SPEED FUEL OFF 111: This message will senses appear when the PCM that the maximum speed for your vehicle has been reached. The speed of your vehicle will decrease several mph as the fuel supply is cut off. This allows your vehicle to stay in a stable operating range.
Page 149 VEHICLE OVERSPEED A failure in the suspension control system has occurred when this message appears. The PCM determines the speed your vehicle is limited to. Have your vehicle serviced if this message appears. VEHICLE SPEED LIMITED TO XXX MPH (KM/H) 113: A failure in the suspension control system has occurred when this message appears.
Page 150 mirror also recall a seat and vehicle is not in PARK (P). Press and hold either the 1 or 2 button until seat and mirror movement is complete. Releasing the buttons will stop adjustment. The EXIT button can be programmed to allow easy exit for up to two drivers.
Page 151 If a response is made after the DOORS LOCK IN GEAR prompt is displayed, FEATURE OFF will appear. The automatic door locking system has been disabled and no other door lock messages will be displayed. LGHTS FLSH AT UNLOCK, which is the next available personalization feature to display, will appear next.
Page 152 EXT LIGHTS AT UNLOCK: Exterior lamps (parking lamps, taillamps, sidemarker lamps, license plate lamps, low-beam headlamps, etc.) turn when the unlock button the remote keyless entry transmitter is pressed and it is dark outside. These lamps stay on for about 20 seconds or until the key is turned OFF.
Page 153 Curb View Assist Mirror (If Equipped with Memory) If your vehicle has this personalization feature, MIRROR TILT IN REV will be the fourth personalization prompt to display on the Driver Information Center (DIC). To program your vehicle, press the INFO and INFO RESET buttons at the same time for about two seconds.
Page 154 Climate Control Personalization With this feature, your vehicle will recall the latest climate control settings as adjusted the last time your vehicle was operated. This feature allows two different drivers to store and recall their own climate control settings. The settings recalled by the climate control system are determined by which remote keyless entry transmitter (“1”...
Page 155: Oil Life Indicator
Oil Life Indicator This feature lets you know when to change the engine oil. It’s based on the engine oil temperatures and your driving patterns. To see the display, press the INFO button several times until XX OIL LIFE LEFT appears. If you see 99% OIL LIFE LEFT, 99 percent of your current oil life remains.
Page 156 NOTES...
Page 157: Section 3 Comfort Controls And Audio Systems
Section 3 Comfort Controls and Audio Systems In this section, you’ll find out how to operate the comfort control and audio systems offered with your vehicle. Be sure to read about the particular systems supplied with your vehicle. Comfort Controls Climate Control Panel Electronic Solar Sensor Air Conditioning...
Page 158: Comfort Controls
Comfort Controls This section tells you how to make your air system work for you. Your Electronic Climate Control (ECC) system uses ozone-friendly R- 134a refrigerant. With the ECC system, you can control the heating, cooling and ventilation in your vehicle. Your vehicle also has a flow-through ventilation system described later in this section.
Page 159 The outside temperature sensor is located near the front grille. The sensor be affected by road or engine heat during idling, slow driving or when the engine is first started after a short trip. In order ensure proper automatic climate control operation, the outside air temperature display may not update as quickly as expected.
Page 160 out on a your vehicle is sitting hot day and you have set on AUTO, the air will first flow out the floor air outlets for a few seconds. That is normal. This is to expel hot air from the air outlets. As the air is cooled, the airflow will move through the air conditioning outlets.
Page 161 FAN SPEEDS: Press the button with the fan symbol on it until AUTO is displayed At this setting, the fan speed is automatically controlled. If it is cold outside, the blower may not run in the maximum high fan speed right away. The system checks the temperature of the engine coolant to assure it warm enough to provide heat.
Page 162: Electronic Solar Sensor
Electronic Solar Sensor The sensor monitors the sun’s solar radiation and is located on top of the instrument panel near the windshield. The ECC panel uses this information to automatically make the necessary temperature and airflow adjustments to maintain your comfort. Air Conditioning On hot days, open the windows long enough to let hot inside air escape.
Page 163: Ventilation System
Ventilation System Your vehicle's flow-through ventilation system supplies outside air into the vehicle when it is moving. Outside air will also enter the vehicle when the heater or the air conditioning fan is running. The front outlets are located in the center and at each side of the instrument panel.
Page 164: Rear Window Defogger
Ventilation Tips Keep the hood and front air inlet free of ice, snow or any other obstruction (such as leaves). The heater and defroster will work far better, reducing the of the chance of fogging the inside When enter a vehicle in cold weather, adjust the fan to the highest speed for a few moments before driving off.
Page 165: Hvac Steering Wheel Controls
For more information, see “Programmable, Memory and Personalization Features” in the Index. Audio Systems Your Cadillac audio system has been designed to operate easily and give years of listening pleasure. the most enjoyment out of it if you acquaint yourself with it first.
Page 166: Am-Fm Stereo With Cassette Tape Player
AM-FM Stereo with Cassette Tape Player Playing the Radio PWRNOL: Press this knob lightly to turn the system on. Press the knob again to turn the system off. increase volume, turn the knob to the right. Turn it to the left to decrease volume.
Page 167 3. Tune in the desired station. Press and hold one of the six numbered buttons for more than two seconds until you hear a beep. Whenever you press that numbered button for less than two seconds, the station you set will return. 5.
Page 168 Playing a Cassette Tape With the radio on, insert a cassette tape. The tape will begin playing as soon as it is inserted. When one side of your cassette tape is done playing, auto reverse plays the other side of your cassette tape. If you want to insert a cassette tape when the ignition is off, first press EJECT.
Page 169 SOURCE: Press this button to select a source. If no cassette tape is the tape player, CASS appears on the display and then the radio station appears briefly. The display then reverts back to showing the time of day. Press this button again or BAND to switch back to the radio.
Page 170 SOURCE: Press this button to select a source. Sources include cassette and compact disc. The audio source must be loaded to play. Available loaded sources are shown on the display. If a source is being used, it will be underlined on the display. If none of the audio sources are loaded, NO SOURCE LOADED will appear on the display.
Page 171 Setting the Tone TONE: Press and release this button until the desired tone control (BASS or TREBLE) is found. LEVEL: After selecting the desired tone control. press the plus or minus symbol on this button to select the desired level. Adjusting the Speakers SPEAKER: Press and release this button until the desired BALANCE or FADE control is found.
Page 172 Press the right arrow to fast forward to another part of the tape. The radio will play while the tape advances. You may use your station pushbuttons to tune to another radio station while in FF mode. Press the right arrow again to return to playing speed.
Page 173 Playing a Compact Disc Insert disc partway into the slot, label side up. The player will pull it in. If the ignition and the radio are on and the underlined compact disc symbol appears on the display, the disc will begin playing. Compact discs may be loaded with the radio off but they will not start playing until the radio is on.
Page 174 AM-FM Stereo with Cassette Tape and Compact Disc Player with Radio Data Systems (RDS) and Digital Signal Processing (DSP) (If Equipped) Playing the Radio PWRNOL: Press this knob lightly to turn the system on. Press the knob again to turn the system off. To increase volume, turn the knob to the right.
Page 175 PUSHBUTTONS: The six numbered pushbuttons let you return to your favorite stations. The RDS PTY mode must be off to use this mode. You can set up to 24 stations (six six FM1, six FM2 and six weather). Just: A M , 1.
Page 176 RDS (1): RDS off, With press the RDS SELECT button, followed by this button to turn RDS on. The RDS display will turn on. You must have RDS on to use the new RDS functions. The RDS display will also turn on if one of the other RDS function buttons has been pressed on.
Page 177 While a traffic announcement plays, the radio uses a special type of volume called TA volume. To increase TA the PWRNOL knob to the right. volume, turn the left to decrease volume. TA VOLUME will appear on the display while the volume is being adjusted. When a traffic announcement comes on the tuned radio station or a related network station, you will hear it, even if the volume is muted or a cassette tape or...
Page 178 a station with the selected PTY is not found, FOUND will appear on the display. If both PTY and TA are on, the radio will search for stations with traffic announcements and the selected PTY. PUSHBUTTONS: The six numbered pushbuttons let you return to your favorite Program Types (PTYs).
Page 179 Setting the Tone TONE: Press and release this button until the desired tone control (BASS or TREBLE) is found. LEVEL: After selecting the desired tone control. press the plus or minus symbol on this button to select the desired level. DSP: The Digital Signal Processing (DSP) feature is used to provide a choice of four different listening experiences: TALK, DRIVER SEAT, LIVE and...
Page 180 Playing a Cassette Tape With the radio insert a cassette tape. The tape will begin playing as soon as it is inserted. When one side of your cassette tape is done playing, auto reverse plays the other side of your cassette tape. Cassette tapes may be loaded with the radio off but they will not start playing until the radio is on.
Page 181 Press the right arrow to fast forward to another part of the tape. The radio will play while the tape advances. You may use your station pushbuttons to tune to another radio station while in mode. Press the right arrow again to return to playing speed.
Page 182 Playing a Compact Disc Insert a disc partway into the slot, label side up. The player will pull it in. If the ignition and the radio are on and the underlined compact disc symbol appears on the display, the disc will begin playing. Compact discs may be loaded with the radio off but they will not start If you want to insert a disc...
Page 183 Radio Data Systems (RDS) Program Type (PTY) Selections List ........... . Adlt Hit .
Page 184: Trunk Mounted Cd Changer (If Equipped)
Trunk Mounted CD Changer (If Equipped) With the compact disc changer, you can play up to 12 discs continuously. Normal size discs may be played using the trays supplied in the magazine. The smaller discs (8 cm) can be played only with specially trays.
Page 185 Once you have loaded the discs in the magazine, slide open the door of the compact disc (CD) changer. Push the magazine into the changer in the direction of the arrow marked on top of the magazine. " i * A d Close the door by sliding the door is closed, the changer will begin checking for discs in the magazine.
Page 186 Whenever a magazine with discs is loaded in the changer, the CD changer symbol will appear on the radio display. If the CD changer is checking the magazine for CDs, the CD symbol will flash on the display until the changer is ready to play. When a CD begins playing, a disc and track number will be displayed.
Page 187 RDM: Press this button to hear the tracks in random. rather than sequential, order. RANDOM will appear on the display. Press TUNE-SEEK while RDM is on the display to randomly seek through discs and tracks. Press RDM again to turn off random play. (This button is not available the AM-FM Stereo with Cassette Tape Player.)
Page 188: Cd Adapter Kits
CD Adapter Kits It is possible to use a CD adapter kit with your cassette tape player after activating the bypass feature on your tape player. To activate the bypass feature, use the following steps: Turn the ignition to RUN or ACCESSORY. Turn the radio off.
Page 189: Theft-Deterrent Feature
Theft-Deterrent Feature THEFTLOCK@ is designed to discourage theft of your radio. Your vehicle has a “built-in” theft-deterrent feature on each radio that is automatic programming required. The radio in your vehicle cannot be used in any other vehicle. When the radio was originally installed in your vehicle at the factory, it stored the Vehicle Identification Number (VIN).
Page 190: Understanding Radio Reception
SELECT When listening to the radio, press the up or down arrow lever to tune to the next or previous preset radio station. (If your vehicle is equipped with the AM-FM Stereo with Cassette Tape Player, factory presets which have not been reprogrammed with your stations will be ignored).
Page 191: Care Of Your Cassette Tape Player
To help avoid hearing loss or damage: Adjust the volume control to the lowest setting. Increase volume slowly until you hear comfortably and clearly. NOTICE: Before you add any sound equipment to your vehicle like a tape player, CB radio, mobile telephone or two-way radio be sure you can add what you want.
Page 192: Care Of Your Compact Discs
When using a scrubbing action, non-abrasive cleaning cassette, it is normal for the cassette to eject because your unit is equipped with a cut tape detection feature and a cleaning cassette may appear as a broken tape. To prevent the cleaning cassette from being ejected, use the following steps.
Page 193: Care Of Your Compact Disc Player
Care of Your Compact Disc Player The use of CD lens cleaner discs is not advised, due to the risk of contaminating the lens of the CD optics with lubricants internal to the CD mechanism. Power Antenna Mast Care Your power antenna will look its best and work well if it's cleaned from time to time.
Page 194 NOTES 3-38...
Page 195 NOTES @ I I 3-39...
Page 196 NOTES 3-40...
Page 197 NOTES 3-41...
Page 198 NOTES 3-42...
Page 199: Section 4 Your Driving And The Road
Section 4 Your Driving and the Road Here you’ll find information about driving on different kinds of roads and included many other useful tips on driving. 4- 2 Defensive Driving 4- 3 Drunken Driving Control of a Vehicle Braking 4- 10 Steering Off-Road Recovery 4- 13...
Page 200: Defensive Driving
The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device In your Cadillac: Buckle up. (See “Safety Belts” in the Index.) Defensive driving really means “be ready for anything.” On city streets, rural roads or freeways, it means “always expect the unexpected.”...
Page 201: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It’s the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: Judgment Muscular Coordination Vision...
Page 202 It’s the amount of alcohol that counts. For example, if the same person drank three double martinis (3 ounces or 90 ml of liquor each) within an hour, the person’s BAC would be close to 0.12 percent. A person who consumes food just before or during drinking will have a somewhat lower BAC level.
Page 203 The body takes about an hour to rid itself of the alcohol in one drink. No amount of coffee or number of cold showers will speed that up. ‘‘I’ll be careful” isn’t the right answer. What if there’s an emergency, take sudden action, as when a child darts into the street? A person with even a moderate BAC might not be able to react quickly enough to avoid the collision.
Page 204: Control Of A Vehicle
Control of a Vehicle have three systems that make your vehicle go where you want it to go. They are the brakes, the steering and the accelerator. All three systems have to do their work at the places where the tires meet the road. Sometimes, as when you’re driving on snow or ice, it’s easy to ask more of those control systems than the tires and road can provide.
Page 205: Anti-Lock Brakes (Abs)
Avoid needless heavy braking. Some people drive in spurts heavy acceleration followed by heavy braking rather than keeping pace with traffic. This is a mistake. Your brakes may not have time to cool between hard stops. Your brakes will wear out much faster if If you keep pace with the do a lot of heavy braking.
Page 206 ." Here's how anti-lock works. Let's say the road is wet. You're driving safely. Suddenly an animal jumps out in front of you. You slam on the brakes. Here's what happens with ABS. computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each front wheel and at both rear wheels.
Page 207: Traction Control System
Remember: Anti-lock doesn’t change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you won’t have time to apply your brakes if that vehicle suddenly slows or stops.
Page 208: Braking In Emergencies
To turn the system off, press the TRAC OFF button located inside of the glove box. The TRACTION OFF message will display on the Driver Information Center. the system is limiting wheel spin when you press the button, the TRACTION OFF message will display but the system won’t turn off right away.
Page 209: Steering Tips
Steering Tips Driving on Curves It’s important to take curves at a reasonable speed. A lot of the “driver lost control” accidents mentioned on the news happen on curves. Here’s why: Experienced driver or beginner, each of us is subject to the same laws of physics when driving on curves.
Page 210: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and find truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 211: Off-Road Recovery
Off-Road Recovery You may find that your right wheels have dropped off the edge of a road onto the shoulder while you’re driving. edge of paved surface If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 212 not get too close to the vehicle you want to pass while you’re awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you’re following a larger vehicle. Also, you won’t have adequate space if the vehicle ahead suddenly slows or stops.
Page 213: Loss Of Control
Loss of Control Let’s review what driving experts say about what happens when the three control systems (brakes, steering and acceleration) don’t have enough friction where the tires meet the road to do what the driver has asked. In any emergency, don’t give up. Keep trying to steer and constantly seek an escape route or area of less danger.
Page 214: Driving At Night
Driving at Night Night driving is more dangerous than day driving. One reason is that some drivers are likely to be impaired by alcohol or drugs, with night vision problems, or by fatigue. 4-16 Here are some tips on night driving. Drive defensively.
Page 215: Night Vision
Night Vision No one can see as well at night as in the daytime. But as we get older these differences increase. driver may require at least twice as much light to see the same thing at night as a 20-year-old. What you do in the daytime can also affect your night vision.
Page 216: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads 4-18 Rain and wet roaas can mean ariving trouble. On a wet road, you can‘t stop, accelerate or turn as well because your tire-to-road traction isn’t as good as on dry roads. And, if your tires don’t have much tread left, you’ll get even less traction.
Page 217 Driving too fast through large water puddles or even going through some car washes can cause problems, too. The water may affect your brakes. Try to avoid puddles. But if you can’t, try to slow down before you CAUTION: Wet brakes can cause accidents. They won’t as well in a quick stop and may cause pulling to one side.
Page 218: Driving Through Deep Standing Water
Driving Through Deep Standing Water NOTICE: If you drive too quickly through deep puddles or standing water, water can come in through your engine’s air intake and badly damage your engine. Never drive through water that is slightly lower than the underbody of your vehicle. If you can’t avoid deep puddles or standing water, drive through them very slowly.
Page 219: Freeway Driving
increase your safety in city driving: Here are ways Know the best way to get to where you are going. Get a city map and plan your trip into an unknown part of the city just as you would for a cross-country trip.
Page 220: Before Leaving On A Long Trip
The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving. Too-fast or too-slow driving breaks a smooth traffic flow. Treat the left lane on a freeway as a passing lane.
Page 221: Highway Hypnosis
Of course. you'll find experienced and able service experts in Cadillac dealerships ail across North America. They'll ready and willing to help if you need Here are some things you can check before a trip:...
Page 222: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or mountains is different from driving in flat or rolling terrain. 4-24 you drive regularly in steep country, or if you’re planning to visit there, here are some tips that can make your trips safer and more enjoyable.
Page 223: Winter Driving
CAUTION: Coasting downhill in NEUTRAL off is ignition dangerous. Your brakes will have to the work of slowing down. They could get so hot that they wouldn’t work well. You would then have poor braking or even none going down a You could crash.
Page 224: Driving On Snow Or Ice
Include an ice scraper, a small brush or broom, a supply of windshield washer fluid, a rag, some winter outer clothing, a small shovel, a flashlight, a red cloth and a couple of reflective warning triangles. And, if you will be driving under severe conditions, include a small bag of sand, a piece of old carpet or a couple of burlap bags to help provide traction.
Page 225 What’s the worst time for this? “Wet ice.” Very cold snow ice can be slick and hard to drive ice can be even more trouble because it may offer the least traction of all. You can get wet ice when it’s about freezing (32°F;...
Page 226: If You're Caught In A Blizzard
If You're Caught in a Blizzard If you are stopped by heavy snow, you could be in a serious situation. You should probably stay with your vehicle unless you know for sure that you are near help and you can hike through the snow. Here are some things to do to summon help and keep yourself and your passengers safe: Turn on your hazard flashers.
Page 227 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. could overcome you and kill you. You can’t see it or smell it, so you might not know it is in your vehicle. Clear away snow from around the base of your vehicle, especially any that is blocking your exhaust pipe.
Page 228: Loading Your Vehicle
Loading Your Vehicle TIRE-LOADING INFORMATION OCCUPANTS VEHICLE CAP, WT. FRT. CTR. TOTAL LBS. MAX. LOADING & GVWR SAME AS VEHICLE CAPACITY WEIGHT TIRE SIZE SPEED FRT. SPA. TIRES ARE HOT, 4PS1!28KPa MANUAL SEE OWNER‘S FOR ADDITlONAL \INFORMATION Two labels on your vehicle show how much weight it may properly carry.
Page 229: Electronic Level Control
CAUTION: Do not load your vehicle any heavier than the GVWR, or either the maximum front or rear GAWR. you do, parts on your vehicle can break, or it can change the way your vehicle handles. These could cause you to lose control. Also, overloading can shorten the life of your v,ehicle.
Page 230: Towing A Trailer
Towing a Trailer CAUTION: you don’t use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well or even at all. You and your passengers could be seriously injured.
Page 231: Weight Of The Trailer
Don’t tow a trailer at all during the first 1,000 miles (1 600 your new vehicle is driven. Your engine, axle or other parts could be damaged. Then, during the first 500 miles (800 tow a trailer, don’t drive over 50 mph (80 k m / h ) and don’t make starts at full throttle.
Page 232: Weight Of The Trailer Tongue
You can ask your dealer for our trailering information or advice, or you can write us at: Cadillac Customer Assistance Center Cadillac Motor Car Division P.O. Box 436004 Pontiac, MI 48343-6004 In Canada, write to: General Motors of Canada Limited...
Page 233: Total Weight On Your Vehicle's Tires
Total Weight on Your Vehicle’s Tires Be sure your vehicle’s tires are inflated to the upper limit for cold tires. You’ll find these numbers on the Tire-Loading Information label at the rear edge of the driver’s door or see “Loading Your Vehicle” in the Index.
Page 234: Trailer Brakes
Trailer Brakes Because you have anti-lock brakes, don’t try to tap into your vehicle’s hydraulic brake system. If you do, both brake systems won’t work well, or at all. If you tow more than 1000 lbs. (450 kg), use trailer brakes. Be come sure to follow the instructions that or from brake manufacturer.
Page 235: Making Turns
Check with your Cadillac dealer. The green arrows on your instrument panel will flash whenever you signal a turn or lane change. Properly hooked up, the trailer lamps will also flash, telling other drivers you’re about to turn,...
Page 236 Parking on Hills You really should not park your vehicle, with a trailer attached, on a hill. If something goes wrong, your rig could start to move. People can be injured, and both your vehicle and the trailer can be damaged. But if you ever have to park your rig on a hill, here’s how to do it: 1.
Page 237 NOTES 4-39...
Page 238 NOTES & I 4-40...
Page 239 NOTES 4-41...
Page 240 NOTES 4-42...
Page 241: Section 5 Problems On The Koad
Section 5 Problems on the Koad Here you'll find what to do about some problems that can occur on the road. Hazard Warning Flashers Other Warning Devices Jump Starting Towing Your Vehicle 5- 15 Engine Overheating 5-24 Tire Goes Flat 5-24 Changing a Flat Tire...
Page 242: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning flashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will flash on and off. Press the button in td make your front and rear turn signal lamps flash on and off.
Page 243: Jump Starting
Pull out on the collar to turn the flashers off. When the hazard warning flashers are on, the turn signals won't work since they are already flashing. Other Warning Devices If you carry reflective triangles, you can set one up at the side of the road about 300 feet (100 m) behind your vehicle.
Page 244 NOTICE: Ignoring these steps could result in costly damage to your vehicle that wouldn’t be covered by your warranty. Trying to start your vehicle by pushing or pulling it won’t work, and it could damage your vehicle. 1. Check the other vehicle. It must have a 12-volt battery with a negative ground system.
Page 245 5 . Start by removing the red positive terminal cover. Using a match near gas to explode. People have been hurt doing this, and some have been blinded. Use a flashlight if you need more light. Be sure the battery has enough water. You don’t need to add water to the Delco Freedom@ battery installed in every new GM vehicle.
Page 246 6. Check that the cables don't have loose or jumper you could get a missing insulation. If they do, The vehicles could also be damaged. Before you connect the cables, here are some basic things you should know. Positive positive and negative will go metal engine part or a body metal surface.
Page 247 Don't let the other end of the positive cable touch metal. Connect it to the positive terminal of the good battery. 9. Now connect the black negative cable to the good battery's negative terminal. Don't let the other end of the negative anything until the next step.
Page 248: Towing Your Vehicle
13. Remove the cables in reverse order to prevent electrical shorting. Take care that they don’t touch each other or any other metal. A. Heavy Metal Engine Part Good Battery Dead Battery Towing Your Vehicle Try to have a GM dealer or a professional towing service tow your vehicle.
Page 249 Front Towing Rear Towing CAUTION: To help avoid injury to you or others: Never let passengers ride in a vehicle that is being towed. Never tow faster than safe or posted speeds. Never tow with damaged parts not fully secured. Never get under your vehicle after it has been lifted by the tow truck.
Page 250 A vehicle can fall from a car carrier if it isn’t adequately secured. This can cause a collision, serious personal injury and vehicle damage. The vehicle should be tightly secured with chains or steel cables before it is transported. Don’t use substitutes (ropes, leather straps, canvas webbing, etc.) that can be cut by sharp edges underneath the towed vehicle.
Page 251: Front Towing
Front Towing 35 mph (55 kplz), 25 miles Tow Limits L‘ NOTICE: Do not tow with sling type equipment or fascidfog lamp damage will occur. Use wheel-lift or car-carrier equipment. Additional ramping may be required for car-carrier equipment. Use safety chains and wheel straps. Towing a vehicle over rough surfaces could damage a vehicle.
Page 252 Attach T-hook chains on both sides, in the slotted holes in the bottom of the frame rails, behind the front wheels. These slots are to be used when loading and securing to car-carrier equipment. 5-12 Attach a separate safety chain around the outboard end of each lower control arm.
Page 253: Rear Towing
Rear Towing NOTICE: Tow Limits mph (55 kph), 25 miles (40 Do not tow with sling type equipment or rear bumper valance damage will occur. Use wheel-lift or car-carrier equipment. Additional ramping may be required for car-carrier equipment. Use safety chains and wheel straps. Towing a vehicle over rough surfaces could damage a vehicle.
Page 254 Attach R-hook chains to the R-hook slots in the frame rails just ahead of the rear wheels on both sides. These slots are to be used when loading and securing to car-carrier equipment. 5-14 Attach a separate safety chain around the end of each axle inboard of the spring.
Page 255: Engine Overheating
Engine Overheating You will find an ENGINE COOLANT HOT, ENGINE message or ENGINE OVERHEATED, STOP ENGINE message on the Driver Information Center (DIC). will also hear a chime. There is also an engine temperature warning light and/or gage on the instrument panel.
Page 256: If Steam Is Coming From Your Engine
If Steam Is Coming From Your Engine 5-16 CAUTION: Steam from an overheated engine can burn badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming from it. Just turn it off and get everyone away from the vehicle until it cools down.
Page 257: If No Steam Is Coming From Your Engine
NOTICE: If your engine catches fire because you keep driving with no coolant, your vehicle can be badly damaged. The costly repairs would not be covered by your warranty. See “Overheated Engine Protection Operating Mode” in the Index. If No Steam Is Coming From Your Engine If you get the overheat warning but see or hear no steam, the problem may not be too serious.
Page 258 When you decide it’s safe to lift the hood, here’s what you’ll see: T a n k A. Coolant Surge with Pressure Cap Electric Engine Fans 5-18 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
Page 259 ” If it isn’t, the coolant level should be indicated by a CHECK COOLANT LEVEL message on the Driver Information Center. If it is, you may have a leak in the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system. CAUTION: Heater and radiator hoses, and other engine parts, can be very hot.
Page 260: How To Add Coolant To The Coolant Surge Tank
How to Add Coolant to the Coolant Surge Tank If you haven’t found a problem yet, but the coolant level isn’t at the proper level (2.5 inches (6.4 cm) below the base of the fill neck), add a 50/50 mixture of clean water (preferably distilled) and DEX-COOL@ coolant at the coolant surge tank, but be sure the cooling system, including the coolant surge tank pressure cap, is cool...
Page 261 CAUTION: (Continued) get the overheat warning. Your engine could catch fire and you or others could be burned. Use a 50/50 mixture of clean water and DEX-COOL@ coolant. NOTICE: In cold weather, water can freeze and crack the engine, radiator, heater core and other parts. So use the recommended coolant.
Page 262 3. Then fill the coolant surge tank with the proper 2. Then keep turning the cap, but now push down as mixture, up to the base of filler neck. turn it. Remove the pressure cap. 5-22...
Page 263 4. With the coolant surge tank pressure cap off. start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fans. By this time, the coolant level inside the coolant surge tank may be lower.
Page 264: If A Tire Goes Flat
If a Tire Goes Flat It’s unusual for a tire to “blow out” while you’re driving. especially if you maintain your tires properly. If air goes out of a tire, it’s much more likely to leak out slowly. But if you should ever have a “blowout,” here are a few tips about what to expect and what to do: If a front tire fails, the flat tire will create a drag that pulls the vehicle toward that side.
Page 265: Removing The Spare Tire And Tools
................The following steps will tell you how change a tire.
Page 266 Lift up the tire to remove it from the trunk. Turn the nut holding the jack and wheel wrench to the remove Then remove the jack and wrench. left and 5-26...
Page 267: Removing The Wheel Cover
The tools you'll be using include the jack (A) and the wheel wrench (B). Removing the Wheel Cover There is a center wheel cover on the aluminum wheel. Using the flat end of the wheel wrench, gently pry the wheel cover off. Be careful not to scratch the aluminum wheel edge and don't try to remove it with your hands.
Page 268: Removing The Flat Tire And Installing The Spare Tire
Removing the Flat Tire and Installing the Spare Tire 1. Using the wheel wrench, loosen all the wheel nuts. Don't remove them yet. T u r n the jack handle to the right to raise the jack lift head a few inches. 5-28 CAUTION: Getting under...
Page 269 1 t - INCHES INCHES (140 (279 3. Position the jack under the vehicle and raise the jack lift head until it fits firmly the notch into vehicle’s frame nearest the flat tire. Put the compact spare tire near you. 5-29...
Page 270 4. Raise the vehicle by turning the jack handle to the right. Raise the vehicle far enough off the ground for the spare tire to fit under the vehicle. Remove all wheel nuts and take off the flat tire. 5-30 6.
Page 271 CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 7 . Replace the wheel nuts with the rounded end of the nuts toward the wheel.
Page 272 Tighten the wheel nuts firmly sequence as shown. CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to become loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new GM original equipment wheel nuts.
Page 273: Storing The Flat Tire And Tools
Storing the Flat Tire and Tools CAUTION: Storing a jack, a tire or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. After you've put the compact spare tire on your vehicle, you'll need to store the flat tire in your trunk.
Page 274: Compact Spare Tire
The compact spare is for temporary the compact spare tire with a full-size tire as can. See the storage instructions label to replace your tfrmk compact spare into your properly.' SPARE TIRE WHEEL WRENCH 5-34 only. Replace Compact Spare Tire soon as you Although the compact spare tire was fully inflated...
Page 275: If You're Stuck: In Sand, Mud, Ice Or Snow
NOTICE: When the compact spare is installed, don’t take your vehicle through an automatic car wash with guide rails. The compact spare can get caught the rails. That can damage the tire and wheel, and maybe other parts of your vehicle. Don’t use your compact spare on other vehicles.
Page 276: Rocking Your Vehicle To Get It Out
NOTICE: Spinning your wheels can destroy parts of your vehicle as well as the tires. If you spin the wheels too fast while shifting your transaxle back and forth, you can destroy your transaxle. For information about using tire chains on your vehicle, see “Tire Chains”...
Page 277 & NOTES 5-37...
Page 278 b% NOTES 5-3s...
Page 279 5-39...
Page 280 4 6 NOTES 5-40...
Page 281: Section 6 Service And Appearance Care
, < + --\, Section 6 Service and Appearance Care Here you will find information about the care of your vehicle. This section begins with service and fuel infomation, and then it shows how to check important fluid and lubricant levels. There is also technical information about your vehicle, and a part devoted to its appearance care.
Page 282 Service Your dealer knows your vehicle best and wants you to be happy with it. W e hope you’ll. go all your service needs. You’ll get genuine GM parrs and GM-trained and supported service people. hope you’ll want to keep your Genuine parts have one of these marks: Genuine...
Page 283: Adding Equipment To The Outside Of Your Vehicle
CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. Be sure you have sufficient knowledge, experience, the proper replacement parts and tools before you attempt any vehicle maintenance task.
Page 284 If this occurs, return to your authorized Cadillac dealer for diagnosis to determine the cause of failure. In the event it is determined that the cause the condition is the type of fuels used, repairs may not be covered by your warranty.
Page 285: Fuels In Foreign Countries
Fuels in Foreign Countries If you plan on driving in another country outside the United States or Canada, the proper fuel may be hard to find. Never use leaded gasoline or any other fuel not recommended in the previous text on fuel. Costly repairs caused by use of improper fuel wouldn’t be covered by your warranty.
Page 286 The cap is behind a hinged door on the driver's side of your vehicle. The fuel door release is located on console and on the Remote Keyless Entry (RKE) transmitter. An alternate fuel door release is located inside of the trunk on the left hand side.
Page 287 CAUTION: If you get gasoline on yourself and then something ignites it, you could be badly burned. Gasoline can spray out on you if you open the fuel filler cap too quickly. This spray can happen if your is nearly full, and is more likely in tank hot weather.
Page 288: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never fill a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs.
Page 289: Hood Release
Hood Release Pull the lever inside the vehicle to open the hood. It is located on the lower left side of the instrument panel. Then go to the front of the vehicle and find the secondary hood release which is located under the front edge of the grille.
Page 290 A. Battery B. Coolant Fill Location C. Power Steering Fluid Before closing the hood, be sure all filler caps are on properly. Then pull the hood down and close 6-10 D. Oil Fill Location E. Engine Oil Dipstick Location E Brake Master Cylinder G.
Page 291: Underhood Lamp
Underhood Lamp Turn the parking lamps on to operate the underhood lamp. The underhood lamp will come on when the hood is opened. Engine Oil UNLEADED iMlUM FUEL ONLY @BMaBUD ....
Page 292: Checking Engine Oil
Checking Engine Oil Pull out the dipstick and clean it with a paper towel or cloth, then push it back in all the way. Remove it again, keeping the tip down, and check the level. When to Add Engine Oil at or the oil is below the...
Page 293: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Oils recommended for your vehicle can be identified by looking for the "Starburst" symbol. This symbol indicates that the oil has been certified by the American Petroleum Institute (API). Do not use any oil which does not carry this Starburst symbol.
Page 294: Engine Oil Additives
As shown in the chart, SAE 1OW-30 is best for your can use SAE 5W-30 if it’s going vehicle. However, to be colder than 60°F (16°C) before your next oil change. When it’s very cold, you should use SAE 5W-30. These numbers on an oil container show its viscosity, or thickness.
Page 295: What To Do With Used Oil
How to Reset the Oil Life Indicator After the oil has been changed, display the OIL LEFT message by pressing the INFO button. Then press and hold the INFO RESET button until the display shows “100.” This resets the oil life index. The message will remain off until the next oil change is needed.
Page 296 1. Disconnect the Intake Air Temperature sensor from the base of the air cleaner. 2. With a screwdriver, loosen the air duct clamp, which is located at the mass airflow sensor end of the air duct. 3 . Disconnect the air duct from the mass airflow sensor. 6-16 (IAT) 4.
Page 297 6. Take out the air cleaner filter and remove any loose debris that may be found laying in the air cleaner base. 7. Install a new air filter element. See "Normal Maintenance Replacement Parts" in the Index. Follow these steps to reinstall the air cleaner assembly: Slide the air cleaner lid into the slots in the front edge the air cleaner base.
Page 298: Automatic Transaxle Fluid
CAUTION: Operating the engine with the air cleaner off can cause you or others to be burned. The air cleaner not only cleans the air, it stops flame if the engine backfires. If it isn’t there, and the engine backfires, you could be burned. Don’t drive with it off, and be careful working on the engine with the air cleaner off.
Page 299: How To Check
How to Check Because this operation can be a little difficult, you may choose to have this done at your Cadillac dealership Service Department. If you do it yourself, be sure to follow all the instructions here, or you could get a false reading on the dipstick.
Page 300: How To Add Fluid
Then, without shutting off the engine, follow these steps: The black transaxle fluid cap is located next to the radiator hose and below the air cleaner assembly on the driver’s side of the engine. Remove the air cleaner assembly so you can reach the transaxle fluid cap.
Page 301 If the fluid level is low, add only enough of the proper fluid to bring the level into the cross-hatched area on the dipstick. 1 . Pull out the dipstick. 2. Using a long-neck funnel, add enough fluid at the dipstick hole to bring it to the proper level.
Page 302: Engine Coolant
Engine Coolant The cooling stem in your vehicle is filled with DEX-COOL engine coolant. This coolant is designed to remain in your vehicle for 5 years or 150,000 miles (240 000 km) whichever occurs first, if you add only DEX-COOL’ extended life coolant. The following explains your cooling system and how to add coolant when it is low.
Page 303: What To Use
What to Use Use a mixture of one-half clean water (preferably distilled) and one-half DEX-COOL” coolant which won’t damage aluminum parts. If you use this mixture. you don’t need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 304: Checking Coolant
Checking Coolant The surge tank is located next to the engine block on the passenger's side of the engine. The cooling system is under a lot of pressure when it the CHECK COOLANT LEVEL message is hot. appears on the Driver Information Center (DIC), you will need to add coolant.
Page 305: Surge Tank Pressure Cap
Adding Coolant If you need more coolant, add the proper DEX-COOL@ coolant mixture ut the surge tank, but only when the engine is cool. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough.
Page 306: When To Check Power Steering Fluid
Power Steering Fluid The power steering fluid reservoir is located next to the coolant surge tank on the passenger’s side When to Check Power Steering Fluid It is not necessary to regularly check power steering fluid unless you suspect there is leak in the system or you hear an unusual noise.
Page 307: Adding Washer Fluid
Adding Washer Fluid The windshield washer fluid reservoir is located next to the air cleaner on the driver’s side of the engine. Open the cap labeled WASHER FLUID ONLY. Add washer fluid until the tank is full. NOTICE: When using concentrated washer fluid, follow the manufacturer’s instructions for adding water.
Page 308: Brake Fluid
Brakes Brake Fluid Your brake master cylinder reservoir is here. It is filled with DOT-3 brake fluid. There are only two reasons why the brake fluid level in the reservoir might go down. The first is that the brake fluid goes down to an acceptable level during normal brake lining wear.
Page 309 What to Add When you do need brake fluid. use only DOT-3 brake fluid such as Delco Supreme 1 1 No. 12377967). Use new brake fluid from container only. Always clean the brake fluid reservoir cap and the area around the cap before removing it. This will help keep dirt from entering the reservoir.
Page 310: Brake Wear
Brake Wear Your vehicle has four-wheel disc brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving (except when you are pushing on the brake pedal firmly).
Page 311: Replacing Brake System Parts
Battery Every new Cadillac has a Delco Freedom@ battery. You never have to add water to one of these. When it‘s time for a new battery, we recommend a Delco Freedom battery.
Page 312: Bulb Replacement
Bulb Replacement For any bulb changing procedure not listed in this section, contact your dealer’s service department. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb. You or others could be injured. Be sure to read and follow the instructions on the bulb package.
Page 313 ' I . 2. Lift off cover as shown. 3. Turn the headlamp housing socket to the left to unlock the socket from the lamp housing. 6-33...
Page 314 5 . After removing th'e wiring harness from the 4. Remove the headlamp housing socket. headlamp housing socket. replace the bulb and socket. Reconnect it to the wiring harness and reinstall the headlamp housing socket back into the headlamp assembly. 6-34...
Page 315: Front Turn Signal Lamps
Front Turn Signal Lamps The turn signal lamps located on the outboard side of the headlamps. To access, turn the lock tabs on the headlamp cover in the direction of the arrows and then lift off the cover (see Steps 1 and 2 under "Headlamps").
Page 316: Center High-Mounted Stoplamp (Chmsl)
Center High-Mounted Stoplamp (CHMSL) Reverse the steps to reassemble the stoplamp assembly. 1. Lift the trim cover remove. 2. Twist the socket to the left and remove the socket and bulb from the housing. 6-36...
Page 317 Rear Turn Signal Lamps and Taillamps 1. Open the trunk to gain access to the lamp housing. 2. Remove the convenience net and pull the trim away to access the wing nuts. 3. Remove the two wing nuts. 4. Gently remove the lamp housing. Press the bulb housing lever and rotate the housing to the left to remove it.
Page 318: Windshield Wiper Blade Replacement
Tires Your new vehicle comes with high-quality tires made a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your Cadillac Warranty booklet for details.
Page 319 CAUTION: Poorly maintained and improperly used tires are dangerous. Overloading your tires can cause overheating as a result of too much friction. You could have an air-out and a serious accident. See “Loading Your Vehicle” h the Index. UnderinfJated tires pose the same danger as overloaded tires.
Page 320: Tire Inspection And Rotation
NOTICE: Don’t let anyone tell you that underinflation or overinflation is all right. It’s not. If your tires don’t have enough air (underinflation), you can get the following: Too much flexing Too much heat Tire overloading Bad wear Bad handling Bad fuel economy.
Page 321 The purpose of regular rotation is to achieve more on the uniform wear for all tires vehicle. The first rotation is the most important. See “Scheduled Maintenance Services” in the Maintenance Schedule booklet for scheduled rotation intervals. When rotating your tires, always use the correct rotation pattern shown here.
Page 322: Buying New Tires
When It’s Time for New Tires One way to tell when it’s time for new tires is check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 less of tread remaining. You need a new tire if any of the following statements are true: You can see the indicators at three or more places around the tire.
Page 323: Uniform Tire Quality Grading
CAUTION: Mixing tires could cause you to lose control while driving. If you mix tires of different sizes or types (radial and bias-belted tires), the vehicle may not handle properly, and you could have a crash. Using tires of different sizes may also cause damage to your vehicle.
Page 324: Wheel Alignment And Tire Balance
Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and a half (1 1/2) times as well on the government course as a tire graded 100.
Page 325: Wheel Replacement
GM original equipment parts. This way, you will be sure to have the right wheel, wheel bolts and wheel nuts for your Cadillac model. CAUTION: Using the wrong replacement wheels, wheel bolts or wheel nuts on your vehicle can be dangerous.
Page 326: Tire Chains
Used Replacement Wheels CAUTION: Putting a used wheel on your vehicle is dangerous. You can’t know how it’s been used o r how far it’s been driven. It could fail suddenly you have to replace a and cause an accident. wheel, use original equipment wheel.
Page 327: Appearance Care
Appearance Care Remember, cleaning products can be hazardous. Some are toxic. Others can burst into flame if you strike a match or get them on a hot part of the vehicle. Some are dangerous if you breathe their fumes in a closed space. When you use anything from a container to clean your vehicle.
Page 328: Special Fabric Cleaning Problems
Using Multi-Purpose Interior Cleaner on Fabric 1. Vacuum and brush the area to remove any loose dirt. Always clean a whole trim panel or section. Mask surrounding trim along stitch or welt lines. 3. Mix powdered cleaner following the directions on the container label to form thick suds.
Page 329: Cleaning Leather
Cleaning Leather a soft cloth with lukewarm water and a mild soap or saddle soap and wipe dry with a soft cloth. Then, let the leather dry naturally. Do not use heat to dry. For stubborn stains. use a leather cleaner. See your dealer for this product.
Page 330: Cleaning Glass Surfaces
Cleaning Glass Surfaces Glass should be cleaned often. Glass Cleaner Part No. 1050427) or a liquid household glass cleaner will remove normal tobacco smoke and dust films on interior glass. Don’t use abrasive cleaners on glass, because they may cause scratches. Avoid placing decals on the inside rear window, since they may have to be scraped off later.
Page 331: Finish Care
Don’t wash your vehicle in the direct rays of the sun. Don’t use strong soaps or chemical detergents. Use liquid hand, dish or car washing (mild detergent) soaps. You can get GM-approved cleaning products from your dealer. (See “Appearance Care and Materials” in the Index.) Don’t use cleaning agents that are petroleum based, or that contain acid or abrasives.
Page 332: Cleaning Aluminum Or Chrome Wheels (If Equipped)
Cleaning Aluminum or Chrome Wheels (If Equipped) Keep your wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied. The surface of these wheels is similar to the painted surface of your vehicle.
Page 333: Underbody Maintenance
Although no defect in the paint job causes this, Cadillac from the will repair, at no charge to the owner, the surfaces of...
Page 334: Appearance Care Materials Chart
Appearance Care Materials Chart SIZE PART NUMBER 23 in. 994954 25 in. 1050172 16 oz. (0.473 L) 1050173 (0.473 1050 174 (,0.473 L) 10502 14 32 oz. (0.946 L) 1050427 23 oz. (0.680 L) 1052870 16 oz. (0.473 L) 1052918"" (0.237 L) 1052925 16 oz.
Page 335: Vehicle Identification Number (Vin)
Vehicle Identification Number (VIN) I 1 1111111 1111 111 111111 1 1 1 111111 I I 1 1 1 1 1 1 1 1 1 1 1 1 I l l 1 SAMPLE4UXWM072675 ENGINE A CODE MODEL YEAR This is the legal identifier for your vehicle. It appears on a plate in the front comer of the instrument panel.
Page 336: Headlamp Wiring
Headlamp Wiring The headlamp wiring has an individual fuse which is powered by a MaxiFuse@. An electrical overload off, or in will cause the lamps to go on and cases to remain off. If this happens, have the headlamp wiring checked right away. MaxiFuse is a registered trademark of Little Fuse Incorporated.
Page 337 Fuse Usage BODY 1 Road Sensing Suspension (RSS) Fuse (ETC Only), Convenience Fuse, BATT Fuse, Antenna Fuse, Passenger and Driver Seat Belt Comfort Solenoids, Trunk and Fuel Door Release Solenoids and Relays, Door Lock/Unlock Relays, Damper Relay (ETC Only), Parking Lamp Relay, Right and Left Park Fuse, Rear Fog Lamp Relay (Export) BODY 2...
Page 338: Fuses And Circuit Breakers
Fuse Usage IGN 1” Front and Rear Ignition- 1 Relay, Oxygen Sensor 1 and 2 Fuse, Fuel Fuse, Cruise Fuse, and Rear Fog Lamp Relay, Control Power Back-up Relay, Ignition- 1 Fuse, Fuel Pump Relay BATT 1 Starter Relay and Solenoid, ParldXev Fuse, Park Relay, PCM Fuse, AC Compressor Fuse and Relay, Fan Relays, Reverse Relay...
Page 339 Engine Compartment Fuse Block The fuse block is located next to the air cleaner on the driver’s side of the engine. Lift the cover to gain access. n n n n n HDLPS HAZARD STOP IGh O(ENG) FUSE CENTER IDENTIFICATION COMP n n n AIC COMP...
Page 340 Fuse Usage Front and Rear Cigarette Lighters CIG LTR1 (Full Console Only) L HDLP LO Left Low-Beam Headlamp R HDLP LO Right Low-Beam Headlamp L HDLP HI Left High-Beam Headlamp Right High-Beam Headlamp R HDLP HI Front Fog Lamp Relay, Right and Left Front Fog Lamps HDLPS Headlamp Relay, High/Low-Beam...
Page 341 Fuse Usage WIPERS Accessory Relay, Wiper Switch AC Compressor Relay, Cooling Fan A/C COMP Relays I , 2.3, Compressor Clutch PCM (BAT)* PARWREV TCC and Exterior Travel Brake Switch, Reverse Relay, Right and Left Back-up Lamps, Electrochromic Mirror (in Header). Park Relay, Brake Transaxle- Shift Interlock (BTSI) Switch, BTSI, PZM...
Page 342 Rear Compartment Fuse Block The fuse block is located on the front wall of the trunk (behind the rear seat) on the driver’s side. Loosen the four trunk trim fasteners and pull the trim away from the fuse block gain access. T U : : IGN 0-BODY COMFORT...
Page 343 Fuse Usage CLUSTER Steering Wheel Controls, Cluster PZM, Electrochromic Mirror, Rain Sensor (Optional Accessory Relay HTD BACKLT Rear Window Defog Right and Left Outside HTD MIR Heated Mirror HTD SEAT Passenger Heated Seat Relay (Optional) HTD SEAT'L Driver Heated Seat Relay (Optional) Trunk Pull-Down Motor PULL DOWN...
Page 344: Replacement Bulbs
Replacement Bulbs Application Headlamps Composite Inner High Beam ..... . . Outer Low Beam ..... Front Turn Signal Center High-Mounted Stoplamp (CHMSL) .
Page 345: Air Conditioning Refrigerants
......Rear Tread (154.7 cm) ....Wheel Nut Torque (140 N-m) Air Conditioning Refrigerants...
Page 346 6-66...
Page 347: Section 7 Customer Assistance Information
Section 7 Customer Assistance Information Here you will find out how to contact Cadillac if you need assistance. This section also tells you how to obtain service publications and how to report any safety defects. Customer Satisfaction Procedure Customer Assistance for Text Telephone...
Page 348: Customer Satisfaction Procedure
Customer Satisfaction Procedure .--- Cadillac dealers have the facilities, trained technicians and up-to-date information to promptly address any concerns you may have. However, if a concern has not been resolved to your complete satisfaction, take the following steps: STEP ONE Discuss your concern with a member of dealership management.
Page 349 Cadillac Customer Assistance Center. 24 hours a day, by calling 1-800-458-8006. In Canada, contact GM of Canada Customer Communication Centre in Oshawa by calling 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 350: Customer Assistance For Text Telephone (Tty) Users
To assist customers who are deaf, hard of hearing, or speech-impaired and who use Text Telephones (TTYs), Cadillac has TTY equipment available at its Customer Assistance Center. Any TTY user can communicate with Cadillac by dialing: 1-800-833-CMCC. (TTY users in...
Page 351: Roadside Service
TOLL-FREE HOTLINE l=SOO-882-1112 Cadillac’s exceptional Roadside Service is more than an auto club or towing service. It provides every Cadillac owner with the advantage of contacting a Cadillac advisor and. when appropriate, a Cadillac trained dealer technician who can provide on-site service.
Page 352 Emergency Road Service is performed on site for the following situations: Towing Service Battery Jump Starting Lock Out Assistance Fuel Delivery Flat Tire Change (Covers change only) If your trip is interrupted due Trip Interruption to a warranty failure, incidental expenses may be reimbursed during the 48 months/50,000 miles (80 000 km) warranty period.
Page 353: Roadside Service Availability
Text Telephone (TTY) in the Roadside Service Center. Any customer who has access (TTY) or a to a conventional teletypewriter can communicate with Cadillac by dialing from the United States or Canada 1-800-833-CMCC daily. 24 hours.
Page 354: Gold Key Courtesy Transportation
Cadillac's commitment to provide the services you expect and deserve as a Cadillac owner. Gold Key Courtesy Transportation helps you get where you need to be when your Cadillac is in the dealership for warranty service.* In Canada, please consult your GM dealer for information on Courtesy Transportation.
Page 355: Transportation Options
Shuttle Service* Your dealership can provide you with shuttle service to get you to your destination with minimal interruption of your daily schedule when your Cadillac is unavailable due to a warranty repair. Courtesy Vehicle” For repairs that require your vehicle to be unavailable to...
Page 356 Owner Responsibilities You are responsible for primary insurance coverage of the vehicle provided. In many cases, your own auto insurance policy may provide this coverage under provisions for rental car agreements. Please consult your insurance carrier to be certain of what’s covered. While your dealership will cover the rental expense of a vehicle provided under the provisions of Gold Key Courtesy Transportation, you are responsible for...
Page 357: Gm Participation In An Alternative Dispute Resolution Program
Plan (CAMVAP). General Motors reserves the right to change eligibility limitations and/or to discontinue its participation in this program. Both Cadillac and your Cadillac dealer are committed to making sure you are completely satisfied with your new vehicle. Our experience has shown that, if a situation...
Page 358: Warranty Information
For further information, contact the BBB at 1-800-955-5 100 or the Cadillac Customer Assistance Center at 1-800-458-8006. Warranty Information Your vehicle comes with a separate warranty booklet that contains detailed warranty information.
Page 359: Reporting Safety Defects To The Canadian Government
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you'll notify us. Please call us at 1-800-458-8006 or write: Cadillac Customer Assistance Center Cadillac Motor Car Division P.O. Box 436004 Pontiac. MI 48343-6004 In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 360 1998 CADILLAC SERVICE PUBLICATIONS ORDERING The following publications covering the operation and servicing the Service Publication Order Form in this book and mailing or credit card information to Helm, Incorporated (address below.) CURRENT PUBLICATIONS FOR 1998 CADILLAC SERVICE MANUALS Service Manuals have the diagnosis and repair information on engines, transmission, axle, suspension, brakes, electrical, steering, body, etc.
Page 361 ORDER TOLL FREE (NOTE: For Credit Card Holders Only) 1-800-782-4356 (Monday-Friday PM EST) 8:OO 6:OO FAX Orders Only 1-31 3-865-5927 PUBLICATION FORM NUM6ER Manual Service Transmission Unit Repair Owner's Manual In Portfolio Porffolio Without Manual Owner's NOTE: Dealers and Companies please provide dealer or company name, and also the name the person to whose attention the shipment should be sent.
Page 362 NOTES 7-16...
Page 363: Section 8 Index
..Section 8 Index ......... Adding Equipment to the Outside of Your Vehicle .
Page 364 ........BatterySaver ......Exterior Lighting .
Page 365 Cleaning ....Alummum or Chrome Wheels ........Fabric .
Page 366 ......Driver Information Center ....Driver Information Center Messages .
Page 367 Fabric cleaning ....... FanButton ........Filling Your Tank .
Page 368 ....... . Hooks. Garment ......... Horn .
Page 369 ....... . Magnasteer Maintenance. Normal Replacement Parts ......Maintenance.
Page 370 Power Accessory. Retained ......Antenna Mast Care DoorLocks Remote Control Mirror ......... Seat .
Page 371 ......Safety Belt Extender ........Safety Belts .
Page 372 Shifting ... . . Automatic Transaxle ....Into PARK (P) ....Out of PARK (P) .
Page 373 Temperature ....... . . Traction ........Treadwe ar .
Page 374 ......Valet Lockout Button Vehicle ........Control .
Page 375 ...... ' , , c , " " " . " Taillirmps and Rear ,Tufa .siigmd& ..;... .
Page 380 25665433A...
