H-1302, H-1303

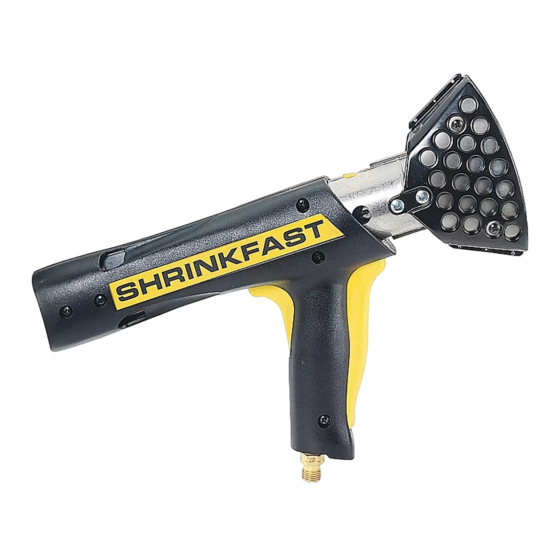

SHRINKFAST 998
EXTENSION
1.
Remove combustor
assembly from the H-950
heat gun by depressing
the #31 button and
using a twisting motion
to remove the combustor.
(See Figure 1)
2. Assemble the combustor
on the end of the
extension and confirm it
is locked in place by the
#31 button.
(See Figure 2)
1.
When operating the extension, the front trigger
needs to be depressed slightly to allow the gas
mixture to feed through the tube to the combustor
before igniting the unit. Normally three to five
seconds will be sufficient for this feeding procedure.
NOTE: It is sometimes beneficial to point the
end of the extension down during the feeding
cycle to allow the gas mixture to collect in the
combustion area.
2. Operation at this point can proceed as normal.
PAGE 1 OF 2
1-800-295-5510
uline.com
ASSEMBLY

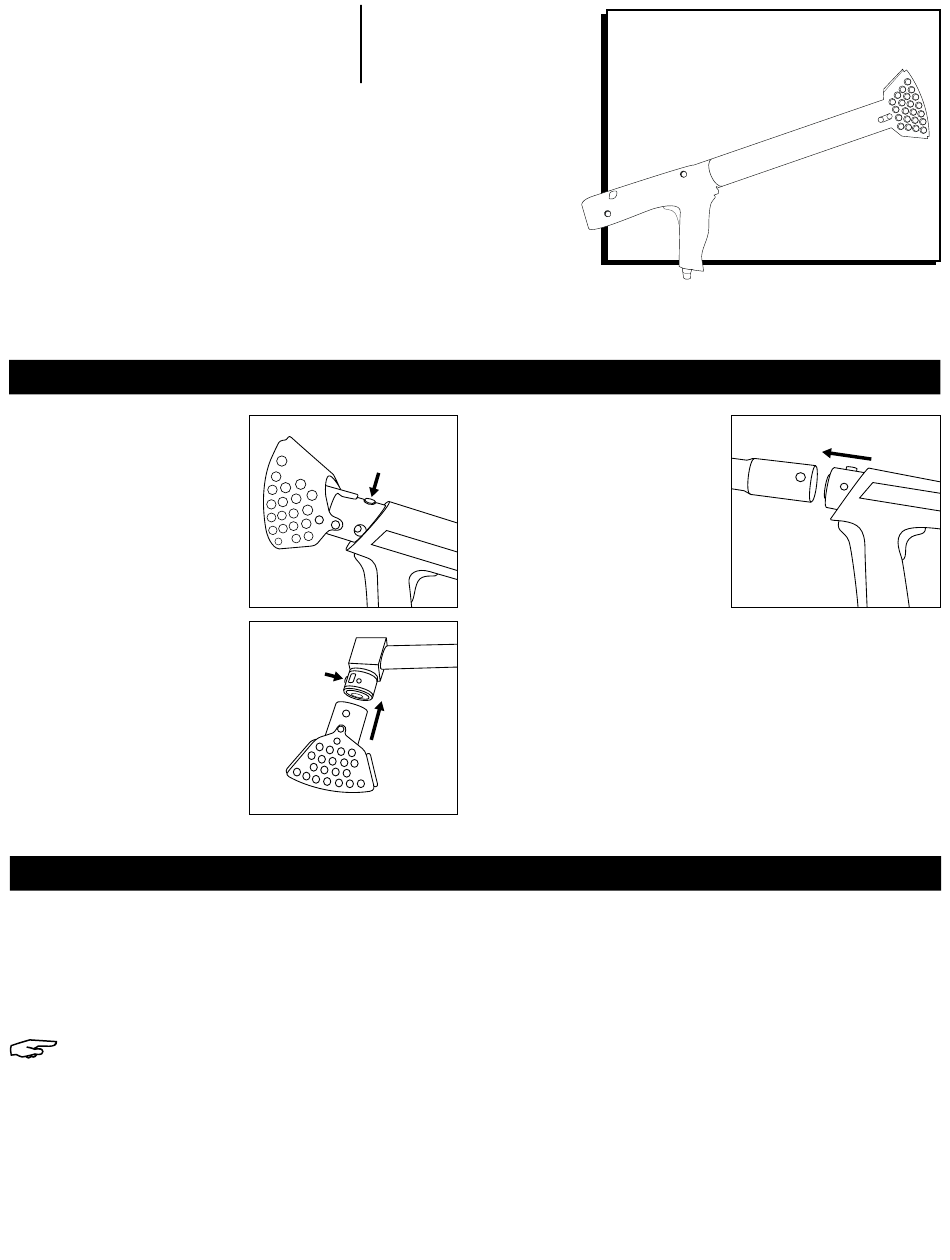

Figure 1
Figure 2
OPERATION
3. Assemble the remainder
of the tool into the open
end of the extension
tube. Again, confirm it
is locked in place by
having the #31 button
protruding from the
extension tube.
(See Figure 3)
4. If any of the O-rings are damaged, replace them
before using the tool.
3. Upon completion and normal shut down, the tool
needs to be allowed a five second time frame to
vent the gases in the tube. Care should be taken, as
always, to assure the heated end of the H-950 gun
is properly placed in a non-combustible and safe
place.
4. When shrinking film on boats or any other fuel driven
vehicles, all fuel vents must be covered while the
shrinking process is being done. Uncover when
complete.
Figure 3
0915 IH-1302
