- Page 1 UDP3303C Linear DC Power Supply User Manual...
-
Page 2: Limited Warranty And Liability
UDP3303C Linear DC Power Supply Introduction The UDP3303C DC power supply is a cost-effective program control DC power supply with outstanding performance, reliable output and clear interface. The UDP3303C DC power supply has three independent outputs: two of them are adjustable outputs of 30V/3A, the other one is a fixed selectable output of 1.8V/2.5V/3.3V/5V/3A (fine adjustable). -
Page 3: Safety Symbol
Clean the tester casing with a damp cloth and mild detergent. Do not use abrasives or solvents! Do not operate the product if you suspect it is faulty, and please contact UNI-T authorized service personnel for inspection. Only trained personnel can perform the maintenance program. -
Page 4: General Specification
General Specification UDP3303C is only allowed for indoor use. Operating temperature and humidity: 0°C~30°C (32°F~86°F), ≤75%, 30°C~40°C (86°F~104°F), ≤50% Storage temperature and humidity: -10~50°C (14°F~122°F), ≤50% Operating Altitude: ≤2000m Pollution degree: 2 Input Rating: AC 110V/120V/220V/230V (fluctuations ±10%), 50/60Hz, 420Wmax... -

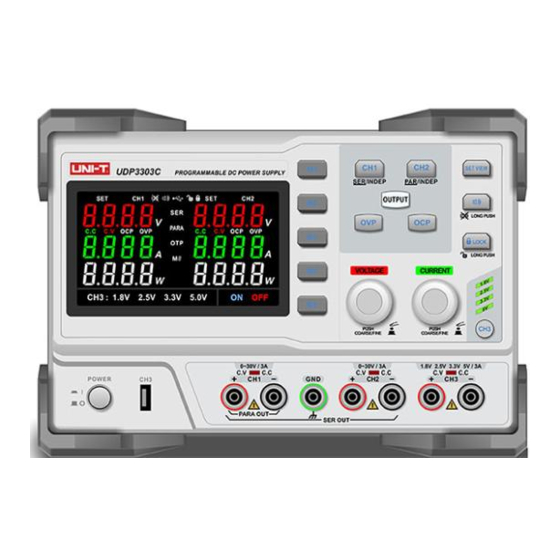

Page 5: Front Panel
Front Panel View settings when output is on LCD display Store buttons Channel 2 button Channel 1 button CH1/CH2 output on and off Overvoltage protection Buzzer on and off Overcurrent protection Lock and unlock buttons Voltage adjustment knob Channel 3 scale indicators Channel 3 scale button Current adjustment knob 3.0A... - Page 6 Main Index Parameters Test conditions: Turn on the device for 30 minutes at temperature +20°C~+30°C. CH1/CH2 Output Voltage 0-30V Output Current 0-3A Line Regulation Constant Voltage ≤ 0.01%+3mV Constant Current ≤ 0.2%+3mA Load Regulation ≤ 0.01%+3mV (rated current ≤ 3A) Constant Voltage ≤...
-
Page 7: Function Introduction
Function Introduction 1. Voltage / Current Setting and Output Voltage setting: Press CH1 button, the cursor will flash on the CH1 voltage position, press the voltage knob to move the cursor and rotate the knob to adjust the voltage value; ... - Page 8 2. Series and Parallel Settings 2.1 Series Settings: Press CH1 button for 3 seconds to enter series mode, the “SER” symbol will be on. CH1+ is the main positive output of series and CH2- is the slave negative output. The series voltage and current settings can only be adjusted in CH1, and the CH2 settings will follow that of CH1.
- Page 9 3. Constant Voltage / Constant Current In constant voltage mode, the output current is lower than set value, the channel indicator will be green (CV), and the voltage keeps as set value. If the output current reaches the set value, the device will switch to the constant current mode.
- Page 10 6. CH3 Output The CH3 has 4 sets of fixed outputs which are 1.8V/2.5V/3.3V/5.0V/3A, which can be fine adjusted by OUTPUT button. By pressing the CH3 button, the output voltage can be switched between 1.8V/2.5V/3.3V/5.0V and the corresponding indicator will be on. Double press the CH3 button, the cursor will flash on CH3 voltage and can be fine adjusted.
-
Page 11: Usb Interfaces
8. USB Interfaces The USB_Host interface on the front panel is not for communication but for an independent CH4 channel, which comes with fixed output of 5V/2A, can be used to charge the mobile phone and so on. The USB_Device interface on the rear panel comes with communication function for software programing and upgrade, and output control of power supply by upper computer. - Page 12 10. SET VIEW Introduction When the power output is on, the voltage and current displayed on the LCD are the real-time sampling output values. Press SET VIEW button (backlight on) to view the voltage and current set values. Press SET VIEW button again (backlight off), the LCD redisplays the real-time sampling output voltage and current.
