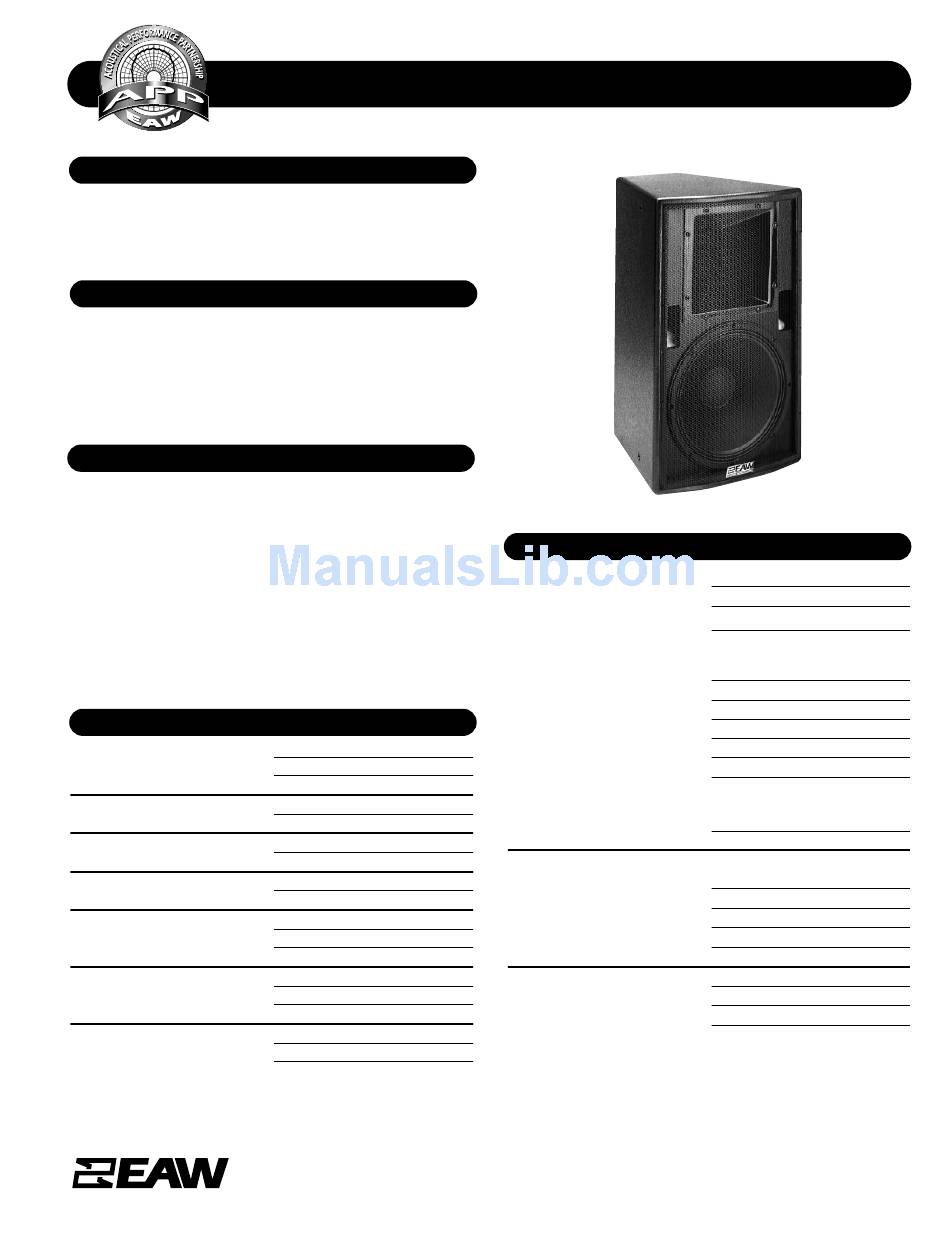

EAW MK5199e Specifications

FEATURES
• Compact, passive 2-way system
• 15-in LF; 1.4-in exit/1.75-in HF on a 90° x 90° horn
• Beamwidth matching crossover smoothes power response
• Flexible solution across the spectrum of permanent
installations
DESCRIPTION
A 2-way full-range system with a passive LF/HF crossover in a
vented trapezoidal enclosure. Includes a 15-in woofer and a
1.4-in exit/1.75-in diaphragm compression driver on a 90° x
90° constant directivity horn. The versatile compact enclo-
sure features a comprehensive system of 3/8"-16 threaded
mounting/suspension points as well as points for an
Omnimount Series 300 or similar bracket.
APPLICATION
The MK5199e is designed to provide maximum flexibility
across the spectrum of permanent installation applications
and is equally effective in clusters or in distributed designs.
Its large-format HF horn maintains directivity throughout it's
passband. The crossover point is selected to match the horn's
directivity to that of the woofer, creating a seamless, consis-
tent beamwidth to ensure even coverage throughout the lis-
tening area. Six year warranty.
Application Usage:
Houses of Worship
Nightclubs
Theaters/Performing Arts Centers
PERFORMANCE
Frequency Response (1 Watt @ 1 m)
±3 db
-10 dB
Axial Sensitivity (dB SPL, 1 Watt @1 m)
Impedance (ohms)
Power Handling, AES Standard (watts)
Full Range
Calculated Maximum Output (dB SPL @ 1 m)
Peak
Long Term
Nominal Coverage Angle, -6 dB Points (degrees)
Horizontal
Vertical
Recommended High-Pass Frequency
Frequency 24 dB/octave 40 Hz
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
Arenas
Stadiums
50 Hz - 18 kHz
38 Hz
97
8
500
130.0
124.0
90
90
508 234 6158 Toll Free 800 992 5013
SPECIFICATIONS MK5199e
PHYSICAL
Part Number 0002661
Group I
LF Subsystem 1x 15-in, vented
HF Subsystem 1x 1.4-in exit/1.75-in diaphragm
Configuration 2-way, full-range
Powering Passive LF/HF crossover
Enclosure Material Exterior grade Baltic birch plywood
Finish Wear-resistant textured black paint
Connectors 2-terminal barrier strip
Mounting Hardware 12x 3/8"-16 threaded mounting
Grille Powder coated perforated steel
Dimensions
Height 30.0
Width (front) 18.7
Width (rear) 8.9
Depth 19.7
Trapezoid Angle 15 degrees per side
Weights
Net Weight 75
Shipping Weight 87
FAX 508 234 8251
MK5199e/0002734/2 pp April 2002
compression driver on a constant
directivity horn
points; 4x points for Omnimount
Series 300 or similar bracket
inches millimeters
762
475
226
500
pounds kilograms
34.1
39.5
