EAW MK5396 Specifications

M K 5 3 9 6 S p e c i f i c a t i o n s
DESCRIPTION
•
Permanent installation system, selectable single-amp or bi-amp
•
Rotatable HF horn provides mounting options

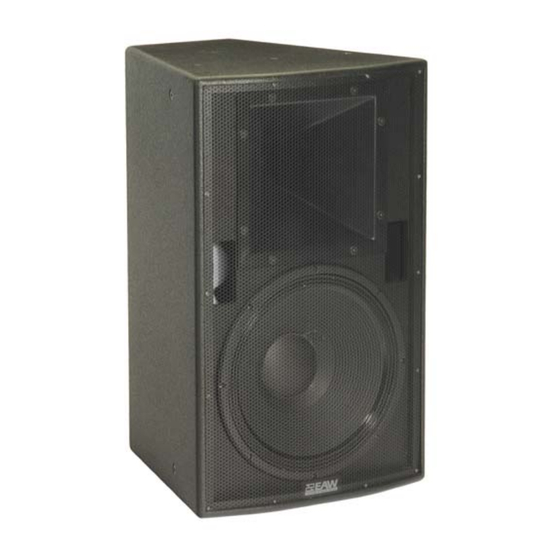

The MK5300 Series of 2-way, high output, trapezoidal loudspeakers are
designed as main PA for smaller venues, including houses of worship,
auditoriums/theaters, A/V systems, hotel ballrooms, and meeting rooms.
The Series is also ideal for distributed or fill purposes in larger venues,
including houses of worship, auditorium/theaters, arenas, stadiums,
nightclubs, and themed-entertainment complexes.
To meet the design goals for the intended applications, EAW engineers
developed a new, high performance, 3-inch voice coil, compression
driver mating it to a selection of six different HF horns with patterns from
60° x 45° to 120° x 60°. The horns are as large as the enclosure size
allows to maintain consistent directivity throughout the HF passband. A4-
inch voice coil, 15 inch LF driver, was designed to complement the sonic
character and output of the HF driver. All MK5300 models are carefully
voiced to sound similar, permitting diverse horn patterns to be mixed
throughout an installation while maintaining the same sonic quality. The
results are cleaner, usable, high-fidelity output to significantly higher
levels than is normally expected from loudspeakers of this size and price.
Single-amp and bi-amp operating modes are user-selectable. In single-
amp mode, the beamwidth-matching passive crossover is designed for
even power response through crossover, low power losses, and high
power handling. In bi-amp mode a digital signal processor (DSP) is
required, providing sophisticated processing to maximize performance.
Foam-backed grilles hide the drivers from view for pleasing aesthetics.
Thirteen mounting points allow enclosures to be mounted in virtually any
configuration. Additional mounting points mate with OmniMount® 120.0
Series or similar brackets. Standard colors are black and white. Other
colors can be specified as a special order items.
The MK5300 are the larger companions to the MK2300 Series
loudspeakers. Enclosures for both series are the same height facilitating
installation where more than one horn pattern and/or type of loudspeaker
capability is needed. Six Year Warranty.
1 To achieve specified performance, the listed external signal processing with EAW-provided settings is required.
2 For recommendations to select power amplifier size refer to : "HOW MUCH AMPLIFIER POWER DO I NEED?" on the EAW web site.
EAW products are continually improved. All specifications are therefore subject to change without notice.
Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel 800 992 5013 / 508 234 6158 fax 508 234 8251 www.eaw.com
P r e l i m i n a r y
2-WAY FULL-RANGE 90° x 60°
See NOTES TABULAR DATA for details
CONFIGURATION
Subsystem
Transducer
LF 1x 15 in cone
HF 1x 1.4 in exit, 3 in voice
coil compression driver
Operating Mode
Amplifier Channels
Single-amp LF/ HF
Bi-amp LF, HF
1
PERFORMANCE
Operating Range 62 Hz to 20 kHz
Nominal Beamwidth (rotatable)
Horz 90°
Vert 60°
Axial Sensitivity (whole space SPL)
LF/HF 97 dB
LF 97 dB
HF 108 dB
Input Impedance (ohms)
Nominal
LF/HF 8
LF 8
HF 8
High Pass Filter
High Pass =>50 Hz, 12 dB/octave Butterworth
2
Accelerated Life Test
LF/HF 80 V
LF 80 V
HF 35 V
Calculated Axial Output Limit (whole space SPL)
Average
LF/HF 126 dB
LF 126 dB
HF 130 dB
ORDERING DATA
Description
MK5396 2-Way Full-Range Loudspeaker Black
MK5396 2-Way Full-Range Loudspeaker White
MK5396 2-Way Full-Range Loudspeaker Black-WP 0013792
Optional Accessories
Eyebolt/Forged Shoulder (3/8-16 x 1.25 in)
MK2/5000 U-Bracket Black
MK2/5000 U-Bracket White
group · MK
Loading
Vented
Horn-loaded
External Signal Processing
High pass filter
DSP w/2-way filters
62 Hz to 20 kHz
62 Hz to 1650 Hz
1200 Hz to 17 kHz
Minimum
6.9 @ 145 Hz
7.0 @ 165 Hz
8.4 @ 5800 Hz
800 W @ 8 ohm
800 W @ 8 ohm
150 W @ 8 ohm
Peak
132 dB
132 dB
136 dB
Part Number
0013576
0013766
104001
0007869
0015076
Part Number: RD0285 (1) MK5396 June 2005
