Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Instruction No
Instruction No
Version
Version
8622899
8622899
1.0
1.0
M3903270
M3903270
© Volvo Car Corporation
Part. No.
Part. No.

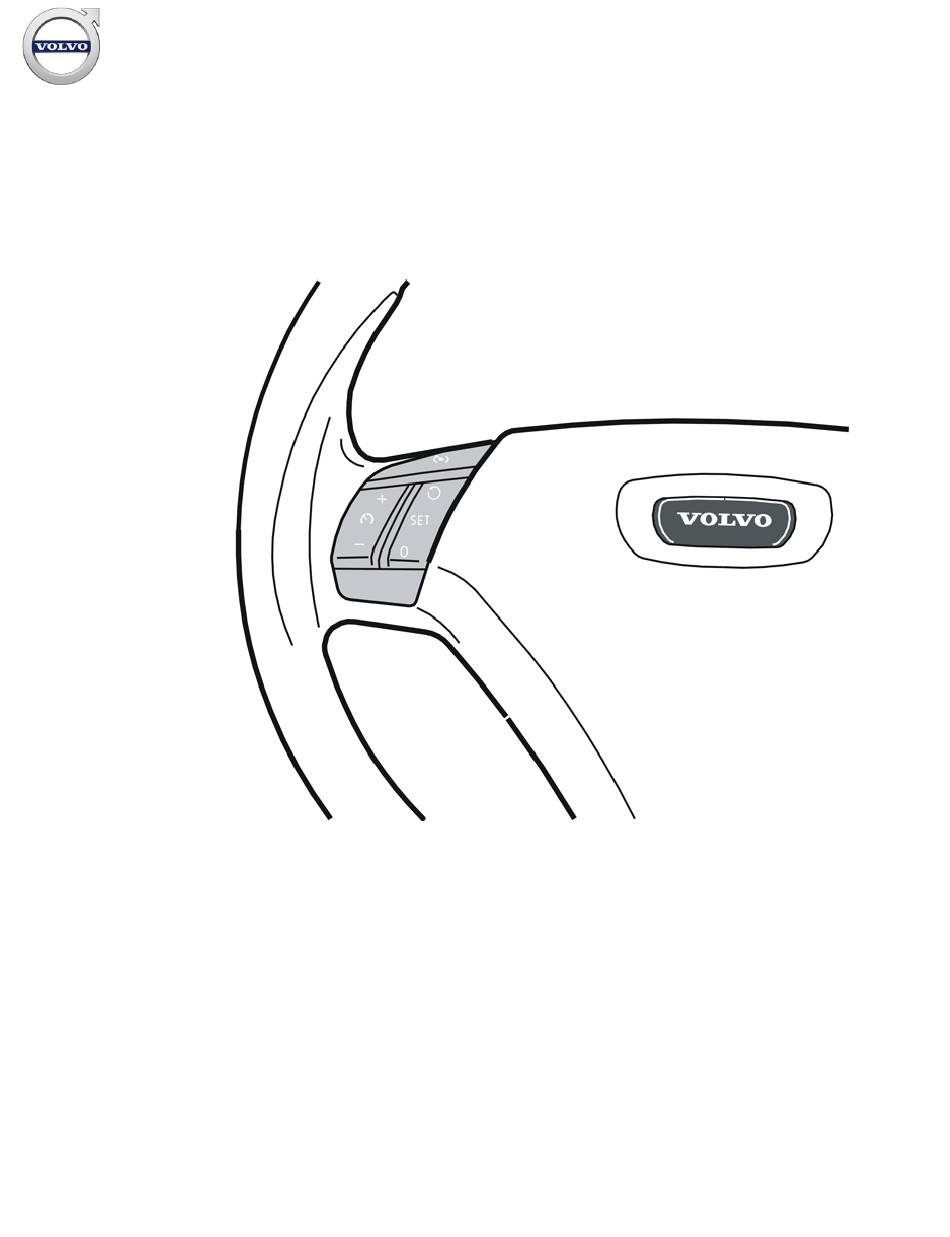

Cruise control
Cruise control
Cruise control- 8622899 - V1.0
Page 1 / 10
Advertisement
Related Manuals for Volvo S60
Summary of Contents for Volvo S60
- Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 8622899 8622899 Cruise control Cruise control M3903270 M3903270 © Volvo Car Corporation Cruise control- 8622899 - V1.0 Page 1 / 10...
- Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment A0000162 A0801178 A0000161 M8802509 © Volvo Car Corporation Cruise control- 8622899 - V1.0 Page 2 / 10...
- Page 3 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden R8802817 © Volvo Car Corporation Cruise control- 8622899 - V1.0 Page 3 / 10...
- Page 4 Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Note! This accessory requires software unique to the car Preparations Turn the ignition key to position “0”.
- Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Disassembling, the steering wheel Turn the steering wheel a quarter turn so that the holes on the reverse of the steering wheel are accessible. M6400668 Insert a screwdriver in the hole (2) on the reverse of the steering wheel, at right angles to the rear surface of the steering wheel.
- Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Fold the steering wheel module out Remove the two connectors (1) for the ignition cables for the airbag. First press in the catches on the sides. Then pull the connectors straight out.
- Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with pre-routed wiring Press in the catch (1) on the connectors for the left dummy button. Remove the connectors. M3903317 Applies to all cars Remove the screw (1) in the dummy button on the left hand side of the horn Press in the catch (2).
- Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars without existing wiring Remove the screw (1) in the dummy button on the right hand side of the horn Press in the catch (2). At the same time pull the dummy button from its socket.
- Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Installing, the keypad for the cruise control Applies to all cars Insert the new keypad for the cruise control into the grooves until the catch engages Install the screw. Tighten the keypad Connect both the connectors to the keypad.
- Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Finishing work Turn the ignition key to position “II”. Connect the battery negative lead Program the software according to the service information in VIDA. A8800137 © Volvo Car Corporation Cruise control- 8622899 - V1.0...
