PRODUCT INFORMATION

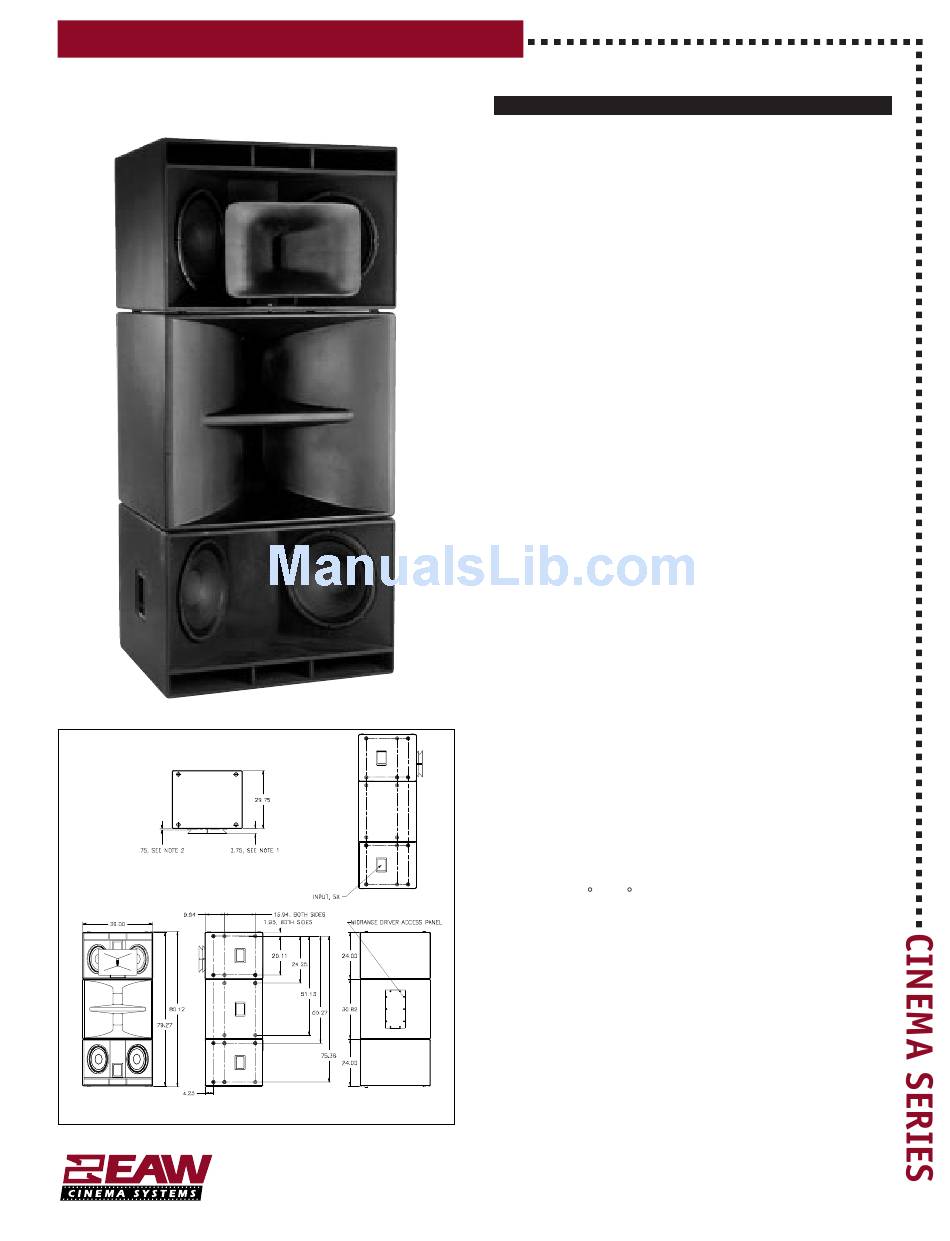

The MC4972 full-range stage/screen loudspeaker system brings the
future of cinema audio – 3-way loudspeaker design – to the largest
premier exhibition spaces. It is intended for use as a center-channel
loudspeaker in a three-channel sound system or also as a left or right
extra channel loudspeaker in a five-channel sound system.
The MC4972 combines many of EAW's breakthrough technologies
including the mathematically correct mid/bass horn with phase/
displacement plug, the Tuned Dipolar Array and the "short-throat"
high frequency horn.
This system provides extremely high output and must be powered by
a minimum of three power amplifiers (triamplification).
The three enclosure system includes two low frequency systems
separated by a single mid frequency enclosure. The upper LF
enclosure also houses the high frequency system.
Three-way design dramatically advances cinema audio quality by
improving the naturalness and intelligibility of dialog, eliminating
distortion from excessive driver excursion and extending pattern
control into the lower octaves.
The low frequency subsystems employ slot loading of each 15-in
driver pair to create Tuned Dipolar Arrays separated vertically to
provide optimal LF pattern control at 300 Hz. Optimally tuned
enclosure venting increases LF response while limiting driver excur-
sion. This method produces less distortion and minimizes driver
strain while extending LF resonse to the lowest octaves.
The MC4972's dedicated midrange frequency subsystem solves many
of cinema audio's long standing problems. Moving crossover points
out of the vocal region eliminates the acoustical anomalies which
degrade the naturalness and intelligibility of dialog. EAW's complex,
mathematically correct MF horn with phase plug drastically reduces
the horn-throat cancellation distortion typical of two-way cinema
loudspeakers. And by dividing the mid/high material between two
horn-loaded subsystems, pattern control over the entire frequency
range is enhanced.
The HF element - an HK259 HF system mounted within the upper LF
enclosure - features a 2-in exit compression driver loaded with a
short-throat 90 x 40 HF horn ensuring even distribution of HF
information throughout the auditorium.
The high power input signals require the use of two-terminal barrier
strip input connectors to create gas-tight connections, minimizing
corrosion and maximizing signal transfer. The barrier strips
accomodate bare wire, tinned leads or spade lugs. Each enclosure is
provided with its own input connector. Input for the HF section is
located on the input panel of the enclosing LF system. The input
panels are located on the sides of the enclosures for convenient
access in cramped installation areas.
All external components feature a "dead" flat black finish to
eliminate the reflection of light through perforated cinema screens.
