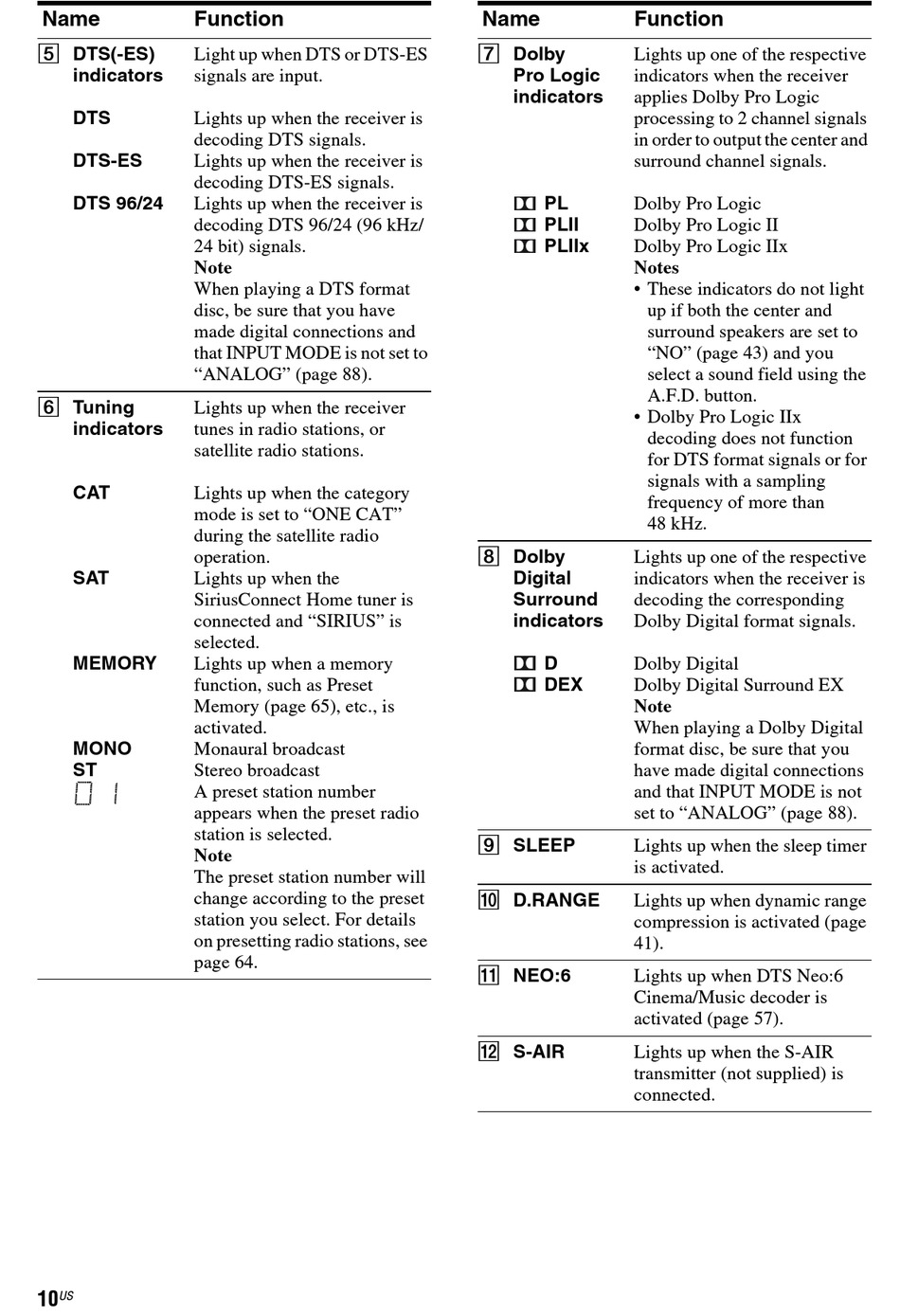

Name Function
E DTS(-ES)
Light up when DTS or DTS-ES
indicators
signals are input.
DTS Lights up when the receiver is
decoding DTS signals.
DTS-ES Lights up when the receiver is
decoding DTS-ES signals.
DTS 96/24 Lights up when the receiver is
decoding DTS 96/24 (96 kHz/
24 bit) signals.
Note
When playing a DTS format
disc, be sure that you have
made digital connections and
that INPUT MODE is not set to
"ANALOG" (page 88).
F Tuning
Lights up when the receiver
indicators tunes in radio stations, or
satellite radio stations.
CAT Lights up when the category
mode is set to "ONE CAT"
during the satellite radio
operation.
SAT
Lights up when the
SiriusConnect Home tuner is
connected and "SIRIUS" is
selected.
MEMORY Lights up when a memory
function, such as Preset
Memory (page 65), etc., is
activated.
MONO
Monaural broadcast
ST Stereo broadcast
A preset station number
appears when the preset radio
station is selected.
Note
The preset station number will
change according to the preset
station you select. For details
on presetting radio stations, see
page 64.
10
US
Name Function
G Dolby
Lights up one of the respective
Pro Logic
indicators when the receiver
indicators applies Dolby Pro Logic
processing to 2 channel signals
in order to output the center and
surround channel signals.
PL Dolby Pro Logic
PLII Dolby Pro Logic II
PLIIx
Dolby Pro Logic IIx
Notes
• These indicators do not light
• Dolby Pro Logic IIx
H Dolby
Lights up one of the respective
Digital
indicators when the receiver is
Surround decoding the corresponding
indicators Dolby Digital format signals.
D Dolby Digital
DEX
Dolby Digital Surround EX
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is not
set to "ANALOG" (page 88).
I SLEEP
Lights up when the sleep timer
is activated.
J D.RANGE
Lights up when dynamic range
compression is activated (page
41).
K NEO:6
Lights up when DTS Neo:6
Cinema/Music decoder is
activated (page 57).
L S-AIR
Lights up when the S-AIR
transmitter (not supplied) is
connected.
up if both the center and
surround speakers are set to
"NO" (page 43) and you
select a sound field using the
A.F.D. button.
decoding does not function
for DTS format signals or for
signals with a sampling
frequency of more than
48 kHz.
