Remote rain gauge
with outdoor thermometer (120 pages)
Summary of Contents for Oregon Scientific RGR122
Page 1
- Daily and total rainfall display - Nine-day rainfall history - Rainfall alarm - Indoor temperature display - Maximum and minimum temperatures - Real-time calendar clock - Daily alarm - 100-meter transmission range The RGR122 operates at 433MHz. No wire installation is required.
Page 2

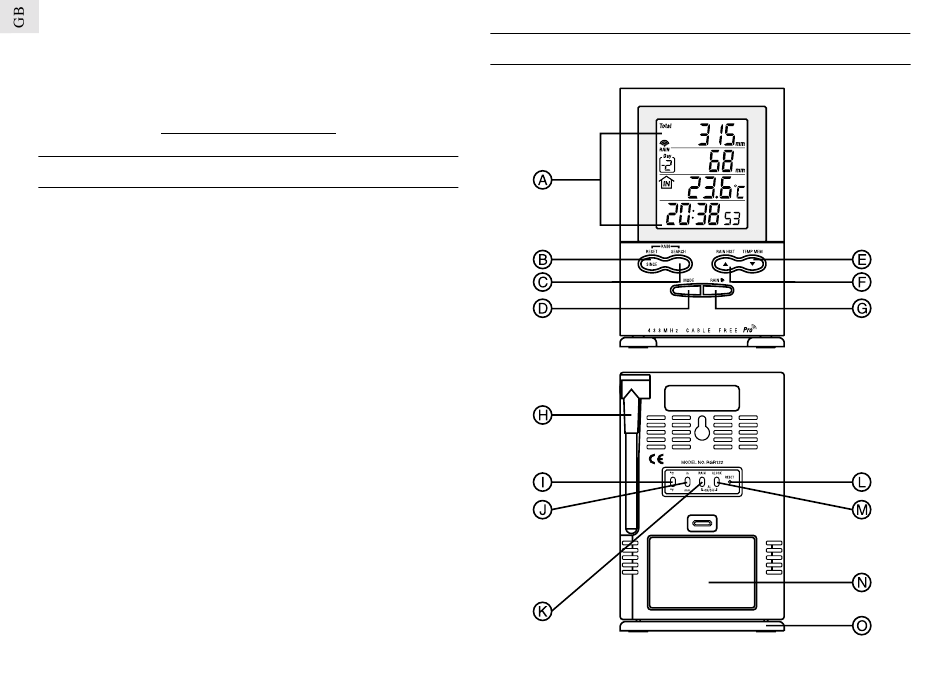

A. FOUR-LINE DISPLAY H. ANTENNA - For displaying the total rainfall, current rainfall or rainfall - Receives radio signal from rain collector history, indoor temperature and calendar clock I. [°C/°F] SWITCH B. RAIN RESET / SINCE BUTTON - Selects between degree Centigrade (°C) and Fahrenheit (°F) - Displays the start day for total rainfall J.
Page 3
INSTALLATION 1. Position the main unit and rain collector within effective range (100 meters). 2. a) Insert batteries into the rain collector. TOP VIEW b) Mount the rain collector on a level surface c) Put drops of water on the cross at the base to check the leveling Water stay at position 1 - 4...
Page 4
3. Remove the fiber tape from around the bucket assemblies. CALENDAR CLOCK The calendar clock is displayed on the bottom line of the display. Use [MODE] to change among the clock, calendar and daily alarm. To set the clock, 1. Press [MODE] to display the clock or calendar. 2.
Page 5
TOTAL RAINFALL To clear the current day rainfall, hold [RAIN RESET/SINCE] for two seconds. Note that this will also clear the total rainfall record. The total rainfall is displayed on the top line of the LCD display. Note : If “HHH” is observed on current (day 0) rainfall. Please To display the commencing date of the record, press [RAIN RESET/ press and hold [RAIN RESET / SINCE] to reset the reading in SINCE] once.
Page 6
INDOOR TEMPERATURE RAINFALL ALARM The indoor temperature is displayed on the third line of the LCD To set the rainfall alarm, display. Use the [°C/°F] switch to select between degree Centigrade 1. Press and hold [RAIN ALARM] for two seconds. and Fahrenheit.
Page 7
5. Only use fresh batteries as specified in the user’s manual. Do Power not mix new and old batteries as the old ones may leak. Main unit : 2 pcs UM-3 or “AA” 1.5V 6. Always read the user’s manual thoroughly before operating the alkaline battery unit.
Page 8
EC-DECLARATION OF CONFORMITY This product contains the approved transmitter module TX 02 and complies with the essential requirements of Article 3 of the R&TTE 1999/5/EC Directives, if used for its intended use and that the following standard(s) has/have been applied: Efficient use of radio frequency spectrum (Article 3.2 of the R&TTE Directive) applied standard(s)
