Summary of Contents for Devolo dsl+1100

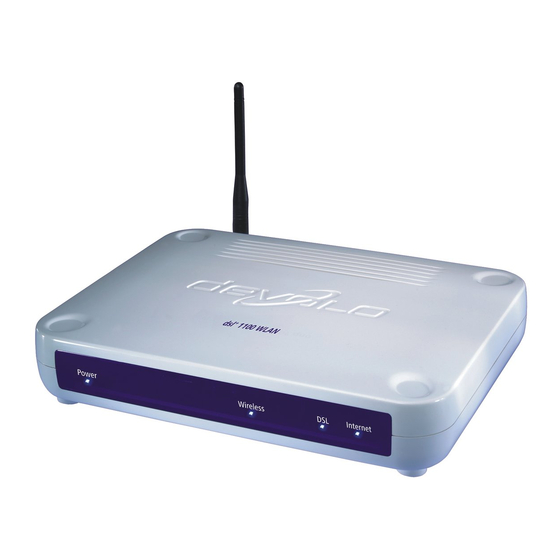

- Page 1 1100 WLAN...
- Page 2 The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from devolo. We reserve the right to make any alterations that arise as the result of technical development.
- Page 3 For further information, please visit www.devolo.com Our devolo website www.devolo.com is available to you around the clock should you have any queries or require any further support. 1100 WLAN, we...
- Page 4 Installation wizard Product manual Network manual (German) Software devolo AG reserves the right to change the package contents without prior notice. Description of the symbols Here we briefly describe the meaning of the symbols used in this manual. Very important notice which, if ignored, may lead to damage.
-
Page 5: Table Of Contents
Installing the devolo software ....29 Overview in the network with the devolo Informer ....30 Port forwarding with devolo Extended Port Forwarding ... - Page 6 Care and maintenance of the device ....39 Warranty conditions ....40 devolo dsl+ 1100 WLAN...
-
Page 7: Introduction
WLAN clients and WLAN access points are required for wireless connections. WLAN client WLAN clients are network adapters, such as wireless network cards or WLAN USB sticks, used to integrate desktop or notebook computers into a wireless network. Introduction devolo dsl+ 1100 WLAN... - Page 8 WPA2 is the successor of WPA which supports AES (Advanced Encryption Standard). WPA2 and WPA can be deployed jointly, provided the access point and the client support WPA2. devolo dsl+ 1100 WLAN 1100 WLAN complies with the 1100 WLAN...
-
Page 9: What Does The Dsl + 1100 Wlan Have To Offer
1100 WLAN on and move the WLAN antenna into an upright 1100 WLAN with the supplied DSL cable to the existing 1100 WLAN, you can surf the Internet and transfer files at speeds Introduction 1100 WLAN automati- 1100 WLAN 1100 WLAN with the enclosed devolo dsl+ 1100 WLAN... - Page 10 (Softphone) or hardware (IP telephone, VoIP adapter) are necessary. Meets the highest quality standards! The products from devolo are subjected to thorough German quality assurance. In this way, devolo assures the optimal functionality with operating systems, international versions and protocols.
-
Page 11: Virus Scanner
If Norman Virus Control is unable to clean an infected file, you will receive a warning and instructions on how to proceed. Introduction devolo dsl+ 1100 WLAN... -
Page 12: Connection And Installation
Connection and installation Connection and installation In this chapter, we will explain the displays and connections of the dsl WLAN and show you how to set up the device. In addition, we describe the con- nection of the computers via Ethernet and via WLAN using the included WLAN USB stick. -
Page 13: Connecting The Dsl + 1100 Wlan
WECT ETH1, ETH2 ETH3, ETH4 9V DC Off/On WLAN antenna The plate on the back of the device is removable. Connecting the dsl Connecting one or more computers Four computers can be connected directly to the four network ports of the dsl 1100 WLAN. -
Page 14: Initial Use
2000, Windows XP, Mac OS X, Linux) connected to the dsl WLAN. WLAN USB stick A computer running the Windows 2000 or Windows XP (32-bit) oper- ating system is required when using the devolo WLAN USB stick and automatic WLAN configuration (WECT). 2.2.1 Initial use Remove the rear panel of the device. - Page 15 WLAN settings in Windows. Windows XP lets you switch back and forth between configurations as neces- sary. Click the devolo arch in the system tray in the bottom right-hand corner of your display and select the appropriate configuration.
-
Page 16: Networking Examples
Connection and installation Please note that support for WLAN connections can only be guaranteed for the Windows 2000 and Windows XP operating systems. Networking examples Connecting a notebook to the WLAN; Internet access via the dsl WLAN Connecting a computer and IP telephone via Ethernet and multiple note- books via WLAN;... -
Page 17: Router Configuration
Setting up the WLAN and Internet access with the configuration wizard Use the devolo configuration wizard if you are using a computer running a Win- dows operating system to configure the router. Insert the provided devolo product CD into the CD-ROM drive. The 'dsl 1100 WLAN' setup software will start automatically. -
Page 18: Setting Up Internet Access Via A Browser
Once the network settings are correct, the wizard will assist you in setting up Internet access for your router. Finally, the wizard will contact the website www.devolo.com to ensure that the Internet access is working. If the Internet connection is working cor- rectly, configure the other connected computers. -
Page 19: Connection Status
Internet provider can be found here. 'WLAN connection': status of the WLAN connection 'SSID': displays the name of the network. 'Encryption': states the type of encryption used. Router configuration be able to access your devolo dsl+ 1100 WLAN... -
Page 20: Wlan Stations
In this chapter we will guide you through the expert configuration of the dsl 1100 WLAN and explain its functions and settings. Open your browser and enter the URL 'http://192.168.0.253'. Select the link 'Expert configuration'. Select the link 'Change configuration'. devolo dsl+ 1100 WLAN 1100... -
Page 21: Change Configuration
This is where you enter the IP address under which the router is to be available. The standard setting is '192.168.0.253'. In addition enter the netmask (stan- dard '255.255.255.0'). If you want to configure your dsl Router configuration 1100 WLAN for an devolo dsl+ 1100 WLAN... - Page 22 'Connection establishment': If you want to maintain a continuous connec- tion to the Internet, active the function 'I have a flat rate, I want to be con- nected to the Internet all the time'. devolo dsl+ 1100 WLAN...
- Page 23 Security 'No encryption': your data communication is not encrypted. 'WEP': Wired Equivalent Privacy encryption applies a 64-bit or 128-bit key, depending on your choice under 'Key length'. Define your hexadec- imal key under 'Key'. Router configuration devolo dsl+ 1100 WLAN...
- Page 24 Please note: if you do not specify any devices, all WLAN users that know your network name (SSID) and the WEP key will be able to access your wireless net- work. Entering devices here will ensure that only the listed devices have access. devolo dsl+ 1100 WLAN...
-
Page 25: Port Forwarding
The router registers your public IP address as assigned by your Internet provider (IP addresses of this type are renewed regularly) with a provider of dynamic DNS, so that the services which you make Router configuration devolo dsl+ 1100 WLAN... - Page 26 'Repeat password': This is where you confirm the password given to you by your DDNS provider. 'Host www.example.dyndns.org). Reset configuration Here you can reset all of the settings of your dsl devolo dsl+ 1100 WLAN name': Enter fixed computer name here 1100 WLAN.
-
Page 27: Save Configuration File
Update firmware The firmware controls the internal programs of the router. This may be updated occasionally. Download the current firmware from the devolo homepage at www.devolo.com. Then proceed as follows: Scan the appropriate directory and select the downloaded firmware file. - Page 28 Router configuration Then click on Update firmware in order to transfer the new firmware on to the router. If you have any questions regarding terminology and scenarios please read the information at www.devolo.com. devolo dsl+ 1100 WLAN...
-
Page 29: Devolo Software
Installing the devolo software The devolo software is normally installed together with the installation wizard. To install the devolo software separately on a computer with a Windows oper- ating system, follow the steps below. Put the enclosed devolo product CD in your CD-ROM drive. -
Page 30: Overview In The Network With The Devolo Informer
If you would like to install the complete devolo software package, select 'Stan- dard Installation'. Then, click Select 'Custom Installation' to choose the software components you would like to be installed yourself. Then, click Next. Terminate the installation by clicking Finish. -
Page 31: Port Forwarding With Devolo Extended Port Forwarding
Port forwarding with devolo Extended Port Forwarding With Extended Port Forwarding you can make the services offered on your com- puter publicly available on the Internet. If your desired application is pre-con- figured in the list, simply click on the checkbox and then activate port forwarding by confirming with OK. -
Page 32: Communication In The Network Using Devolo Easyshare
EasyShare is started, or by using the sharing wizard. You can open the sharing wizard by clicking the Add share button, or by select- ing File devolo dsl+ 1100 WLAN Add share from the menu. - Page 33 The 'Host' column shows the computer from which the file is being down- loaded, or to which it is being uploaded from your computer. You can cancel the current download by clicking the file and selecting Cancel from the context menu (right mouse button). devolo software devolo dsl+ 1100 WLAN...
-
Page 34: Maintain Your Privacy With Devolo Easyclean
EasyShare users on the local network. Users can "chat" by writing mes- sages and clicking Send. Maintain your privacy with devolo EasyClean With EasyClean, you can delete the cached files listed below. Select the check- boxes of the file types you would like to remove, then click Delete. - Page 35 Document history—Internet Explorer maintains lists of open documents and visited websites. This information is generally no longer needed. Please note that EasyClean only supports Microsoft Internet Explorer. devolo software devolo dsl+ 1100 WLAN...
-
Page 36: Appendix
Wireless frequency range Firewall Wireless encryption Ports WAN port LAN ports WLAN port devolo dsl+ 1100 WLAN 1100 WLAN Ethernet specification IEEE 802.3 Fast-Ethernet specification IEE 802.3u Fullduplex specification IEEE 802.3x Auto MDI/MDIX WLAN IEEE 802.11b/g(g++) ADSL over ISDN (Annex B [Germany]) T-Com Spezifikation 1TR112 (U-R2) ITU G.992.1 (G.dmt) - Page 37 WLAN USB stick and dsl CE conformity CE conformity in accordance with the technical requirements for all EU countries and Switzerland EN 60950x EN 55022x EN 55024x Warranty 3 years Appendix wireless: USB or 802.11b/g WLAN client 1100 WLAN devolo dsl+ 1100 WLAN...
-
Page 38: Declaration Of Conformity
Harmonised standards: Diese Erklärung wird verantwortlich abgegeben durch: This declaration is submitted by: Aachen, 7. August 2006 Aachen, 7 August 2006 devolo dsl+ 1100 WLAN EC DECLARATION OF CONFORMITY devolo AG Sonnenweg 11 52070 Aachen 1100 WLAN ADSL2+ WLAN Router mit WLAN USB Adapter ADSL2+ WLAN Router with WLAN USB Stick des FTEG (Artikel 3 der R&TTE) entspricht. -
Page 39: Ce Conformity
Never use water, paint thinner, benzene, alcohol or other strong cleaning agents when cleaning the dsl case. Appendix 1100 WLAN, as these could damage the devolo dsl+ 1100 WLAN... -
Page 40: Warranty Conditions
Warranty period The warranty period for this devolo product is three years. This period begins at the day of delivery from the devolo dealer. Warranty services rendered by devolo do not result in an extension of the warranty period nor do they initiate a new warranty period. The warranty period for installed replacement parts ends with the warranty period of the device as a whole. - Page 41 Claims for compensation of lost profits, indirect or consequential detriments, are excluded. devolo is not liable for lost data or retrieval of lost data in cases of slight and ordinary negli- gence.
