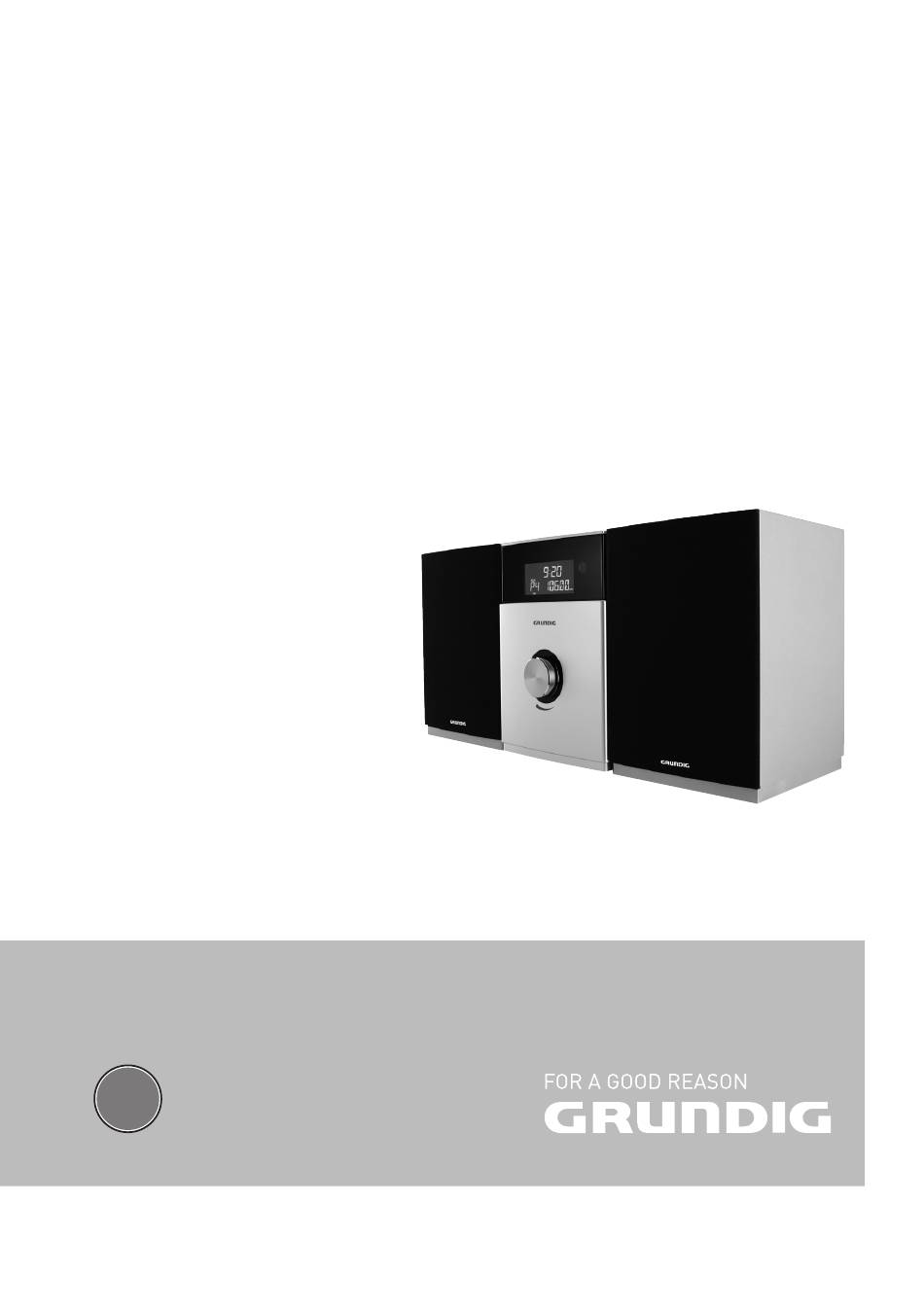

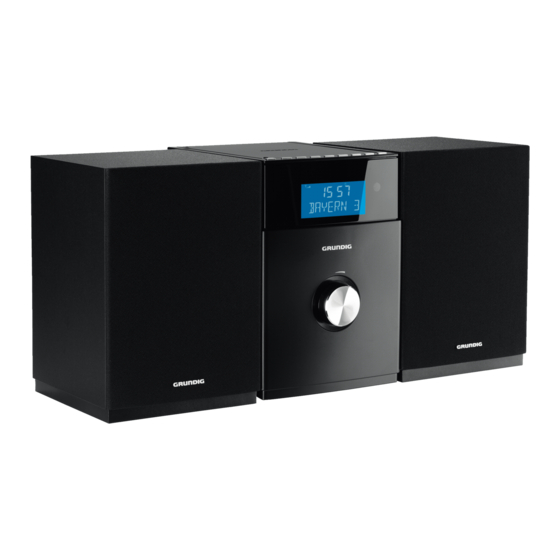

- Page 1 MICRO HİFİ SYSTEM MS 510 MS 520...
-
Page 2: Table Of Contents
15 Selecting sound settings 24 Reminder timer 15 Changing the "USER" sound setting 24 Sleep timer 15 Selecting Ultra Bass System 25 INFORMATION 15 Muting 25 Cleaning the hi-fi system TUNER MODE 25 Cleaning the CD unit 16 Selecting the tuner input source 25 Technical data 16 Selecting presets 26 GRUNDIG Customer Service Centre 16 Stereo/mono reception 26 Environmental note 16 RDS information 26 General information on laser devices 16 Displaying RDS station information 27 Troubleshooting ENGLISH... -
Page 3: Setup And Safety
SETUP AND SAFETY ----------------------------------------------------------------------------- Please note the following instructions: Thunderstorms are a danger to all electrical devices. Even if the hi-fi is switched off, it can The hi-fi system is designed for the playback be damaged by a lightning strike to the mains. of audio signals. All other uses are expressly Always remove the power plug during a thun- prohibited. der storm. If you want to set up the hi-fi system on wall Prolonged listening with the shelves or in cupboards, please ensure that it headphones at loud volumes can is adequately ventilated. There must be at least damage your hearing. 10 cm of space at the side, above and behind the hi-fi system. Note: Do not cover the hi-fi system with newspapers, D o not connect any other equipment while table cloths, curtains, etc. the device is switched on. Also switch off the other equipment before connecting it. When setting up the hi-fi system, remember that furniture is often coated with various types O nly plug the device into the mains socket of varnish and plastic, which often contain... -
Page 4: Overview
OVERVIEW ------------------------------------------------------------------------------------------------------- The hi-fi system controls 15:22 E TUNING F CD/USB/SD AUX/BT RADIO – AUX. IN ANT. ENGLISH SPEAKER... - Page 5 OVERVIEW ------------------------------------------------------------------------------------------------------- Opens the CD compartment. S witches the device in and out of standby mode. OK I n external data media mode: starts and pauses playback. E TUNING F I n tuner mode: pressing and holding down starts the forwards or reverse frequency search; pressing briefly switches the frequency back or forwards in steps. I n external data media mode: select albums or tracks forwards or backwards; press and hold down to search backwards or forwards for a particular passage. I n standby and timer mode: to set hours/minutes. I n tuner mode: select presets. I n external data media mode: select albums. CD/USB/SD S witches the device on from standby mode.
-
Page 6: The Hi-Fi System Connections
OVERVIEW ------------------------------------------------------------------------------------------------------- The hi-fi system connections SPEAKER R L AUX IN AUX. IN ANT. ANT. SPEAKER AC ˜ C ard slot for inserting a memo- SPEAKER R L l oudspeaker sockets, R = right ry card (SD/SDHC/MMC). channel, L = left channel. U SB interface for connecting A udio signal input for connect- an MP3 player or USB memory ing an external device. stick. ANT. Antenna socket for the roof T his socket is not suitable for con- antenna or the wire antenna necting a PC. supplied. -
Page 7: The Remote Control
OVERVIEW ---------------------------------------------------------------------------------------------------------------------------------- The remote control S witches the loudspeakers of the hi-fi system to mute and back on again. S witches the hi-fi system to standby mode and from standby mode to the last input source selected. CD/SD/USB Switches the device on from standby mode. S elects the CD, USB or SD input sources. AUX/BT S witches the device on from standby mode. S elects the AUX and Bluetooth input sources (Bluetooth for MS 520 only). - Page 8 OVERVIEW ---------------------------------------------------------------------------------------------------------------------------------- I n tuner mode: press and hold ≈ A ctivates the settings for the down to start the reverse or for- switch-on timer. wards frequency search; S witches the alarm function off p ress briefly to change the fre- and on again. quency backwards or forwards in steps. WEC/NAP S witches off the alarm function I n external data media mode: for the weekend.
-
Page 9: The Hi-Fi System Displays
OVERVIEW ---------------------------------------------------------------------------------------------------------------------------------- The hi-fi system displays USER 8 8 8 : 8 8 8 CLASSIC JAZZ ROCK PROG ALL 1 ALBUM INTRO RANDOM 8 8 8 8 8 8 8 8 § PTY TEXT NAP § B luetooth mode selected I n external data media mode: (MS 520 only). -
Page 10: Connection And Preparation
CONNECTION AND PREPARATION --------------------------------------- Connecting the loudspeakers Connecting an MP3 player or a USB memory stick The hi-fi system supports most MP3 players and USB memory sticks on the market. Caution: AUX. IN ANT. T he hi-fi system must be switched off while the USB connection is being made. If it is not SPEAKER switched off, data can be lost. 1 Insert the wires of the loudspeaker cable into the terminals for »SPEAKER R« (right chan- nel) and »SPEAKER L« (left channel). -
Page 11: Inserting A Memory Card
CONNECTION AND PREPARATION --------------------------------------- Inserting a memory card Connecting external devices The hi-fi system supports SD/SDHC and MMC Note: memory cards. Switch the hi-fi system off before you connect Caution: external devices. T he hi-fi system must be switched off while the memory card is being inserted. If it is not switched off, data can be lost. AUX. IN ANT. SPEAKER 1 Use standard audio cables to connect the au- dio outputs of the external device to the »AUX IN R« or »AUX IN L« sockets on the hi-fi sys- 1 Insert the memory card carefully into the »SD« tem. card slot with the contacts facing the rear until Connecting the headphones it latches into place. -
Page 12: Connecting The Power Cord
CONNECTION AND PREPARATION --------------------------------------- Connecting the power cord Inserting batteries into the re- mote control Notes: Check that the mains voltage on the type plate (on the bottom of the hi-fi system) cor- responds to your local mains supply. If this is not the case, contact your specialist dealer. All the other devices/loudspeakers must be connected before you connect the power cord. AUX. IN 1 Open the battery compartment by pressing ANT. -
Page 13: Settings
SETTINGS --------------------------------------------------------------------------------------------------------------------------------------- Automatic station search for FM Notes: radio stations The time must be reset after a power cut or if the mains plug is disconnected or updated After connecting the hi-fi system to the mains afresh using the RDS time synchronisation. power for the first time, the automatic station search begins. It searches for radio stations and When you reconnect the hi-fi system to the can save up to 40 presets. mains, the hi-fi system automatically syn- After the search, the demo mode is started au- chronises to the most recently selected radio tomatically. This shows you the functions of the station. -
Page 14: Setting The Brightness Of The Display
SETTINGS --------------------------------------------------------------------------------------------------------------------------------------- Tuning radio stations manually Setting the brightness of the display 1 Switch on the hi-fi system by pressing » «. The brightness of the display can be set sepa- 2 Press »RADIO« to select TUNER as the input rately for standby and operation modes. source. – D isplay: »FM TUNER«. 1 Change the brightness by repeatedly pressing » MENU « in standby or operation mode. 3 Set the radio station by briefly pressing »E« or – You have a choice of four brightness levels. »F« repeatedly. – D isplay: the frequency changes in steps of Note: 50 kHz;... -
Page 15: General Functions
GENERAL FUNCTIONS --------------------------------------------------------------------------------------- Switching on and off Changing the "USER" sound set- ting 1 Switch on the hi-fi system from standby by press- ing » «. You can change the »USER« sound setting. – T he last input source used is automatically 1 Select the »USER« sound setting by pressing selected. »DSC «. Note: Press and hold »DSC «. You can also switch on the hi-fi system by – D isplay: »BASS 0«. -
Page 16: Tuner Mode
– D isplay: »STEREO« appears briefly and » « appears. Note: The stereo/mono setting can be stored on each preset. RDS information RDS (Radio Data System) is an information sys- tem which is transmitted additionally by most FM stations. When the hi-fi system receives an RDS station, the station name appears in the display, for ex- ample: »FANTASY« and » «. Notes: It may take some time before all the RDS information is transmitted. GRUNDIG has no influence on the correct- ness of this information. ENGLISH... -
Page 17: External Data Media Mode
EXTERNAL DATA MEDIA MODE ------------------------------------------------------- Using CDs Using an MP3 player, USB memory stick or SD/SDHC/MMC The device is suitable for memory card music CDs displaying the logo shown here (CD- The »USB« socket is not compatible with DA) and for CD-Rs and USB hubs and cannot be connected directly CD-RWs with audio data. to a PC. The USB interface of this device is a stand- ard interface. All currently-known MP3 chip concepts were taken into account when it was developed. Due to rapid progress in... -
Page 18: Selecting The Input Source
EXTERNAL DATA MEDIA MODE ------------------------------------------------------- Connecting an MP3 player or a USB Note: memory stick If no data medium is inserted/connected, the message »NO DISC« appears. 1 Switch the device to standby mode by pressing » «. Pausing and resuming playback Connect the USB interface of the MP3 player 1 Press » OK« to pause playback. to the »USB« socket of the hi-fi system with a – D isplay: »II«, the playing time display standard USB cable;... -
Page 19: Repeat Functions
EXTERNAL DATA MEDIA MODE ------------------------------------------------------- Repeat functions Playing back tracks in random order (Random) Repeating a track (Repeat One) 1 Press »INT « during playback. 1 Press » « once during playback. – D isplay: »RANDOM«. – D isplay: » 1«, the current track is repeat- – A ll tracks on the data medium are played back once in random order. -
Page 20: Creating A Playlist
EXTERNAL DATA MEDIA MODE ------------------------------------------------------- Creating a playlist You can create a track memory of up to 60 tracks for the current data medium in any order you choose and then play them back in that sequence. A track may be saved more than once. The entries can only be made in stop mode. Selecting and storing tracks 1 Press »STEREO/ « to end playback. ¥ 2 Press »PROG « to open the function. – D isplay: »PROG« and »P 0 I« flash. 3 Select the folder by pressing »... -
Page 21: Bluetooth Mode (Ms 520 Only)
BLUETOOTH MODE (MS 520 ONLY) ------------------------------------- Notes: V arious functions can also be controlled on the MS 520. II« to pause playback, Press » Compatible with the following p ress » II« again to resume playback; devices p ress »E« to select the previous track and »F« Your MS 520 can be connected to any com- for the next track. mercially available Bluetooth-compatible de- N ote that the data transmission range can vices that comply with the A2DP standard. This be as much as 9 m, depending on the Blue- includes smartphones, laptops and tablet PCs,... -
Page 22: Using External Devices
USING EXTERNAL DEVICES --------------------------------------------------------------------- Listening to the audio signal from an external device You can play the audio signal from an external device (e.g. an MP3 player) on the hi-fi system. Note: The external device must be connected to IN« socket. the »AUX 1 Switch on the device from standby by pressing » «. 2 Select the AUX input source by pressing »AUX/BT«. – D isplay: »AUX«. 3 Start playback on the external device. ENGLISH... -
Page 23: Timer Mode
TIMER MODE -------------------------------------------------------------------------------------------------------------------------- Your hi-fi system has three timer modes: Switch-on timer – T he switch-on timer, which switches the hi-fi Setting the switch-on timer system on at a preset time and wakes you 1 Switch the hi-fi system to standby mode by with the input source you selected. pressing » «. – T he reminder timer, which reminds you by sounding the signal tone at a preset time. -
Page 24: Reminder Timer
TIMER MODE -------------------------------------------------------------------------------------------------------------------------- Interrupting the switch-on time Sleep timer 1 While the alarm signal is sounding (music or Setting the sleep timer S«. signal tone), press »SLEEP 1 Switch on the hi-fi system from standby by – D isplay: »SNOOZE«, the alarm signal stops. pressing » «. – T he alarm goes off again at five-minute inter- vals (alarm duration 90 minutes). 2 Open the function with »SLEEP S«. – Display: »SLP 90«. Cancelling the alarm for the day 3 Select the switch-off time (»90«, »60« to »I5«, 1 Switch the hi-fi system to standby with »... -
Page 25: Information
Dimensions and weight This product fulfils the Euro- Device dimensions: pean directives 2004/108/EC, 2006/95/EC, W x H x L 150 x 215 x 210 mm 2009/125/ EC and 2011/65/EU (MS 510). Device weight: 1.36 kg This product fulfils the European directives 1999/5/EC, 2009/125/EC and 2011/65/EU. Loudspeaker dimensions: (MS 520). W x H x L 150 x 215 x 250 mm Loudspeaker weight: 1.3 kg You can find the CE declaration of conformity for the device in the form of a pdf file on the Grundig Technical and design modifications are reserved. Homepage www.grundig.com/download/doc. The type plate is located on the bottom of the hi-fi system. ENGLISH... -
Page 26: Environmental Note
INFORMATION ------------------------------------------------------------------------------------------------------------------ Environmental note General information on laser This product has been made devices from high-quality parts and This device is a CLASS materials which can be re-used CLASS 1 1 LASER PRODUCT. and recycled. This means that the LASER PRODUCT Therefore, do not dispose of the product along laser is designed in with normal household waste at the end of its such a way as to ensure that the maximum service life. Take it to a collection point for the permissible emission value cannot be exceeded recycling of electrical and electronic equipment. under any circumstances. -
Page 27: Troubleshooting
INFORMATION ------------------------------------------------------------------------------------------------------------------ Troubleshooting Not every kind of sound interference is caused not resolve the problem satisfactorily, please visit by a defect in your hi-fi system. Cables that have www.grundig.com, product range: hi-fi, micro accidentally been disconnected, damaged CDs CD stations or contact your specialist dealer. and flat batteries for the remote control will impair functioning. If the following measures do Problem Possible cause/remedy Insert a CD. Check that the CD was inserted with the label facing upwards. »NO DISC« is displayed Moisture may have collected on the laser lens; wipe it clean. Clean the CD (see "INFORMATION") or use a different CD. The CD-RW/CD-R is not finalised. Reception signal too weak; position the wire antenna differently. Poor radio reception. Move the hi-fi further away from the television. The hi-fi system does not react Disconnect the power cord from the mains plug, reinsert it after a short when the buttons are pressed. time and switch the hi-fi back on. - Page 28 Grundig Intermedia GmbH Beuthener Strasse 41 90471 Nürnberg www.grundig.com 72011 909 2000 13/46...
