Preparation
This Quick Setup Guide will quickly and easily guide through installing this
product. For advanced setup and configuration instructions, please refer to
the Online Manual on the AirNavigator CD-ROM or the Buffalo Support Web
Page.
Package Contents Checklist
WZR-G108 Broadband Router
◗
Utility CD-ROM w/ User Manual
◗
Quick Setup Guide
◗
AC Adapter
◗
7ft. Ethernet Cable
◗
Warranty Statement
◗
If any of the contents are missing or damaged, please contact the retailer or
reseller from which this product was purchased.

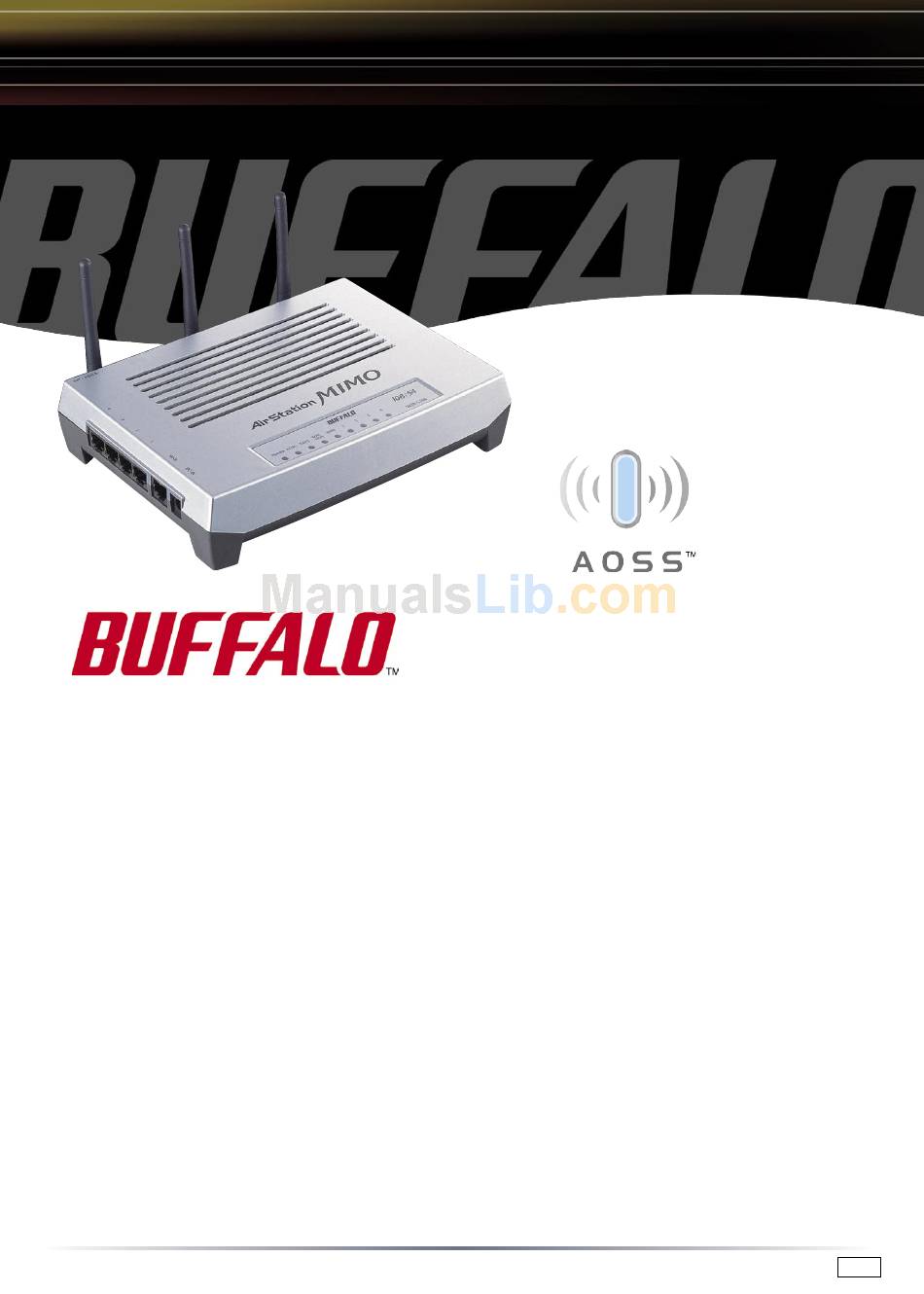

Quick Setup Guide
AirStation MIMO Wireless
www.buffalotech.com
Broadband Router
WZR-G108
PY00-31008-DM20-01
1-01
Advertisement
Table of Contents
Related Manuals for Buffalo Buffalo AirStation MIMO WZR-G108
Summary of Contents for Buffalo Buffalo AirStation MIMO WZR-G108
-
Page 1: Quick Setup Guide
Preparation This Quick Setup Guide will quickly and easily guide through installing this product. For advanced setup and configuration instructions, please refer to the Online Manual on the AirNavigator CD-ROM or the Buffalo Support Web Page. Package Contents Checklist WZR-G108 Broadband Router ◗... -
Page 2: Step 1 - Gathering Information
Step 1 - Gathering Information Depending on the type of broadband internet service you are subscribed to, different types of information may be needed to complete the setup. Acquiring this information in advance will make the setup of your AirStation router simple and quick. - Page 3 AirStation router, wait one full minute, and then power on the computer which will be used to configure the AirStation. If the red DIAG light on the AirStation is lit or flashing after several minutes of being powered on, please consult Buffalo Technology Technical Support. Internet...
- Page 4 Deciding on a Mode for Initial AirStation Configuration Wired Connection (recommended) ◗ Wireless Connection ◗ Wireless PC Step 3 - If not already done in the previous step, connect your computer to the AirStation Wired Configuration ◗ Buffalo recommends using a wired connection, meaning your computer is physically connected to the AirStation with a CAT5 straight cable plugged into one of the four LAN ports.
-
Page 5: Wireless Configuration
Wireless Configuration ◗ ■ NOTE: If configuring via a Wired Configuration, please skip to the next page! Windows 2000/XP If there is no Ethernet adapter available on the computer being used to configure the AirStation, a wireless configuration may be performed using a correctly installed 802.11b or 802.11g wireless adapter. - Page 6 Step 4 - Configure your Computer’s IP Address For Windows 98SE/ME - Right-click on Network Neighborhood or My Network Places and select Properties. - Select the Configuration tab, scroll down to TCP/IP and press Properties. - Select Obtain IP address automatically and Obtain DNS Server address automatically.
- Page 7 Step 5 - Access the AirStation Configuration Pages Launch your Web browser and type 192.168.11.1 in the address field of the Web browser window and click “Go.” *If you have previously modified the AirStation and changed the LAN IP address, enter the custom LAN IP address to access the AirStation configuration pages.
- Page 8 The first page of the configuration offers 3 distinct buttons for DSL, Cable, and Advanced settings. Select the appropriate type of internet service, referencing the information you collected during the preparation steps if needed. For future access to configuration, bookmarking this page is recommended ■...
-
Page 9: Additional Information
The AirStation can be re-configured anytime via a Web browser using a wired or wireless connection by entering 192.168.11.1 in the URL address field of the Web browser and pressing the Enter key on the keyboard. Additional Information: AOSS (AirStation One-Touch Secure System) The WZR-G108 supports Buffalo’s AOSS system for connecting AOSS compatible wireless clients to the WZR-G108. - Page 10 AOSS (AirStation One-Touch Secure System ™ ) is a simple, one-touch setup for connecting wireless clients to an access point while setting up the most secure possible connection. Users no longer need to worry about choosing the proper security protocols, IP addresses, or ESS-ID's. The intelligence of AOSS determines the most optimal connection and configures itself in seconds.
- Page 11 Note: AOSS mode will stay active for a period of two minutes. This is the time-slot required to initiate the wireless client adapter. Note: Please let go of the button immediately after the LED start flashing. If you press the button for more than 6 seconds, not AOSS but INIT mode become active.
-
Page 12: Technical Support
Equipment and the mutual recognition of their conformity (R&TTE). Copyright © 2005 Buffalo Technology, Inc. All Rights Reserved. - Buffalo Technology (USA) Inc., is part of MELCO INC., the global manufacturers of IT peripherals, including memory, networking, and multimedia products, inside many of the world’s computers.
