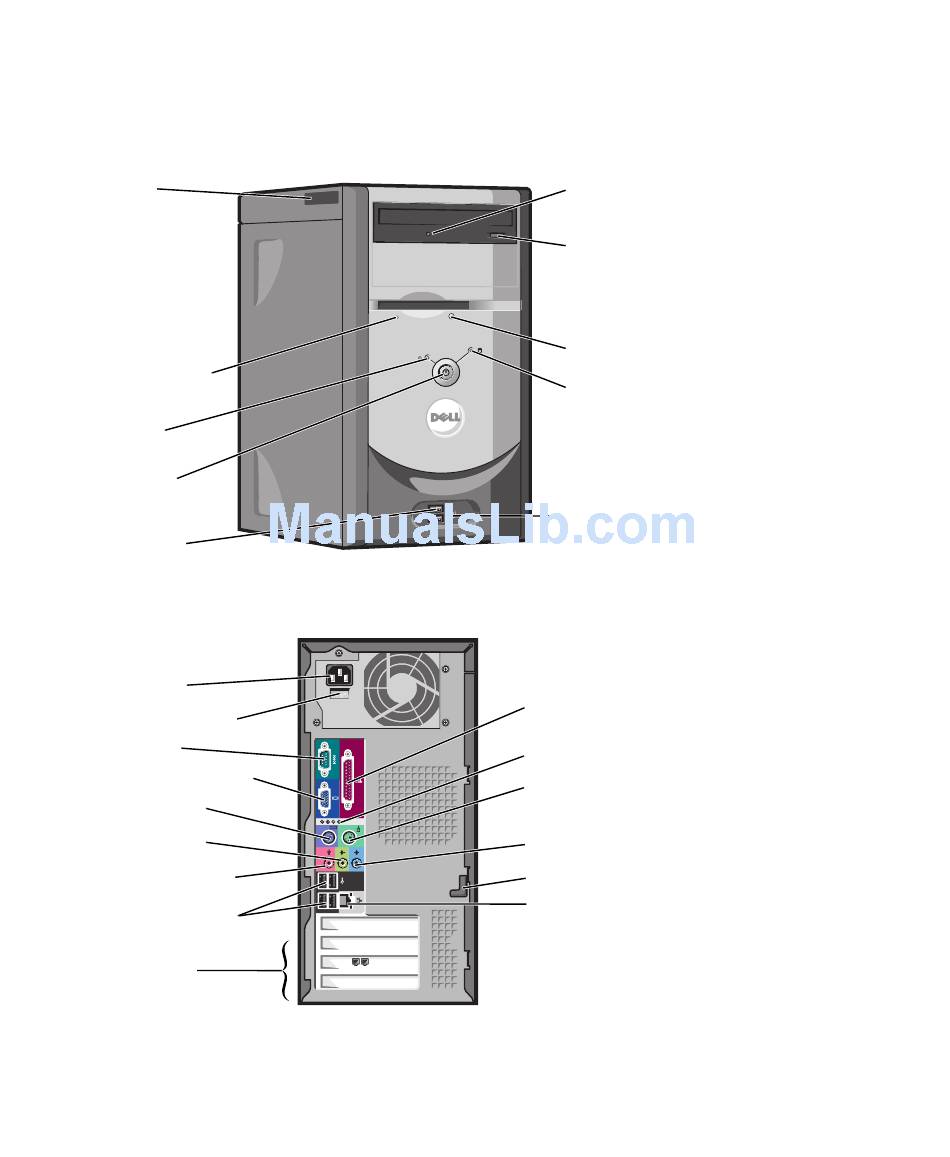

Dell™ Dimension™ 1100/B110
service tag
floppy drive light
power light
power button
USB 2.0
connectors (2)
power connector
voltage selection switch
serial connector
integrated video connector
keyboard connector
line-out connector*
microphone connector*
USB 2.0 connectors (4)
PCI card slots (3)
Model DMC
w w w . d e l l . c o m | s u p p o r t . d e l l . c o m
Owner's Manual
*On computers with integrated sound.
**May not be present on all computers.
CD or DVD drive
activity light
CD or DVD eject button
floppy drive eject button
hard-drive activity light
headphone connector
parallel connector
diagnostic lights (4)
mouse connector
line-in connector*
cover latch**
network adapter connector
