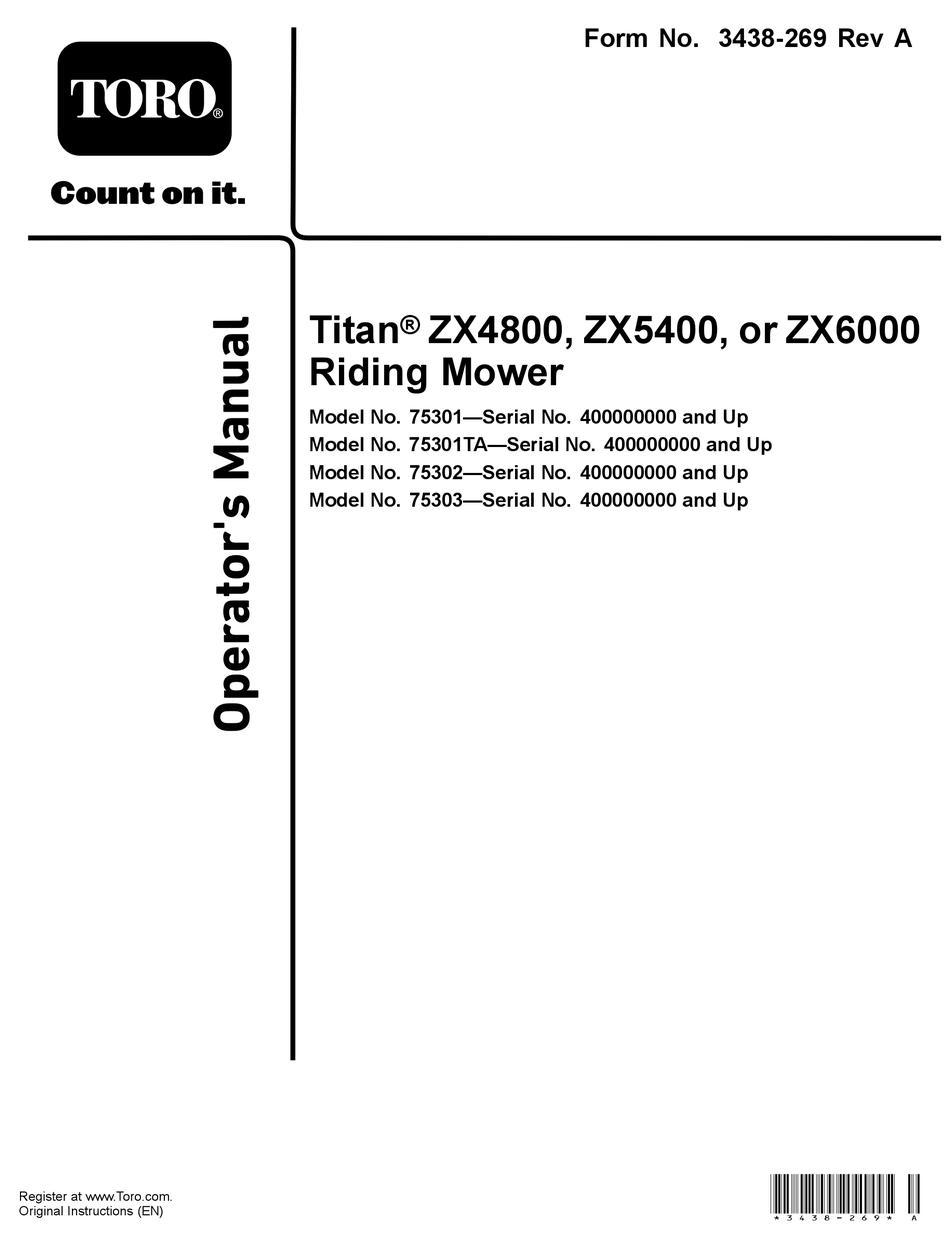

Register at www.Toro.com.
Original Instructions (EN)
Titan
®
ZX4800, ZX5400, or ZX6000
Riding Mower
Model No. 75301—Serial No. 400000000 and Up
Model No. 75301TA—Serial No. 400000000 and Up
Model No. 75302—Serial No. 400000000 and Up
Model No. 75303—Serial No. 400000000 and Up
Form No. 3438-269 Rev A
*3438-269* A
