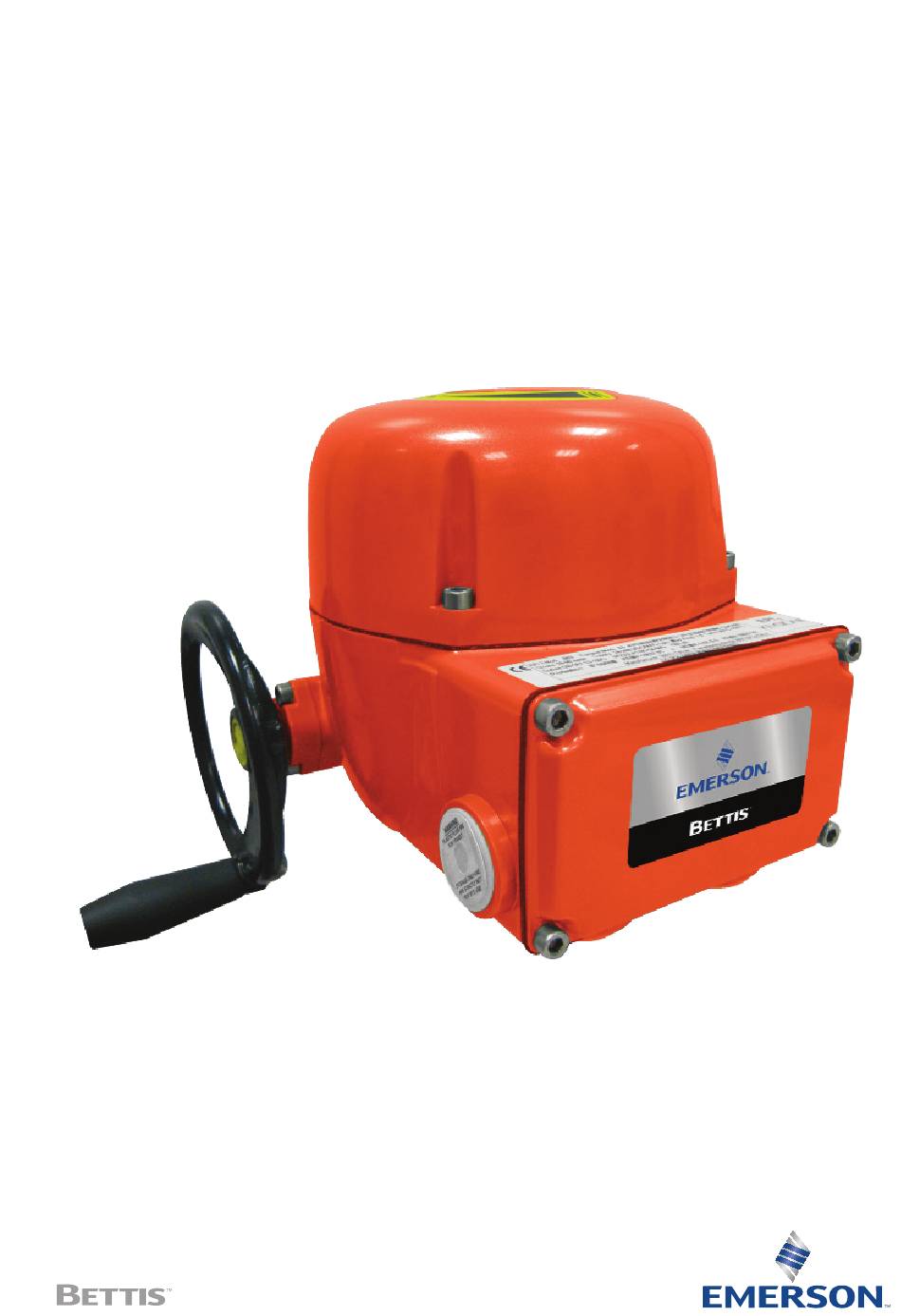

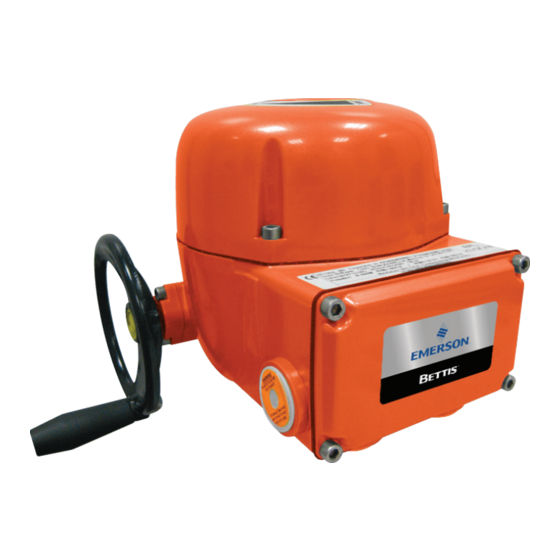

- Page 1 Installation, Operation and Maintenance Manual MAN-02-04-99-0739-EN Rev. 0 July 2020 Bettis SCE300 Logic Board Firmware Upgrade Programmer ICD-U64 Procedure...
- Page 2 Notes Installation, Operation and Maintenance Manual July 2020 MAN-02-04-99-0739-EN Rev. 0 This page intentionally left blank...
-
Page 3: Table Of Contents
Installation, Operation and Maintenance Manual Table of Contents MAN-02-04-99-0739-EN Rev. 0 July 2020 Table of Contents Section 1: Firmware Upgrade Tools ......................1 ICD-U64 Programmer Preparation ..............3 Firmware Update ..................4 Firmware Upload ................... 4 Actuator Settings Checklist ................. 16 Table of Contents... - Page 4 Notes Installation, Operation and Maintenance Manual July 2020 MAN-02-04-99-0739-EN Rev. 0 This page intentionally left blank...
-
Page 5: Section 1: Firmware Upgrade
Section 1: Firmware Upgrade MAN-02-04-99-0739-EN Rev. 0 July 2020 Section 1: Firmware Upgrade This procedure details how to program firmware on the logic board for the Bettis SCE300 electric actuator using the ICD-U64 Programmer. Tools WARNING Installation, configuration, commissioning, maintenance, and repairs must be performed by approved and qualified personnel only. - Page 6 Section 1: Firmware Upgrade Installation, Operation and Maintenance Manual July 2020 MAN-02-04-99-0739-EN Rev. 0 Figure 2 ICD-U64 CCS Programmer ICD-U64 USB Cable to PC ICD-U64 USB Programmer Coonector (Logic Board Side) Figure 3 SCE300 Logic Board Programming Actuator size: connector 250/E025 500/E051 Actuator size:...
-
Page 7: Icd-U64 Programmer Preparation
Installation, Operation and Maintenance Manual Section 1: Firmware Upgrade MAN-02-04-99-0739-EN Rev. 0 July 2020 ICD-U64 Programmer Preparation The ICD-U64 Programmer has an internal jumper to select multiple options to power the target board (actuator logic board). ICD-U64 programmer internal jumper selecting 5 V This configuration allows the ICD-64 Programmer to provide power to the logic board. -
Page 8: Firmware Update
Section 1: Firmware Upgrade Installation, Operation and Maintenance Manual July 2020 MAN-02-04-99-0739-EN Rev. 0 Firmware Update After downloading the new firmware, the actuator settings will return to their default values. As such, the settings in place prior to the firmware download will need to be set again. - Page 9 Installation, Operation and Maintenance Manual Section 1: Firmware Upgrade MAN-02-04-99-0739-EN Rev. 0 July 2020 To program the logic board as part of an actuator with no OM1 board present, carefully connect the ICD-U64 programmer as shown in the pictures and proceed in step 9.
- Page 10 Section 1: Firmware Upgrade Installation, Operation and Maintenance Manual July 2020 MAN-02-04-99-0739-EN Rev. 0 Note the position then remove the yellow position indicator to allow the OM1 board to be slightly moved to the side and have access to the programming connector found in the actuator logic board.
- Page 11 Installation, Operation and Maintenance Manual Section 1: Firmware Upgrade MAN-02-04-99-0739-EN Rev. 0 July 2020 Once all the screws have been removed, carefully place an insulator material underneath the OM1 board to protect the board from the metal spacers contacting the circuit board shorting the board or I/O's to ground. Place the OM1 board slightly to the front to allow access to the programming connector in the actuator logic board.
- Page 12 Section 1: Firmware Upgrade Installation, Operation and Maintenance Manual July 2020 MAN-02-04-99-0739-EN Rev. 0 Carefully connect the ICD-U64 programmer. Make sure no to touch any electrical contact. Programming cable Double click on CCSLOAD icon (Figure 1) to open programmer application (Figure 5). Figure 5 Firmware Upgrade...
- Page 13 Installation, Operation and Maintenance Manual Section 1: Firmware Upgrade MAN-02-04-99-0739-EN Rev. 0 July 2020 Select Device. Figure 6 Select Device PIC16F1947 Verify the correct firmware for the size and model of the actuator. Table 2. Actuator Size Firmware 063/E006 F02_63_125_v3_11.X.production.hex 125/E013 F02_63_125_v3_11.X.production.hex 250/E025...
- Page 14 Section 1: Firmware Upgrade Installation, Operation and Maintenance Manual July 2020 MAN-02-04-99-0739-EN Rev. 0 Figure 7 Load the *.hex file to the CCS Device Programmer. Figure 8 Open the *.hex file corresponding to the actuator size and firmware revision to be programmed to the actuator.
- Page 15 Installation, Operation and Maintenance Manual Section 1: Firmware Upgrade MAN-02-04-99-0739-EN Rev. 0 July 2020 Verify in the left window (File) of the CCS Device Programmer Screen shows the correct Target Chip as the right window (Target Chip). If the Target Chip field is empty, close the application and reopen, the Target Chip will be populated once the correct file name is loaded.
- Page 16 Section 1: Firmware Upgrade Installation, Operation and Maintenance Manual July 2020 MAN-02-04-99-0739-EN Rev. 0 Erase chip. Verify the entire chip is erased without errors. Figure 10 Erase Chip Firmware Upgrade...
- Page 17 Installation, Operation and Maintenance Manual Section 1: Firmware Upgrade MAN-02-04-99-0739-EN Rev. 0 July 2020 Verify that the chip is blank. Figure 11 Verify chip is blank (erased) Firmware Upgrade...
- Page 18 Section 1: Firmware Upgrade Installation, Operation and Maintenance Manual July 2020 MAN-02-04-99-0739-EN Rev. 0 Write to chip. Verify that the programming is complete and without errors. The programming is now finished. The programming should take less than 30 seconds. Remove the programing cable. Figure 12 If no OM1 board is present, proceed with step 22.
- Page 19 Installation, Operation and Maintenance Manual Section 1: Firmware Upgrade MAN-02-04-99-0739-EN Rev. 0 July 2020 Return the switch SW4 to the OFF position- the actuator will immediately start stroking if the new position request is different from the position before programming the actuator. Switch SW4 in OFF position Fill the label with the date, firmware version and technician initials, then place the...
-
Page 20: Actuator Settings Checklist
Section 1: Firmware Upgrade Installation, Operation and Maintenance Manual July 2020 MAN-02-04-99-0739-EN Rev. 0 Actuator Settings Checklist The actuator settings will be returned to default values after a firmware upgrade. To ensure the proper operation of the actuator the settings must be configured as referred in the IOM Manual Section 6.2 Local Configuration of the SCE300 and 6.2.1 SCE300 Default General Configuration. - Page 21 Installation, Operation and Maintenance Manual Notes MAN-02-04-99-0739-EN Rev. 0 July 2020 This page intentionally left blank...
- Page 22 Tianjin 301700 Székesfehérvár 8000 P. R. China Hungary The Emerson logo is a trademark and service mark of Emerson Electric Co. T +86 22 8212 3300 T +36 22 53 09 50 Bettis is a mark of one of the Emerson family of companies.
